CNF-WIFIRC-001WiFi Remote

Wi-Fi Remote USER MANUAL + WARRANTY INFO 1 WiFi Remote UM ENG.indd 112/15/11 7:17 PM FIRMWARE UPDATES GoPro releases important updates for the Wi-Fi Remote through firmware updates. Visit gopro.com/firmware to download the latest updates. WI!FI REMOTE FEATURES 1. Remote LCD Display 2. SHUTTER/SELECT Button > 3. POWER/MODE Button > 4. Remote LED Recording Light 5. Mini-USB port (cable included) 6. Removeable Wrist Strap 7. Removeable Attachment Key NOTE: The Wi-Fi Remote works by connecting to a Wi-Fi BacPac properly assembled to a HD HERO or later camera. For simplicity, however, this User Manual will refer to the Wi-Fi Remote connecting to one or more cameras. 23 1 WiFi Remote UM ENG.indd 2-312/15/11 7:17 PM SETTING UP YOUR WI!FI REMOTE PAIRING WITH YOUR CAMERA Follow these steps the first time you use your Wi-Fi Remote with a HD HERO or later camera. It is recommend that you charge your Wi-Fi Remote for two hours before first use. ! See BATTERY LEVEL AND CHARGING. [DEFINE USAGE RULES AROUND WORDS “PAIRING” AND “CONNECTING” HERE AND IN WI-FI BACPAC MANUAL] 1. Power on the Wi-Fi Remote by pressing . 2. The Remote LCD Display will show the connection animation. Press to tell the Wi-Fi Remote to begin pairing with a camera. You can press again to cancel pairing. 3. Put the camera’s Wi-Fi BacPac into connection mode. ! See the Wi-Fi BacPac User Manual for details. 4. The Wi-Fi Remote will automatically connect to the camera and display the default status screen. 5. The connection needs to occur within two minutes or the Wi-Fi Remote will return to the default status screen. Press again to restart pairing. A"er this first connection is made, the Wi-Fi Remote will automatically connect to the camera(s) with which it last connected, assuming they are within range. To connect to a camera manually, ! see PAIRING ADDITIONAL CAMERAS. [double check wording here] PAIRING ADDITIONAL CAMERAS The Wi-Fi Remote remains in connection mode (! see PAIRING YOUR CAMERA) for two minutes, giving you time to set up and connect multiple cameras. A single Wi-Fi Remote can control up to 50 HD HERO or later cameras. To connect to additional cameras when the Wi-Fi Remote is no longer in connection mode: 1. Press to scroll through the Wi-Fi Remote modes to CONNECTION [comfirm screen graphic]. 2. Press to begin searching for cameras within range for two minutes. The Remote LCD Display will show the connection animation. If no connection is made during the two minute window, you will need to reactivate connection mode by pressing . 3. Put each additional camera’s Wi-Fi BacPac into connection mode. ! See the Wi-Fi BacPac User Manual for details. 4. The Wi-Fi Remote will automatically connect to the new camera(s) and display the default status screen showing the number of cameras currently connected. [confirm screen image] PROTIP: Your cameras do not have to be in the same Camera Mode. Experiment with using a mix of Video and Photo modes like Time Lapse or Burst. ! See CHANGING CAMERA MODES below for details on changing camera modes using the Wi-Fi Remote. 45 1 WiFi Remote UM ENG.indd 4-512/15/11 7:17 PM USING YOUR WI!FI REMOTE POWERING ON/OFF When the Wi-Fi Remote is OFF or in power-saving mode, press to power ON. Powering OFF the Wi-Fi Remote will also power OFF the connected cameras. The Wi-Fi BacPacs will remain powered ON so that you can quickly reconnect the Wi-Fi Remote when you power ON again. 1. With the remote ON or in power-saving mode, press and hold for three seconds. 2. All connected cameras will power OFF. Their Wi-Fi BacPacs will remain powered ON. 3. The Wi-Fi Remote will then power OFF as well. BATTERY LEVEL AND CHARGING It is recommended that you charge your Wi-Fi Remote for two hours before first use. You can check the Wi-Fi Remote’s battery level on the BATTERY STATUS screen. ! See SELECTING REMOTE MODES below for instructions. To charge the Wi-Fi Remote, connect it to a computer or USB power supply with the included USB cable. REMOTE LED RECORDING LIGHT When connected to a single HD HERO2 or later camera, the Remote LED Recording Light will flash the same patterns as the camera. Remote State Comments/Questions Starting Up x 3 Make duration same as HD1, HD2 CapturingContinuous, 1 flash/sec while capture is occuring, as on the HD2. If multiple cameras are controlled by the remote, the LED continues to flash as long as at least one camera is capturing. If cameras are capturing in multimode, the LED flash is based on the the most continuous mode in operation; for example, if one camera is shooting video, the flash reflects the video capture. The order of modes from most continuous to least continuous is: video, time lapse, burst, still. Capturing Stopped x 3 Same as HD1, HD2. Error Occurs x 5 Fast flashing (as on HD2). An error can occur during capturing, this LED pattern will disrupt the capture pattern. Shutting Down x 6 Make duration same as HD1, HD2 When the Wi-Fi Remote is connected to more than one camera, the Remote LED Recording Light will remain lit as long as at least one camera is capturing video or photos. 67 1 WiFi Remote UM ENG.indd 6-712/15/11 7:17 PM CONTROLLING YOUR CAMERA DIRECTLY When the Wi-Fi Remote is connected to a single HD HERO2 or later camera, the remote mirrors the controls on the camera: pÐÐ2FCÐ0CKMRCÐ*!"Ð"GQNJ?WÐQFMUQÐRFCÐQ?KCÐGLDMPK?RGMLÐ as the camera’s LCD Display pÐÐ2FCÐ5G $GÐ0CKMRC¦QÐ and buttons work the same as those on the camera ! See your camera’s User Manual for instructions. ACCESSING REMOTE SETTINGS WHEN CONNECTED TO ONE HD HERO2 OR LATER CAMERA When the Wi-Fi Remote is connected to a single camera, a REMOTE SETTINGS menu [screen icon?] is available. Scroll through camera modes using and select REMOTE SETTINGS [screen graphic?] using . Within the REMOTE SETTINGS menus, press to scroll through the settings screens in the following order: Battery LevelDisplays the Wi-Fi Remote battery’s remaining charge. Connection Press to tell the Wi-Fi Remote to beginning pairi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 2106 Date: March 19, 2012 Subject: FCC Application for FCC ID: CNF-WIFIRC-001 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Woodman Labs dba GoPro Address : 2450 Cabrillo Highway Ste 250, Half Moon Bay, California 94019 United States Signature : _________________________________ Name and Job Title. : John Wyatt / PQA Director E-mail : [email protected] Tel. : 415-738-2480-x7110

Date: March 19, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: CNF-WIFIRC-001 To Whom it may concern, We, Woodman Labs dba GoPro, declare that the device (FCC ID: CNF-WIFIRC-001) 1. is acting as slave and operating on 2.4GHz band. 2. Ad Hoc function is available. 3. does not work in non-US/Canada frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Woodman Labs dba GoPro Address : 2450 Cabrillo Highway Ste 250, Half Moon Bay, California 94019 United States Signature : _________________________________ Name and Job Title. : John Wyatt / PQA Director E-mail : [email protected] Tel. : 415-738-2480-x7110

Confidentiality Request Letter Date: 2012/3/19 Federal Communications Commission Authorization and Evaluation Division FCC ID：CNF-WIFIRC-001 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : Woodman Labs dba GoPro Address : 2450 Cabrillo Highway Ste 250, Half Moon Bay, California 94019 United States Signature : _________________________________ Name and Job Title. : John Wyatt / PQA Director E-mail : [email protected] Tel. : 415-738-2480-x7110

Date: 2012/3/19 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: CNF-WIFIRC-001 Product name: WIFI Remote To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model ARMTE-001 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Woodman Labs dba GoPro Address : 2450 Cabrillo Highway Ste 250, Half Moon Bay, California 94019 United States Signature : _________________________________ Name and Job Title. : John Wyatt / PQA Director E-mail : [email protected] Tel. : 415-738-2480-x7110

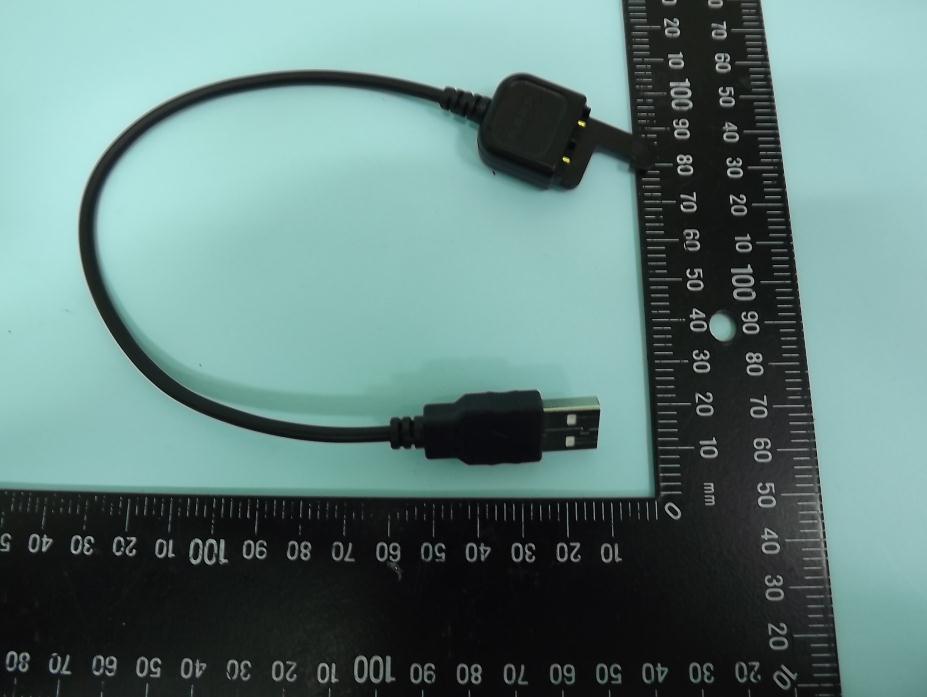

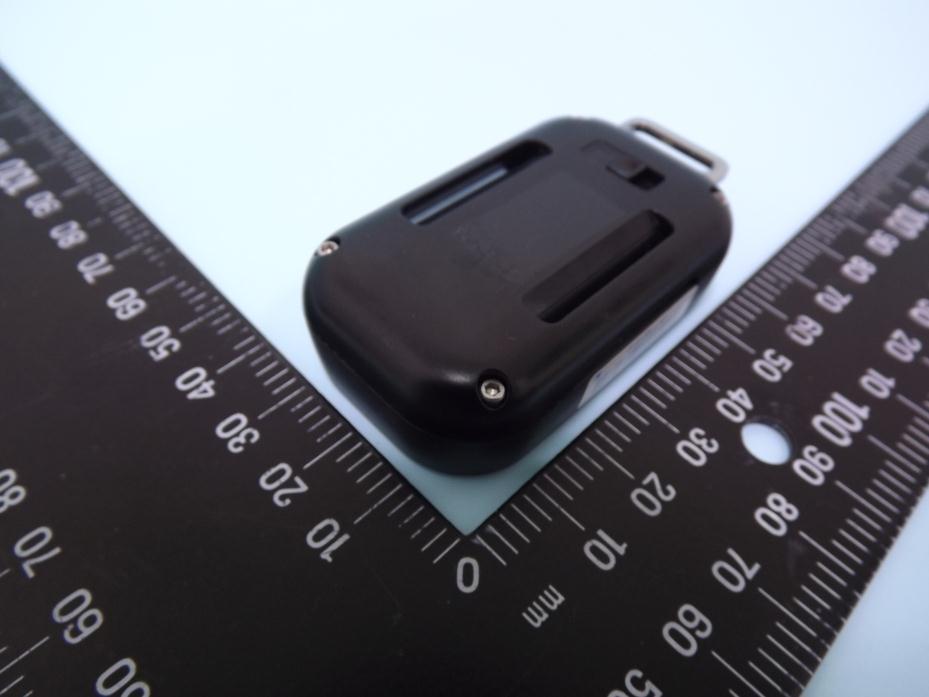

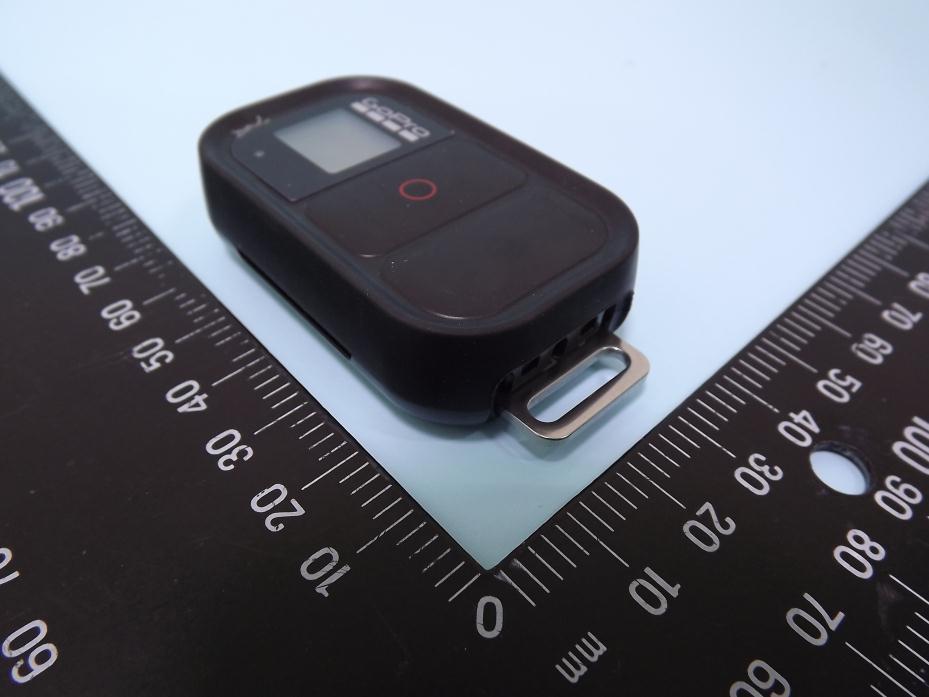

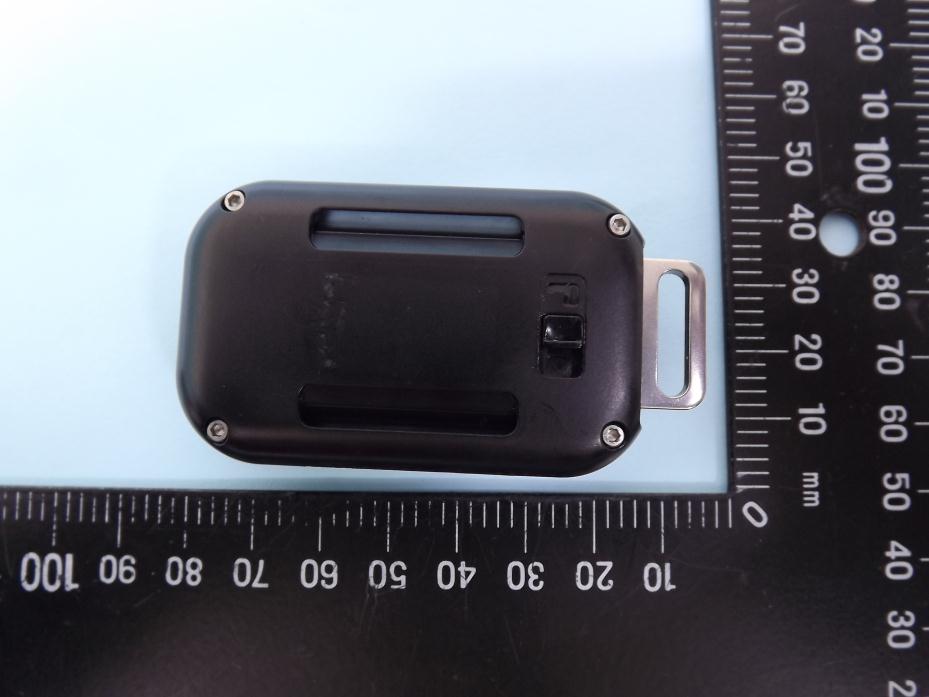

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B9 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B10 OF B10 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 02, 2012 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : CNF-WIFIRC-001 FCC SAR Test Report Report No. : FA1N2949-01 FCC SAR Test Report APPLICANT : Woodman Labs dba GoPro EQUIPMENT : WIFI Remote BRAND NAME : GoPro MODEL NAME : ARMTE-001 MARKETING NAME : Wi-Fi Remote FCC ID : CNF-WIFIRC-001 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 18, 2012 and completely tested on Jan. 18, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : CNF-WIFIRC-001 FCC SAR Test Report Report No. : FA1N2949-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose o…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR1N2949-01 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : WIFI Remote Brand Name : GoPro Model No. : ARMTE-001 Filing Type : New Application Applicant : Woodman Labs dba GoPro 2450 Cabrillo Highway Ste 250 Half Moon Bay California United States 94019 FCC ID : CNF-WIFIRC-001 Manufacturer : Chicony Electronics Co., Ltd No.25, Wugong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) Received Date : Dec. 09, 2011 Final Test Date : Feb. 09, 2012 Statement Test result included is only for the 802.11b/g/n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 21, 2012 FAX : 886-3-318-0055 FCC ID : CNF-WIFIRC-001 FCC TEST REPORT Report No. : FR1N2949-01 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Accessories ..............................................................................................................................................................................................3 2.3 Table for Filed Antenna ............................................................................................................................................................................3 2.4 Table for Carrier Frequencies ..................................................................................................................................................................4 2.5 Table for Test Modes ...............................................................................................................................................................................5 2.6 Table for Testing Locations ......................................................................................................................................................................5 2.7 Table for Supporting Units .......................................................................................................................................................................5 2.8 Table for Parameters of Test Software Setting ........................................................................................................................................5 2.9 EUT Operation during Test ......................................................................................................................................................................6 2.10 Test Configuration ....................................................................................................................................................................................6 3 TEST RESULT ......................................................................................................................................................... 8 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................8 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................12 3.3 Power Spectral Density Measurement ...................................................................................................................................................14 3.4 6dB Spectrum Bandwidth Measurement ...............................................................................................................................................22 3.5 Radiated Emissions Measurement ........................................................................................................................................................36 3.6 Band Edge and Fundamental Emissions Measurement ........................................................................................................................60 3.7 Antenna Requirements ..........................................................................................................................................................................67 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 68 5 TEST LOCATION ................................................................................................................................................... 70 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 71 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A7 APPENDIX B. PHOTOGRAPHS OF EUT ..................................................................................................... B1 ~ …

Text truncated - open the document above for the full version.

Page No. : A1 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 Appendix A. Test Photos Page No. : A2 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : A3 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 SIDE VIEW Page No. : A4 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : A5 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : A6 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : A7 of A7 FCC ID CNF-WIFIRC-001 F FCC TEST REPORT Report No. : FR1N2949-01 Test Fixture FRONT VIEW REAR VIEW

SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Mar. 19, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CNF-WIFIRC-001 FCC SAR Test Report Report No. : FA1N2949-01 Appendix E. Test Setup Photos Front of the DUT with Phantom 1 cm Gap Back of the DUT with Phantom 1 cm Gap Right Side of the DUT with Phantom 1 cm Gap Left Side of the DUT with Phantom 1 cm Gap Top Side of the DUT with Phantom 1 cm Gap Bottom Side of the DUT with Phantom 1 cm Gap
