CNFCHDHN301HERO3 SILVER EDITION

V 4 (MB) September 4 HERO3 Silver Edition TITLE PAGE HERO3 | User Manual + Warranty Info PROMO PAGE Join the GoPro party at facebook.com/gopro to see what other GoPro owners are capturing. Share your footage and be a part of the GoPro TABLE OF CONTENTS [CREATE ToC ONCE CONTENT FINAL] ACCESSORY PAGES [CREATE ONCE CONTENT FINAL] HERO3 1. LED Indicator Lights (Red 1 ) 2. Shutter/Select Button [S graphic] 3. LCD Status Screen 4. Wi-Fi Indicator Light (Blue 2 ) [W graphic] 5. HDMI Port (cable not included) 6. microSD Card Slot (card not included) 7. Power/Mode Button [mode graphic] 8. HERO Port 9. USB Port (composite A/C cable/3.5mm stereo mic adapter/file transfer/charge/playback accessory connection) 10. Battery Door 11. Sound Indicator (located bottom of camera) 12. Wi-Fi ON/OFF CAMERA UPDATES GoPro periodically releases updates and new features to its HERO line. Check to see if an update is available for your camera. Visit gopro.com/update to download the latest firmware. 1 Red flashes during capture; solid when charging 2 Blue flashes when connected to Wi-Fi USING YOUR HERO3: BASICS GETTING STARTED >>camera image with memory card inserted/battery being placed into camera 1. Insert microSD, microSDHC or microSDXC into card slot with label facing forward, narrowest part of card first. Speed Class 4 or higher rating recommended. 2. Place battery into camera. 3. Charge battery. Included lithium-ion battery comes partially charged. Connect included USB cable to camera; connect other end of cable to power source such as computer, GoPro wall or auto charger. · Red Indicator Lights are solid while charging. · Red Indicator Lights turns off when fully charged. > See BATTERY LIFE for more information. DEFAULT SETTINGS The HERO3 camera has been configured to start with the following default settings: Video Resolution Video 960p-30fps (NTSC) Photo Resolution 11 Megapixels (MP) Time Lapse Interval 0.5 seconds Power Up Mode Video Protune Off Wi-Fi Off > See SETTINGS menu to make changes to how the camera captures video and photos. POWERING ON AND OFF To power ON: Press and release [mode]. The red LED Indicator Lights will flash three times and the Sound Indicator will emit three beeps. To power OFF: Press [mode] for two seconds, then release. The red LED Indicator Lights will flash several times and the Sound Indicator will emit seven beeps. Pro Tip: Need one-touch ON operation that starts video record immediately? Set camera to One Button mode. USING YOUR HERO3: CAMERA MODES OVERVIEW The HERO3 features several camera operation modes. Most modes may be changed in the Settings menu. Video Record video Photo Capture single photo Photo Burst Capture up to 10 photos in 1 second 3 Time Lapse Capture 1 photo every 0.5 seconds 4 Settings Change camera settings Playback 5 View photos and videos on LCD Touch, TV/HDTV (via micro-HDMI cable) > See ENTERING SETTINGS MENU for more information. RECORDING VIDEO [video icon] Verify camera is in Video mode. If it is not showing, press [mode] repeatedly until it appears. The default video setting is 960p-30fps (NTSC). The LCD screen displays [video icon], FOV, video resolution setting, fps, number of videos stored on the memory card, balance of time remaining on card before full, and battery capacity. To start recording: Press and release [S]. The camera will emit one beep and the red LED Indicator Lights will flash while recording. To stop recording: Press and release [S]. The red LED Indicator Lights will flash three times and the camera will emit three beeps. The HERO3 automatically stops recording when memory card is full or battery is out of power. Video is saved before the camera powers off. 3 Settings include: take 3 photos in 1 second, 5 photos in 1 second, 10 photos in 1 second, 10 photos in 2 seconds 4 Settings include: take 1 photo every .5, 1, 2, 5, 10, 30 or 60 seconds 5 Playback icon displayed only when GoPro LCD BacPac or other viewing device is connected PRO TIP: Activate One Button mode to have camera automatically begin recording when powered ON. To halt recording and keep camera on, press and hold [S] for two seconds. To halt recording and turn camera off, press and hold [mode] for two seconds. >See One Button mode for more information. TAKING A PHOTO [photo icon] Verify camera is in Photo mode. If it is not showing, press [mode] repeatedly until it appears. The default photo size is 11 MP Wide. The LCD screen displays [photo icon], FOV, photo resolution size (MP), number of photos stored on the memory card, number of photos that can be taken before full, and battery capacity. To take a photo: Press and release [S]. The camera will beep one time and the red LED Indicator Lights will flash. PHOTO BURST MODE [burst icon] In Photo Burst mode the camera will take multiple photos in a short period of time. The default setting is 10 photos in 1 second. Verify camera is in Photo Burst mode. If it is not showing, press [mode] repeatedly until it appears. The LCD screen displays [burst icon], FOV, photo resolution size (MP), the Photo Burst setting, number of photos stored on the memory card, number of photos that can be taken before full, and battery capacity. To take Photo Burst mode series: Press and release [S]. The red LED Indicator Lights will flash and the camera will beep 10 times. Pro Tip: Tracking fast action subjects and want to improve your chance for nailing a sharp shot? Set camera to Photo Burst and select best from the series. TIME LAPSE PHOTO [time lapse icon] Time Lapse Photo mode captures a series of photos at 0.5, 1, 2, 5, 10, 30 or 60 second intervals. When using 0.5 seconds, it is recommended to use Speed Class 10 or higher memory card. The default Time Lapse setting is 0.5 seconds. Verify camera is in Time Lapse mode. If not showing, press [mode] repeatedly until it appears. The LCD screen display [time lapse icon], FOV, photo resolution size (MP), the Time Lapse setting, number of photos stored on the memory card, number of photos that…

Text truncated - open the document above for the full version.

WARRANTY + DISCLAIMERS ENGLISH: Limited Warranty: GoPro warrants that for a period of one (1) year from original date of purchase the product will be free from defects in materials and workmanship under normal use. In the event of a defect, please contact GoPro Customer Support gopro.com/support for assistance. GoPro’s sole obligation under this warranty will be at its option to repair or replace the product. This warranty does not apply to products damaged by misuse, accident, or normal wear and tear. Because of possible user resealing error, this product is not warranted against water housing leakage or any resulting damage. ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY. GOPRO DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL GOPRO BE LIABLE FOR ANY LOSS OF DATA, REVENUE OR PROFIT, OR FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, HOWEVER CAUSED, ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF GOPRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL GOPRO’S LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary by jurisdiction. IC Regulations: This device complies with Industry Canada license-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference and; (2) this device must accept any interference--including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. The County Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/ Canada markets, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: IC Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528. The symbol above means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and; (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The highest SAR value for the device as reported to the FCC is 1.26 W/kg (CHDHE-301), 1.23 W/kg (CHDHN-301) when placed next to the body. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: CNFCHDHE301, CNFCHDHN301. This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. DECLARATION OF CONFORMITY GoPro, 3000 Clearview Way, San Mateo, CA 94402 USA Declares under our sole responsibility that the product: Product Name: HERO3 Model Number: CHDHE-301 CHDHN-301 CHDHX-301 Conforms to the following Product Specification…

Text truncated - open the document above for the full version.

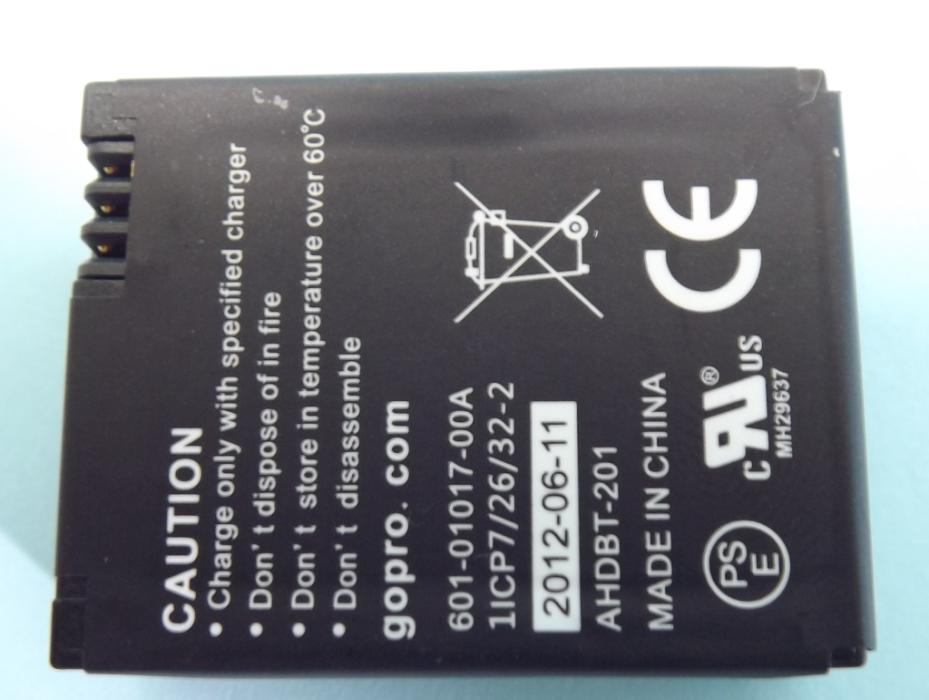

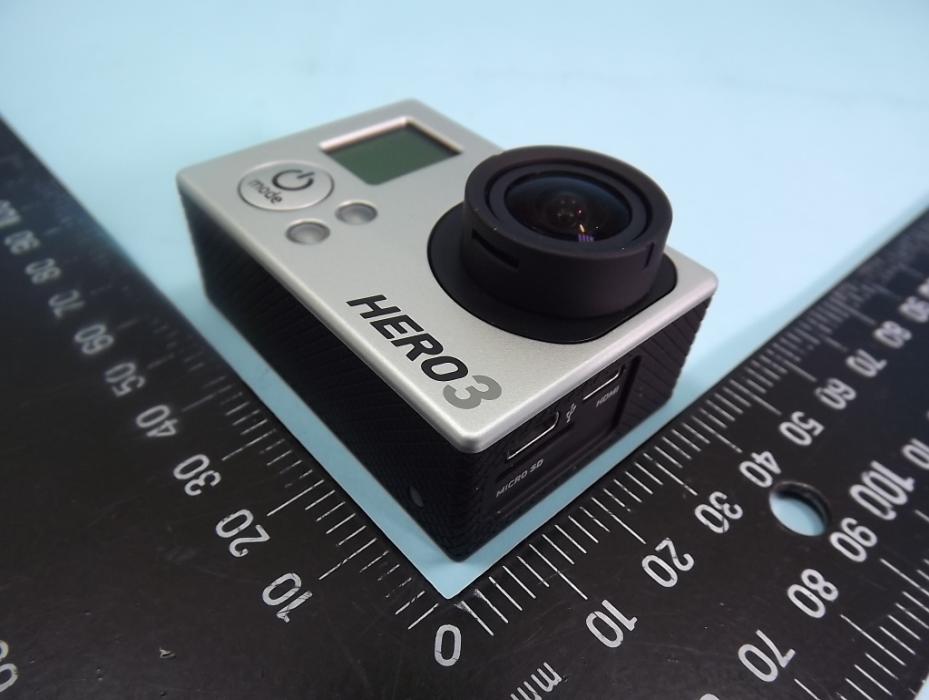

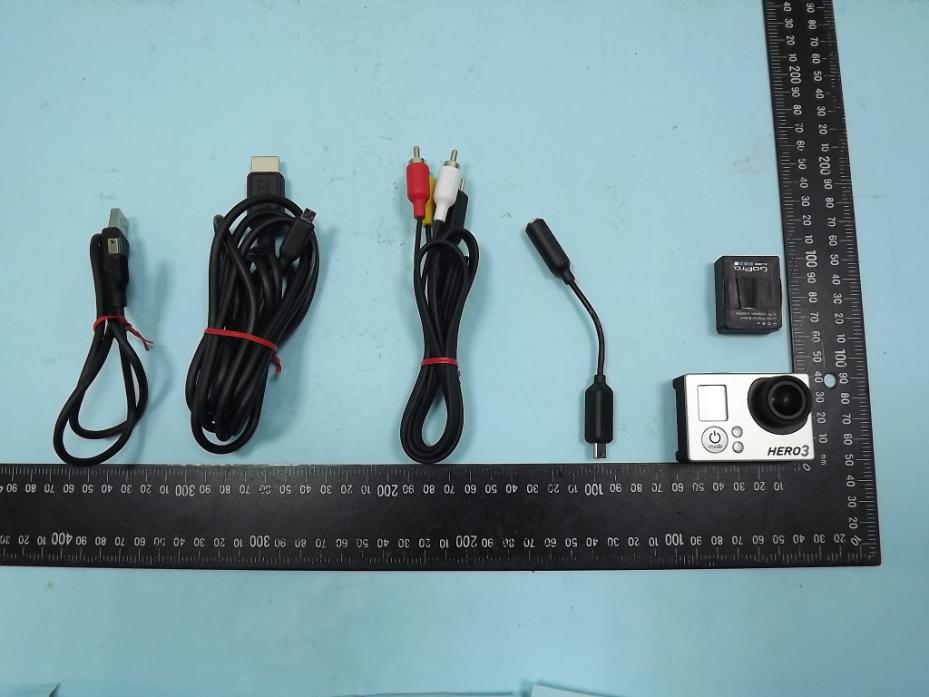

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 Battery

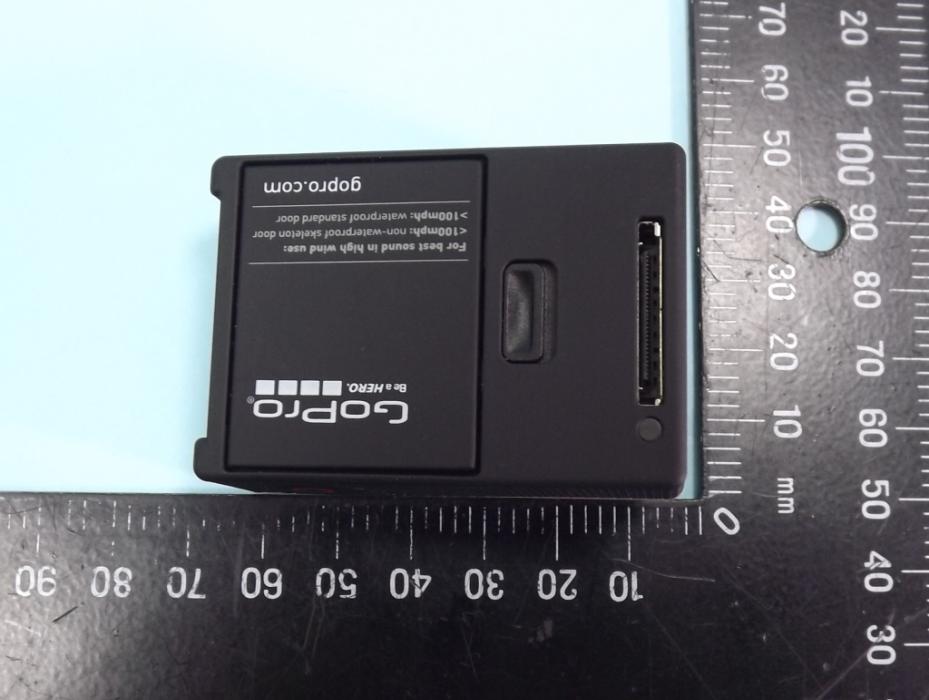

Battery Compartment Label Location Back of EUT

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B9 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B10 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B11 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B12 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B13 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B14 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B15 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 HDMI Cable FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B16 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 USB Cable FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B17 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 AV Cable FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B18 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 Audio Cable FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B19 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B20 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B21 OF B21 TEL : 886-3-327-3456 ISSUED DATE : Sep. 12, 2012 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 28 TEL : 886-3-327-3456 Report Issued Date : Sep. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CNFCHDHN301 FCC SAR Test Report Report No. : FA280303 FCC SAR Test Report APPLICANT : Woodman Labs, Inc. (dba GoPro) EQUIPMENT : HERO3 Silver Edition BRAND NAME : GoPro MODEL NAME : CHDHN-301 MARKETING NAME : HERO3 Silver Edition FCC ID : CNFCHDHN301 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Aug. 15, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 28 TEL : 886-3-327-3456 Report Issued Date : Sep. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CNFCHDHN301 FCC SAR Test Report Report No. : FA280303 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 6 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation ....................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ..........................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 System Check_Body_2450MHz_120815 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2450 MHz; σ = 1.969 mho/m; ε r = 52.278; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 15.0 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.482 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 30.811 mW/g SAR(1 g) = 13 mW/g; SAR(10 g) = 5.67 mW/g Maximum value of SAR (measured) = 14.7 W/kg 0 dB = 14.7 W/kg = 23.35 dB W/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #01 WLAN2.4G_802.11b_Front_0cm_Ch11 DUT: 280303 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2462 MHz; σ = 1.986 mho/m; ε r = 52.236; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch11/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.0318 W/kg Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.132 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.064 mW/g SAR(1 g) = 0.031 mW/g; SAR(10 g) = 0.018 mW/g Maximum value of SAR (measured) = 0.0334 W/kg 0 dB = 0.0334 W/kg = -29.53 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #02 WLAN2.4G_802.11b_Back_0cm_Ch11 DUT: 280303 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2462 MHz; σ = 1.986 mho/m; ε r = 52.236; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch11/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.594 W/kg Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.723 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.991 mW/g SAR(1 g) = 0.425 mW/g; SAR(10 g) = 0.201 mW/g Maximum value of SAR (measured) = 0.447 W/kg 0 dB = 0.447 W/kg = -6.99 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #03 WLAN2.4G_802.11b_Left Side_0cm_Ch11 DUT: 280303 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2462 MHz; σ = 1.986 mho/m; ε r = 52.236; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch11/Area Scan (41x51x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.158 W/kg Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.950 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.290 mW/g SAR(1 g) = 0.138 mW/g; SAR(10 g) = 0.076 mW/g Maximum value of SAR (measured) = 0.149 W/kg 0 dB = 0.149 W/kg = -16.54 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #04 WLAN2.4G_802.11b_Right Side_0cm_Ch11 DUT: 280303 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2462 MHz; σ = 1.986 mho/m; ε r = 52.236; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch11/Area Scan (41x51x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.0883 W/kg Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.082 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.238 mW/g SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.034 mW/g Maximum value of SAR (measured) = 0.104 W/kg 0 dB = 0.104 W/kg = -19.66 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #05 WLAN2.4G_802.11b_Top Side_0cm_Ch1 DUT: 280303 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2412 MHz; σ = 1.918 mho/m; ε r = 52.404; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch1/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 1.13 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.481 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 2.201 mW/g SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.453 mW/g Maximum value of SAR (measured) = 1.10 W/kg 0 dB = 1.10 W/kg = 0.83 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/8/15 #06 WLAN2.4G_802.11b_Top Side_0cm_Ch6 DUT: 280303 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120815 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOV…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 2450 MHz – Body

SPORTON INTERNATIONAL INC. Page No. : 1 of 55 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Tes…

Text truncated - open the document above for the full version.
