CNFCHDHX301HERO3 BLACK EDITION

User ManUal + Warranty Info HERO3 UM / v6 09.19.12 HERO3_UM_silver_Edition_ENG_MASTER.indd 19/19/12 1:01 PM 23 table of contents Accessories4 Mounts5 HERO3 Features6 Product Update8 Basics8 Camera Modes11 Advanced Menu Settings17 Additional Menu Settings24 Storage/SD Cards30 System Requirements31 Transferring Files32 Battery Life34 Important Warning Messages36 Camera Assembly37 Customer Support45 Join the GoPro party at facebook.com/gopro to see what other GoPro owners are capturing. Share your footage and be a part of the GoPro revolution! HERO3_UM_silver_Edition_ENG_MASTER.indd 2-39/19/12 1:01 PM 45 Wear It. MoUnt It. loVe It.More at gopro.com CORE ACCESSORIES Floaty Backdoor Rechargeable Li-Ion Battery Anti-Fog Inserts Lens Replacement Kit Replacement HD Housing HD Skeleton Housing 16GB SD Memory Card 32GB SD Memory Card PREMIuM ACCESSORIES 3D HERO ® System LCD BacPac ™ Battery BacPac ™ MOuNTS Helmet Front Mount Chest Mount Harness Handlebar Seatpost Mount Surf HERO Mounting Kit HD Wrist HousingHead StrapSuction Cup MountVented Helmet Strap Roll Bar MountTripod MountMilitary Helmet Mount Grab Bag of Mounts Curved Adhesive Mounts Flat Adhesive Mounts HERO3_UM_silver_Edition_ENG_MASTER.indd 4-59/19/12 1:01 PM 67 Hero3 featUres 1. LED Indicator Lights (Red) 2. SHUTTER/SELECT Button 3. LCD Status Screen 4. Wi-Fi Indicator Light (Blue ) 5. POWER/MODE Button 6. HDMI Port (Cable not included) 7. microSD TM Card Slot (Card not included) 8. USB Port (Composite A/C cable/3.5mm stereo mic adapter) 9. HERO Port 10. Battery Door 11. Sound Indicator 12. Wi-Fi ON/OFF Hero3 featUres HERO3_UM_silver_Edition_ENG_MASTER.indd 6-79/19/12 1:01 PM 89 UsInG yoUr Hero3: basIcs UsInG yoUr Hero3: basIcs GETTING STARTED Before using your HERO3 for the first time: 1. Insert microSD, microSDHC™ or microSDXC™ card into the card slot with label facing forward, narrowest part of card first. A Speed Class 10 rating is recommended. 2. Place battery into camera. 3. Charge battery. Included lithium-ion battery comes partially charged. Connect included USB cable to camera; connect other end of cable to power source such as computer, GoPro Wall Charger or GoPro Auto Charger. * Red Indicator Lights are on when charging. * Red Indicator Lights turn off when fully charged. * No damage will occur to the camera or battery if used prior to full charge. ‣ See BATTERY LIFE for more information. CAMERA DEFAuLT SETTINGS The HERO3 camera has been pre-configured to start with the following default settings: Video ResolutionVideo 960p-30fps (NTSC) Photo Resolution11 Megapixels (MP) Time Lapse Interval0.5 seconds Burst Photo10 photos in 1 second Wi-FiOff PRO TIP: Want to customize how your camera captures photos and video? ‣ See SETTINGS MENu to make changes. caMera UPDates GoPro periodically releases updates and new features to its HERO line. Check to see if an update is available for your camera. See gopro.com/update to download the latest firmware. HERO3_UM_silver_Edition_ENG_MASTER.indd 8-99/19/12 1:01 PM 1011 POWERING ON AND OFF To power ON: Press and release . Red LED Indicator Lights flash three times and Sound Indicator emits three beeps. To power OFF: Press for two seconds, then release. Red LED Indicator Lights flash several times and Sound Indicator emits seven beeps. PRO TIP: Need one-touch ON operation to start recording video immediately? Set camera to One Button mode. OVERVIEW HERO3 features several camera operation modes. Most mode settings may be changed in the Settings menu. VIDEORecord video PHOTOCapture single photo BuRST PHOTOCapture up to 10 photos in 1 second TIME LAPSECapture 1 photo ever y 0.5 seconds PL AYBACK Play photos and videos on LCD Touch BacPac, T V/HDT V (via optional MicroHDMI cable, A/V composite cable) UsInG yoUr Hero3: basIcs UsInG yoUr Hero3: basIcs HERO3_UM_silver_Edition_ENG_MASTER.indd 10-119/19/12 1:01 PM 1213 UsInG yoUr Hero3: caMera MoDes VIDEO To take a video, verify camera is in Video mode. If is not showing, press repeatedly until it appears. Default video setting is 960p-30 fps (frames per second) for NTSC. The LCD screen displays , FOV (field of view), video resolution and fps, number of video(s) stored on the memory card, balance of time remaining on card before full and battery capacity. To start recording: Press and release . Camera emits one beep and red LED Indicator Lights flash while recording. To stop recording: Press and release . Red LED Indicator Light flash three times and camera emits three beeps to indicate recording has stopped. Camera automatically stops recording when memory card is full or battery is out of power. Video is saved before the camera powers off. PRO TIP: Activate One Button mode to have camera automatically begin recording when powered ON. To stop recording and keep camera on, press and hold for two seconds. To stop recording and turn camera off, press and hold for two seconds. ‣ See One Button mode for more information. PHOTO To take a photo, verify camera is in Photo mode. If not showing, press repeatedly until it appears. Default photo size is 11 MP Wide. The LCD screen displays , FOV, photo resolution size (MP), number of photos stored on memory card, number of photos that can be taken before full and battery capacity. To take a photo: Press and release . Camera beeps one time and red LED Indicator Lights flash. UsInG yoUr Hero3: caMera MoDes HERO3_UM_silver_Edition_ENG_MASTER.indd 12-139/19/12 1:01 PM 1415 UsInG yoUr Hero3: caMera MoDesUsInG yoUr Hero3: caMera MoDes PHOTO BuRST In Photo Burst mode camera takes multiple photos in a short period of time. Default Photo Burst setting is 10 photos in 1 second. To take a Burst Photo series, verify camera is in Photo Burst mode. If not showing, press repeatedly until it appears. The LCD screen displays , FOV, photo resolution size (MP), default Burst Photo mode setting, number of photos stored on memory card, number of photos that can be taken before full and battery capacity. To take a Burst Photo series: P…

Text truncated - open the document above for the full version.

WARRANTY + DISCLAIMERS ENGLISH: Limited Warranty: GoPro warrants that for a period of one (1) year from original date of purchase the product will be free from defects in materials and workmanship under normal use. In the event of a defect, please contact GoPro Customer Support gopro.com/support for assistance. GoPro’s sole obligation under this warranty will be at its option to repair or replace the product. This warranty does not apply to products damaged by misuse, accident, or normal wear and tear. Because of possible user resealing error, this product is not warranted against water housing leakage or any resulting damage. ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY. GOPRO DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL GOPRO BE LIABLE FOR ANY LOSS OF DATA, REVENUE OR PROFIT, OR FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, HOWEVER CAUSED, ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF GOPRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL GOPRO’S LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary by jurisdiction. IC Regulations: This device complies with Industry Canada license-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference and; (2) this device must accept any interference--including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. The County Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/ Canada markets, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: IC Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF BATTERIES ACCORDING TO INSTRUCTIONS. The symbol above means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and; (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government and Industry Canada of the Canadian Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and IC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC and IC, with the EUT transmitting at the specified power level in different channels. The highest SAR value for the device as reported to the FCC and IC is 1.26 W/kg (body), 1.496 W/kg (head), for CHDHE-301; 1.23 W/kg (body) for CHDHN-301; 1.39 W/kg (body) for CHDHX-301. The FCC and IC have granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC and IC RF exposure guidelines. SAR information on this device is on file with the FCC and IC, and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: CNFCHDHE301, CNFCHDHN301, CNFCHDHX301. This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulle…

Text truncated - open the document above for the full version.

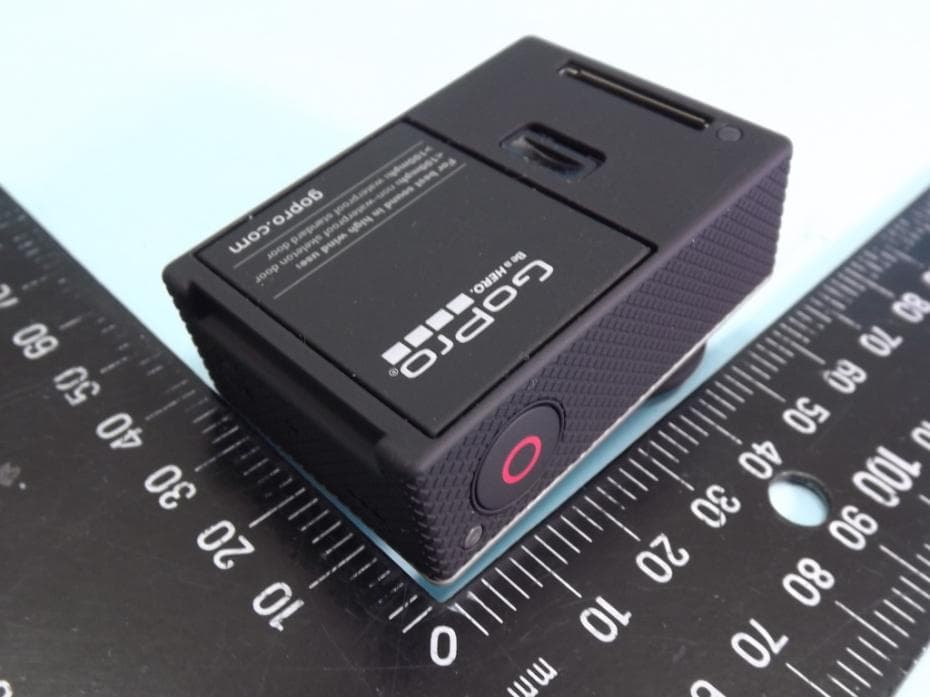

FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B1 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B2 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973

Battery Compartment Label Location Back of EUT

2012-08-03 2012-08-03 N/A LABEL, REGULATORY, UNIBODY, TODOS 09/05/2012 4 Todos: Model: CHDHX-301 FCC ID: CNFCHDHX301 IC: 10193A-CHDHX301 N-136 Scale: 1/1 Label Position: 0.18 7mm 5mm 5mm BK70% 0.18 0.180.18 N136 GoPro MODEL: CHDHX-301 5V ,1A FCC ID: CNFCHDHX301 IC: 10193A-CHDHX301 MADE IN CHINA N136 GoPro MODEL: CHDHX-301 5V ,1A FCC ID: CNFCHDHX301 IC: 10193A-CHDHX301 MADE IN CHINA 2. Total thickness: 0.05mm +/-0.01 3. Printing Color: BK100+BK70% 4. Size: 31 x 27mm (R=0.2 x4) 5. Unit: mm 25# Silver Label + UV Coating Scale: 1/1 27+/-0.1 31+/-0.1 R=0.2 1 2 3 445-01980-000

FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B3 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B4 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B5 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B6 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B7 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B8 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B9 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B10 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B11 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B12 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 HDMI Cable FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B13 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 USB Cable FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B14 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 AV Cable FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B15 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 Audio Cable FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B16 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973 Battery FCC RADIO TEST REPORT Report No. : FR290420 SPORTON International Inc. PAGE NUMBER : B17 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Oct. 03, 2012 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 28 TEL : 886-3-327-3456 Report Issued Date : Oct. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CNFCHDHX301 FCC SAR Test Report Report No. : FA290420 FCC SAR Test Report APPLICANT : Woodman Labs, Inc (dba GoPro) EQUIPMENT : HERO3 Black Edition BRAND NAME : GoPro MODEL NAME : CHDHX-301 MARKETING NAME : HERO3 Black Edition FCC ID : CNFCHDHX301 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Sep. 18, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 28 TEL : 886-3-327-3456 Report Issued Date : Oct. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : CNFCHDHX301 FCC SAR Test Report Report No. : FA290420 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 6 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation ....................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup .............................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 System Check_Body_2450MHz_120918 D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2450 MHz; σ = 1.969 mho/m; ε r = 52.278; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 14.2 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.358 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 27.557 mW/g SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.96 mW/g Maximum value of SAR (measured) = 13.9 W/kg 0 dB = 13.9 W/kg = 22.86 dB W/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #01 WLAN2.4G_802.11b_Front_0cm_Ch6 DUT: 290420 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch6/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.166 W/kg Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.287 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.276 mW/g SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.066 mW/g Maximum value of SAR (measured) = 0.149 W/kg 0 dB = 0.149 W/kg = -16.54 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #02 WLAN2.4G_802.11b_Back_0cm_Ch6 DUT: 290420 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch6/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.424 W/kg Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.680 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.724 mW/g SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.156 mW/g Maximum value of SAR (measured) = 0.378 W/kg 0 dB = 0.378 W/kg = -8.45 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #03 WLAN2.4G_802.11b_Left Side_0cm_Ch6 DUT: 290420 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch6/Area Scan (41x51x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.151 W/kg Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.348 V/m; Power Drift = 0.135 dB Peak SAR (extrapolated) = 0.208 mW/g SAR(1 g) = 0.114 mW/g; SAR(10 g) = 0.052 mW/g Maximum value of SAR (measured) = 0.143 W/kg 0 dB = 0.143 W/kg = -16.89 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #04 WLAN2.4G_802.11b_Right Side_0cm_Ch6 DUT: 290420 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch6/Area Scan (41x51x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 0.287 W/kg Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.647 V/m; Power Drift = 0.141 dB Peak SAR (extrapolated) = 0.760 mW/g SAR(1 g) = 0.298 mW/g; SAR(10 g) = 0.123 mW/g Maximum value of SAR (measured) = 0.343 W/kg 0 dB = 0.343 W/kg = -9.29 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #05 WLAN2.4G_802.11b_Top Side_0cm_Ch1 DUT: 290420 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2412 MHz; σ = 1.918 mho/m; ε r = 52.404; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch1/Area Scan (41x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 1.70 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.198 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 2.802 mW/g SAR(1 g) = 1.39 mW/g; SAR(10 g) = 0.619 mW/g Maximum value of SAR (measured) = 1.58 W/kg 0 dB = 1.58 W/kg = 3.97 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/18 #06 WLAN2.4G_802.11b_Top Side_0cm_Ch6 DUT: 290420 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120918 Medium parameters used: f = 2437 MHz; σ = 1.951 mho/m; ε r = 52.324; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2012/4/23 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 2450 MHz – Body

FCC RADIO TEST REPORT Report No. : FR290420 SPORTON INTERNATIONAL INC. Page No. : 1 of 55 TEL …

Text truncated - open the document above for the full version.
