USER MANUAL To download this user manual in a different language, visit gopro.com/getstarted. Pour télécharger ce manuel de l’utilisateur dans une autre langue, rendez-vous sur gopro.com/getstarted. Wenn Sie dieses Benutzerhandbuch in einer anderen Sprache herunterladen möchten, besuchen Sie gopro.com/getstarted. Per scaricare questo manuale utente in un’altra lingua, visita gopro.com/getstarted. Para descargar este manual de usuario en otro idioma, visite gopro.com/getstarted. Para baixar este manual do usuário em outro idioma, acesse gopro.com/getstarted. このユーザーマニュアルの他言語版をダウンロードするに は、 gopro.com/getstartedにアクセスしてください。 若要下載其他語言版本的使用說明書，請前往： gopro.com/getstarted。 如需下载本用户手册的其他语言版本，请访问 gopro.com/getstarted。 Чтобы загрузить это руководство пользователя на другом языке, посетите страницу gopro.com/getstarted. / Join the GoPro Movement twitter.com/GoPro facebook.com/GoPro youtube.com/GoPro instagram.com/GoPro 45 / Table of Contents Troubleshooting57 Customer Support59 Regulatory Information59 The Basics6 Getting Started8 Camera Displays15 Camera Modes18 Navigating Settings Menus19 Camera Icons21 Camera Menus22 Capturing Video24 Capturing Photos26 Capturing Burst Photos27 Capturing Time Lapse Photos28 Connecting to the GoPro App29 Transferring Files to a Computer30 Playing Back Video and Photos31 Settings36 Setup Mode42 Important Messages48 Using the Mounts52 Battery55 / Table of Contents 67 7. Micro-USB Port 8. microSD Card Slot (microSD card not included) / The Basics 1. Shutter/Select Button 2. Camera Status Screen 3. Settings/Tag Button 4. Power/Mode Button 5. Wireless Status Light (blue) 6. Camera Status Light (red) / The Basics 9. Touch Display 89 / Getting Started/ Getting Started CHARGING THE BATTERY The integrated battery comes partially charged. No damage occurs to the HERO+ LCD camera or battery if used before being fully charged. 1. Unlatch and open the backdoor. Note: The camera cannot be removed from the housing. 2. Charge the battery using the included USB cable. Note: The battery cannot be removed from the camera. When charging the camera with a computer, be sure that the computer is connected to a power source. If the camera status lights do not turn on to indicate that the battery is charging, use a different USB port. Slim housing surfboard mount installation Slim housing remove camera Slim housing insert camera Slim housing closedSwapping housing doors Quick Release Buckle + Thumb Screw + Slim housing = Complete Unit NOTICE: Only use USB charging adapters marked 5V 1A. If you do not know the voltage and amperage of your charger, use the included USB cable to charge the camera from your computer. For fastest charging, make sure the camera is powered off after connecting it to a computer or USB charging adapter. When the camera is powered off, the camera status light turns on during charging and turns off when charging is complete. For more battery information, see Battery (page 55). WARNING: Use caution when using your GoPro as part of your active lifestyle. Always be aware of your surroundings to avoid injury to yourself and others. Abide by all local laws when using your GoPro and related mounts and accessories, including all privacy laws, which may restrict recording in certain areas. 1011 INSERTING + REMOVING MICROSD CARDS Use brand name memory cards that meet these requirements: • microSD, microSDHC, or microSDXC (sold separately) • Capacity up to 64GB • Minimum of Class 10 or UHS-I rating For a list of the recommended microSD cards, visit gopro.com/ support. NOTICE: Use care when handling memory cards. Avoid liquids, dust, and debris. As a precaution, power off the camera before inserting or removing the card. Check manufacturer guidelines regarding use in acceptable temperature ranges. / Getting Started POWERING ON + OFF To Power On: Press the Power/Mode button once. The camera status lights flash three times and the sound indicator emits three beeps. When the camera status screen displays information, your camera is on. To Power Off: Press and hold the Power/Mode button for two seconds. The camera status lights flash several times and the sound indicator emits seven beeps. / Getting Started 1213 PRO TIP: If QuikCapture is enabled, you can quickly turn your camera on and immediately begin capturing video or Time Lapse photos just by pressing the Shutter/Select button. Short press for video, press and hold for Time Lapse photos. For details, see QuikCapture (page 45). / Getting Started/ Getting Started CAMERA BACKDOORS Your HERO+ LCD camera comes with three types of backdoors. The Standard Backdoor makes the housing waterproof to 131’ (40m). Use this door to protect the camera from water, dirt, sand and other environmental hazards. This backdoor reduces wind noise at speeds greater than 100mph. The Touch Backdoor lets you use the touch display and provides waterproof protection to 10’ (3m). NOTICE: To prevent damage to the touch display, do not exceed this depth when using this backdoor. Touch functions do not work underwater. In extreme altitude and temperatures, keep the housing unlatched until you use the camera. The Skeleton Backdoor is not waterproof. This backdoor enables access to the touch display, provides enhanced cooling, and allows more direct access to the microphone. Use this backdoor only when sand, excessive dirt/dust, and water damage are not a risk. This backdoor is also recommended for use inside vehicles. 1415 / Camera Displays HERO+ LCD features a status screen on the front of the camera and a larger touch display on the back . CAMERA STATUS SCREEN The camera status screen on the front of the camera displays the following information about modes and settings: CAMERA SOFTWARE UPDATES To get the latest features and best performance from your HERO+ LCD camera, make sure you are using the most current camera software. You can update your camera software via the GoPro App or GoPro Studio software. For more information, visit gopro.com/getstarted. CAMERA …

Text truncated - open the document above for the full version.

3000 Clearview Way, San Mateo, CA 94402 415.738.2480 www.gopro.com FCC Authorization March 18, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, GoPro Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, RICHARD BARBIN / Senior QA Compliance Engineer Email: [email protected] 3000 Clearview Way San Mateo, CA 94402

3000 Clearview Way, San Mateo, CA 94402 650.332.7600 www.gopro.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: May 1, 2015 Subject: Authorized Individual To Whom It May Concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Richard Barbin to act on behalf of GoPro Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorized individual may also assign another party to act as an authorized agent. This authorization is valid until further written notice from the grantee contact. Steven Kim GoPro, Inc. 3000 Clearview Way | San Mateo, CA 94402

3000 Clearview Way, San Mateo, CA 94402 415.738.2480 www.gopro.com FCC Confidential Authorization March 18, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: CNFHWHL1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, GoPro Inc., hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description As well as short-term confidential treatment of information accompanying this application as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, RICHARD BARBIN / Senior QA Compliance Engineer Email: [email protected] 3000 Clearview Way San Mateo, CA 94402

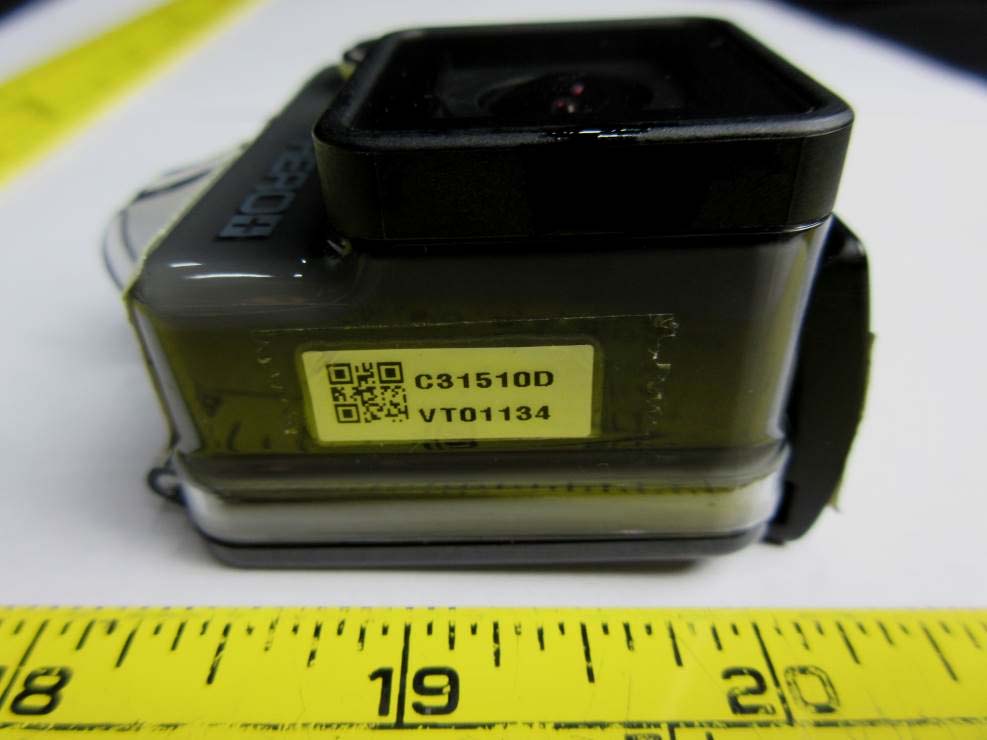

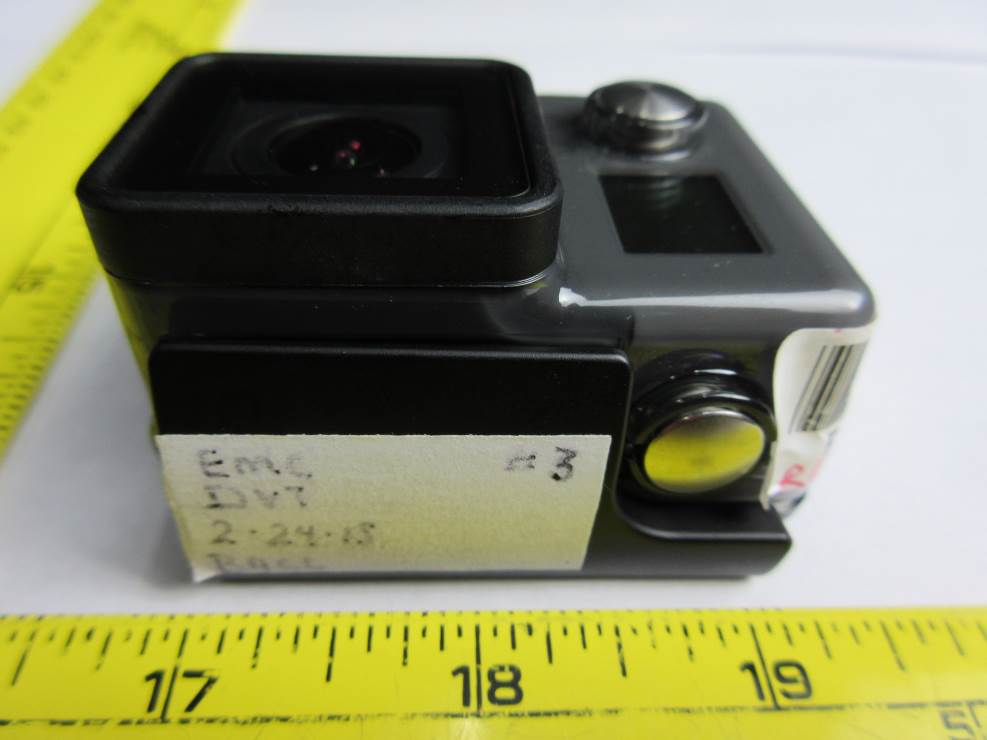

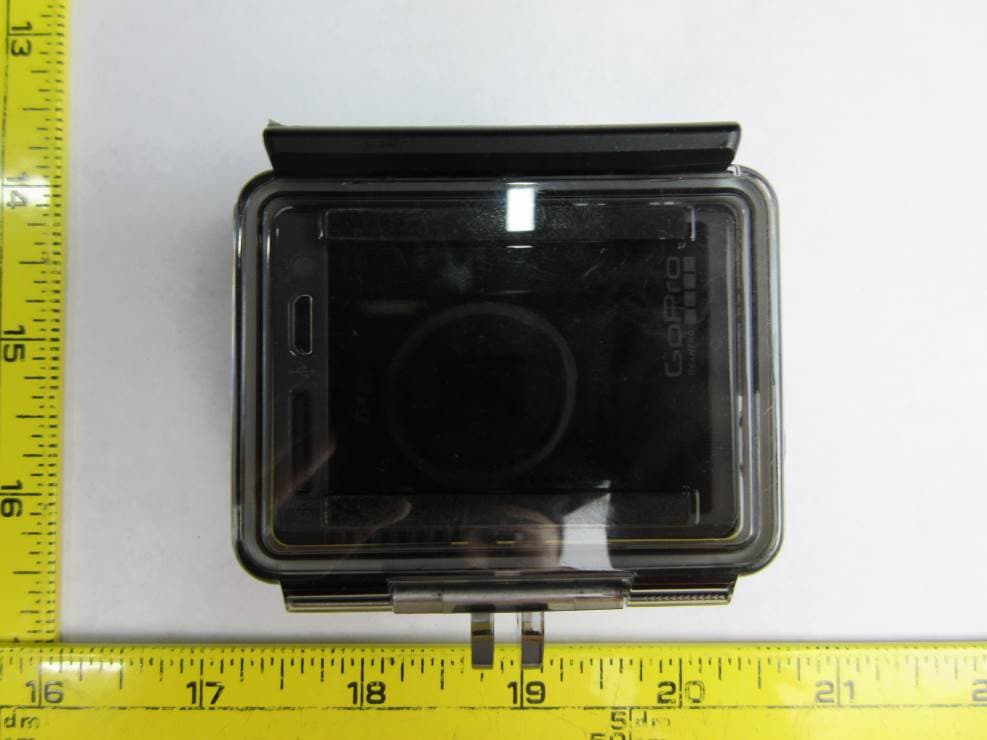

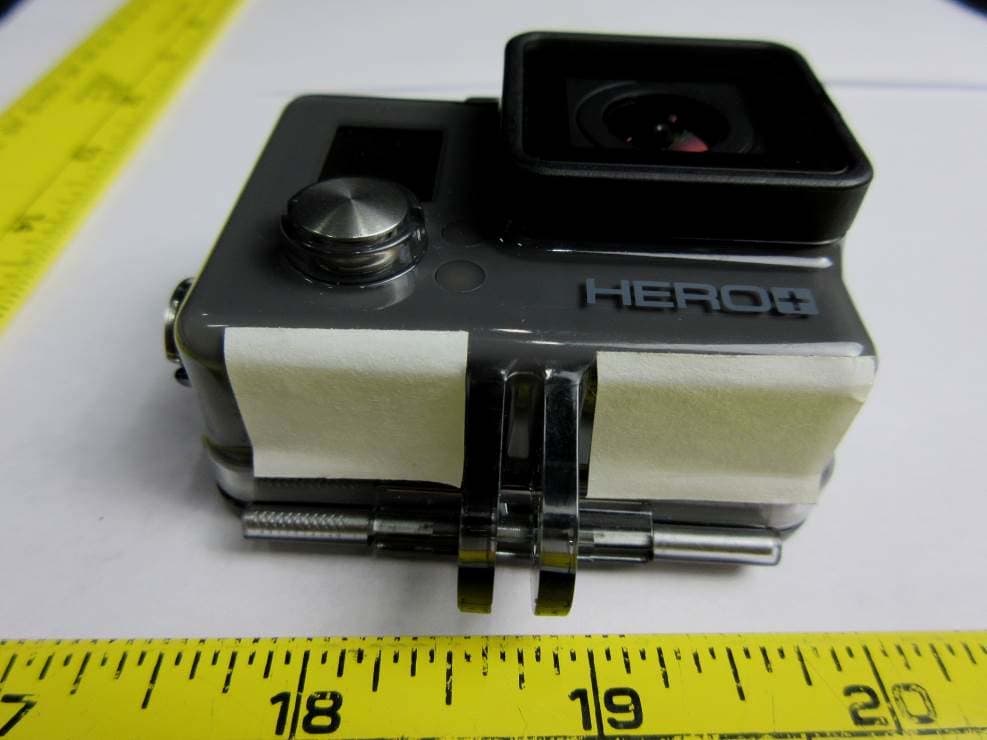

GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 69 of 74 FCC Part 15C/IC RSS-210 Test Report 14 Exhibit C – EUT Photographs 14.1 EUT Photo – Front View 14.2 EUT Photo – Back View GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 70 of 74 FCC Part 15C/IC RSS-210 Test Report 14.3 EUT Photo – Top Side View 14.4 EUT Photo – Bottom Side View GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 71 of 74 FCC Part 15C/IC RSS-210 Test Report 14.5 EUT Photo – Right Side View 14.6 EUT Photo – Left Side View

HWHL1 PRODUCT LABEL Label Location: The label will be placed at the bottom of the camera

GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 72 of 74 FCC Part 15C/IC RSS-210 Test Report 14.7 EUT- Open Case View 14.8 EUT- Main Board Top View GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 73 of 74 FCC Part 15C/IC RSS-210 Test Report 14.9 EUT- Main Board Bottom View 14.10 EUT- Lens View GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 74 of 74 FCC Part 15C/IC RSS-210 Test Report 14.11 EUT- LI-ION Battery View --- END OF REPORT ---

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) SAR EVALUATION REPORT For GoPro, Inc. 3000 Clearview Way, San Mateo, CA 94402, USA FCC ID: CNFHWHL1 IC: 10193A-HWHL1 Report Type: Original Report Product Type: Portable Camera with 2.4 GHz WLAN and BLE Prepared By: Simon Ma Test En gineer Report Number: R1503022-FCC IC SAR Rev C Report Date: 2015-05-14 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-FCC IC SAR Rev C SAR Evaluation Report Page 2 of 66 Summary of Test Results Rule Part(s): FCC §2.1093, IC RSS-102, Issue 5 Test Procedure(s): IEEE 1528: 2013, KDB 248227, KDB 447498, KDB 865664 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: Portable Device Modulation Type: CCK, OFDM, GFSK TX Frequency Range: 802.11b/g/n20: 2412-2462 MHz Bluetooth LE: 2402-2480 MHz Maximum Conducted Power: 802.11b/g/n: 15.59 dBm BLE: 6.56 dBm Antenna Type(s) Tested: Internal Antenna Body-Worn Accessories: None Face-Head Accessories: None Battery Type (s) Tested: Li-Ion: 3.8V/1160mAh Max. SAR Level (s) Measured: Level (W/Kg) Position Operational Band/Mode 0.206 Left Side Touch 2.4 GHz GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-FCC IC SAR Rev C SAR Evaluation Report Page 3 of 66 TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................ 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 6 1.2 EUT TECHNICAL SPECIFICATION .................................................................................................................... 6 2 TEST FACILITY .................................................................................................................................................. 7 3 REFERENCE, STANDARDS AND GUIDELINES .......................................................................................... 8 3.1 SAR LIMITS .................................................................................................................................................... 9 4 EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 10 4.1 EQUIPMENT LIST & CALIBRATION INFO........................................................................................................ 10 5 EUT TEST STRATEGY AND METHODOLOGY ......................................................................................... 11 5.1 TEST POSITIONS FOR BODY-SUPPORTED DEVICE AND OTHER CONFIGURATIONS ............................................ 11 5.2 CHEEK/TOUCH POSITION .............................................................................................................................. 12 5.3 EAR/TILT POSITION....................................................................................................................................... 12 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................................. 13 5.5 SAR EVALUATION PROCEDURE .................................................................................................................... 14 5.6 TEST METHODOLOGY ................................................................................................................................... 14 6 DASY4 SAR EVALUATION PROCEDURE .................................................................................................. 15 6.1 POWER REFERENCE MEASUREMENT ............................................................................................................. 15 6.2 AREA SCAN ................................................................................................................................................... 15 6.3 ZOOM SCAN .................................................................................................................................................. 16 6.4 POWER DRIFT MEASUREMENT ....................................................................................................................... 16 6.5 Z-SCAN ......................................................................................................................................................... 16 7 DESCRIPTION OF TEST SYSTEM ................................................................................................................ 17 7.1 TISSUE DIELECTRIC PARAMETERS ................................................................................................................ 18 7.2 MEASUREMENT SYSTEM DIAGRAM .............................................................................................................. 19 7.3 SYSTEM COMPONENTS .................................................................................................................................. 20 8 SAR MEASUREMENT SYSTEM VERIFICATION ..................................................................................... 28 8.1 SYSTEM ACCURACY VERIFICATION .............................................................................................................. 28 8.2 SAR SYSTEM VERIFICATION SETUP AND PROCEDURE .................................................................................. 28 8.…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15, SUBPART C IC RSS-210, ISSUE 8, DECEMBER 2010 TEST AND MEASUREMENT REPORT For GoPro, Inc. 3000 Clearview Way, San Mateo, CA 94402, USA FCC ID: CNFHWHL1 IC: 10193A-HWHL1 Report Type: Original Report Product Type: Portable Camera with 2.4 GHz WLAN and BLE Prepared By: Chen Ge Test Engineer Report Number: R1503022-247 Rev A Report Date: 2015-05-05 Reviewed By: Bo Li RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 2 of 74 FCC Part 15C/IC RSS-210 Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility ........................................................................................................................................................ 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification ......................................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................................... 7 2.3 Equipment Modifications.................................................................................................................................... 7 2.4 Local Support Equipment ................................................................................................................................... 7 2.5 EUT Internal Configuration Details .................................................................................................................... 7 2.6 Power Supply and Line Filters ............................................................................................................................ 7 2.7 Interface Ports and Cabling ................................................................................................................................. 8 3 Summary of Test Results ............................................................................................................................................ 9 4 FCC §15.247(i), §2.1093 & IC RSS-102 – RF Exposure ........................................................................................... 10 4.1 Applicable Standards ........................................................................................................................................ 10 4.2 Test Result ........................................................................................................................................................ 10 5 FCC §15.203 & IC RSS-Gen §8.3 – Antenna Requirements ................................................................................... 11 5.1 Applicable Standards ........................................................................................................................................ 11 5.2 Antenna Description ......................................................................................................................................... 11 6 FCC §15.207 & IC RSS-Gen §8.8 – AC Line Conducted Emissions ....................................................................... 12 6.1 Applicable Standards ........................................................................................................................................ 12 6.2 Test Setup ......................................................................................................................................................... 13 6.3 Test Procedure .................................................................................................................................................. 13 6.4 Corrected Amplitude & Margin Calculation ..................................................................................................... 13 6.5 Test Setup Block Diagram ................................................................................................................................ 14 6.6 Test Equipment List and Details ....................................................................................................…

Text truncated - open the document above for the full version.

GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 66 of 74 FCC Part 15C/IC RSS-210 Test Report 13 Exhibit B – Test Setup Photographs 13.1 Radiated Emission below 1 GHz Front View at 3 Meters 13.2 Radiated Emission below 1 GHz Rear View at 3 Meters GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 67 of 74 FCC Part 15C/IC RSS-210 Test Report 13.3 Radiated Emission above 1 GHz Front View at 3 Meters 13.4 Radiated Emission above 1 GHz Rear View at 3 Meters GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-247 Rev A Page 68 of 74 FCC Part 15C/IC RSS-210 Test Report 13.5 AC Line Conducted Emission Front View 13.6 AC Line Conducted Emission Side View

GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-FCC IC SAR Rev B SAR Evaluation Report Page 60 of 66 17 Appendix G – Test Setup Photos 17.1 EUT Bottom Side Touch to the Flat Phantom 17.2 EUT Right Side Touch to the Flat Phantom GoPro, Inc. FCC ID: CNFHWHL1, IC: 10193A-HWHL1 Report Number: R1503022-FCC IC SAR Rev B SAR Evaluation Report Page 61 of 66 17.3 EUT Left Side Touch to the Flat Phantom
