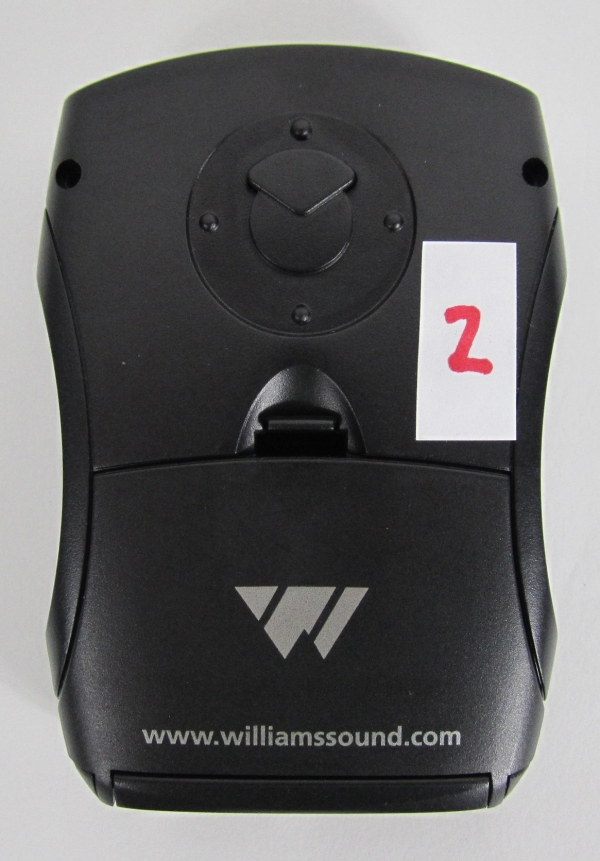

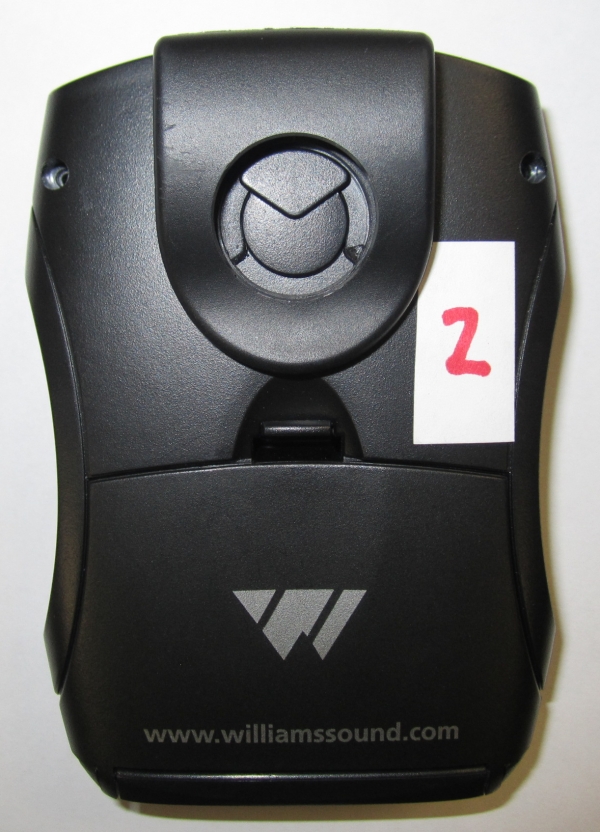

CNMT46Portable Hearing Assistance Transmitter

PPA T46 Manual Page 1 Preliminary Personal PA™ Tour Guide System Transmitter Model PPA T46 Manual and User Guide Contents System Overview ............................................................................................................................................................. 2 Compatible Accessories ................................................................................................................................................... 2 Safety Information ........................................................................................................................................................... 3 Hearing Safety ............................................................................................................................................................. 3 Battery Safety and Disposal ......................................................................................................................................... 3 Pacemaker Safety ......................................................................................................................................................... 3 RECYCLING INSTRUCTIONS .................................................................................................................................. 3 Using the T46 Transmitter ............................................................................................................................................... 4 Getting Started ............................................................................................................................................................. 4 Muting the Microphone ................................................................................................................................................ 4 Setting the Basic Features ............................................................................................................................................ 5 Table 1: Menu Controlled Features .............................................................................................................................. 5 Setting the Advanced Features ..................................................................................................................................... 6 Table 2: Frequencies, Channel Numbers, and Receiver Compatibility ......................................................................... 6 Using the Auxiliary Jack .............................................................................................................................................. 6 Locking the Menu ........................................................................................................................................................ 6 Restoring Factory Defaults ........................................................................................................................................... 7 Using the PPA T46 in Dual Preset Mode .......................................................................................................................... 7 Turning Dual Preset Mode On or Off: .......................................................................................................................... 7 Setting Up the Dual Presets .......................................................................................................................................... 8 Switching Between Dual Presets .................................................................................................................................. 8 Battery Information .......................................................................................................................................................... 8 Installation/Removal .................................................................................................................................................... 8 IMPORTANT WARNINGS: ....................................................................................................................................... 9 Tips for Using the System ................................................................................................................................................ 9 Using Multiple Systems for Multiple Groups ................................................................................................................... 9 Troubleshooting ............................................................................................................................................................... 9 Lifetime PLUS Limited Warranty ...................................................................................................................................11 PPA T46 Manual Page 2 Preliminary System Overview The Personal PA™ Tour Guide System is a portable, high-performance, wireless listening system. Much like a miniature radio station, the transmitter broadcasts over an FM radio signal. The receivers are used to pick up the broadcast up to 150 feet away. The system helps large or small groups overcome background noise and distance to clearly hear the tour guide. The system is composed of a PPA T46 Transmitter, microphone, and optional PPA R37 or R35-8 Receivers equipped with headphones, earphones, or neckloops. To avoid difficulties, please read through these instructions, and keep them for reference. If you have problems, don’t hesitate to call Williams Sound customer service at 1-800-843-3544. FCC Regulation FCC regulations, section 15.21, requires the user to comply with the rules of transmitter operation. Any changes or modifications not expressly approved for compliance may result in the loss of all privileges and authority to operate this equipment. Compatible Accessories • WCA 087: 36” 3.5mm Stereo to 2.5mm Stereo Auxiliary Audio Input Cable • BAT 001: Alkaline AA Batteries • BAT 026: NiMH Recharga…

Text truncated - open the document above for the full version.

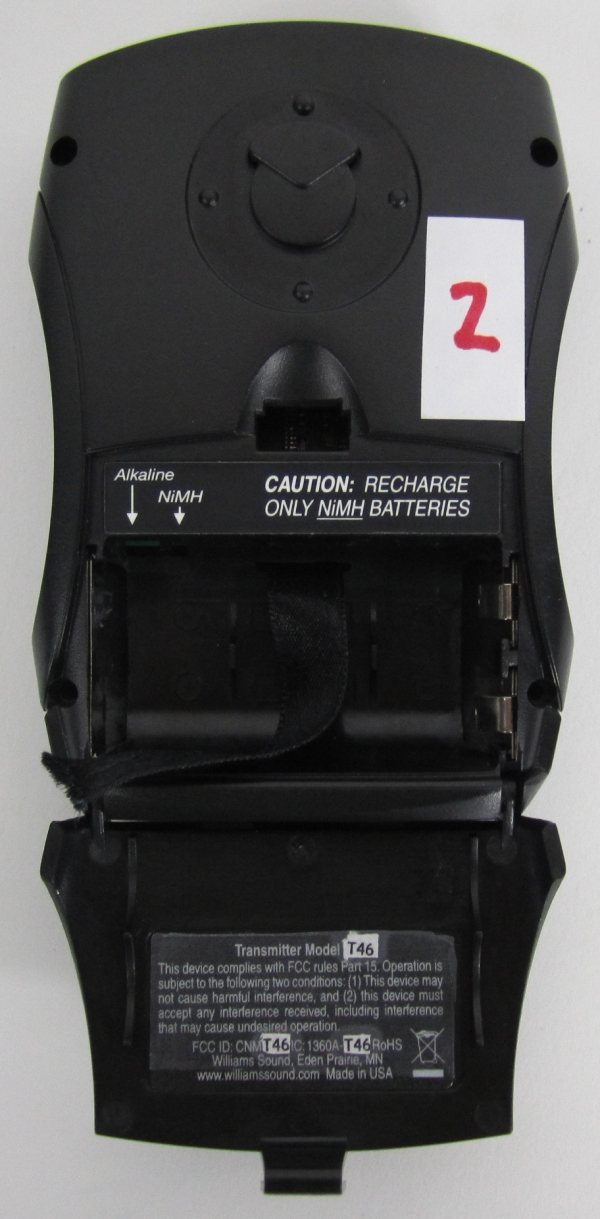

.775 -.020 +.000 1.535 -.020 +.000 R.062 TYP ARTWORK REFERENCE NOTES: MATERIAL: VELVET TEXTURED POLYCARBONATE1. THICKNESS: 0.007"2. ADHESIVE BACKING: 3M 467MP OR 200MP OR EQUIVALENT3. ARTWORK SUPPLIED BY WILLIAMS SOUND. ARTWORK FILE: IDL451a.eps4. COLORS WILL BE SPECIFIED ON ARTWORK5. ALL MATERIAL TO COMPLY WITH EUROPEAN DIRECTIVE 2002/95/EC6. RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) REV.DESCRIPTIONECODATEBY AxPreliminary drawing7/3/12DVP Label,FCC ID & Part 15, T46 Ax DO NOT SCALE DRAWING IDL 451 7/3/12 DVP REV DRAWING NUMBER A SIZE TITLE NAME DATE ENG APPR. CHECKED DRAWN DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL .015 THREE PLACE DECIMAL .005 Confidential Information. Not To Be Distributed Without Written Permission WILLIAMS SOUND, LLC EDEN PRAIRIE, MN 55344

TEST REPORT Report Number: 100776027MIN-001 Project Number: G100776027 Testing performed on the T46 FCC ID: CNMT46 Industry Canada ID: 1360A-T46 to 47 CFR Part 15. 237:2010 47 CFR, Part 15:2010, §15.107 and §15.109, Class B RSS- 210, Issue 8, 2010 For Williams Sound Corp Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA Williams Sound Corp 10300 Valley View Rd. Eden Prairie, MN 55344 USA Prepared by: Date: July 12, 2012 Simon Khazon Reviewed by: Date: July 12, 2012 Uri Spector This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report No: 100776027MIN-001 FCC ID: CNMT46 IC ID: 1360A-T46 Page 2 of 26 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION..........................................................................................................3 1.1 Product Description; Test Facility......................................................................................4 1.3 Environmental conditions ..................................................................................................5 1.4 Measurement uncertainty..................................................................................................6 1.5 Field Strength Calculation .................................................................................................6 2.0 TEST SUMMARY..........................................................................................................................7 3.0 TEST CONDITIONS AND RESULTS........................................................................................8 3.1 Field strength of fundamental............................................................................................8 3.2 Field strength of harmonics and spurious emissions ......................................................10 3.3 Bandwidth of Emissions ..................................................................................................15 3.4 Transmitter power line conducted emissions ..................................................................22 3.5 Receiver/digital device radiated emissions .....................................................................23 3.6 Digital device conducted emissions ................................................................................25 4.0 TEST EQUIPMENT.....................................................................................................................26 EMC Report No: 100776027MIN-001 FCC ID: CNMT46 IC ID: 1360A-T46 Page 3 of 26 1.0 GENERAL DESCRIPTION Model: T46 Type of EUT: Transmitter Serial Number : Proto FCC ID: CNMT46 Industry Canada ID: 1360A-T46 Related Submittal(s) Grants: None Company: Williams Sound Corp. Customer: Mr. Gregg Abram Address: 10300 Valley View Road Eden Prairie, MN 55344, USA Phone: (952) 943-2252 Fax: (952) 943-2174 Test Standards: 47 CFR, Part 15:2010, §15.237 RSS–210, Issue 8, 20010 RSS-Gen, Issue 3, 2010 47 CFR, Part 15:2010, §15.107 and §15.109, Class B ICES-003, Issue 4:2004 Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: July 9, 2012 Test Work Started: July 9, 2012 Test Work Completed: July 10, 2012 Test Sample Conditions: Damaged Poor (Usable) Good EMC Report No: 100776027MIN-001 FCC ID: CNMT46 IC ID: 1360A-T46 Page 4 of 26 1.1 Product Description; Test Facility Product Description: Professional Headset Microphone Operating Frequency 72.0-73.0; 74.6-74.8 and 75.2-76.0 MHz Number of Channels: 9 channels from 72.1 to 72.9MHz 1 Channel from 74.6 to 74.8MHz 8 Channels from 75.3 to 75.9 MHz Modulation: FM Emission Designator: F3E Antenna(s) Info: Monopole (shield of MIC 100 cable), 3.5mm audio mono plug Antenna Installation: User Professional Factory Transmitter Power Configuration: Internal battery External power source 120VAC 230VAC 400VAC VDC Other: Amp. 50Hz 60Hz Special Test Arrangement: None Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 EMC Report No: 100776027MIN-001 FCC ID: CNMT46 IC ID: 1360A-T46 Page 5 of 26 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous - Continuous un-modulated - Test program (customer specific) - Operating modes of the EUT: No. Description 1 Continuously Transmitting Unmodulated Signal at 72.1MHz, 74.7MHz and 75.9MHz channels. 2 Continuously Transmitting Modulated (1KHz) Signal at 72.1MHz, 74.7MHz and 75.9MHz channels. Cables: No. Type Length Designation Note 1 3 wires, unshielded 1 m Head Set/Antenna Support equipment/Services: No. Item Description 1 BK Rrecision model 3001 Audio Generator 1.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa EMC Report No: 100776027MIN-001 FCC ID: CNMT46 IC ID: 1360A-T46 Page 6 of 26 1.4 Measurement uncertainty The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±4 dB at 10m and ±5.…
