COF-UNA-A3G Module

1/16 Rev 1.1 Doc. Title UNA -A EVB User Manual Originator Max Date 2015/03/20 Version V14 2/16 Rev 1.1 Revision Record Version Revise content Date 1.1 New release 2014-10-03 1.2 EVB V12 2014-12-27 1.3 EVB V13 2015-03-02 1.4 Add FCC/IC/CE warning statement include 2015-03-20 3/16 Rev 1.1 UNA-A EVB User Guide 1. Illustration of Function EVB Top View Bottom View J4 U2 J5 J6 J2 J1 J3 4/16 Rev 1.1 Component reference Function Description J1 Test Conn. MP test connector. J2 USB Conn. Connect host PC or download firmware.(Micro USB). note1. J3 SMA Conn. Connect to external Antenna J4 Test Conn. Debug connector. J5 Power supply IN Optional Connect to external Power supply input. J6 GND System GND. U2 SIM Conn. SIM card slot. Note1: USB port , doesn't provide the power input. 2. Configure the UNA-A EVB Top View Download Key : Component reference Function J15 Enable Download mode. Note: To enable download mode, Please close J15 and refer to “MTK_flashtool_UserGuide” J15 5/16 Rev 1.1 3. General action Step1. Insert SIM card. Step2. Set up Antenna. 6/16 Rev 1.1 Step3. Connect computer by USB cable. Step4. Set up Power In. a. J5 is power input, and voltage range is from 3.4 to 4.35V. b. J6 is GND. 7/16 Rev 1.1 USB Cable Diagram of Application 4. Settings for Download Mode Component reference Open/Short Function Open Close Download mode J15 Short Start Download mode + - Power supply.(3.4V~4.35V) Computer 8/16 Rev 1.1 Step1. Put back the jumper,J15.( Two kinds of selection) Step2. Connect EVB and computer by USB cable. Step3. Set up Power In. a. J1 is power input, and voltage range is from 3.4 to 4.35V. b. J2 is GND. 9/16 Rev 1.1 EVB test point pin define J1 Pin define(Bottom view) Pin number Pin name Pin number Pin name 1 VBAT 2 RESERVE 3 VBAT 4 RESERVE 5 VBAT 6 RESERVE 7 GND 8 GND 9 GND 10 GND 11 NC 12 NC 13 NC 14 NC 15 GND 16 GND 17 GPI_2 18 NC 19 NC 20 GPI_1 21 U1RXD 22 U1TXD 23 U1RTS 24 U1CTS 25 FW_READY 26 WAKEUP_AP 27 RESERVE 28 SAR_DET 29 NC 30 NC 31 U0TXD 32 U0RXD 33 NC 34 NC 35 NC 36 NC 37 NC 38 NC 39 DL KEY 40 EINT0 41 NC 42 VDD_UART 43 NC 44 NC 45 NC 46 NC 47 NC 48 NC 49 NC 50 NC 1 2 49 50 10/16 Rev 1.1
FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and the maximum antenna gain allowed for use with this device is 3dBi. 11/16 Rev 1.1 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “ Contains FCC ID: COF-UNA-A”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.
Industry Canada(IC) statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, incl…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 5/15/2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Universal Global Scientific Industrial Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (3G Module, UNA-A) FCC ID: COF-UNA-A Sincerely, _______________________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 10.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (obsolete) 8.0 9.0 Nov 20 2014 Updated template to meet RSP 100 issue 11 (current) 9.0 10.0 March 19 2015 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 10.0 May 19, 2015 (Product name) FCC ID : COF-UNA-A , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; V 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; V 3 The module must contain power supply regulation on the module; V 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); V 5 The module must demonstrate compliance in a stand-alone configuration; V 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); V 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; V 8 The module must comply with RF exposure requirements V Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. _______________________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

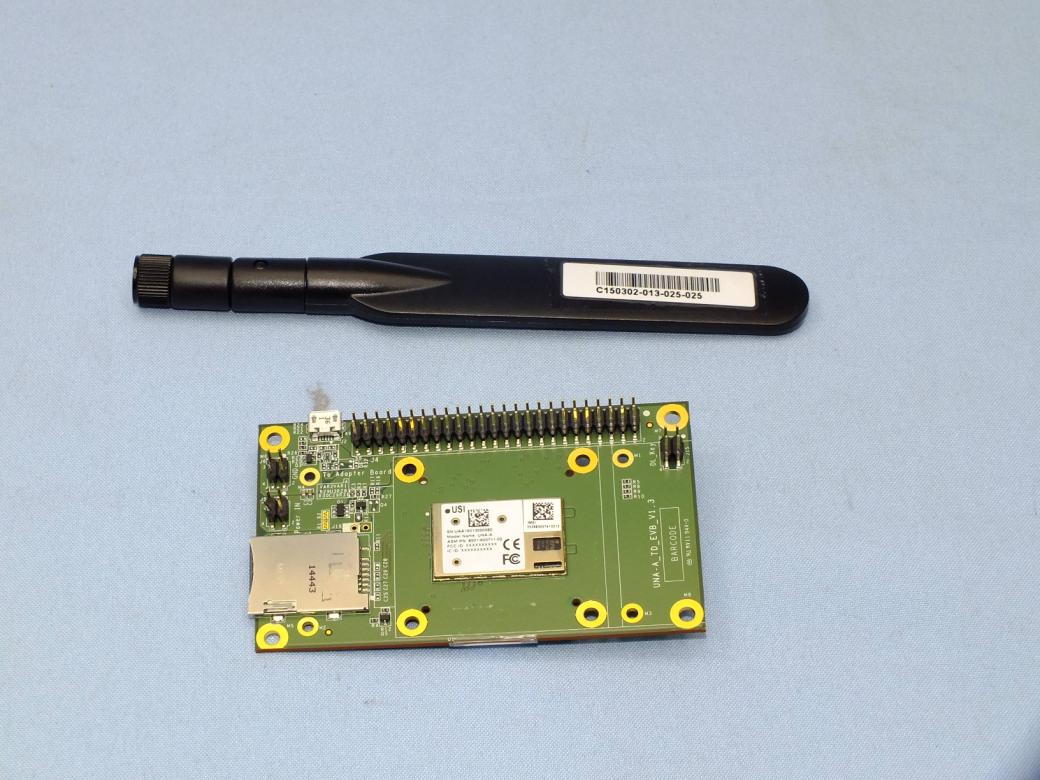

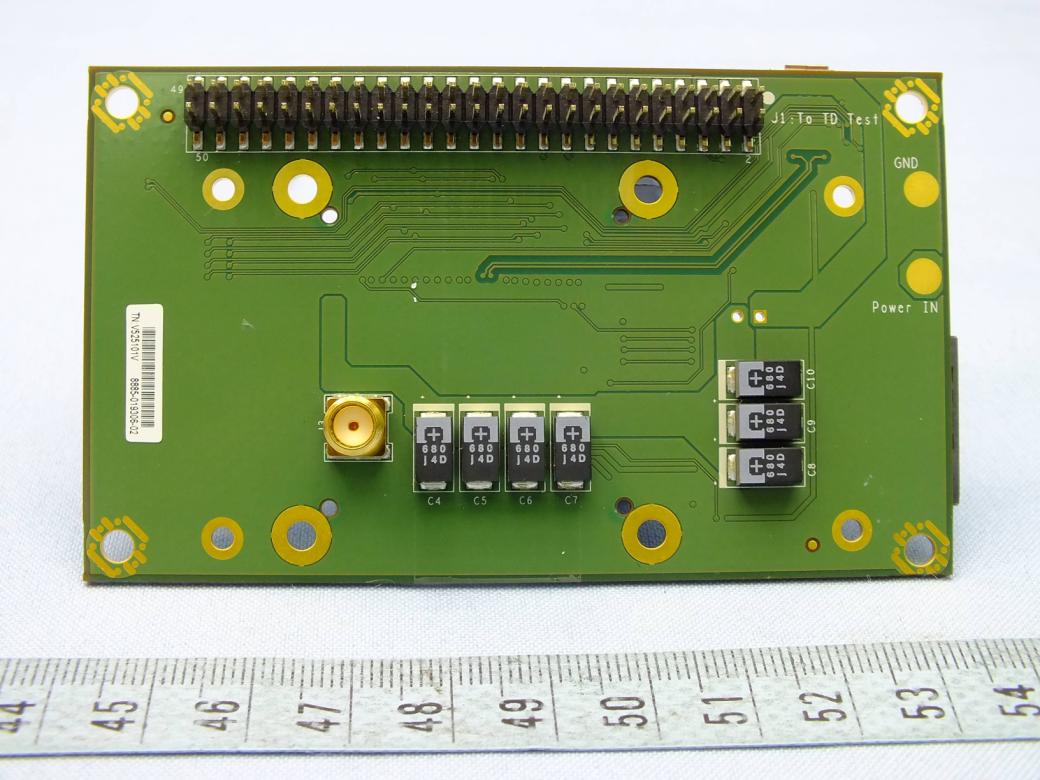

Page 1 of 4 Report No.: 150303C03 CONSTRUCTION PHOTOS OF EUT Brand Name: Universal Global Scientific Industrial Co., Ltd. / Model Name: UNA-A Page 2 of 4 Report No.: 150303C03

USI Model Name: UNA-A ASM PN:8501-600711-01/02 SN: UAAYYMMDDXXXXX FCC ID: COF-UNA-A IC: 10293A-UNAA 2 Model Name: UNA-A ASM PN:8501-600711-01/02 SN: UAAYYMMDDXXXXX FCC ID: COF-UNA-A IC ID: 10293A-UNAA XXXXXXXXXXXXXXX 2.5x1.5±0.2mm 11.75x3.15 +0.5/-0.0mm 4.35x3.15 +0.5/-0.0mm Label Spec Adina_wang 59-XXXXXX-XX 2B-XXXXXX A1 1/8’15 SH/WAN(WP3)/MDE Scale: 1:1 IMEI 2200 2200 26mm 8mm 17mm 8mm USI Model Name: UNA-A ASM PN:8501-600711-01/02 SN: UAAYYMMDDXXXXX FCC ID: COF-UNA-A IC: 10293A-UNAA 2 XXXXXXXXXXXXXXX IMEI 2200 26mm 8mm 17mm 8mm 2200 USI

FCC ID: COF-UNA-A Label Location

Page 3 of 4 Report No.: 150303C03 Page 4 of 4 Report No.: 150303C03

FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA150303C03 Issued Date : Mar. 19, 2015 FCC MPE Evaluation Report Report No. : SA150303C03 Applicant : Universal Global Scientific Industrial Co., Ltd. Address : No. 141, Lane 351, Taiping Road, Sec. 1, Tsaotuen, NanTou, Taiwan 54261 Product : 3G Module Brand : Universal Global Scientific Industrial Co., Ltd. Model No. : UNA-A Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 Sample Received Date : Mar. 03, 2015 Date of Evaluation : Mar. 17, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA150303C03 Issued Date : Mar. 19, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Description of Equipment Under Test ................................................................................................................................. 4 2. MPE (Maximum Permissible Exposure) Assessment ......................................................................................................... 5 2.1 Introduction .................................................................................................................................................................. 5 2.2 RF Radiation Exposure Limits ...................................................................................................................................... 5 2.3 MPE Assessment Method ............................................................................................................................................ 6 2.4 MPE Calculation for Standalone Operations ................................................................................................................ 6 3. Information on the Testing Laboratories ............................................................................................................................. 7 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA150303C03 Issued Date : Mar. 19, 2015 Release Control Record Report No. Reason for Change Date Issued SA150303C03 Initial release Mar. 19, 2015 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA150303C03 Issued Date : Mar. 19, 2015 1. Description of Equipment Under Test EUT Type 3G Module Brand Name Universal Global Scientific Industrial Co., Ltd. Model Name UNA-A Tx Frequency Bands (Unit: MHz) GSM850 : 824.2 ~ 848.8 GSM1900 : 1850.2 ~ 1909.8 WCDMA Band II : 1852.4 ~ 1907.6 WCDMA Band V : 826.4 ~ 846.6 Uplink Modulations GSM & GPRS : GMSK EDGE : 8PSK WCDMA : QPSK Antenna Type Fixed External Antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA150303C03 Issued Date : Mar. 19, 2015 2. MPE (Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications …

Text truncated - open the document above for the full version.

Report No.: RF150303C03 1 of 33 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF150303C03 MODEL NO.: UNA-A FCC ID: COF-UNA-A RECEIVED: Mar. 03, 2015 TESTED: Mar. 05, 2015 ~ Mar. 09, 2015 ISSUED: Mar. 20, 2015 APPLICANT: Universal Global Scientific Industrial Co., Ltd. ADDRESS: No. 141, Lane 351, Taiping Road, Sec. 1, Tsaotuen, NanTou, Taiwan 54261 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150303C03 2 of 33 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION ................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ........................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................. 6 3 GENERAL INFORMATION ................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS .......................................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION .................................................................................. 9 3.5 EUT OPERATING CONDITIONS ................................................................................................ 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 10 4 TEST TYPES AND RESULTS ............................................................................................................. 11 4.1 OUTPUT POWER MEASUREMENT .......................................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................. 11 4.1.2 TEST PROCEDURES ....................................................................................................... 11 4.1.3 TEST SETUP .................................................................................................................... 12 4.1.4 TEST RESULTS ................................................................................................................ 13 4.2 FREQUENCY STABILITY MEASUREMENT .............................................................................. 15 4.2.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT ................................................. 15 4.2.2 TEST PROCEDURE ......................................................................................................... 15 4.2.3 TEST SETUP .................................................................................................................... 15 4.2.4 TEST RESULTS ................................................................................................................ 16 4.3 OCCUPIED BANDWIDTH MEASUREMENT .............................................................................. 17 4.3.1 TEST PROCEDURES ....................................................................................................... 17 4.3.2 TEST SETUP .................................................................................................................... 17 4.3.3 TEST RESULTS ................................................................................................................ 18 4.4 BAND EDGE MEASUREMENT .................................................................................................. 19 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ..................................................................... 19 4.4.2 TEST SETUP .................................................................................................................... 19 4.4.3 TEST PROCEDURES .......…

Text truncated - open the document above for the full version.

Report No.: RF150303C03-1 1 of 35 Report Format Version 5.0.0 FCC TEST REPORT (PART 24) REPORT NO.: RF150303C03-1 MODEL NO.: UNA-A FCC ID: COF-UNA-A RECEIVED: Mar. 03, 2015 TESTED: Mar. 05, 2015 ~ Mar. 09, 2015 ISSUED: Mar. 20, 2015 APPLICANT: Universal Global Scientific Industrial Co., Ltd. ADDRESS: No. 141, Lane 351, Taiping Road, Sec. 1, Tsaotuen, NanTou, Taiwan 54261 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150303C03-1 2 of 35 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION ................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ........................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................. 6 3 GENERAL INFORMATION ................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS .......................................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION .................................................................................. 9 3.5 EUT OPERATING CONDITIONS ................................................................................................ 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 10 4 TEST TYPES AND RESULTS ............................................................................................................. 11 4.1 OUTPUT POWER MEASUREMENT .......................................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................. 11 4.1.2 TEST PROCEDURES ....................................................................................................... 11 4.1.3 TEST SETUP .................................................................................................................... 12 4.1.4 TEST RESULTS ................................................................................................................ 13 4.2 FREQUENCY STABILITY MEASUREMENT .............................................................................. 15 4.2.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT ................................................. 15 4.2.2 TEST PROCEDURE ......................................................................................................... 15 4.2.3 TEST SETUP .................................................................................................................... 15 4.2.4 TEST RESULTS ................................................................................................................ 16 4.3 OCCUPIED BANDWIDTH MEASUREMENT .............................................................................. 17 4.3.1 TEST PROCEDURES ....................................................................................................... 17 4.3.2 TEST SETUP .................................................................................................................... 17…
