COW81000012Bluetooth headset

Wireless User Guide -- ”b” logo should be a spot gloss varnish -- Matte finish for entire manual = Spot gloss varnish DO NOT print Cyan WirelessUG_FINAL.indd 15/25/12 2:22 PM EN Important Safety Information 3 Keys and Parts 6 Charge the Battery 7 Switch On 8 Switch Off 9 Pairing 9 Adjust the Volume 10 Specifications 10 Calls 11 Disconnect the Headset 11 Reconnect the Headset 11 Listen to Music 12 Clear Settings or Reset 12 Passive Mode 12 Using the Remote Mic 13 FCC Warning 15 FR Renseignements de sécurité importants 17 Numéros et pièces 20 Chargement de la pile 21 Mise sous tension 22 Mise hors tension 23 Jumelage 23 Ajustement du volume 24 Spécifications 24 Appels 25 Déconnexion du casque d’écoute 25 Table of Contents WirelessUG_FINAL.indd 2-15/25/12 2:22 PM 3 Reconnexion du casque d’écoute 25 Écoute de musique 26 Réinitialisation des paramètres 26 Mode passif 26 Utilisation du microphone de la télécommande 27 Mise en garde de la CFC 29 ES Información importante sobre seguridad 31 Botones y Partes 34 Cargue la batería 35 Encendido 36 Apagar 37 Conexión 37 Ajuste el volumen 38 Especificaciones 38 Llamadas 39 Desconecte los auriculares 39 Vuelva a conectar el auricular 39 Escuche música 40 Despeje las configuraciones o restaure 40 Modo Pasivo 40 Uso del micrófono remoto 42 Advertencia de FCC 43 Important Safety Information Listen Responsibly To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level. Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss. Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it. Physiology of the Ear English Malleus Cochlear Nerve Stapes Tympanic Membrane Auditory Canal Cochlea Incus Vestibule To Nose/Throat WirelessUG_FINAL.indd 2-35/25/12 2:22 PM 45 English SOUNDNOISE LEVEL (dB) EFFECT Whisper30Very quiet Quiet Office50-60Comfortable hearing levels are under 60dB Vacuum Cleaner, Hair Dryer 70Intrusive; interferes with telephone conversations Food Blender85-9085 dB is the level at which hearing damage (8 hrs.) begins Garbage Truck, Cement Mixer 100No more than 15 minutes of unprotected exposure recommended for sounds between 90-100 dB Power Saw, Drill/Jackhammer 110Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss Rock Concert (varies)110 -14 0Threshold of pain begins around 125 dB * Chart information from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing. English ”.... a typical person can safely listen to an iPod for 4.6 hours per day at 70% volume.” ”.... knowing the levels one is listening to music at, and for how long is extremely important.” From http://www.cbc.ca/health/story/2006/10/19/music-earphones.html Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before. Use Responsibly Do not use headphones when it’s unsafe to do so—while operating a vehicle, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required. It’s dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car’s horn and emergency vehicle sirens. Please avoid wearing your headphones while driving. Use an FM transmitter to listen to your mobile media devices instead. Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org and the Deafness Research Foundation at www.drf.org. WirelessUG_FINAL.indd 4-55/25/12 2:22 PM 67 English Keys and Parts The headset contains the following parts: Before using the headset, you must charge the battery and pair the headset with a compatible device. Multifunction key Play/Pause key Track back Track forward Volume down Volume up Indicator lights Microphone Charger connect 3.5mm cable port English Charge the Battery The headset contains a Micro USB cable that can be connected to your computer or other device made for USB charging. Plug the Micro USB end of the included USB cable into the USB micro port charger connector under the left earcup of the headphone. Plug the other end into a USB port on your computer or other devices made for USB charging. The indicator light will be red while charging. Once fully charged, the indicator light will be a steady green. Charge time is one hour on an empty battery. The fully charged battery has power for up to 10 hours talking and/or music time and up to 100 hours standby time. Note: You can still enjoy your music while charging your headphone. Warning: (1) Please pay attention to the environmental aspects of battery disposal. Battery must be recycled or disposed of properly. (2) Batteries (battery pack or batteries installed) should not be exposed to excessive heat, such as sunshine, fire, or the like. WirelessUG_FINAL.indd 6-75/25/12 2:22 PM 89 English Switch On To switch on, press and hold the multifunction key about two seconds. The headset beeps ascending tones, and the blue indicator light is briefly displayed. When the headset tries to connect to the last used phone or music player, the red indicator light flashes slowly. When the headset is connected to a device and is ready for use, the blue indicator light flashes slowly. If the headset has not been paired with a device, it automatically enters the pairing mode. English Switch Off To switch off, press and hold the multifunction key for abou…

Text truncated - open the document above for the full version.

COMPANY LETTERHEAD Date (10/05/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: COW81000012 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Fujikon Industrial Co., Ltd. on behalf of Beats Electronic, LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts List PCB Layout Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Yu Meng Company: Fujikon Industrial Co., Ltd. Address: 16/F Tower 1, Grand Central Plaza, 138 Shatin Rural Committee Rd., Shatin, N.T. Hong Kong Telephone Number: 86-755-86365704 Email: [email protected]

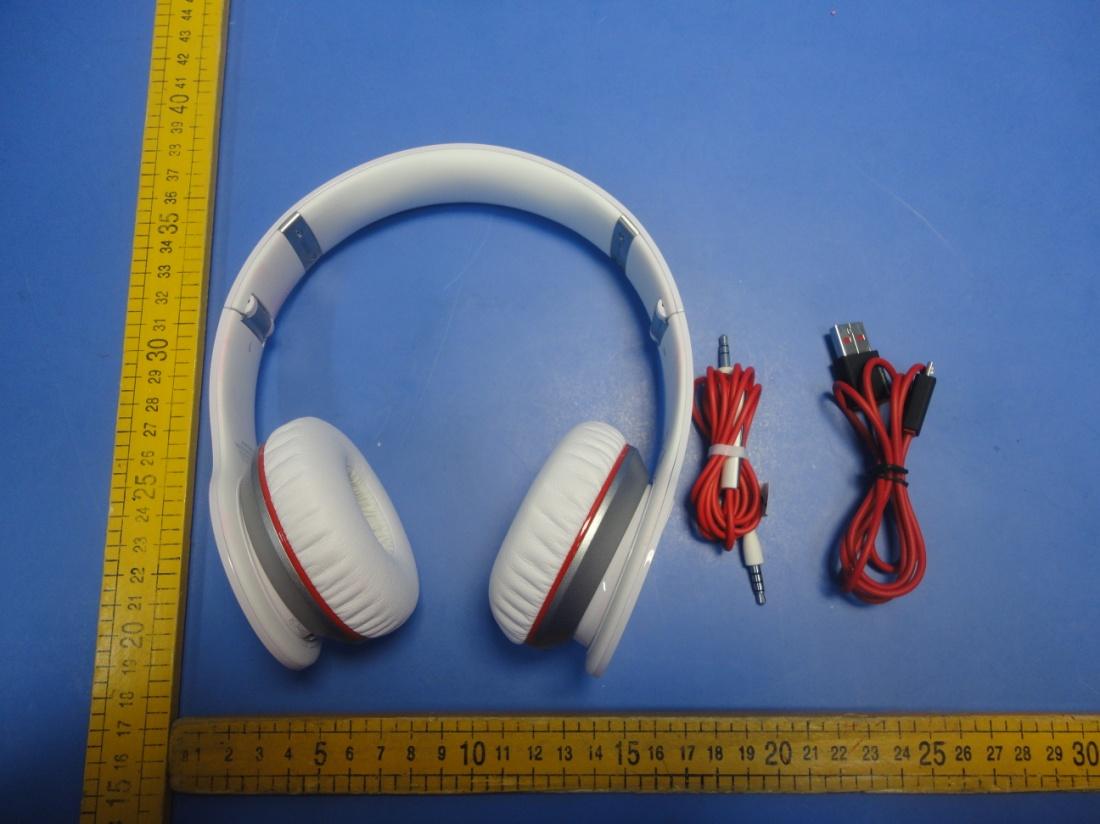

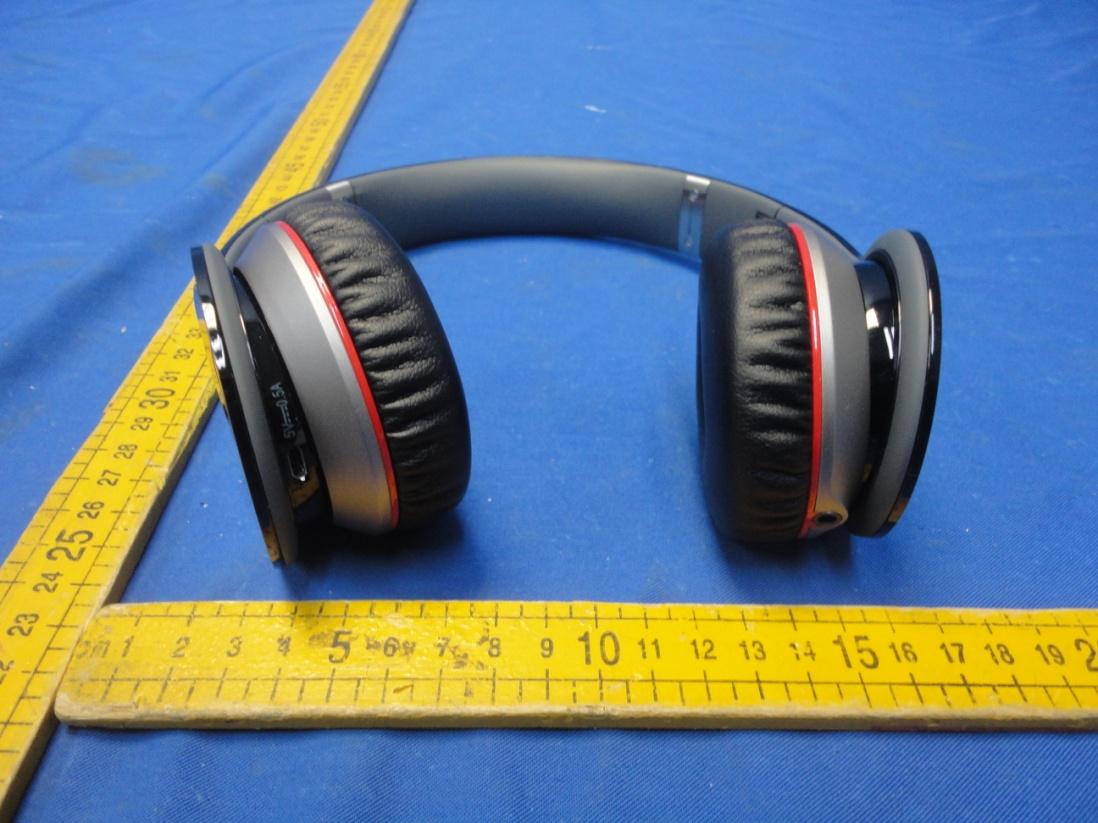

External Photos of 810-00012-00 and 810-00012-01 810-00012-00 810-00012-01 Bluetooth Antenna Bluetooth Antenna

JR12-0157 李永全 A A T3429154 T3429154-01 PDB11-0077 李永全 2011-12-07 AX-9963-0000-1AX-9963-0000-1AX-9963-0000-1 CTL-BT5116 李永全 A 12-05-21 李永全 2012-02-09 AX-9963-0002-1 CTL-BT5116 T3428962 A T3428881-1 A (White) Cool gray7U Cool gray7U 20-6267-9121P-1 NMR12-0002-01

Internal Photos 810-00012-00 Bluetooth Antenna

Report Number: 68.920.12.002.01 Page 1 of 1 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Maximum Permissible Exposure(MPE) Estimation 1. Introduction 810-00012-00 is Beats wireless, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v03r03, no SAR required if power is lower than the flowing threshold: When routine evaluation is required for SAR and the output power is ≤ 60/f(GHz) mW, the test reduction and test exclusion procedures given herein, or in KDB 616217 or KDB 648474, are applicable. A device may be used in portable exposure conditions with no restrictions on host platforms when either the source-based time-averaged output power is ≤ 60/f(GHz) mW or all measured 1-g SAR are < 0.4 W/kg.10 When SAR evaluation is required, the most conservative exposure conditions for all expected operating configurations must be tested. 3. Calculation method Max Peak output power: GFSK mode 2402 MHz: 4.48dBm=2.8054mW 60/ fGHz = 60/2.402 = 24.98mW Max Peak output power<60/ fGHz 810-00012-00 is a portable device and the Max Peak outpur power is less than 24.98 mW, so SAR evaluation is not necessary. The two models 810-00012-00 and 810-00012-01 are identical only except the enclosure color, 810- 00012-00 is black color, 810-00012-01 is white color, so SAR evaluation for 810-00012-00 is also not necessary Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Paul Yu/Assistant EMC Project Manager Cookies Bu// EMC Project Engineer Date: 2012-03-23 Date: 2012-03-23

Report Number: 68.920.12.002.01 Page 1 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC- TEST REPORT Report Number : 68.920.12.002.01 Date of Issue: 22 March 2012 Model : 810-00012-00, 810-00012-01 Product Type : Beats Wireless Applicant : Beats Electronics, LLC Address : 1601 Cloverfield Blvd. Suite 5000N Santa Monica, CA 90404 United States Production Facility : Charter Media (Dongguan) Co., Ltd. Address : Daibandi Industrial Zone, Daning District, Humen Town, Dongguan City, Guangdong Province 523930, P. R. China Test Result :  Positive  Negative Total pages including Appendices : 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.920.12.002.01 Page 2 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................ 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Conducted Emission AC Power Port......................................................... 8 7.2 Conducted Peak Power......................................................................... 12 7.3 Band edge compliance of RF emission...................................................... 14 7.4 Spurious RF Conducted emission............................................................ 28 7.5 Spurious radiated emissions................................................................... 36 7.6 20dB Bandwidth................................................................................... 40 7.7 Carrier Frequency Separation................................................................. 48 7.8 Number of Hopping Frequencies ............................................................. 51 7.9 Dwell Time.......................................................................................... 54 8 System Measurement Uncertainty................................................................... 65 Report Number: 68.920.12.002.01 Page 3 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Location 1: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Location 2: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.920.12.002.01 Page 4 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: Beats Wireless Model no.: 810-00012-00 Brand Name: Beats Options and accessories: NIL Rating: 3.7VDC (supplied by Battery) (or supplied by USB port of PC via USB cable) RF Transmission Frequency: 2402-2480MHz Antenna Gain: 0dBi Description of the EUT: NIL Auxiliary Equipment Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) NoteBook Lenovo XC200 --- Report Number: 68.920.12.002.01 Page 5 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C, 10-1-2010 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Report Number: 68.920.12.002.01 Page 6 of 65 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Cult…

Text truncated - open the document above for the full version.

Page 1 of 3 Test setup photos of 810-00012-00 1. Conducted Emission Test setup Charged by PC via a USB cable mode Page 2 of 3 2. Radiated Emission Test (Blow 1GHz) Transmitting mode Charged by PC via a USB cable mode Page 3 of 3 Connect to i-touch via a talk cable playing 1 KHz/0dB audio signal mode: 3. Radiated Emission Test (Above 1GHz) Transmitting mode
