CWWP10XXUH1AMPLIFIER

P10XXUL1 and P10XXUH1 Power Amplifier User’s Manual 1. General Information. Power Amplifier (PA) is the AB/C-class unit. It is intended for amplification of single carrier phase (frequency) modulated (manipulated) narrowband signals. Working frequency range lies between 403 MHz and 470 MHz for UL unit (P10XXUL1) and between 450 MHz and 512 MHz for UH unit (P10XXUH1). Code “xx” shows the input power range: Code: R1 R2 R5 1 2 5 10 20 Range, W: 0.1-0.2 0.2-0.5 0.5-1.0 1.0-2.0 2.0-5.0 5.0-10 10-20 20-50 In the normal operating mode the minimum output power is 100 W. Input VSWR is not greater than 1.7:1. PA meets all FCC requirements to harmonic and spurious levels. The nominal power supply voltage is 13.8VDC. DC current consumption does not exceed 25A at 13.8V Working ambient temperature range lies from -30 ºC to +60ºC. Input and output power levels are set up in the factory. Customer has an opportunity to reduce the output power, adjusting the special trimmer resistor in the unit, or picking up the value of outer resistor, connected to PA control pin. PA has automatic power control loop that provides the stability of output power during the normal operation and all necessary changes of power in the case of load mismatch or unit overheating. PA is intended for rack mounting in the standard 19” cabinet. The front panel is 10” high. The deepness of unit does not exceed 5”. Four LED at the front panel indicate the status of unit operation. The hole in the side wall gives an access to the trimmer resistor, which allows reducing the output power against the set value. There are two N connectors at the back of chassis. There is power filtering DC connector at the back of chassis with four # 6-32 screws: 2 for “+” pole and 2 for “-“ pole. There are 3 filters at the back of chassis that bring alarming signal, as well signals for the outside power control. Two fans at the back side of unit perform the forced air cooling. Fans start rotating, when RF signal comes to the unit input. 2. Installation Guide. 2.1. Unit installation shall provide a proper air access to the unit; no obstacle for air is allowed closer than 3” from fans. 2.2. Copper wires # 10 AWG shall be use in DC power line. Wires shall be crimped to ring terminals. 3. Operation Guide 3.1. Power supply voltage shall be in the range 13.8 V + 1.0 V. 3.2. The input power inside the working frequency range shall be within the listed above limits. It is prohibit applying any RF signal out of the working frequency range with a power, greater than 10% of the minimum rated one. 3.3. Green LED “DC ON” is on, when DC voltage is applied to the unit. 3.4. Red LED “LOW POWER” is on, when the output power drops below 80% - 85% of set level. In majority of cases it warns about of inside problem. However, the output power may fail due to high load VSWR (in that case LED tells that the power decrease is stronger, then it is needed for VSWR protection). 3.5. Red LED “HIGH VSWR” is on, when the load VSWR exceeds 2.4 – 3. The output power is reduced. 3.6. Red LED “HIGH TEMP” is on, when the heatsink temperature is over +85 ̊C. Then the unit operates with output power, reduced to about 75% of rated one. Fans are running continuously, no matter, is RF drive applied or not. 3.7. Voltage at filter “ALARM” is about 9.5V during the normal unit operation and drops to less than 0.5V, when any of mentioned above red LED goes on. If 1.8 kOhm resistor is connected between this filter and the ground, TTL compatible output is created. 3.8. It is possible to significantly reduce the output power, pulling filter “SH/D” to the ground. However, it is possible to change the output power smoothly by a trimmer resistor (50 kOhm is the recommended value of it), connected between this pin and the ground. 3.9. The output power drops to about 75% of rated level, if the filter “CTRL” is pulled to the ground.

920 E. State Parkway • Schaumburg, IL 60173 Toll Free Number: (800) USA MADE (800.872.6233) Phone: 847.908.5400 • Fax: 847.908.5408 www.crescendtech.com • E-mail: [email protected] August 4, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: CWWP10XXUH1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: SchematicSchematics_ULUH.pdf Block DiagramBlock Diagram UL UH.pdf Parts ListSemicond List_UH.pdf Operational DescriptionDescription_ULUH.pdf Tuning ProcedureTest Proced_UH.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: External/Internal PhotosFCC Photos.pdf User manualUsers Manual.pdf Sincerely, Mark Obermann

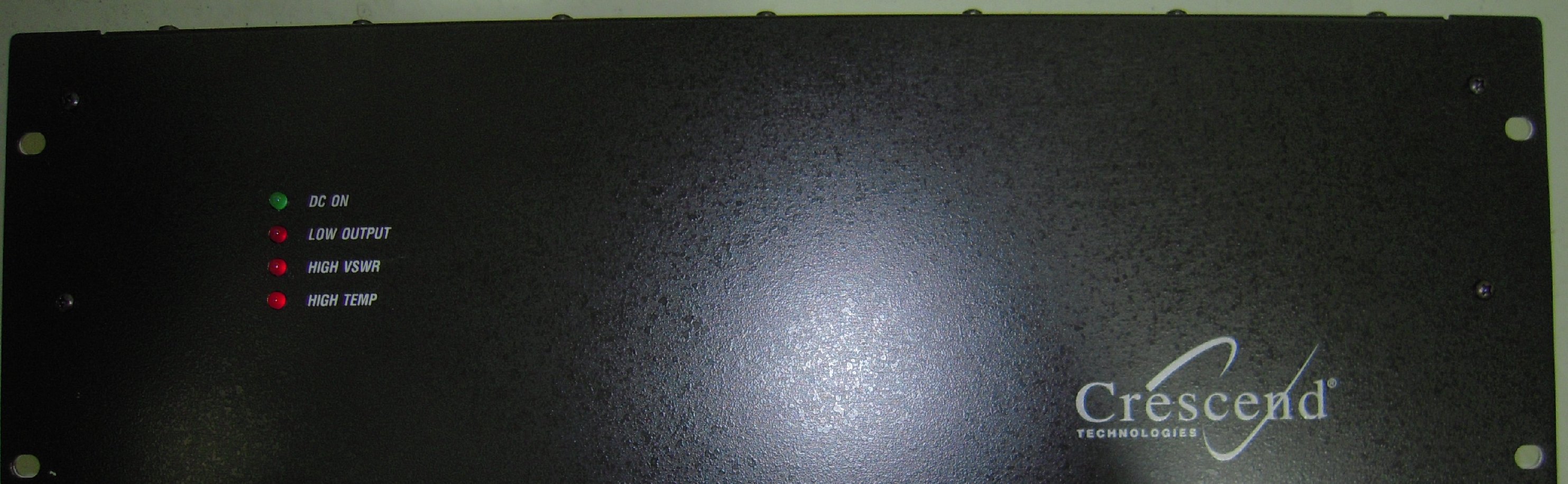

Exterior – Front Exterior – Rear Exterior - Side

Crescend TechnologiesSN: xxxxxxxxx Model: P10 Series UHF-HPin: xx PN: xxxxxxxxxxxxxPout: xx FCC ID: CWWP10XXUH1Freq:xx IC: 7291A – P10XXUH1Voltage: xx

Place of Label

Amplifier Photos Interior Top Side – All PCBs Note: With the exception of the controller and indicator boards, all other boards have a ground plane on the back side (no traces or components). Bottom Side – Controller Board. Bottom Side – Indicator Board.

1/25/2011 Page 1 of 3 FCCID: FCC RF Exposure Requirements General information : FCCID: Device category: Fixed per Part 2.1091 Environment: Uncontrolled Exposure Fixed devices that operate under Part 90 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more. However, compliance with the power density limits of 1.1310 is not required. Antenna: The manufacturer does not specify an antenna. A typical fix mounted antenna has a gain of 3 to 7 dBi. This device has provisions for operation in fixed locations. Configuration Antenna p/n Type Max. Gain (dBi) Fix Any omni 3 – 7 Operating configuration and exposure conditions: The conducted output power is 100 Watts. In repeater operation duty cycle can reach near 100 %. The manufacturer also markets this device only for occupation use. But, typical installations do not control exposure. - Part 2.1091 states that devices are excluded from routine evaluation if the EIRP is less than 2.46Watt (or 1.5WERP). - A typical fixed installation consists of an antenna system with a coaxial cable of the type RG 213U which has a loss of 1.0 dB for a length of 30 feet at UHF frequencies. A repeater system typically uses outdoor structures for antenna mounting. 1/25/2011 Page 2 of 3 FCCID: MPE Calculation : The minimum separation distance is calculated as follows: The limit for uncontrolled exposure environment above 300 MHz is f/1500 mW/cm 2 . Frequency: 450-470 MHz The conducted power output is 100 watt. The coax loss was taken as 1.5 dB. Antenna gain was taken as 3 – 7 dBi 100% talk time in 30 minutes Power Density = S= f/1500 mW/cm 2 1/25/2011 Page 3 of 3 FCCID: Conclusion: The device complies with the MPE requirements by providing a safe separation distance of 3 m 123 inches) between the antenna, including any radiating structure, and any persons when normally operated. The minimum safe operating distance between the public and the antenna should be at least 3.2 m (10 ft) when used with a 7 dBi antenna.

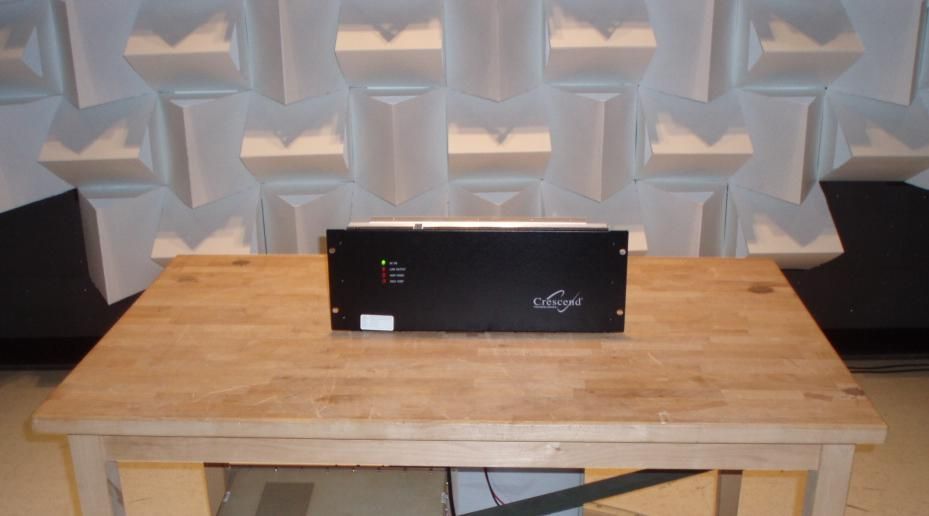

FCC PT 90 AMPLIFIER AND IC RSS-131, RSS-GEN TEST REPORT APPLICANT CRESCEND TECHNOLOGIES, LLC ADDRESS 920 EAST STATE PARKWAY SCHAUMBURG IL 60173 USA FCC ID CWWP10XXUH1 IC LABEL 7291A-P10XXUH1 MODEL NUMBER P10 Series UHF-H PRODUCT DESCRIPTION Amplifier DATE SAMPLE RECEIVED 6/11/2010 DATE TESTED 7/9/2010 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 1395AUT10TestReport.pdf TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 2 of 16 TABLE OF CONTENTS ATTESTATION STATEMENT ............................................................................ 3 REPORT SUMMARY ........................................................................................ 4 TEST ENVIRONMENT AND TEST SETUP ......................................................... 4 DUT DESCRIPTION ......................................................................................... 5 TEST EQUIPMENT .......................................................................................... 6 TEST PROCEDURES ....................................................................................... 7 TEST RESULTS ............................................................................................... 9 RF POWER OUTPUT ............................................................................................................... 9 OCCUPIED BANDWIDTH ...................................................................................................... 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)...................................... 14 FIELD STRENGTH OF SPURIOUS EMISSIONS (RADIATED) ................................................ 15 POWER LINE CONDUCTED INTERFERENCE....................................................................... 16 Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 3 of 16 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Test Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Test Lab Supervisor / Engineer Date: September/15/2010 Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 4 of 16 REPORT SUMMARY Disclaimer The test results relate only to the items tested. Purpose of Test To show the DUT in compliance with FCC CFR 47, Part 90 and IC RSS-131 requirements for amplifiers Test Procedures ANSI/TIA 603-C: 2004 FCC CFR 47 Part 90 IC RSS-131 ANSI C63.4: 2003 Related Approval N/A TEST ENVIRONMENT AND TEST SETUP Test Facility All tests were conducted by Timco Engineering Inc. located at 849 NW State Road 45, Newberry, FL 32669 USA Laboratory Test Condition Temperature: 26ºC Relative humidity: 50% . Deviation from the standards No deviation Modification to the DUT No modification was made. Test Exercise (software etc.) The DUT was placed in continuous transmitting mode of operation. System Setup Stand alone device. Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 5 of 16 DUT DESCRIPTION Manufactured by Crescend Technologies, LLC Product Description Amplifier FCC ID FCC ID: CWWP10XXUH1 IC Label 7291A-P10XXUH1 M/N P Series UHF-H Family M/Ns N/A S/N N/A Operating Freq 450-454, 456-462.5375, 462.7375-467.5375, 467-7375-512 MHz Max. Output Power 119W Modulation N/A Amplifier Power Source 13.8 VDC DC Power Test Item Preproduction Type of DUT Fixed/Mobile Amplifier Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 6 of 16 TEST EQUIPMENT Device Manufacturer Model Serial Number Cal/Char Date Due Date Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/09 12/7/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/09 12/7/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/09 12/8/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/09 12/8/11 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/09 4/29/11 Antenna: Log-Periodic Electro- Metrics LPA-25 1122 CAL 12/1/08 12/1/10 Antenna: Double- Ridged Horn Electro- Metrics RGA-180 2319 CAL 12/29/08 12/29/10 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/08 10/5/10 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 3/15/09 3/15/11 Applicant: Crescend Technolgoies LLC FCC ID: CWWP10XXUH1 IC: 7291A-P10XXUH1 MODEL #: P Series UHF-H Report: Z:\C\CRESCEND_CWW\1395AT10\1395AT10_TestReport Page 7 of 16 TEST PROCEDURES Power Line Conducted Interference The procedure used was ANSI 63.4-2003 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. RF Power Output The RF power output was measured at the antenna feed point using a peak power meter. A 50- ohm, resistive…
