CWWP5XXDE1VHF 50W AMPLIFIER

P5XXDE1 Power Amplifier User’s Manual 1. General Information. Power Amplifier (PA) is a AB/C-class unit. It is intended for amplification of single carrier phase (frequency) modulated (manipulated) narrowband signals. Working frequency range lies between 136 MHz and 174 MHz for this unit (P5XXDE1). Code “xx” shows the input power range: Code: R1 R2 R5 1 2 5 10 20 Range, W: 0.1-0.2 0.2-0.5 0.5-1.0 1.0-2.0 2.0-5.0 5.0-10 10-20 20-50 In the normal operating mode the minimum output power is 50 W. Input VSWR is not greater than 1.8:1. PA meets all FCC requirements to harmonic and spurious levels. The nominal power supply voltage is 13.8VDC. DC current consumption does not exceed 12.5A at 13.8V Working ambient temperature range lies from -30 ºC to +60ºC. Input and output power levels are set up in the factory. Customer has an opportunity to reduce the output power, adjusting the special trimmer resistor in the unit, or picking up the value of outer resistor, connected to PA control pin. PA has automatic power control loop that provides the stability of output power during the normal operation and all necessary changes of power in the case of load mismatch or unit overheating. PA is intended for rack mounting in the standard 19” cabinet. The front panel is 7” high. The deepness of unit does not exceed 5”. Four LED at the front panel indicate the status of unit operation. The hole in the side wall gives an access to the trimmer resistor, which allows reducing the output power against the set value. There are two N connectors at the back of chassis. There is power filtering DC connector at the back of chassis with two # 6-32 screws for “+” pole and for “-“ pole. There are 3 filters at the back of chassis that bring alarming signal, as well signals for the outside power control. The fan at the back side of unit performs the forced air cooling. Fan starts rotating, when RF signal comes to the unit input. 2. Installation Guide. 2.1. Unit installation shall provide a proper air access to the unit; no obstacle for air is allowed closer than 3” from fan. 2.2. Copper wires # 12 AWG shall be use in DC power line. Wires shall be crimped to ring terminals. 3. Operation Guide 3.1. Power supply voltage shall be in the range 13.8 V + 1.0 V. 3.2. The input power inside the working frequency range shall be within the listed above limits. It is prohibit applying any RF signal out of the working frequency range with a power, greater than 10% of the minimum rated one. 3.3. Green LED “DC ON” is on, when DC voltage is applied to the unit. 3.4. Red LED “LOW POWER” is on, when the output power drops below 80% - 85% of set level. In majority of cases it warns about of inside problem. However, the output power may fail due to high load VSWR (in that case LED tells that the power decrease is stronger, then it is needed for VSWR protection). 3.5. Red LED “HIGH VSWR” is on, when the load VSWR exceeds 2.4 – 3. The output power is reduced. 3.6. Red LED “HIGH TEMP” is on, when the heatsink temperature is over +85 ̊C. Then the unit operates with output power, reduced to about 75% of rated one. Fans are running continuously, no matter, is RF drive applied or not. 3.7. Voltage at filter “ALARM” is about 9.5V during the normal unit operation and drops to less than 0.5V, when any of mentioned above red LED goes on. If 1.8 kOhm resistor is connected between this filter and the ground, TTL compatible output is created. 3.8. It is possible to significantly reduce the output power, pulling filter “SH/D” to the ground. However, it is possible to change the output power smoothly by a trimmer resistor (50 kOhm is the recommended value of it), connected between this pin and the ground. 3.9. The output power drops to about 75% of rated level, if the filter “CTRL” is pulled to the ground.

920 E. State Parkway • Schaumburg, IL 60173 Toll Free Number: (800) USA MADE (800.872.6233) Phone: 847.908.5400 • Fax: 847.908.5408 www.crescendtech.com • E-mail: [email protected] May 4, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: CWWP5XXDE1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: SchematicSchematics P5DE.pdf Block DiagramBlock Diagram P5DE.pdf Parts ListSemicond List P5DE.pdf Operational DescriptionDescription P5DE.pdf Tuning ProcedureTest Procedure P5DE.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: External/Internal PhotosFCC Photos P5DE.pdf User manualUsers Manual P5DE.pdf Sincerely, Mark Obermann

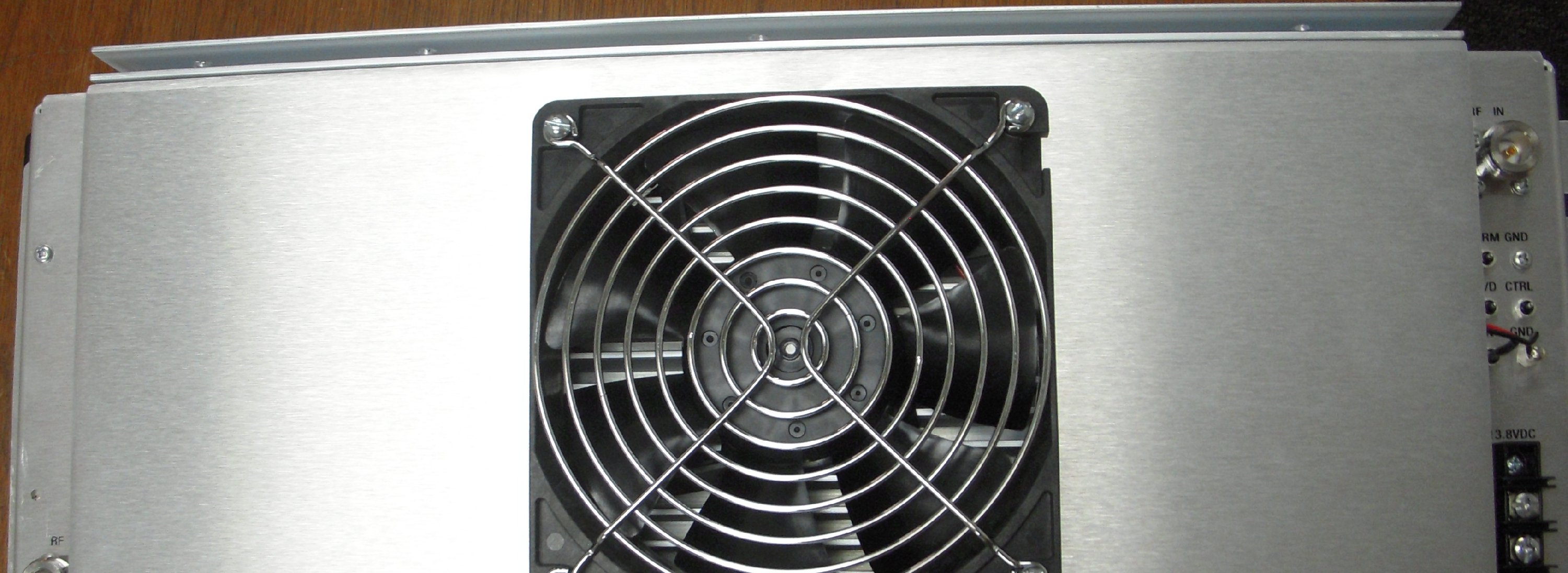

P5XXDE1 Back View P5XXDE1 Side View # 1 . P5XXDE1 Side View # 2 P5XXDE1 Side View # 3 P5XXDE1 Side View # 4

Place of Label

Crescend TechnologiesSN: xxxxxxxxx Model: P5 Series VHFPin: xx PN: xxxxxxxxxxxxxPout: xx FCC ID: CWWP5XXDE1Freq:xx IC: 7291A – P5XXDE1Voltage: xx

P5XXDE1 Inside View P5XXDE1 Module Board P5XXDE1 Filter / Detector Board P5XXDE1 Control Board.

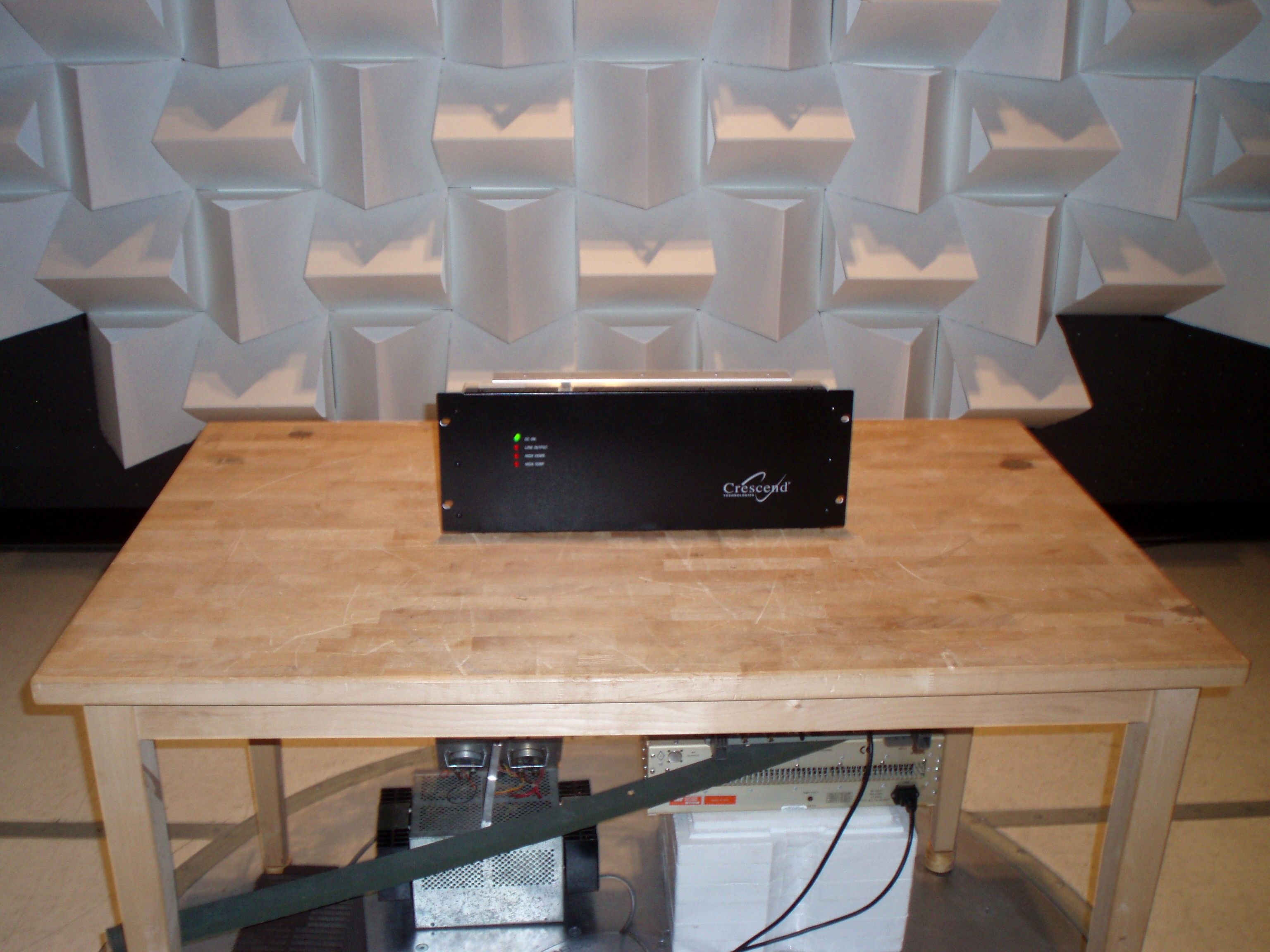

FCC PT 90 AMPLIFIER AND IC RSS-131, RSS-GEN TEST REPORT APPLICANT CRESCEND TECHNOLOGIES, LLC ADDRESS 140 E. State Parkway SCHAUMBURG IL 60173 USA FCC ID CWWP5XXDE1 IC LABEL 7291A-P5XXDE1 MODEL NUMBER P5 Series VHF PRODUCT DESCRIPTION VHF 50W AMPLIFIER DATE SAMPLE RECEIVED 3/25/2011 DATE TESTED 3/31/2011 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 595AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 2 of 18 TABLE OF CONTENTS ATTESTATION STATEMENT ............................................................................ 3 REPORT SUMMARY ........................................................................................ 4 TEST ENVIRONMENT AND TEST SETUP ......................................................... 4 DUT DESCRIPTION ......................................................................................... 5 TEST EQUIPMENT .......................................................................................... 6 TEST PROCEDURES ....................................................................................... 7 TEST RESULTS ............................................................................................... 9 RF POWER OUTPUT ............................................................................................................. 9 OCCUPIED BANDWIDTH .................................................................................................... 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ..................................... 15 FIELD STRENGTH OF SPURIOUS EMISSIONS (RADIATED) ................................................ 16 PASSBAND GAIN (FOR IC ONLY) ................................................................... 17 POWER LINE CONDUCTED INTERFERENCE ..................................................................... 18 Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 3 of 18 ATTESTATION STATEMENT This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Test Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario R. de Aranzeta Signature: Function: Test Lab Supervisor / Engineer Date: 4/1/11 Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 4 of 18 REPORT SUMMARY Disclaimer The test results relate only to the items tested. Purpose of Test To show the DUT in compliance with FCC CFR 47, Part 90 and IC RSS-131 requirements for amplifiers Test Procedures ANSI/TIA 603-C: 2004 FCC CFR 47 Part 90 IC RSS-131 ANSI C63.4: 2003 Related Approval N/A TEST ENVIRONMENT AND TEST SETUP Test Facility All tests were conducted by Timco Engineering Inc. located at 849 NW State Road 45, Newberry, FL 32669 USA Laboratory Test Condition Temperature: 26ºC Relative humidity: 50%. Deviation from the standards No deviation Modification to the DUT No modification was made. Test Exercise (software etc.) The DUT was placed in continuous transmitting mode of operation. System Setup Stand alone device. Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 5 of 18 DUT DESCRIPTION Manufactured by CRESCEND TECHNOLOGIES, LLC Product Description VHF 50W AMPLIFIER FCC ID CWWP5XXDE1 IC Label 7291A-P5XXDE1 M/N P5 SERIES VHF Operating Freq 136 – 174 MHz Max. Output Pwr 50 Watts Modulation N/A Amplifier Power Source 13.8 VDC DC Power Test Item Preproduction Type of DUT Fixed/Mobile Amplifier Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 6 of 18 TEST EQUIPMENT Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/12 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 5/10/10 5/10/12 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/12 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Applicant: CRESCEND TECHNOLOGIES, LLC FCC ID: CWWP5XXDE1 IC: 7291A-P5XXDE1 MODEL #: P5 SERIES VHF Report: C\CRESCEND_CWW\595AT11\595AT11TestReport.doc Page 7 of 18 TEST PROCEDURES Power Line Conducted Interference The procedure used was ANSI 63.4-2003 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer w…
