D87-UZB3-UZ-Wave USB Stick

UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. UZB3 Model: UZB3-U UZB3-E Z-Wave USB Stick User’s Manual UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. CONTENTS 1. INTRODUCTION ..........................................................................................................................3 2. SPECIFICATIONS ..........................................................................................................................4 3. PC CONTROLLER APPLICATION SOFTWER INSTALLATION .............................................................6 4.1 Installation .............................................................................................................................6 4.2 Start the Z-Wave PC Controller application ..............................................................................9 4.3 Remove Z-Wave PC Controller application Software .............................................................. 10 4.4 User Interface ....................................................................................................................... 11 4. FCC NOTICE TO USERS ............................................................................................................... 24 5. EU DECLARATION OF CONFORMITY ........................................................................................... 25 UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. 1. INTRODUCTION UZB, Z-Wave USB Stick and bundled application software (PC Controller) enables you to control a range of Z-Wave enabled devices through your PC or Notebook. Z-wave is an established short range interoperable two-way RF mesh network technology. Refer to http://www.z-wave.com/home for detail of the technology. Refer to http://products.z-wavealliance.org/ for various Z-Wave certified ready products. Refer to http://www.z-wavealliance.org for Z-Wave Alliances. Features
Simply plug in UZB to USB port of a PC/Notebook with PC Controller installed
Fully compatible with Z-wave enable network that can communicate with any Z-wave certified device. System Requirements
Windows 7/8 32 & 64 bit
Linux kernel 2.6.24+ UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. 2. SPECIFICATIONS Z-Wave & RF Specification Z-Wave wireless transceiver comprises a 3-channel 1GHz ISM FSK/GFSK narrowband radios. Table 1. UZB3 General Specifications Region US EU JAPAN Product UZB3 Product Description Z-Wave USB Adapter Model UZB3-U UZB3-E UZB-H Part Number ACC-UZB3-U ACC-UZB3-E ACC-UZB3-H Manufacturer Sigma Designs Z-Wave Chip SD3503 Z-Wave Library Serial API Version 4.x Basic Device Class Static Controller Z-Wave Protocol Z-Wave version ZDK 4.5x and ZDK6.0x Firmware Version SDK6.51.06 Communication Half Duplex Data Rate 9.6 kbps / 40 kbps / 100 kbps 100 kbps Number of Channels 3 Frequency 908.42 MHz 908.40 MHz 916.00 MHz 868.42 MHz 868.40 MHz 869.85 MHz 922.50 MHz 923.90 MHz 926.30 MHz Range 40 meters Line Of Sight UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. Table 2. Z-Wave RF properties (US) Data rate 9.6kbps 40kbps 100kbps Frequency 908.42 MHz 908.40 MHz 916 MHz Modulation Frequency Shift Keying (FSK) Frequency Shift Keying (FSK) Gaussian Frequency Shift Keying (GFSK) Frequency deviation f C ±20kHz f C ±20kHz f C ±29.3kHz Transmitter Bandwidth 90kHz +/-10% 90kHz +/-10% 110kHz +/-10% Receiver Bandwidth 250kHz +/-10% 250kHz +/-10% 500kHz +/-10% Coding Manchester encoded Non-return to Zero (NRZ) Non-return to Zero (NRZ) LO Injection Low-side Low-side High-side Table 3. Z-Wave RF properties (Europe) Data rate 9.6kbps 40kbps 100kbps Frequency 868.42 MHz 868.40 MHz 869.85 MHz Modulation Frequency Shift Keying (FSK) Frequency Shift Keying (FSK) Gaussian Frequency Shift Keying (GFSK) Frequency deviation f C ±20kHz f C ±20kHz f C ±29.3kHz Transmitter Bandwidth 90kHz +/-10% 90kHz +/-10% 110kHz +/-10% Receiver Bandwidth 250kHz +/-10% 250kHz +/-10% 500kHz +/-10% Coding Manchester encoded Non-return to Zero (NRZ) Non-return to Zero (NRZ) LO Injection Low-side Low-side High-side UZB3 Z-Wave USB Adapter 1 1 All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by Sigma Designs. © 2014 Sigma Designs, Inc. 3. PC CONTROLLER APPLICATION SOFTWER INSTALLATION 4.1 Installation 1. Exit all programs. 2. Run the installation file of the Z-Wave PC Controller application. Figure 1. Welcome page of Z-Wave PC Controller installation 3. Select the installation folder and who should be able to use the Z-Wave PC Controller application. Please note, that it is not recommended to move the Z-Wave PC Controller application manually after it has been installed into the above specified folder…

Text truncated - open the document above for the full version.

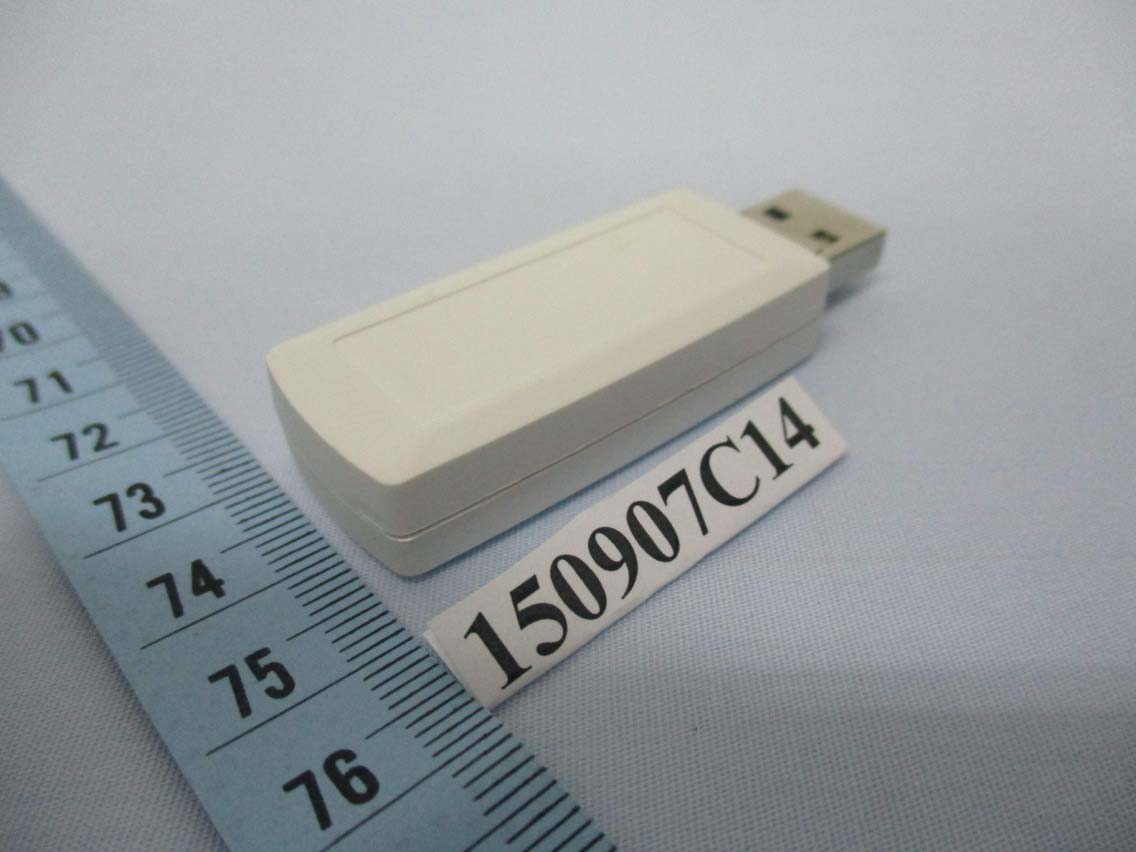

Page 1 CONSTRUCTION PHOTOS OF EUT

UZB3 FCC ID Label and Location UZB3 V2.0 P 1 of 2 11 Oct 2015 Sigma Designs, Inc UZB3 FCC ID Label and Location UZB3 FCC ID Label and Location UZB3 V2.0 P 2 of 2 11 Oct 2015 Sigma Designs, Inc 1 FCC LABEL WORDING, DIMENSIONS & LOCATION The Label will be printed on a WHITE Sticker with following wordings and logo:- The dimension of the WHITE Sticker is 35mm x 10mm. Please note that the black box is not part of the label. It is used to indicate the edge of the WHITE sticker. The WHITE Sticker will be stick onto the back casing of UZB as depicted in the diagrams below. The material (white polypropylene) shall be splashproof and permanent adhesive type.

Page 2 Page 3

Report No.: RF150907C14 Page No. 1 / 43 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150907C14 FCC ID: D87-UZB3-U Test Model: UZB3-U Received Date: Sep. 07, 2015 Test Date: Sep. 10 ~ Sep. 17, 2015 Issued Date: Oct. 06, 2015 Applicant: Sigma Designs, Inc. Address: 47467 Fremont Blvd, Fremont, CA 94538 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan (R.O.C.) Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150907C14 Page No. 2 / 43 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.2 Description of Test Modes ................................................................................................................... 6 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 7 3.3 Description of Support Units ............................................................................................................... 9 3.3.1 Configuration of System under Test .................................................................................................... 9 3.4 General Description of Applied Standards ........................................................................................ 10 4 Test Types and Results ....................................................................................................................... 11 4.1 Radiated Emission Measurement ...................................................................................................... 11 4.1.1 Limits of Radiated Emission Measurement ........................................................................................ 11 4.1.2 Test Instruments ................................................................................................................................ 12 4.1.3 Test Procedures ................................................................................................................................. 13 4.1.4 Deviation from Test Standard ............................................................................................................ 13 4.1.5 Test Set Up ........................................................................................................................................ 14 4.1.6 EUT Operating Conditions ................................................................................................................. 14 4.1.7 Test Results ....................................................................................................................................... 15 4.2 Conducted Emission Measurement .................................................................................................. 24 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 24 4.2.2 Test Instruments ................................................................................................................................ 24 4.2.3 Test Procedures ................................................................................................................................. 25 4.2.4 Deviation from Test Standard ............................................................................................................ 25 4.2.5 Test Setup ...........................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (Above 1GHz) 3 RADIATED EMISSION TEST (Below 1GHz)
