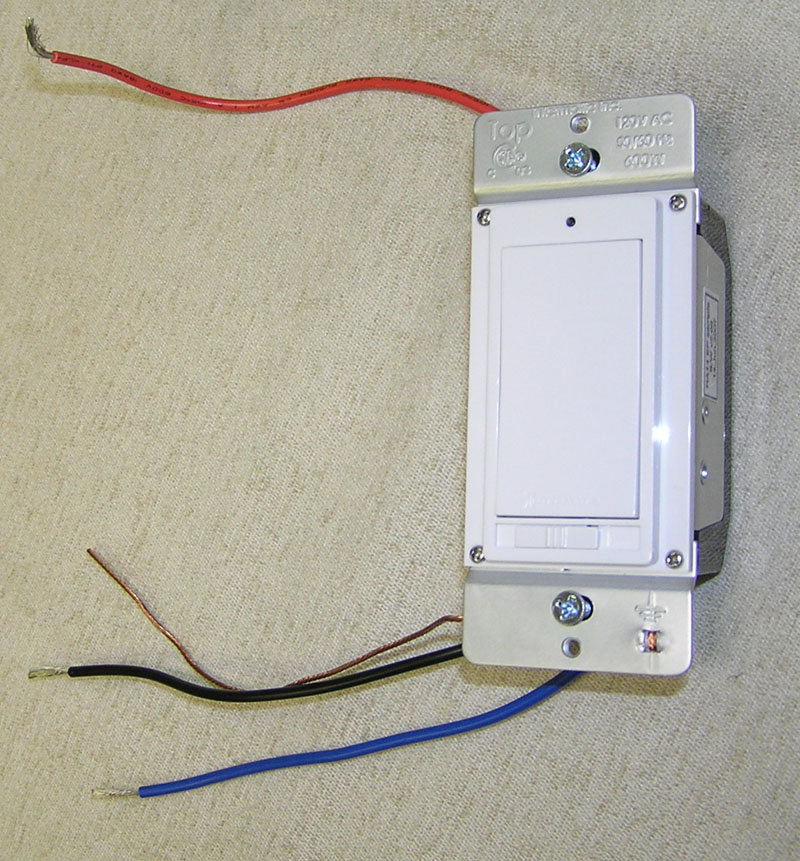

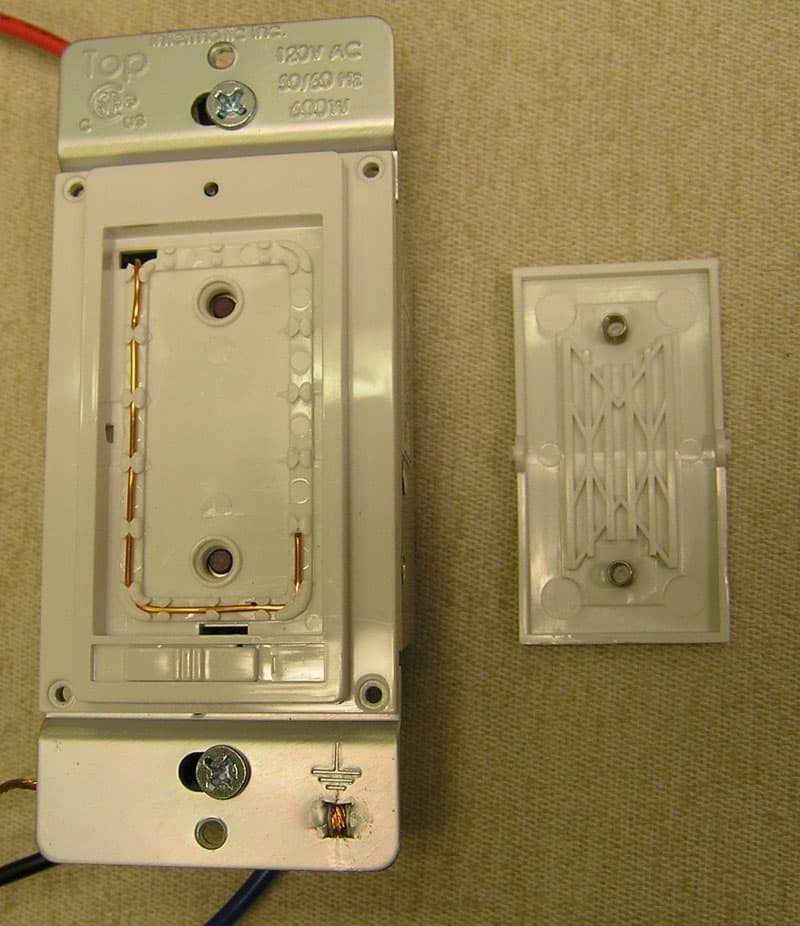

DGZHA000014P2In-Wall Dimmer Switch

To manually turn ON the light, press and release the top rocker.• To manually turn OFF the light, press and release the bottom rocker.• To manually DIM the light, press and hold the top or bottom rocker.• 1 – Wire and Install the HA14 In-Wall Dimmer With HomeSettings devices, you can reliably and remotely con- trol your lighting and appliances. The outstanding features of the HomeSettings HA14 600W In-Wall Dimmer Switch include: Feedback that will allow you to see whether your device has • received the ON/OFF/DIM signal. Wireless signal reliability — HomeSettings produts have a • special feature that virtually guarantees that wireless signals are received. Manual override. • Can be used with decorator-style wall plates (not included)• Compatible with multiple location • ON/OFF control using conventional 3-way or 4-way wiring devices. Because the HA14 In-Wall Dimmer is a Z-Wave™ device, it is compatible with any HomeSettings network, other Z-Wave networks, and all HomeSettings or other devices displaying the Z-Wave logo, regardless of manufacturer. Each module in a Z-Wave network com- municates with every other module, acting as a “repeater” and routing your commands to their destination by the most reliable pathway. When Z-Wave devices (regardless of manufacturer) are installed throughout the house, signals are automatically routed around obstacles or dead spots, strengthening the network as more devices are added. Thank you for purchasing an Intermatic HomeSettings device The most basic installation procedure is to use the HA14 in a Single Pole application—a circuit where a single switch con- trols a light, as shown in the wiring diagram below. Other installation diagrams are shown on the next page. Turn off power at the service panel by REMOVING THE 1. CORRECT FUSE or TURNING THE CIRCUIT BREAKER OFF. Remove existing wall switch from the box if necessary.2. Trim building wires to 7/16”.3. Connect the BLACK wire of the HA14 to the hot build-4. ing wire (the wire leading to the circuit breaker or fuse box), using a twist connector (provided). NOTE: Twist connectors provided are suitable for copper wire only. For aluminum wire, consult an electrician. NOTE: Insert wires straight into twist connector, then twist clockwise. Make sure all twist connec- tors are tight. Secure each twist connector with electrical tape. Make sure no bare wire shows below the wire connector. Connect the BLUE wire of the HA14 to the load wire, using 5. a twist connector (provided). Connect the ground wire from the box to the bare copper 6. wire on the HA14 In-Wall Dimmer. If there is no ground wire, ground the HA14 unit to the box. If the box is plastic, connect the bare copper wire to ground as supplied or contact an electrician. Remove the semi-stripped end of the RED wire and apply 7. the twist connector to this wire. The RED wire is not used in the single-pole application. Tuck wires into wall box leaving room for the 8. HA14 unit. Using screws provided, mount the HA14 unit 9. to the wall box, then install the decorator wall plate (not provided). Turn power back on at the service panel. 10. NOTE: Before operating the switch, check to make sure the small switch below the rocker is in the ON or left position. A vertical-line ON symbol should be visible next to the switch, as shown (right, top). NOTE: When changing a light bulb, slide the switch to OFF or right position, with the “O” OFF symbol visible, as shown (right, bottom). This prevents chance of electric shock dur- ing the bulb change. When fi nished, slide the switch back to the ON or left position, again showing the vertical-line ON symbol. Single Pole Application NEUTRAL HOT BLACK BLUE RED 120VAC 50/60 Hz Incandescent Lighting Load BARE COPPER HA14 LOAD 600 Watt In-Wall Dimmer MODEL HA14 Understand basic wiring principles and techniques• (IF NOT, USE A QUALIFIED ELECTRICIAN FOR THIS INSTALLATION.) Can interpret wiring diagrams• Have circuit-wiring experience• Read all instructions and documentation and save for future reference• Are prepared to test your work, making sure you have wired the recep-• tacle according to your local electrical code Before installing, make sure that you... If within six (6) years from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This war- ranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modifi ed; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the fi nish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs. INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRAN- TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with proof of purchase, postage prepaid to the aut…
