DGZHA000020P2In-Wall Toggle-Style Dimmer Switch

1 – Wire and Install the HA20 In-Wall Dimmer With HomeSettings devices, you can reliably and remotely control your household lighting. The outstanding features of the HomeSettings HA20 600W In-Wall Dimmer include: Feedback that will allow you to see whether your device has • received the ON/OFF/DIM signal. Wireless signal reliability — each HomeSettings product • has a special feature that virtually guarantees that wireless signals are received. Manual override.• Can be used with toggle-style wall plates (not included)• Compatible with multiple location • ON/OFF control using conventional 3-way or 4-way wiring devices. Because the HA20 In-Wall Dimmer is a Z-Wave™ device, it is compatible with any HomeSettings network, other Z-Wave net- works, and all HomeSettings or other Z-Wave devices display- ing the Z-Wave logo, regardless of manufacturer. Each module in a Z-Wave network communicates with every other module, routing your commands to their destination by the most reliable pathway. When Z-Wave devices are installed throughout the house, signals are automatically routed around ob- stacles or dead spots, for dependable performance. Thank you for purchasing an Intermatic HomeSettings device The most basic installation procedure is to use the HA20 in a Single Pole application—a circuit where a single switch con- trols a light, as shown in the wiring diagram below. Other installation diagrams are shown on the next page. Turn off power at the service panel by REMOVING THE 1. CORRECT FUSE or TURNING THE CIRCUIT BREAKER OFF. Remove existing wall switch from the box if necessary. 2. Trim building wires to 7/16”.3. Connect the BLACK wire of the HA20 to the hot 4. building wire (the wire leading to the circuit breaker or fuse box), using a twist connector (provided). NOTE: Twist connectors provided are suitable for copper wire only. For aluminum wire, consult an electrician. NOTE: Insert wires straight into twist connector, then twist clockwise. Make sure all twist connec- tors are tight. Secure each twist connector with electrical tape. Make sure no bare wire shows below the wire connector. Connect the BLUE wire of the HA20 to the load wire, using 5. a twist connector (provided). Connect the ground wire from the box to the GREEN wire 6. on the HA20 In-Wall Dimmer. If there is no ground wire, ground the HA20 unit to the box. If the box is plastic, con- nect the GREEN wire to ground as supplied or contact an electrician. Remove the semi-stripped end of the Red wire of the HA20 7. and apply the twist connector to this wire. The RED wire is not used in the single-pole application. Tuck wires into wall box leaving room for the HA20 unit. 8. Using screws provided, mount the HA20 unit to the wall 9. box, then install the toggle-style wall plate (not provided). Turn power back on at the service panel. 10. NOTE: Before operating the switch, check to make sure the small switch below the toggle is in the ON or left position. NOTE: When changing a light bulb, slide the switch to the OFF or right position. This pre- vents chance of electric shock during the bulb change. When fi nished, slide the switch back to the ON or left position. See fi gure (right) for location of the sliding switch. Single Pole Application NEUTRAL HOT BLACK BLUE RED 120VAC 50/60 Hz Incandescent Lighting Load GREEN LOAD HA20 To manually turn ON the light switch, fl ip the toggle up and release.• To manually turn OFF the light switch, fl ip he toggle down and release.• To manually DIM the light, press and hold the toggle up or down.• 600 Watt In-Wall Toggle-Style Dimmer MODEL HA20 Understand basic wiring principles and techniques• (IF NOT, USE A QUALIFIED ELECTRICIAN FOR THIS INSTALLATION.) Can interpret wiring diagrams• Have circuit-wiring experience• Read all instructions and documentation and save for future reference• Are prepared to test your work, making sure you have wired the recep-• tacle according to your local electrical code Before installing, make sure that you... If within six (6) years from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This war- ranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modifi ed; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the fi nish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs. INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRAN- TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with proof of purchase, postage prepaid to the authorized service center listed below. This warranty is made by: Intermatic Incorporated/After Sales Service/7777 Winn Rd., Spring Grove, Illinois 60081-9698/815-675-7000 http://www.homesettings.c…

Text truncated - open the document above for the full version.

FCC ID: DGZHA000020P2 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Intermatic, Inc., an In-Wall Toggle-Style Dimmer Switch Transmitter, Model Number: HA20, with an FCC ID: DGZHA000020P2 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regard to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231(e). Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/cp

Letter of Agency Date: March 24, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Intermatic, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: March 24, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DGZHA000020P2 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: March 24, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZHA000020P2 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: March 24, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZHA000020P2 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

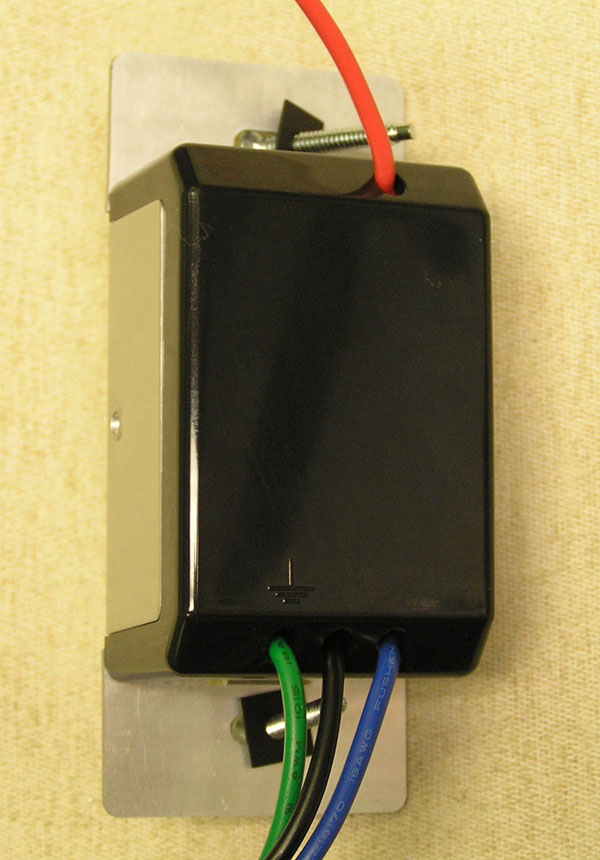

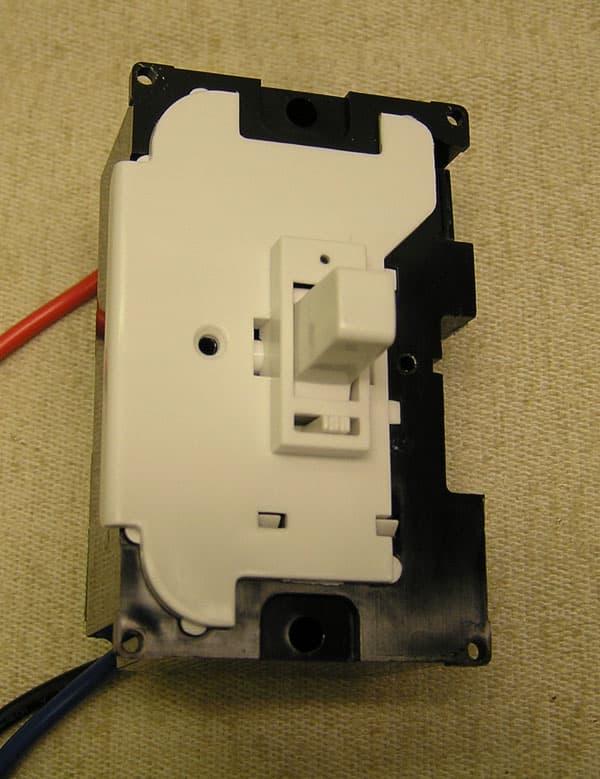

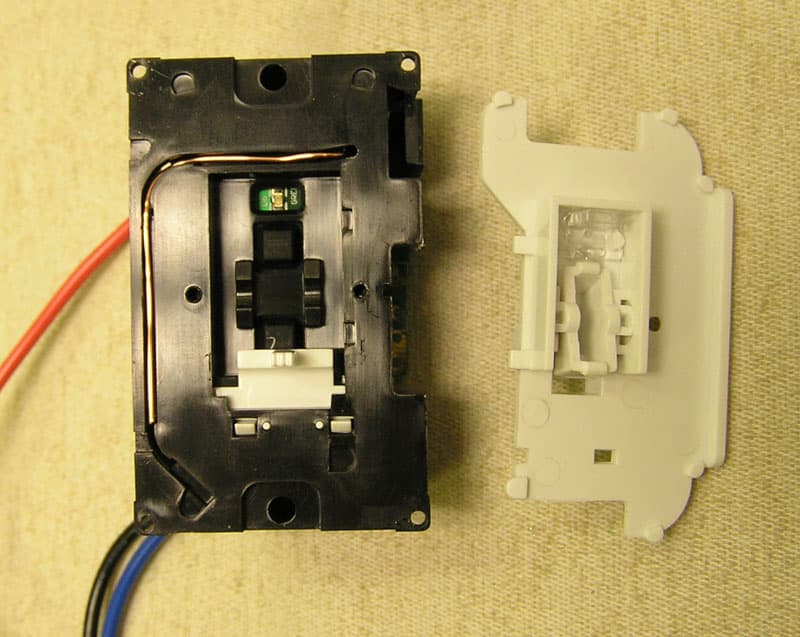

HA20 FRONT VIEW HA20 ALUMINUM FRAME REMOVED HA20 FRONT PLASTIC COVER REMOVED SHOWING ANTENNA HA20 REAR VIEW
