DWNV2TDBUBLYsia 1, Ysia 5, Ysia 5 TDBU HP Zigbee II, 5175210B, 5175211B, 5175066B

1 [A] h b j e g f c d i k a ___ [B] 1 2 3 4 5 ___ [C] 34112 ___ [D] 1 3 2 4 ___ Copyright ©2024-2026. All rights reserved. SOMFY ACTIVITÉS SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy 303.970.230. Images non contractually binding.01/2026 EN Complete instruction guide (settings, tips and advice) available online on https://www.somfy.info/fr/p/Ysia Please read this guide carefully before installing or using this product. Please also comply with the instructions set out in the enclosed Safety instructions document. 1. In detail (Figure } [A] ) a)Feedback LED b)Joystick one A joystick tilt UP/DOWN moves the middle bar of the motorised product up or down. c)Stop/my button Press once to stop the motorised product. Press twice in succession to move it to the favourite position. Hold for 5 seconds to save or erase the favourite position. d)Joystick Two A joystick tilt UP/DOWN moves the lower bar of the motorised product up or down. e)Lock function button Press this button to allow simultaneous movement of the two bars using the joysticks. It deactivates after 5 seconds. f)Selected channel feedback LED Channel or group select LED g)Channel selector Channel or group selector h)PROG button i)Batteries drawer latch j)Wall bracket k)Batteries drawer 2. Start-up Download the TaHoma application if it is not yet installed on the smartphone. 3. Selection of groups (Figure } [B] ) Before using Ysia TDBU Zigbee, check that the correct group has been selected. 4. Installation 4.1. Adding/Deleting Ysia Zigbee Follow the instructions on the TaHoma application to add or remove a Ysia Zigbee. 4.2. Wall mounting ( Figure } [C]) Open the wall mount (i) and fix it to a flat surface using a screwdriver and an M3-type screw. CAUTION Do not use an electric screwdriver. 5. Replacing the batteries (Figure } [D] ) DANGER Read the Safety instructions document. Explosion risk if the battery is replaced by an incorrect type. Do not mix old and new batteries. Insert the batteries type AAA LR03, 2 x 1.5 V, as indicated by the polarity markings (+ and - signs) in the battery compartment. The power supply terminals must not be short-circuited. 6. Technical data Frequency range used: 2.4 GHz - 2.4835 GHz. US and Canada maximum e.r.p. < 100 mW. Other countries maximum e.r.p.< 10 mW. The environment in which the product is used might reduce the radio range. The use in the same room as the controlled products is recommended. Radio range: 50 m in Free field (optimal condition). Operating temperature: 0 °C (+32 °F) to +48 °C (+118.4 °F). Power supply: 2 x type AAA LR03 batteries, 2 x 1.5 V. SOMFY ACTIVITES SA, 74300 CLUSES FRANCE hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of Radio Directive 2014/53/EU and the other essential requirements of the applicable European Directives. The full text of the EU Declaration of Conformity is available at www.somfy.com/ce. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by SOMFY ACTIVITES SA is under license. Other trademarks and trade names are those of their respective owners. FR Notice complète (réglages, conseils et astuces) disponible en ligne sur https://www.somfy.info/fr/p/Ysia Avant d’installer et d’utiliser ce produit, lire attentivement la présente notice. Respecter également les consignes détaillées dans le document joint Notice de sécurité. 1. En détail (figure } [A] ) a)LED de feedback b)Joystick un. Pousser le joystick vers le haut ou le bas pour déplacer la barre haute du produit motorisé vers le haut ou le bas, respectivement. c)Bouton stop/my. Appuyer une fois pour arrêter le produit motorisé. Appuyer deux fois d’affilée pour placer le produit en position favorite. Maintenir enfoncé pendant 5 secondes pour enregistrer ou effacer la position favorite. d)Joystick deux. Pousser le joystick vers le haut ou le bas pour déplacer la barre basse du produit motorisé vers le haut ou le bas, respectivement. e)Bouton de verrouillage. Appuyer sur ce bouton pour déplacer simultanément les deux barres à l’aide des joysticks. Cette fonction se désactive après 5 secondes. f)LED de feedback de canal sélectionné. LED de confirmation du canal ou groupe choisi. g)Sélecteur de canal. Sélecteur de canal ou de groupe. h)Bouton PROG i)Déverrouillage du compartiment à piles j)Support mural k)Compartiment à piles 2. Mise en route Télécharger l’application TaHoma si elle n’est pas encore installée sur le smartphone. 3. Sélection des groupes (figure } [B] ) Avant toute opération avec la télécommande Ysia TDBU Zigbee, s’assurer que le bon groupe est sélectionné. 4. Installation 4.1. Ajout/suppression d'Ysia Zigbee Suivre les consignes sur l’application TaHoma pour ajouter ou supprimer une Ysia Zigbee. 4.2. Support mural ( figure } [C]) Ouvrir le support mural (i) et le fixer sur une surface plane à l’aide d’un tournevis et d’une vis de type M3. ATTENTION Ne pas utiliser un tournevis électrique. 5. Remplacement des piles (figure } [D] ) DANGER Lire le document Consignes de sécurité. Risque d’explosion si la pile est remplacée par un type incorrect. Ne pas mixer des piles usagées et des piles neuves. Insérer des piles de type AAA LR03, 2 x 1.5 V, conformément aux indications de polarité (signes + et -) dans le compartiment à piles. Les bornes d’alimentation ne doivent pas être court- circuitées. 6. Caractéristiques techniques Gamme de fréquences utilisée : 2.4 GHz - 2.4835 GHz. US et Canada e.r.p. maximum < 100 mW. Autres pays e.r.p. maximum< 10 mW. L’environnement dans lequel le produit est utilisé peut réduire la portée radio. L'utilisation dans la même pièce que les produits commandés est conseillée. Portée radio : 50 m en champ libre (condition optimale). Température de fonctionnement : 0 °C (+32 °F) à +48 °C (+118.4 °F). Alimentation : 2 x piles du type AAA LR03, 2 x 1.5 V. Par la présente, SOMFY ACTIVITES SA, 74300 CLUSES FRANCE déclare que l’équipement rad…

Text truncated - open the document above for the full version.

1 [A] a h b g d f e c i j ___ [B] 1 2 3 4 5 ___ [C] 34112 ___ [D] 1 3 2 4 ___ Copyright ©2023 - 2026. All rights reserved. SOMFY ACTIVITÉS SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy 303.970.230. Images non contractually binding.01/2026 EN Complete instruction guide (settings, tips and advice) available online on https://www.somfy.info/fr/p/Ysia Please read this guide carefully before installing or using this product. Please also comply with the instructions set out in the enclosed Safety instructions document. 1. In detail (Figure } [A] ) a)Feedback LED b)Up button (to raise, switch on or open the motorised product) c)Stop/my button (allows the motorised product to be stopped or moved to the favourite position by pressing the button twice in succession) d)Down button (to lower, switch off or close the motorised product) e)Selected channel feedback LED Channel or group select LEDs (Ysia 5 Zigbee only) f)Channel selector Channel or group selector (Ysia 5 Zigbee only) g)Wall bracket h)PROG button i)Batteries drawer j)Batteries drawer latch 2. Start-up Download the TaHoma application if it is not yet installed on the smartphone. 3. Selection of groups (Figure } [B] ) Before using Ysia Zigbee, check that the correct group has been selected. 4. Installation 4.1. Adding/Deleting Ysia Zigbee Follow the instructions on the TaHoma application to add or remove a Ysia Zigbee. 4.2. Wall mounting ( Figure } [C]) Open the wall mount (i) and fix it to a flat surface using a screwdriver and an M3-type screw. CAUTION Do not use an electric screwdriver. 5. Replacing the batteries (Figure } [D] ) DANGER Read the Safety instructions document. Explosion risk if the battery is replaced by an incorrect type. Do not mix old and new batteries. Insert the batteries type AAA LR03, 2 x 1.5 V, as indicated by the polarity markings (+ and - signs) in the battery compartment. The power supply terminals must not be short-circuited. 6. Technical data Frequency range used: 2.4 GHz - 2.4835 GHz. US and Canada maximum e.r.p. < 100 mW. Other countries maximum e.r.p.< 10 mW. The environment in which the product is used might reduce the radio range. The use in the same room as the controlled products is recommended. Radio range: 50 m in Free field (optimal condition). Operating temperature: 0 °C (+32 °F) to +48 °C (+118.4 °F). Power supply: 2 x type AAA LR03 batteries, 2 x 1.5 V. SOMFY ACTIVITES SA, 74300 CLUSES FRANCE hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of Radio Directive 2014/53/EU and the other essential requirements of the applicable European Directives. The full text of the EU Declaration of Conformity is available at www.somfy.com/ce. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by SOMFY ACTIVITES SA is under license. Other trademarks and trade names are those of their respective owners. FR Notice complète (réglages, conseils et astuces) disponible en ligne sur https://www.somfy.info/fr/p/Ysia Avant d’installer et d’utiliser ce produit, lire attentivement la présente notice. Respecter également les consignes détaillées dans le document joint Notice de sécurité. 1. Détail (figure } [A] ) a)LED de feedback b)Bouton Montée (pour monter, allumer ou ouvrir le produit motorisé) c)Bouton Stop/my (pour arrêter le produit motorisé ou, avec deux appuis brefs et consécutifs, l’amener en position favorite). d)Bouton Descente (pour descendre, éteindre ou fermer le produit motorisé) e)LED de feedback de canal sélectionné LED de confirmation du canal ou groupe choisi (Ysia 5 Zigbee uniquement). f)Sélecteur de canal Sélecteur de canal ou de groupe (Ysia 5 Zigbee uniquement). g)Support mural h)Bouton PROG i)Compartiment à piles j)Déverrouillage du compartiment à piles 2. Mise en route Télécharger l’application TaHoma si elle n’est pas encore installée sur le smartphone. 3. Sélection des groupes (figure } [B] ) Avant toute opération avec la télécommande Ysia 5 Zigbee, s’assurer que le bon groupe est sélectionné. 4. Installation 4.1. Ajout/suppression d'Ysia Zigbee Suivre les consignes sur l’application TaHoma pour ajouter ou supprimer une Ysia Zigbee. 4.2. Support mural ( figure } [C]) Ouvrir le support mural (i) et le fixer sur une surface plane à l’aide d’un tournevis et d’une vis de type M3. ATTENTION Ne pas utiliser un tournevis électrique. 5. Remplacement des piles (figure } [D] ) DANGER Lire le document Consignes de sécurité. Risque d’explosion si la pile est remplacée par un type incorrect. Ne pas mixer des piles usagées et des piles neuves. Insérer des piles de type AAA LR03, 2 x 1.5 V, conformément aux indications de polarité (signes + et -) dans le compartiment à piles. Les bornes d’alimentation ne doivent pas être court- circuitées. 6. Caractéristiques techniques Gamme de fréquences utilisée : 2.4 GHz - 2.4835 GHz. US et Canada e.r.p. maximum < 100 mW. Autres pays e.r.p. maximum< 10 mW. L’environnement dans lequel le produit est utilisé peut réduire la portée radio. L'utilisation dans la même pièce que les produits commandés est conseillée. Portée radio : 50 m en champ libre (condition optimale). Température de fonctionnement : 0 °C (+32 °F) à +48 °C (+118.4 °F). Alimentation : 2 x piles du type AAA LR03, 2 x 1.5 V. Par la présente, SOMFY ACTIVITES SA, 74300 CLUSES FRANCE déclare que l’équipement radio couvert par ces instructions est conforme aux exigences de la Directive Radio 2014/53/UE et aux autres exigences essentielles des Directives européennes applicables. Le texte complet de la déclaration UE de conformité est disponible sur www.somfy.com/ce. La marque et les logos Bluetooth® sont des marques déposées appartenant à Bluetooth SIG, Inc. et toute utilisation de ces marques par SOMFY ACTIVITES SA se fait sous licence. Les autres marques et noms commerciaux sont la propriété de leurs détenteurs respectifs. ES Guía de instrucciones completa (configuración, consej…

Text truncated - open the document above for the full version.

Somfy Systems, Inc., 121 Herrod Blvd. Dayton, NJ 08810 Labels DWNVARBL, 12049A-VARBL Ysia 1 HP Zigbee II, 5175210B Ysia 5 HP Zigbee II, 5175211B Ysia 5 TDBU Zigbee II, 5175066B 07/21/26 Label Location

EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 64 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 8. SETUP PHOTOS Conducted Measurements at Antenna Port EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 65 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 Field Strength of Spurious X-Position Y-Position Z-Position EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 66 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 67 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288

EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 1 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC CFR47 PART 15 SUBPART C & IC RSS-247 TEST REPORT For SOMFY SYSTEMS INC. Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Model Number: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC: 12049A-V2TDBUBL Report Number: 0048-260706-01 Prepared for SOMFY SYSTEMS INC. 121 Herrod Blvd. Dayton, NJ 08810 USA Prepared by Advanced Compliance Laboratory, Inc. 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 07/31/2026 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 2 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................ 3 2. EUT DESCRIPTION .................................................................................................................. 5 3. TEST METHODOLOGY ........................................................................................................... 7 4. FACILITIES AND ACCREDITATION .................................................................................... 7 5. CALIBRATION AND UNCERTAINTY ................................................................................... 8 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................. 8 5.2. MEASUREMENT UNCERTAINTY ................................................................................ 8 5.3. TEST AND MEASUREMENT EQUIPMENT ................................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST ............................................................................... 10 7. APPLICABLE LIMITS AND TEST RESULTS ...................................................................... 11 7.1 6dB &99% BANDWIDTH .............................................................................................. 11 7.2 PEAK OUTPUT POWER ................................................................................................. 15 7.3 MAXIMUM PERMISSIBLE EXPOSURE ...................................................................... 29 7.4 AVERAGE OUTPUT POWER ........................................................................................ 35 7.5 PEAK POWER SPECTRAL DENSITY .......................................................................... 36 7.6 CONDUCTED SPURIOUS EMISSIONS ........................................................................ 40 7.7 RADIATED EMISSIONS ................................................................................................ 51 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ........................................ 51 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA ................................................ 53 7.8 CONDUCTED EMISSION ................................................................................................ 62 7.9 EUT RECEIVING MODE VERIFICATION ..................................................................... 63 8. SETUP PHOTOS ...................................................................................................................... 64 9. APPENDIX ............................................................................................................................... 68 EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 3 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: SOMFY SYSTEMS INC. EUT DESCRIPTION: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II MODEL: 5175210B, 5175211B, 5175066B DATE TESTED: 07/06/2026 to 07/31/2026 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-247:Issue 4 & RSS-Gen Issue 5 NO NON-COMPLIANCE NOTED Test Summary Testing Items Per FCC Part 2/ Part 15.247 & IC RSS-247 /RSS-Gen Standard Requirements for DTS Modulation Section Limit Result DTS Bandwidth 15.247(a) (2) RSS-247, 5.2(a) >=500KHz Complies Peak Power Limit 15.247(b) (3) RSS-247, 5.4(d) Conducted: 1W (30dBm) e.i.r.p. 4W(36dBm) Complies Peak Power Spectral Density 15.247(e) RSS-247, 5.2(b) 8dBm/3KHz Complies Emissions ( Conducted) 15.247(d) RSS-247, 5.5 -20dB/-30dB Complies* Spurious ( Radiated) 15.205(a) RSS-247, 5.5 15.209/RSS-Gen Complies RF Safety* 1.1310/RSS-102 1.0/5.0 mW/cm 2 Complies** NOTE: *For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 4 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Advanced Compliance Laboratory, Inc. (ACL) and all revisions …

Text truncated - open the document above for the full version.

136 IEEE Std 149-2021 336 1 GENERAL INFORMATION 1.1 1.2 436 2 PRODUCT INFORMATION 2.1 2.2 2.3 2.4 2.5 536 3 SUMMARY OF TEST RESULTS 3.1 3.2 3.3 636 4 GENERAL TEST CONFIGURATIONS 4.1 4.2 4.3 4.3.1 736 ANNEX A TEST RESULTS A.1 FrequencyGain (dBi)Efficiency ( 2300MHz4.58 64 2310MHz4.53 64 2320MHz4.70 63 2330MHz4.81 65 2340MHz4.99 67 2350MHz4.96 70 2360MHz5.01 73 2370MHz5.23 73 2380MHz5.52 75 2390MHz5.63 76 2400MHz5.61 76 2405MHz5.49 75 2410MHz5.44 75 2420MHz5.19 75 2430MHz5.32 77 2440MHz5.54 78 2450MHz5.58 76 2460MHz5.40 75 2470MHz5.38 75 2480MHz5.49 76 2490MHz5.47 74 2500MHz5.51 73 2510MHz5.34 73 2520MHz5.12 70 2530MHz5.02 65 2540MHz5.11 64 2550MHz4.92 62 2560MHz4.67 63 2570MHz4.25 61 2580MHz4.06 58 2590MHz4.13 55 2600MHz4.20 53 836 FrequencyGain (dBi)Efficiency ( 2300MHz4.93 66 2310MHz4.95 66 2320MHz4.97 66 2330MHz5.09 68 2340MHz5.20 71 2350MHz5.41 74 2360MHz5.67 77 2370MHz5.93 77 2380MHz6.23 80 2390MHz6.32 81 2400MHz6.31 81 2405MHz6.19 81 2410MHz6.14 81 2420MHz5.88 81 2430MHz5.98 83 2440MHz6.22 84 2450MHz6.24 83 2460MHz6.07 82 2470MHz6.05 82 2480MHz6.16 83 2490MHz6.11 80 2500MHz6.14 80 2510MHz5.97 79 2520MHz5.71 76 2530MHz5.54 71 2540MHz5.55 69 2550MHz5.30 67 2560MHz5.01 67 2570MHz4.57 65 2580MHz4.34 62 2590MHz4.38 58 2600MHz4.47 56 Valeur moyenne Gain antenne : Valeur = (5.61+6.31)/2 = 5.96 dBi A mettre dans le rapport FCC §12.2.1

EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 29 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 7.3 MAXIMUM PERMISSIBLE EXPOSURE LIMITS for FCC RF Exposure Evaluation §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. LIMITS for FCC SAR Evaluation KDB 447498 D04 Interim General RF Exposure Guidance v01, section 2.1.3 SAR-Based Exemption: “A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions.” For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz FCC KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 & Appendix A provides the SAR Test Exclusion Thresholds (ERP/Conducted) to verify that the device is exempt from 1-g extremity SAR at different separation distances. As example, for 900MHz Tx: 16mW (12dBm); For 2450MHz Tx: 10mW (10dBm) at ≤5 mm. EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 30 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 Details in calculation formula for reference, given in § 1.1307(b)(3)(i)(B) to calculate the exemption: LIMITS per ISED RSS-102 (issue 6) Section 6.3 & Table 11 for Exemption Limits for Routine Evaluation — SAR Evaluation For limb-worn devices where the 10 gram value applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 2.5. Example: Exclusion Thresholds to verify that the 2450MHz Tx is exempt from 1-g SAR at separation distance of ≤5 mm: 3mW (4.77dBm) & 10-g SAR at separation distance of ≤5 mm: 7.5mW (8.75dBm). EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 31 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 Section 5.3.2 Table 7&8 for Exemption Limits for Routine Evaluation – RF Exposure Evaluation (10MHz ro300GHz) In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the e.i.r.p. was derived. Summary For FCC and IC, that max. declared power level can be modified by any duty cycle over the time averaging period. Time-averaging period is a time period not to exceed 30 minutes for fixed RF sources or a time period inherent from device transmission characteristics not to exceed 30 minutes for mobile and portable RF sources. For rf exposure, the averaging period is 6 minutes for ISED Canada and for FCC it varies by frequency but 1~60 second for RF exposure or the period specified by product design spec. for RF exposure can be used. So the power value for RF exposure= Declared power x Duty Cycle factor EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 32 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 CALCULATIONS for MPE distance and Power Density Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P(mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yi elds d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) S = 0.0795 * 10 ^ ((P + G)/10)/ d^2 Equation (2) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Equation (1) and the measured Output power is used to calculate the MPE distance. Equation (2) and the measured Output power is used to calculate the Power density. EUT: Ysia 1 HP Zigbee II, Ysia 5 HP Zigbee II, Ysia 5 TDBU HP Zigbee II Report No: 0048-260706-01 Model: 5175210B, 5175211B, 5175066B FCC ID: DWNV2TDBUBL IC : 12049A-V2TDBUBL Page 33 of 76 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 APPLICABLE LIMITS RF MPE for separation >= 20cm FCC: From §1.1310 Table 1 (B), for Public S = 1.0 mW/cm 2 (for Professional, S = 5.0 mW/cm 2 ) IC: Per RSS-102, Sec. 5.3.2 Table 7, With formula of 2.619 x 10 -2 ƒ 0.6834 W/m 2 , most restricted power density limit values are 2.74W/m 2 at 902MHz, 5.34W/m 2 at 2400MHz. SAR Exclusion Thresholds for separation ≤5~40cm: FCC : Use Formular in FCC §…

Text truncated - open the document above for the full version.

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Internal Product Photos Transmitter Ys ia 5 TDBU HP Zigbee II HVIN 5175066B DWNV2TDBUBL IC: 12049A-V2TDBUBL Transmitter Disassembled .. 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 PCBA Bottom & Top 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 PCBA Sub Sections for Clarity 07/29/26 121 Herrod Blvd., Dayton, NJ 08810

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Internal Product Photos Transmitter Ys ia 5 HP Zigbee II HVIN 5175211B DWNV2TDBUBL IC: 12049A-V2TDBUBL Transmitter Disassembled .. 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Transmitter PCBA Bottom & Top 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 PCBA Sub Sections for Clarity 07/29/26 121 Herrod Blvd., Dayton, NJ 08810

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Internal Product Photos Transmitter Ysia 1 HP Zigbee II HVIN 5175210B DWNV2TDBUBL IC: 12049A-V2TDBUBL T ransmitter Disassembled 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 PCBA BOTTOM & TOP .. 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 PCBA SUB SECTIONS FOR CLARITY 07/29/26 121 Herrod Blvd., Dayton, NJ 08810

Somfy Systems, Inc., 121 Herrod Blvd., Dayton, NJ 08810 CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: 07/21/26 FCC ID: DWNV2TDBUBL To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Somfy Systems, Inc. (“t he applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Contact Person: Jim Hellander Company Name: Somfy Systems, Inc. ( FRN# 0006579940) Company US Address: 121 Herrod Blvd., Dayton, NJ 08810 Email: [email protected] Sincerely yours, Jim Hellander

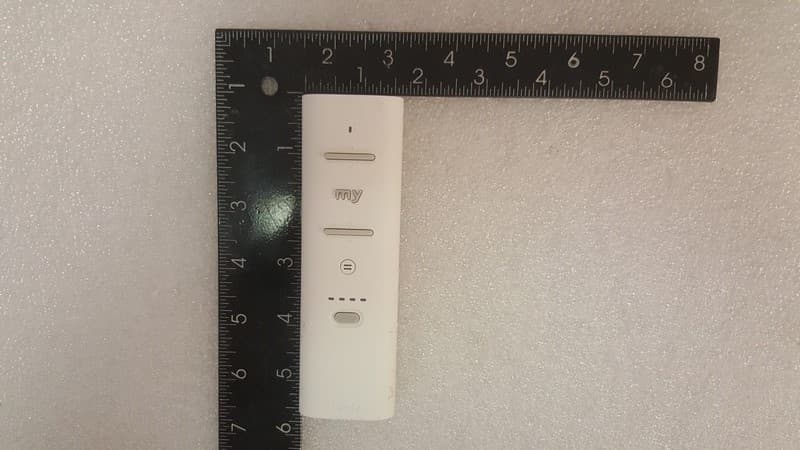

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 External Product Photos Transmitter Ysia 5 TDBU HP Zigbee II HVIN 5175066B DWNV2TDBUBL IC: 12049A-V2TDBUBL 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 FRONT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 BACK VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 LEFT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 TOP VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 RIGHT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 BOTTOM VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Battery Compartment Open View

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 External Product Photos Transmitter Ysia 5 HP Zigbee II HVIN 5175211B DWNV2TDBUBL IC: 12049A-V2TDBUBL 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 FRONT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 BACK VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 LEFT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 TOP VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 RIGHT VIEW 07/29/26 121 Herrod Blvd., Dayton, NJ 08810 Battery Compartment Open View

07/29/26 121 Herrod Blvd., Dayton, NJ 08810 External Product Photos Transmitter Ysia 1 HP Zi…
