User Manual Wireless LAN 802.11 b/g AP & Ethernet Bridge (EB1-TOO2-TLDO1) Version 1.0 Last Updated: Dec 6 th 2007 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The manufacturer declares that APRT-2518G/APRT-2518GS is limited to channel 1~channel 11 by specified firmware controlled in USA. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. This equipment intended for use on particular type of equipment Information to User The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CONTENT PAGE 1 INTRODUCTION................................................................................................... 1 T HE PRODUCT................................................................................................................... 1 P RODUCT FEATURES........................................................................................................ 1 2 STANDARD PACKAGE....................................................................................... 2 C ONTENTS OF PACKAGE.................................................................................................. 2 S YSTEM REQUIREMENTS FOR CONFIGURATION............................................................. 2 3 BASIC IP NETWORKING................................................................................. 3 4 WIRELESS LAN BASICS............................................................................... 4 5 CONFIGURATION WIZARD........................................................................ 9 6 CONFIGURATION MENU............................................................................... 12 S YSTEM SUMMARY > CONFIGURATION........................................................................ 12 S YSTEM SUMMARY > ASSOCIATIONS.......................................................................... 12 S YSTEM SUMMARY > STATISTICS................................................................................ 13 S YSTEM SUMMARY > SITE SCAN................................................................................. 13 B ASIC > SNTP SETTING.............................................................................................. 13 B ASIC > LAN SETTING................................................................................................. 14 B ASIC > MAC CLONE................................................................................................. 14 B ASIC > VLAN SETTING.............................................................................................. 15 W IRELESS > BASIC SETTING....................................................................................... 16 W IRELESS > ADVANCE SETTING................................................................................. 21 W IRELESS > MAC ADDRESS CONTROL...................................................................... 22 S YSTEM TOOLS > SYSTEM LOG................................................................................... 23 S YSTEM TOOLS > SYSTEM ADMIN............................................................................... 24 S YSTEM TOOLS > BACKUP/RESTORE SETTINGS........................................................ 24 S YSTEM TOOLS > FIRMWARE UPDATE......................................................................... 25 6 FACTORY RESET............................................................................................ 26 7 TECHNICAL SUPPORT.................................................................................... 27 8 DISCLAIMER........................................................................................................ 27 1 1 INTRODUCTION The Product The product is based on the IEEE 802.11g standard, which is the latest 54Mbps Wireless LAN (WLAN) standard. This standard is five times faster than the widely deployed Wi…

Text truncated - open the document above for the full version.

FCC Confidential Authorization Date: 2008-01-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: DXAAWIFIAP Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ƒ Schematics ƒ Internal photos ƒ Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying non-confidential documentation will not be made before the date of the Grant for this application. Sincerely Yours, Gloria Isabel Seamons Title: Mechanical Designer Teledex, LLC 6311 San Ignacio Ave San Jose, CA 95119

RFNet Technologies Pte Ltd 801 Lorong 7 Toa Payoh, Wearnes Technology Building #05-02 Singapore319319 Tel: +65-62516281 Fax: +65-62515821 Jan 24, 2008 Modular Approval Letter To whom it may concern, The 802.11b/g Wifi module EB1-T002-TLD, FCC ID DXAAWiFiAP is seeking FCC authorization as a module transceiver. The EUT meets the requirement for modular approval as details in FCC Public Notice DA 00-1407 ‘Part 15 Unlicensed Modular Transmitter Approval’. Compliance to each of the requirements is described below:- Modular Approval Requirements Compliance 1 The modular transceiver must have its own RF shielding. Yes 2 The Modular transceiver must have buffered modulation/data inputs Yes 3 The modular transceiver must have its own power supply regulator Yes 4 The modular transceiver must comply with the antenna requirement of section 15.203 and 15.204(c). Yes 5 The modular transceiver must be tested in stand-alone configuration Yes 6 The modular transceiver must he labeled with it’s own FCC ID number Yes 7 The Modular transceiver must comply with any specific rule or operating requirements and the manufacturer must provide adequate instruction along with the module to explain any such requirements. Yes 8 The modular transceiver must comply with any applicable RF exposure requirement. Yes __________________________________ Tan Moh Chuan / R&D Division Manager Applicant: RFNet Technologies Pte Ltd Address: 801 Lorong 7 Toa Payoh, Wearnes Technology Building #05-02 Singapore319319 TEL: +65-62516281 FAX: +65-62515821 E-mail: [email protected]

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Module Front View EUT–Module Rear View Accessories View

EXHIBIT A - FCC ID LABELING AND LOCATION Suggested FCC ID Label Suggested FCC ID Location FCC ID: DXAAWiFiAP

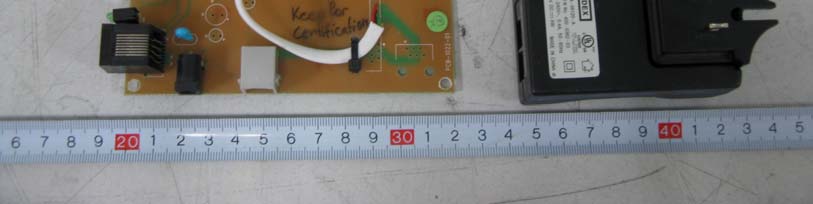

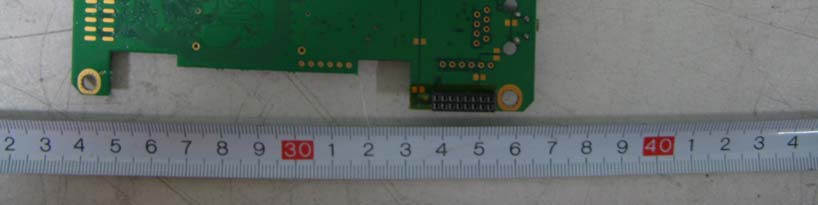

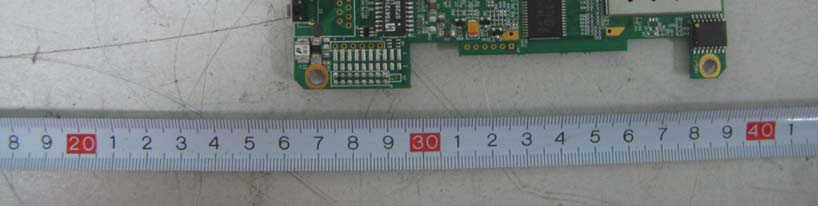

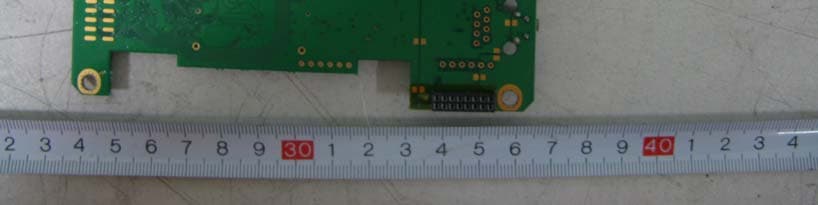

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT- Modul Shielding off View EUT- Bottom View RF Shielding off View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. FCC PART 15.247 MEASUREMENT AND TEST REPORT For Teledex, LLC 6311 San Ignacio Ave., San Jose, CA95119, U.S.A. This Report Concerns: Original Report Equipment Type: Airlink WiFi Ap Modul Test Engineer: Simon Mo Report Number: RSZ07121201a Test Date: 2008-01-08 to 2008-01-30 Report Date: 2008-01-30 Reviewed By: EMC Manager: Green Xu Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 FCC ID: DXAAWiFiAP Teledex LLC FCC ID: DXAAWiFiAP Report No.: RSZ07121201a Page 2 of 58 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 HOST SYSTEM CONFIGURATION LIST AND DETAILS....................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §15.247 (i) and §1.1307(b) (1) - MAXIMUN PERMISSIBLE EXPOSURE................................................................10 STANDARD APPLICABLE............................................................................................................................................10 TEST DATA................................................................................................................................................................10 §15.203 - ANTENNA REQUIREMENT....................................................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................12 §15.207 (a) - CONDUCTED EMISSIONS.................................................................................................................13 MEASUREMENT UNCERTAINTY..................................................................................................................................13 EUT SETUP................................................................................................................................................................13 EMI TEST RECEIVER SETUP.......................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST RESULTS SUMMARY..........................................................................................................................................14 TEST DATA................................................................................................................................................................15 PLOT(S) OF TEST DATA................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission - Front View (30 – 1000 MHz) Radiated Emission - Rear View (30 -1000 MHz) Radiated Emission - Front View (Above 1 GHz) Radiated Emission - Rear View (Above 1 GHz)
