DXAIWLANAirLink Wireless Ethernet Bridge

Airlink User Manual for Universal Model and WLAN Ethernet Bridge Model FCC Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class B & C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. No special accessory is required to enable the equipment to comply with the emission limits. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met, then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: DXAIWLAN”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Contents INTRODUCTION............................................................................................................. 1 THE PRODUCT.................................................................................................................. 1 P RODUCT FEATURES........................................................................................................ 1 BASIC IP NETWORKING................................................................................................... 2 WIRELESS LAN BASICS................................................................................................... 3 GETTING STARTED ...................................................................................................... 5 C ONNECTING EXPRESSPORT ADAPTER............................................................................. 5 EXPRESSPORT ADAPTER CONFIGURATION ....................................................... 6 W EB CONFIGURATION..................................................................................................... 6 BASIC CONFIGURATION................................................................................................. 8 ADMINISTRATION....................................................................................................... 8 LOCATION................................................................................................................... 8 IP C ONFIGURATION.................................................................................................... 8 OPERATION MODE...................................................................................................... 9 ADVANCE CONFIGURATION......................................................................................... 11 RADIO SETTING........................................................................................................ 11 WPA SECURITY........................................................................................................ 12 S ECURITY SERVER SETTINGS.................................................................................... 12 NON-WPA SECURITY............................................................................................... 13 PROTOCOL................................................................................................................ 14 MISCELLANEOUS.................................…

Text truncated - open the document above for the full version.

FCC ID: DXAIWLAN ADT No. 930809L09A Modular Approval Request Letter Advance Data Technology Jul. 18, 2007 Dear Application Examiner, TELEDEX LLC., It’s AirLink Wireless Ethernet Bridge, FCC ID: DXAIWLAN , would like to have your authorization as a limited modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2312. 3. “The modular transmitter must have its own power supply regulation. The part number of this regulator is AME8805DEGT. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a RJ45 cable. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: DXAIWLAN ADT No. 930809L09A 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

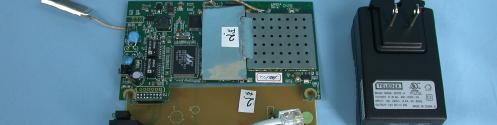

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

930908L09-I15 (2048x1536x16M jpeg)

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: DXAIWLAN Report No.: RF930809L09A Technical Description This device is an AirLink Wireless Ethernet Bridge, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna used in this product is Dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: DXAIWLAN Report No: SA930809L09A Reference No.: 950928L11 1 RF EXPOSURE REPORT REPORT NO.: SA930908L09A MODEL NO.: Expressnet Airlink family ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Teledex Corporation ADDRESS : 6311 San Ignacio Ave San Jose, CA 95119 ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: DXAIWLAN Report No: SA930809L09A Reference No.: 950928L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: DXAIWLAN Report No: SA930809L09A Reference No.: 950928L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: DXAIWLAN Report No: SA930809L09A Reference No.: 950928L11 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are -9.87dBi or 0.1030 (numeric) 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 56.234 0.001 1.0 6 2437 60.256 0.001 1.0 11 2462 70.795 0.001 1.0 Normal mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 69.183 0.001 1.0 6 2437 70.795 0.001 1.0 11 2462 67.608 0.001 1.0 Turbo mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6 2437 87.096 0.002 1.0
