Winterm ™ 3000 Series Windows ® -based Terminal Users Guide Winterm 3000 Series Windows ® -based Terminal Users Guide 883630-01 Rev. A February 2000 Wyse Technology Inc. 3471 North First Street San Jose, CA 95134-1803 iii Copyright Notice © 2000 Wyse Technology Inc. All rights reserved. This manual and the software and firmware described in it are copyrighted. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of this publication without express written permission. Trademarks WYSE is a registered trademark and Winterm is a trademark of Wyse Technology Inc. ICA 3 is a registered trademark and MetaFrame is a trademark of Citrix Systems Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other products are trademarks and/or registered trademarks of their respective companies. The Energy Star emblem does not represent endorsement of any product or service. Specifications subject to change without notice. Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Patents The Wyse product(s) described herein is(are) covered by U.S. Patent No. 5,918,039 and other patents pending. iv Ordering Information For availability, pricing, and ordering information in the United States and Canada, call 1-800-GET-WYSE (1-800-438-9973). In all other countries, contact your sales representative. Wyse Technology Inc. 3471 North First Street San Jose, CA 95134-1803 U.S.A. v EULA for Microsoft® Windows® CE Operating System for Windows-based Terminal Devices IMPORTANT—READ CAREFULLY This End User License Agreement (EULA) is a legal agreement between you (either an individual or a single entity) and the manufacturer (MANUFACTURER) of the special purpose computing device (SYSTEM) you acquired which includes certain Microsoft software product(s) installed on the SYSTEM and/or included in the SYSTEM package (SOFTWARE). The SOFTWARE includes computer software, the associated media, any printed materials, and any online or electronic documentation. By installing, copying or otherwise using the SOFTWARE, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, MANUFACTURER and Microsoft Licensing, Inc. (MS) are unwilling to license the SOFTWARE to you. In such event, you may not use or copy the SOFTWARE, and you should promptly contact MANUFACTURER for instructions on return of the unused product(s) for a refund. Software License The SOFTWARE is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The SOFTWARE is licensed, not sold. 1. Grant of License SOFTWARE includes software already installed on the SYSTEM (SYSTEM SOFTWARE) and, if included in the SYSTEM package, software contained on the CD-ROM disk and/or floppy disk(s) labeled “Desktop Software for Microsoft Windows CE” (DESKTOP SOFTWARE). This EULA grants you the following rights to the SOFTWARE: •SYSTEM SOFTWARE You may use the SYSTEM SOFTWARE only as installed in the SYSTEM. •DESKTOP SOFTWARE DESKTOP SOFTWARE might not be included with your SYSTEM. If DESKTOP SOFTWARE is included with your SYSTEM, you may install and use the component(s) of the DESKTOP SOFTWARE in accordance with the terms of the end user license agreement provided with such component(s). In the absence of a separate end user license agreement for particular component(s) of the DESKTOP SOFTWARE, you may install and use only one (1) copy of such component(s) on a single computer with which you use the SYSTEM. vi •Use of Windows CE Operating System for Windows-based Terminal Devices with Microsoft Windows NT Server, Terminal Server Edition If the SOFTWARE is Windows CE operating system for Windows-based Terminal devices, the following special provisions apply. In order to use the SYSTEM in connection with Windows NT Server, Terminal Server Edition, you must possess (1) a Client Access License for Windows NT Server, Terminal Server Edition and (2) an end user license for Windows NT Workstation or an end user license agreement for Windows NT Workstation for Windows-based Terminal Devices (please refer to the end user license agreement for Windows NT Server, Terminal Server Edition for additional information). MANUFACTURER may have included a Certificate of Authenticity for Windows NT Workstation for Windows-based Terminal Devices with the SYSTEM. In that case, this EULA constitutes an end user license for the version of Windows NT Workstation for Windows-based Terminal Devices indicated on such Certificate of Authenticity. •Back-up Copy If MANUFACTURER has not included a back-up copy of the SYSTEM SOFTWARE with the SYSTEM, you may make a single back-up copy of the SYSTEM SOFTWARE. You may use the back-up copy solely for archival purposes. 2. Description of Other Rights and Limitations •Speech/Handwriting Recognition If the SYSTEM SOFTWARE includes speech and/or handwriting recognition component(s), you should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are inherent in the processes; that it is your responsibility to provide for handling such errors and to monitor the recognition processes and correct any errors. Neither MANUFACTURER nor its suppliers shall be liable for any damages arising out of errors in the speech and handwriting recognition processes. •Limitations on Reverse Engineering, Decompilation and Disassembly You may not reverse engineer, decompile, or disassemble the SYSTEM SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation. •Single SYSTEM The SYSTEM SOFTW…

Text truncated - open the document above for the full version.

104 F Legal Information Regulatory Notices Hewlett-Packard Company Models C6409A, C6409B, C6410A, C6410B, C6411A, C6411B, C6411C This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by Hewlett-Packard Company may cause harmful interference, and void your authority to operate this equipment. Use of a shielded data cable is required to comply with the Class B limits of Part 15 of the FCC Rules. For further information, contact: Hewlett-Packard Company Manager of Corporate Product Regulations 3000 Hanover Street Palo Alto, Ca 94304 415.857.1501 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, can cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. LED Indicator Statement The display LEDs meet the requirements of EN 60825-1. Power Adapter Statement The power adapter cannot be repaired. If it is defective it should be discarded or returned to the supplier.

System Functional Block Diagram: MediaGX System Controller 0-64MB SDRAM (SODIMM) Banks 1/2 NOR FLASH PAL 16V8 NETWORK DP83815 Cx5530 Companion Chip LM4546 Codec BUF KEYBOARD MOUSE 10/100 Base-T AUDIO ISA PCI Vide o Conn. Video O/P TC5864 NAND FLASH 32MB SDRAM (onboard) Bank 0 USB Conn. PS/2

March 13, 2000 To: Ms. Linda Elliott Federal Communication Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: FCC Part 15 Class B approval of our Windows-based Terminal model WT3200LE Dear Ms. Elliott: We would like to submit our new Windows-based Terminal model WT3200LE to obtain FCC part 15 class B approval under FCC ID DYDWT3200. The Radiated and Line Conductive measurements were performed in accordance with EN55022 Class B. The functionality of this model is similar to our approved model WT3320SE (DYDWT3320), except we have removed the serial and parallel ports and circuits. The logic board layout and chassis have been modified to accommodate these changes. With this letter, I have provided all the necessary documentation electronically and attached the radiated and conducted setup drawings. All the test equipment information has been included as part of the radiated and conducted test report. Please note that the Anti-Drug letter was submitted to you during the original investigation of our model WT2300 (FCC ID DYDWT2300). Equipment List for the Radiated Measurement test: Support Equipment: See Radiated Measurement data sheet Test Equipment: HP Receiver Model 84560A (RES BW: 30KHz-100KHz, VBW: 10KHz-30KHz) Equipment List for the Conducted Measurement test: Support Equipment: HP PC Model: HP Brio PC (a copy of DOC is attached) HP Printer (a copy of DOC is attached) HP Monitor (FCC A3LCGC560) Test Equipment: HP Spectrum Analyzer Model 8566B (RES BW: 30 KHz-100KHz, VBW: 10KHz- 30KHz) HP QP Adaptor Model 85650A If you have any questions or need additional information, please contact me at 408.473.2697 (voice), 408.473.2245 (fax), or [email protected] (email). Sincerely Yours, Masood Abrishamcar Regu latory Engi neeri ng Ma nager EUT HP Brio Keyboard FCC ID: DOC Mo useFCC ID:DZL211029 21" Monitor FCC ID: DOC LAN Cable USB Printer FCC ID: DOC C6411B KeyboardFCC ID: GYUR38SK Mo useFCC ID:DZL211029 Mic Headset TEST SETUP FOR RADIATED MEASUREMENT Mo useFCC ID:DZL211029 Mo useFCC ID:DZL211029 TEST SETUP FOR CONDUCTED MEASUREMENT EUT HP Brio Keyboard FCC ID: DOC LAN Cable USB Printer FCC ID: DOC C6411B KeyboardFCC ID: GYUR38SK Mic Headset 15" Monitor FCC ID: A3LCGC560

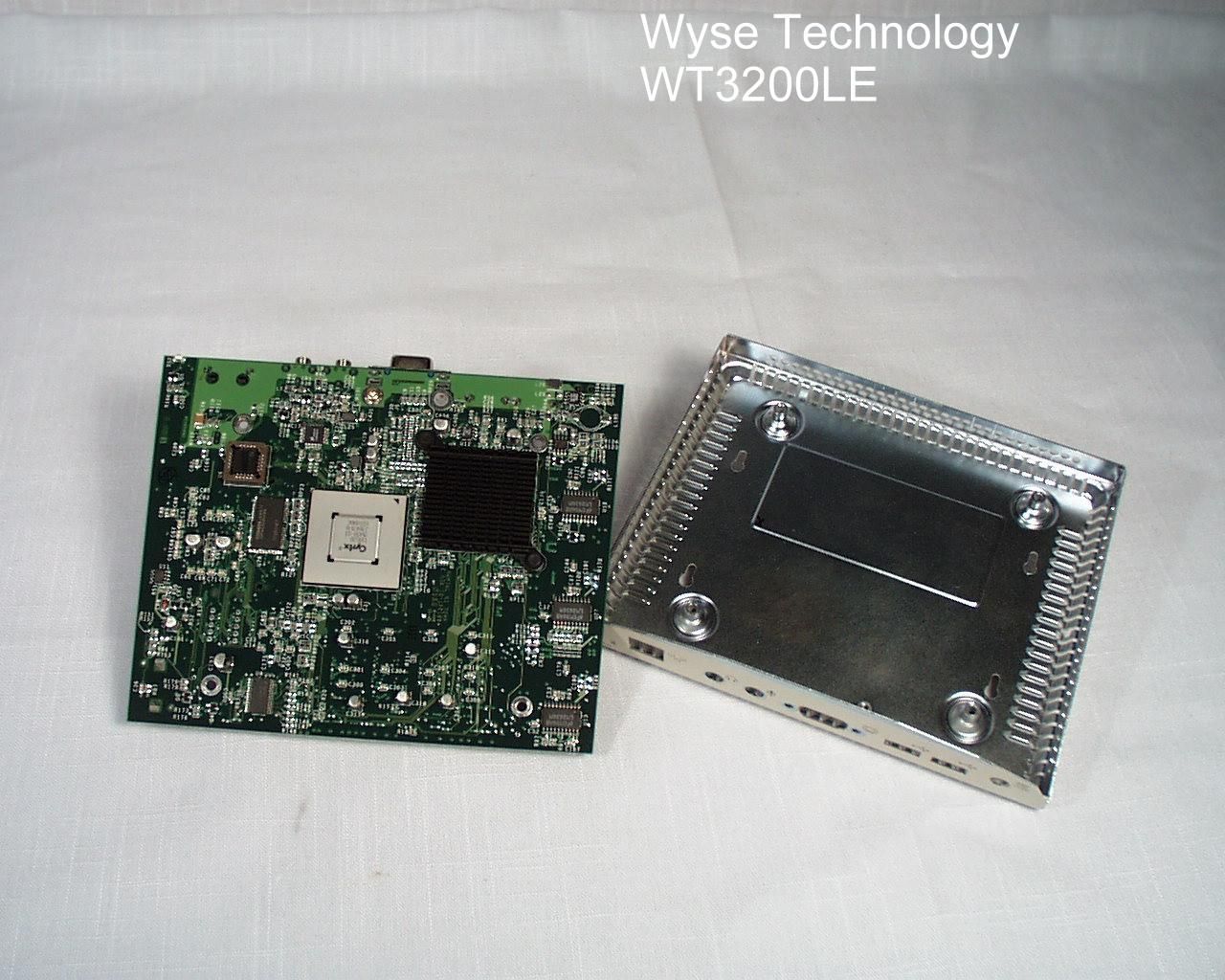

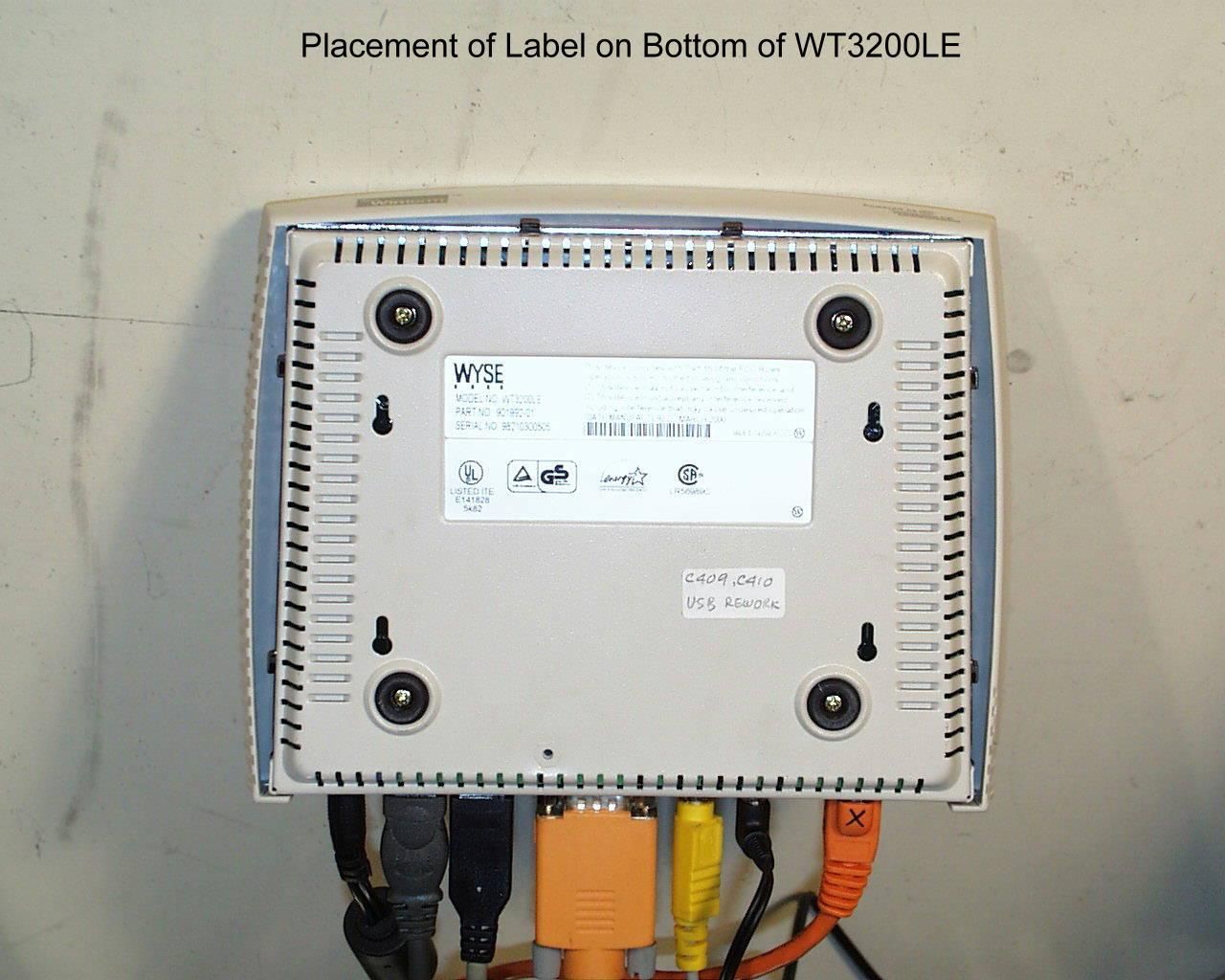

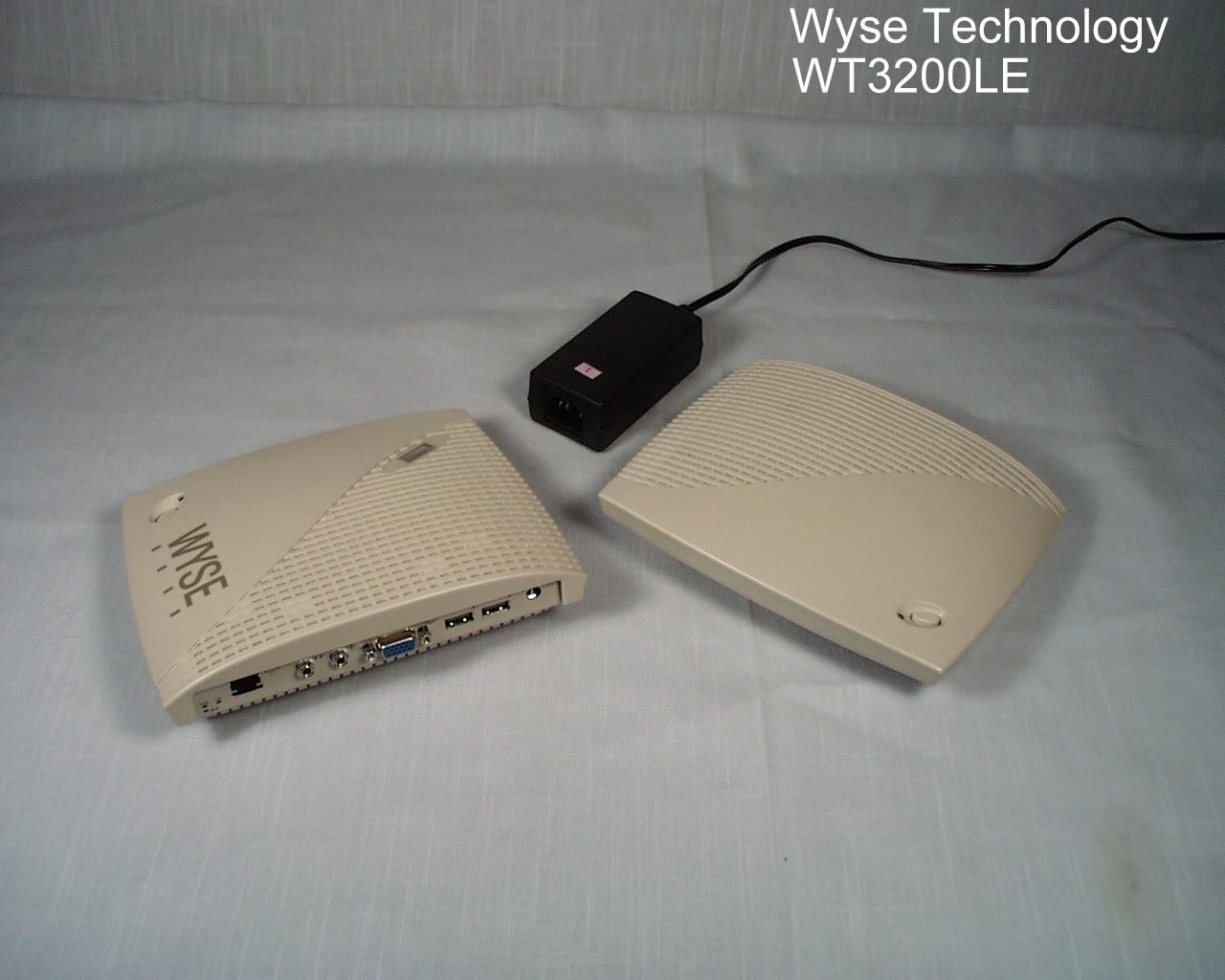

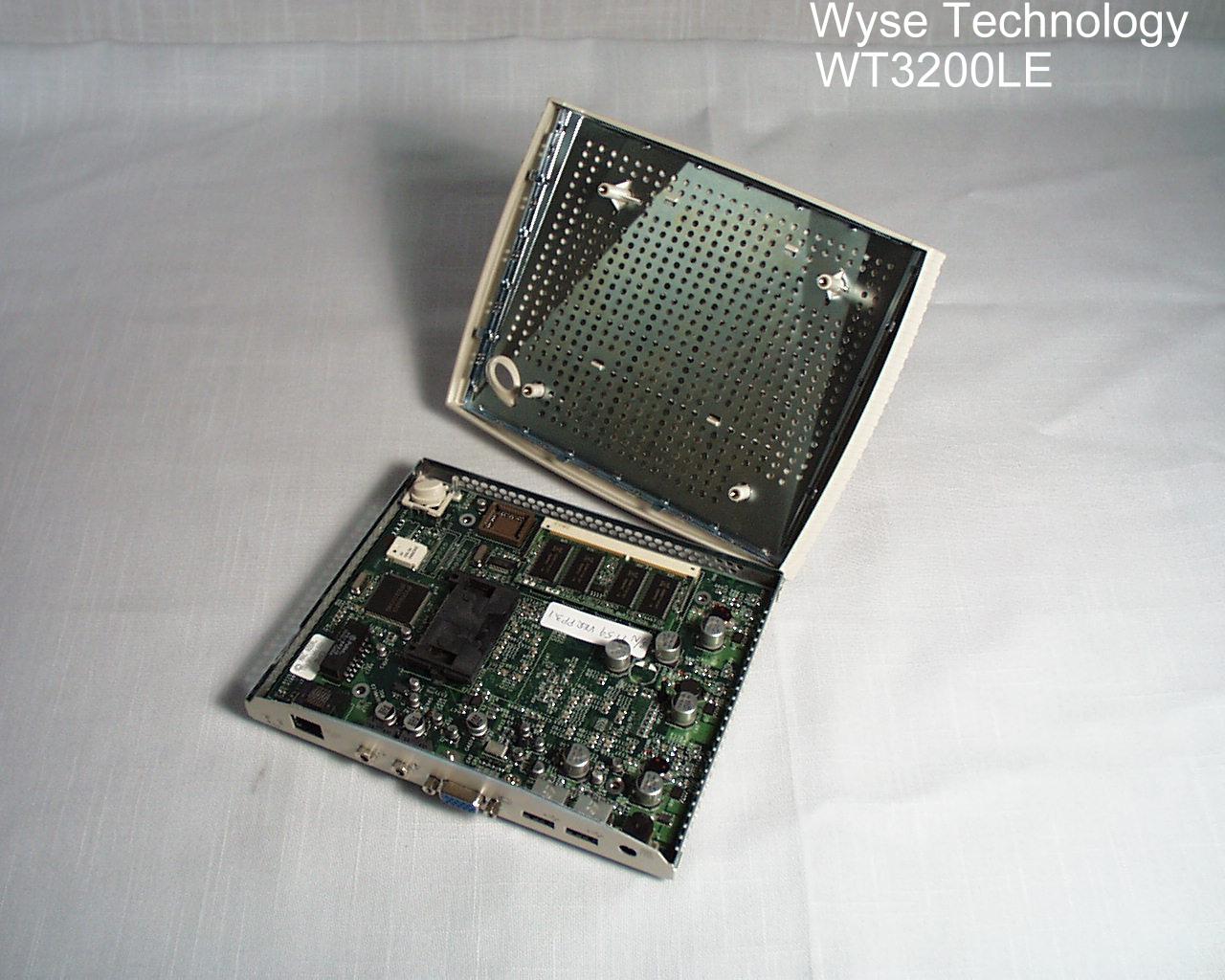

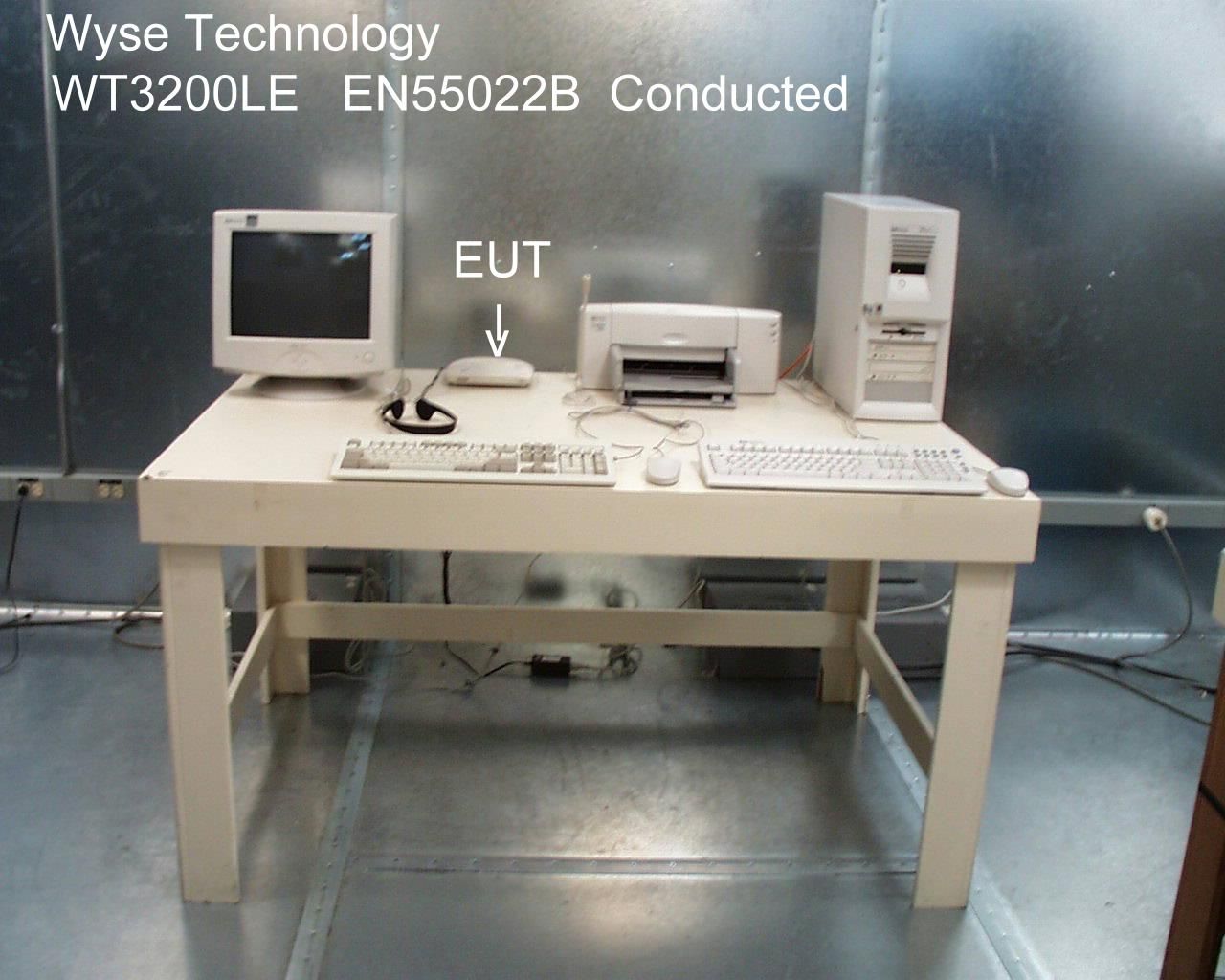

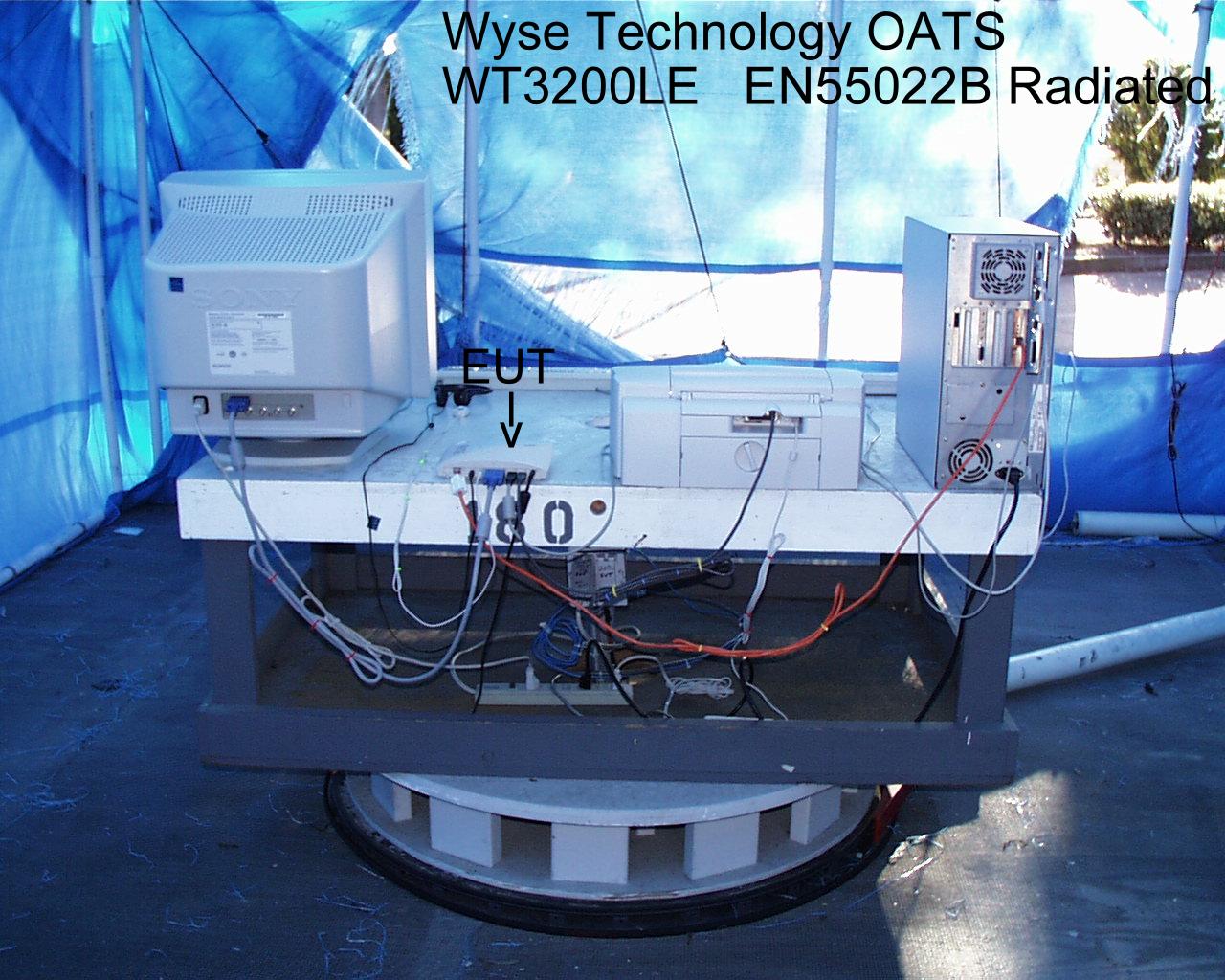

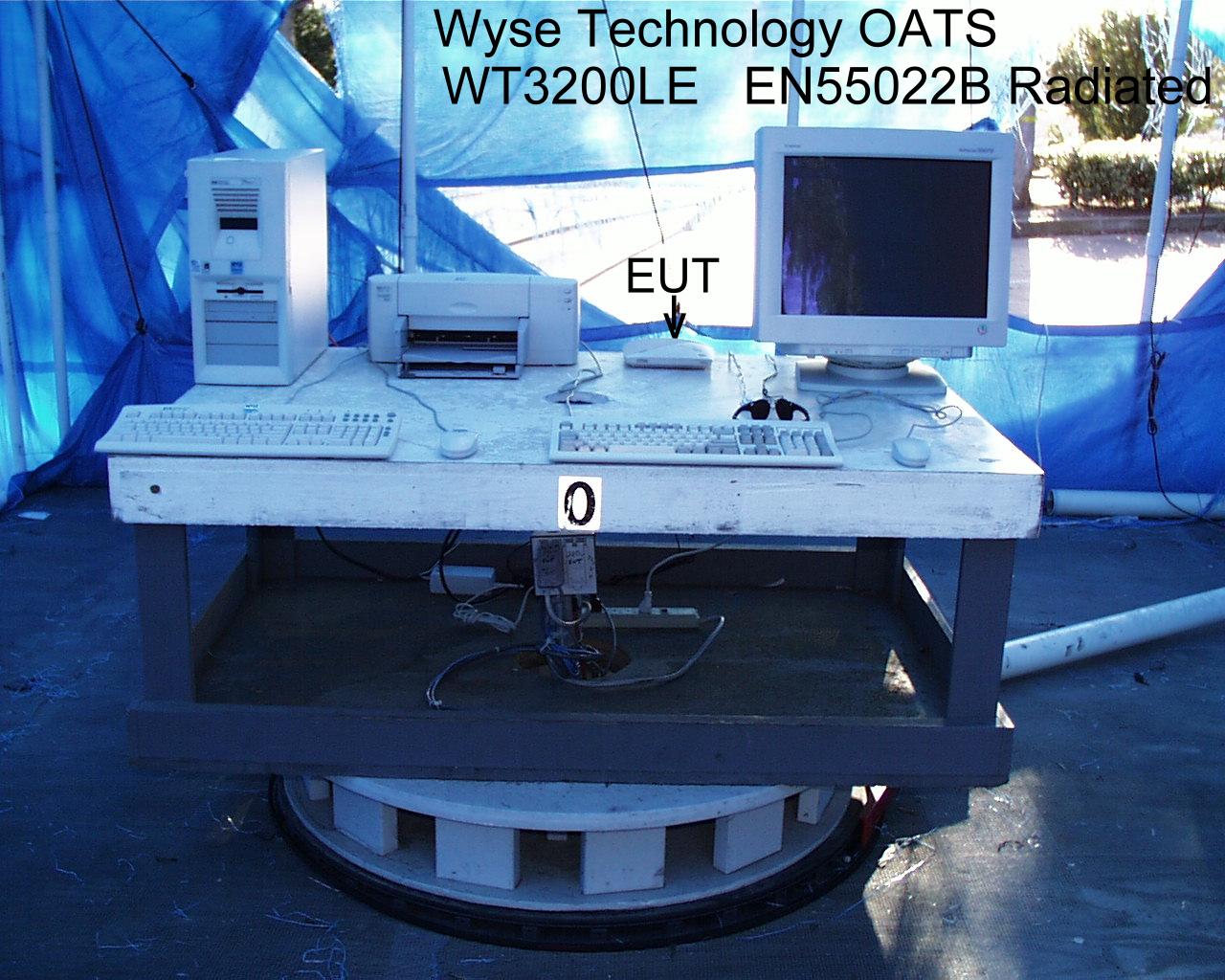

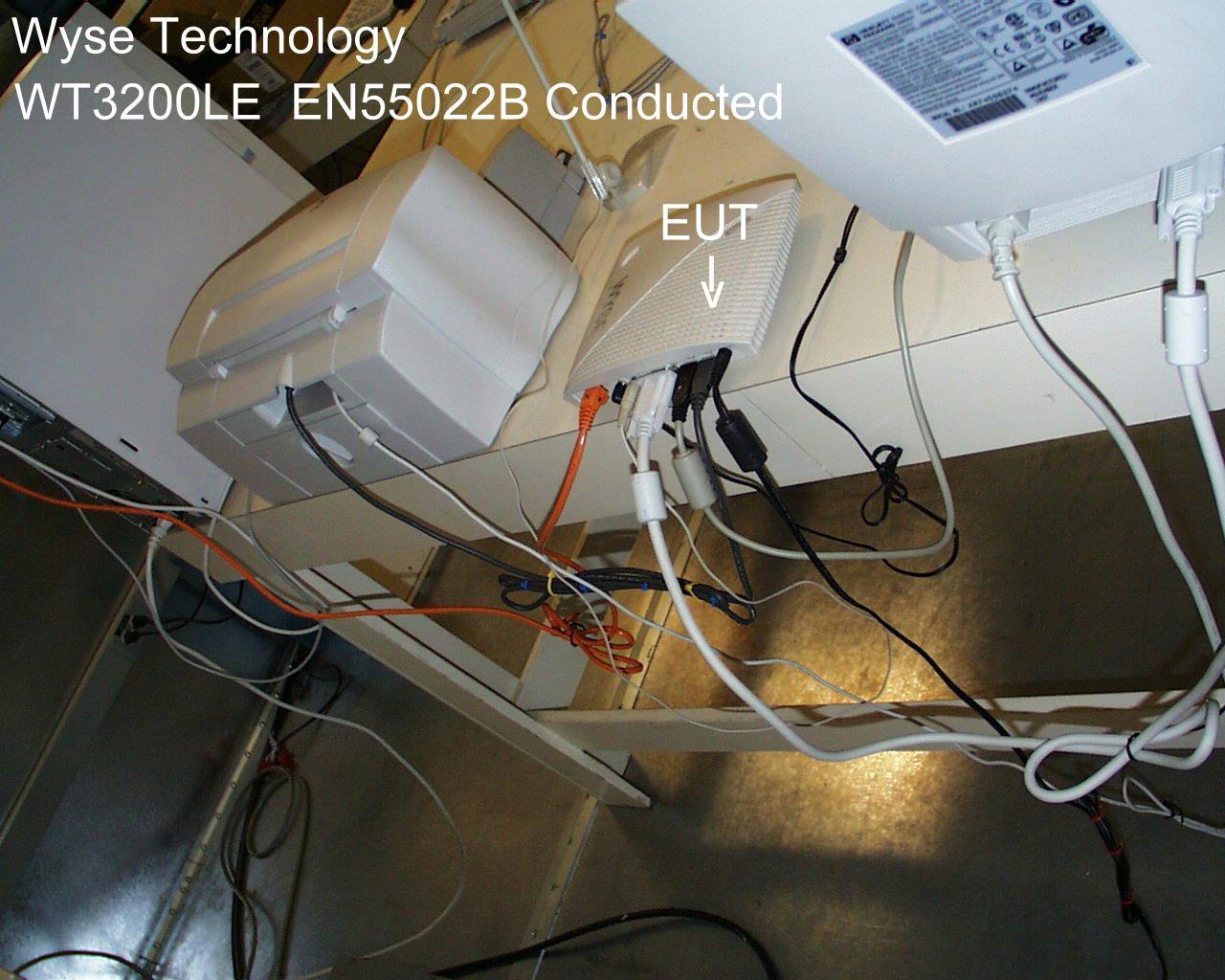

March 13, 2000 WYSE Technology EN 55022-B Test Record for Window Based Terminal Model Number: WT3200LE Tests performed by WYSE Technology 3471 N. First Street, San Jose, CA Test completed: March 13, 2000 Test Engineer: Harinder Phul Approved by: Masood Abrishamcar March 13, 2000 1.0INTRODUCTION 1.1 Scope This record is intended to document conformance with the EMC Directive (89/336/EEC) and details the results of testing performed on March 13, 2000 on the model WT3200LE . 1.2 Purpose Testing was performed to evaluate the emissions performance of the WT3200LE with respect to EN 55022 Class B . 1.3 Summary The Windows Terminal WT3200LE was found to be compliant to EN 55022 Class B Emission Requirements. 1.4 Testing Requirements Testing was performed using procedures and criteria contained in EN 55022 . 2.0TEST ENVIRONMENT 2.1 Test Sample Description WT3200LE is designed to communicate with a host system via Twiste d Pair LAN interface on NT Windows Server. Test Software The software used during the test was a continuous loop batch file on Windows NT station. The program creates an entire page of “H”’s and writes the entire page to the screen, and it also prints to the serial and parallel devices as used in the test setup. The cables were moved around to find the maximum emission from the EUT. 2.2 Test Facilities 2.2.1 Emissions Test Site Radiated emissions testing was performed on a weather protected Open Area Test Site. The description of OATS is filed at the WYSE Regulatory Engineering Department. The OATS is located at 3471 N. First Street, San Jose, California, USA. Conducted emission testing was performed inside a shielded enclosure ( Screen Room ) in the WYSE RFI laboratory. The description of the screen room is filed at WYSE Regulatory Engineering Department. The Screen Room is located at 3471 N. First Street, San Jose, California, USA. March 13, 2000 2.3 Test Equipment The following are the list of equipment used during the radiation and conducted testing. Radiated: HP Receiver model 84560A (RES BW: 30 KHz-100KHz, VBW: 10KHz – 30KHz) Conducted: HP 85650A Quasi-Peak Adapter HP 8566B Spectrum Analyzer (RES BW: 30KHz –100KHz, VBW: 10KHz – 30KHz) SETUP: In accordance with WYSE Technology test procedure. PROCEDURE: Biconilog antenna w as used for frequency range 30MHz - 2 GHz. The frequency range w as checked for signals strength. The antenna was then raised and lowered for final maximization. The frequency range was checked with antennas in the horizontal and vertical polarization. 3.0TEST RESULTS 3.1 Test Description CISPR Publication 22:1997 , limits and methods of measurements of radio interface of information technology equipment, was the guiding document for the test. The product’s radiated emissions from 30 MHz to 1000 MHz and its power mains conducted emissions from 150 KHz to 30 MHz were measured. 3.2 Test Configuration The EUT was configured with a typical mix of available peripherals which fully configured all types of communications ports of the EUT and exercised it in a typical manner. 3.3 Test Procedure For radiated emissions testing, the equipment is installed on a 0.8 meter high non-conductive turntable 10 meters from the receiving antenna mast. The EUT is fully exercised during the test to maximize emissions. The receiving antenna is scanned over the height range of 1 to 4 meters is both polarities and the turntable is rotated with emissions level observed at each frequency. During the process the equipment configuration is also modified by moving the interconnecting cables to find the typical configuration that maximizes emissions at each frequency. The frequency range from 30 MHz to 1000 MHz is explored. Measurement data is compared to Class B limit. March 13, 2000 For conducted emissions testing the equipment is moved to a 0.8 meter high platform and the EUT and Configurations equipment are powered from a different LISNs. Both sides of the AC line are measured and the results compared to the Class B limit. 3.4 Test Results A comparison of the measured data with the Class B limit of CISPR shows that Windows Terminal WT3200LE was 6.77 dB below the limits at the worst case frequency of 634.74 MHz in a Vertical Polarization. 3.5 Product Specification Model: WT3200LE (Logic Board P/N 961347-01 Rev. 5) Clock Circuit: U5 = MK1492-03, P/N 205565-50 Filters: 33 MHZ CLK Li ne: R35 = 33 Ohm, P/N 370513-13; C176 = 15pF (not loaded) R36 = 33 Ohm, P/N 370513-13; C173 = 15pF (not loaded) R37 = 33 Ohm, P/N 370513-13; C177 = 15pF (not loaded) 14 MHZ CLK Li ne: R34 = 33 Ohm, P/N 370513-13; C172 = 15pF (not loaded) 48 MHZ CLK Li ne: R33 = 33 Ohm, P/N 370513-13; C174 = 15pF 24 MHZ ( Audio) CLK Line: R32 = 33 Ohm, P/N 370513-13; C175= 15pF (not loaded) U2 = GXLV166, P/N 200062-51 Power Filter U1 = CX5530, P/N 205122-51 Filters: R4 = 47 Ohm, P/N 370513-21; C146 = 15pF (not loaded) R5 = 47 Ohm, P/N 370513-21; C147 = 15pF (not loaded) L17, L18 = 70 Ohm, P/N 400040-04 RP 3-7 = 75 Ohm, P/N 371338-12 L19B = 22 μ H, P/N 410032-09 March 13, 2000 Vide o Circuit: U1 = CX5530, P/N 205122-51 Filters: L1 = 400 Ohm, P/N 400032-26; C4, C5 = 33pF, P/N 320313-25 L2 = 400 Ohm, P/N 400032-26; C3, C6 = 33pF, P/N 320313-25 L3 = 400 Ohm, P/N 400032-26; C2, C7 = 33pF, P/N 320313-25 Termination: R8, R9, R10 = 75 Ohm, P/N 370508-85 Audio Circuit: U9 = LM4546, P/N 205123-53 Filters: C431 = 0.1 μ F, P/N 320338-24 L24, L25 = 43MTL, P/N 400021-01 Driving Transistor: CR4, CR5 = MMBT3904, P/N 270010-50 Ne twork: U3 = DP83815, P/N 205127-50 Filters: R70, R71 = 49.9 Ohm, P/N 370508-68 U14 = Transformer, Pulse Type '68515,' P/N 429099-51 Filters: C82, C83, C85 = .1 uF, P/N 320338-24 R113, R112, R111, R110 = 75 Ohm, P/N 370513-22 G round Jumpe r Se tting: L19, L28, L30 = 400 Ohm, P/N 400032-26 Radiated Emission Test 10 meter OAT WYSE Technology Inc. 3471 North 1st Street San Jose Ca 95134 Test Description: EUT: WT3200LE MLB Rev. 3 (mouse cable shielded) Serial No. Engineering Proto Part No. None R.E No. 20839 File No. 031…
