Home > Products > Winterm Thin Clients > Winterm 8000 Series Quick Reference Products Winterm Thin Clients General Purpose Terminals Software Success Stories White Papers Download Firmware Find a Reseller Winterm Evaluation Winterm Virtual Tour Netier Products Winterm 8000 Series Technical Reference Guides Winterm Model 8360SE and 8230LE NTE-based Terminal Quick Reference Guide Version 4.3 PDF (446 KB) Model 8360SE Quick Reference Guide Application Notes PDF (18 KB) Model 8440XL Hardware Administrator's Guide Refer to sections and details relating to the XL2000 terminal for information applicable to the WT8440XL. PDF (1.41 MB) Citrix Device Services (CDS) Citrix Device Services (CDS) provides basic ICA connectivity of Windows-based terminals and other ICA devices to Microsoft Windows NT Server 4.0, Terminal Server Edition. The CDS product provides participating ICA Windows-based terminals or fixed function device with an integrated ICA client the ability to: Log into TSE over an Ethernet LAN or WAN TCP/IP connection ,establish an application session, map local COM ports, map local printers, easily upgrade to Citrix MetaFrame 1.8 or above For a additional information about CDS, please click here . Warranty Registration Winterm 8000 Peripherals Winterm Upgrades and Accessories Wyse Rapport 3.0 centrally manage and upgrade all Winterm 3000 and 8000 series terminals Microsoft Windows® 2000 Terminal Services Licensing Issues a Hotfix Microsoft Windows® 2000 Terminal Services licensing has issued a hotfix to help reduce the administrative overhead in managing TS license tokens. have a Winterm thin client, click here to get the download and more information from Microsoft Need technical assistance? Complete our Support Request Form Wyse Technology - Products - Winterm 8000 Series Technical Reference Guides http://www.wyse.com/products/winterm/quickstart/8000.htm Copyright©1999 Netier Technologies, Inc. More than just thin.™





   NetXpress™ XL1000/2000 Administrator’s Guide


   Thank you for purchasing the Netier NetXpress XL thin-client computer. Your satisfaction is important to us. If you experience any problems, please call 1-888-603-1892 for friendly, helpful technical support. Or if you prefer, contact us via Email at [email protected].
   Please read all instructions, and save these instructions for future reference. Always unplug your NetXpress XL computer from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Only use manufacturer-approved peripherals and attachments. Unapproved peripherals and attachments may be hazardous to system operation. Do not use your NetXpress XL thin-client computer near water. Do not place this computer on an unstable cart, stand, or table. The computer may fall, causing serious personal injury as well as damage to the appliance. Slots and openings in the NetXpress XL case are provided for ventilation. To ensure reliable operation of the computer and to protect it from overheating, do not block or cover these openings. Never place the NetXpress XL near or over a radiator or other heat source. Also, do not place your NetXpress in a built-in installation, such as a bookcase or shelf, unless proper ventilation is provided. Operate your NetXpress XL only from the power source type indicated on the label. If you are not sure of the type of power supplied in your home or office, please consult your value added reseller (VAR) or local power company. The NetXpress XL is equipped with a three-wire grounding plug, which is a common plug type that incorporates a third pin for grounding. This plug only fits into a grounding-type power outlet, which contains three receptacles. This design provides added safety. If your outlet is not suited to accept the three-wire grounding plug, contact a certified electrictian to replace the outlet that accepts three-wire grounding plugs. Caution:Do not undertake any actions that inhibit proper electrical grounding (e.g., removing the grounding prong or using two-wire plug adapters). Do not allow anything to rest on the power cord. Position your NetXpress XL such that the power cord is protected from any traffic or from heavy obstacles. Follow all warnings and instructions listed on the computer. To protect your NetXpress XL from power surges, unplug it from the wall outlet when not in use for long periods. Do not overload wall outlets and extension cords as this can result in fire or electric shock. Never push objects of any kind into your NetXpress XL computer case slots. Foreign objects can damage the computer and may result in fire or electric shock. In the event any liquid is spilled on the unit, immediately unplug the external power supply at the wall outlet. If any liquid has penetrated openings in the unit, contact your hardware service provider before you attempt to apply power to the unit again. Do not attempt to service your NetXpress XL yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Unplug this computer from the wall outlet and refer servicing to qualified service personnel under the following conditions: •When the power cord or plug is damaged or frayed. •If liquid has been spilled into the computer. •If the computer has been exposed to rain or water. •If the computer does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to repair the computer. •If the computer has been dropped or the cabinet ha…

Text truncated - open the document above for the full version.

SIZEFSCM NO.DWG.NO.REV. SHEETSCALE TECHNOLOGY INCORPORATED A DWG.NO.SH REVISIONS ECN NEXT ASSYUSED ON APPLICATION TOLERANCES ANGLES DO NOT SCALE DRAWING MATERIALFINISH DRAWN APPROVALS CONTRACT NO. DATE CHECKED ISSUED REV.DESCRIPTIONDATEAPPROVED REV. THISDRAWINGCONTAINSINFORMATION PROPRIETARYTOWYSETECHNOLOGYINC. ANYREPRODUCTIONDISCLOSUREORUSE ISEXPRESSLYPROHIBITEDEXCEPTASWYSE TECHNOLOGYINC.MAYOTHERWISEAGREE INWRITING. UNLESSOTHERWISE SPECIFIEDDIMENSIONS AREIN INCHES FRACTIONS DECIMALS .XX .XXX ± ± ± METRIC 0.X 0>XX ± ± THIRDANGLE PROJECTION NoteTo ensure that the product complies with EN55022B and FCC Class B requirements, follow these instructions to install the ferrite bead on your LAN cable. LAN INSTR. SHEET, FERRITE BEAD, WT8440XL 883605-06 883605-06 A 1/1 1:1 A1 M.Raboy8/14/01 ARTWORK P/N 883605-94 . . . Keyline does not print. SPECIFICATIONS 1. Scale:1 to 1 2. Dimensions: 4.25 x 5.5 inches 3. Stock:10 pt. Uncoated or similar 4. Color:Black

Important Information NetXpress™ XL 1000/2000 Administrator’s Guide2 When replacement parts are required, be sure the service technician uses replacement parts approved by the Manufacturer. Use of unauthorized replacement parts may result in fire, electric shock, or other hazards. Upon completion of any service or repairs to your NetXpress XL, ask the service technician to perform routine safety checks to ensure the computer is in safe operating condition. Notice The information in this manual is subject to change without notice. The information contained in this manual was reviewed and validated. While every precaution was taken during the preparation of this manual, Netier Technologies, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Netier Technologies, Inc. is not liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. No part of this document may be photocopied, reproduced, or translated to another language without prior written consent of Netier Technologies, Inc. Print History First edition - July 1998 Copyright 1998 by Netier Technologies, Inc. Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of FCC Rules. Only peripherals (computer input/output devices, monitors, printers, etc.) certified to comply with the Class B limits may be attached to this computer. Operation with non-certified peripherals is likely to result in interference to operation. NOTICE: This equipment genertes and uses radio frequency energy, and if not installed and used in strict accordance with this user guide, interference to operation may result. It has been type tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in an office or residential installation. However, there is not guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient the receiving antenna of any adjacent devices. • Relocate the NetXpress XL with respect to the device being effected. • Plug the computer into an alternate outlet so that the NetXpress XL and the receiver are on different branch circuits. If necessary, consult your reseller for additional suggestions. You may find the following booklet prepared by the Federal Communications Commission (FCC) helpful: How to Identify and Resolve Radio-TV Interference Problems. This book is available from the U.S. Government Printing Office, Washington, D.C. 20402. Cable Notice The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may cause interference and violate FCC and international regulations for electromagnetic interference. q Caution Changes or modifications not covered in this manual must be approved in writing by the manufacture’s Regulatory Engineering department. Changes or modifications made without written approval may void the user’s authority to operate the equipment. Trademarks NetXpress and the Netier logo are registered trademarks of Netier Technologies, Inc. All other registered and unregistered trademarks are trademarks of their respective holders.

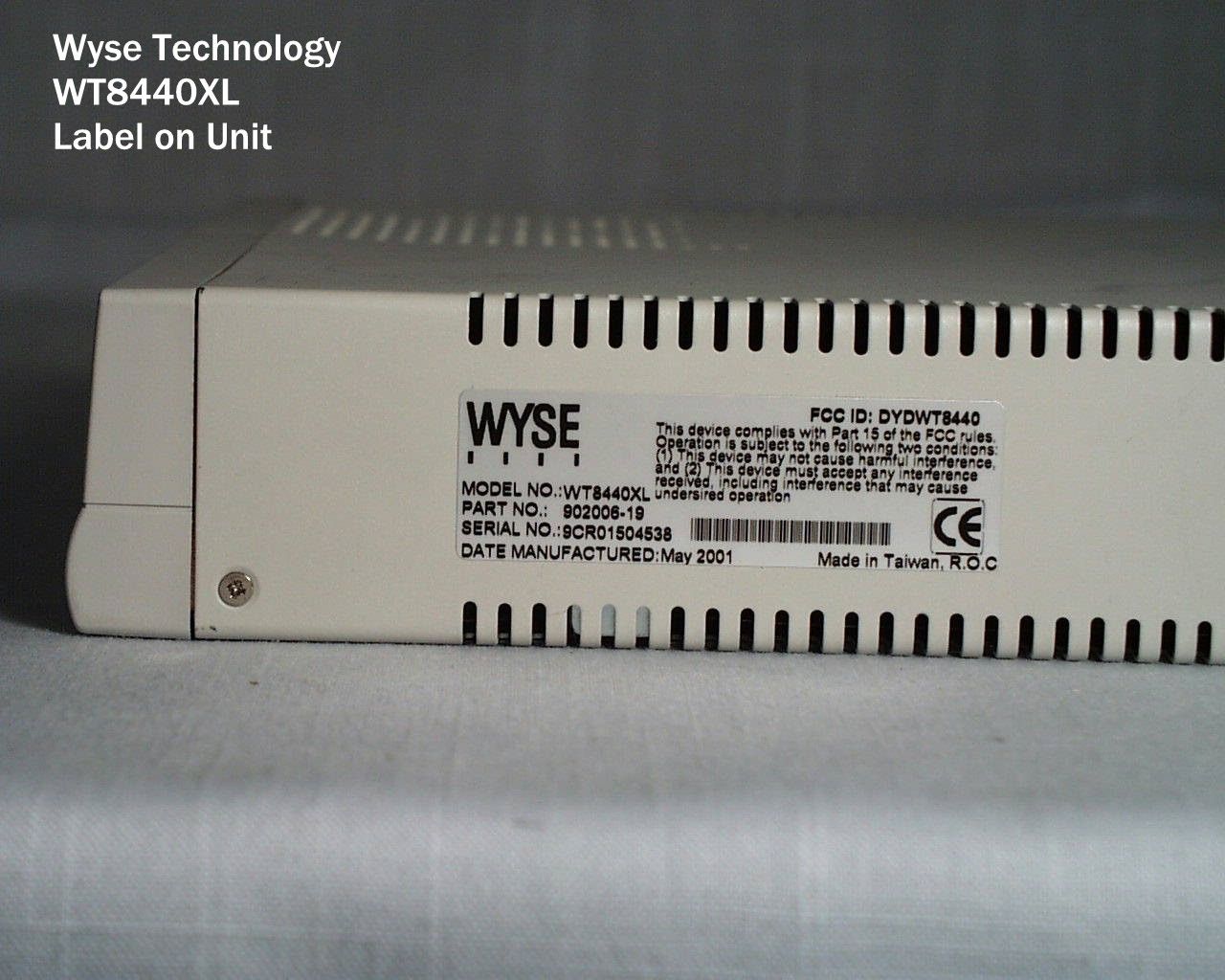

To: Mike Kuo Subject: RE: Wyse Technology, FCC ID:DYDWT8440, AN01T1425 We are modifying the manual to include the items mentioned in Questions #1-3. We will resubmit it as soon as the revisions are completed. Regarding Question #4, the CPU is 400MHz. We will retest to 2GHz and resubmit the data. -----Original Message----- From: Mike Kuo Sent: Monday, July 30, 2001 5:43 PM To: '[email protected]'; '[email protected]' Subject: RE: Wyse Technology, FCC ID:DYDWT8440, AN01T1425 -----Original Message----- From: CERTADM Sent: Monday, July 30, 2001 5:35 PM To: '[email protected]'; '[email protected]' Cc: Mike Kuo Subject: Wyse Technology, FCC ID:DYDWT8440, AN01T1425 Notice_content ------------- Question #1: User manual does not contain information required under 15.21 of FCC rules. Please provide revised user manual to comply this requirement. Question #2: A ferrite Core was added to RJ45 ethernet cable. Ferrite core is considered as special accessories under FCC term ( section 15.27). It is Grantee's responsibilites to provide instruction on how to install this clamp-on type ferrite core and it is Grantee's responsiblities to provide such ferrite core with EUT. Instruction on how to install this clamp-on type ferrite core shall be included in the user manual. Please provide revised user manual to include such instruction and a statement from Wyse that ferrite core with same type as used in final compliance testing will be provided with each unit in the U.S. Question #3: Please include additional statement ( per 15.27 ( c ) of FCC rules) in the User's manual : " Shielded interface cables must be used to ensure product compliance." Question #4: In the test report, there is no indication what is the CPU speed tested. Page 3, section 3.3 of test report indicated the frequency range investigated for radiated emission tests was from 30 MHz - 1000MHz. It appears the CPU speed is higher than 108MHz. In accordance to 15.33 ( b) (1) table, if the frequency used or generated is above 108MHz but less than 500MHz, the upper frequency to be investigated should be 2GHz; if the frequency used or generated is above 500MHz but less than 1000MHz, the upper frequency should be investigated is 5GHz. Please make necessary measurement to comply this requirement. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

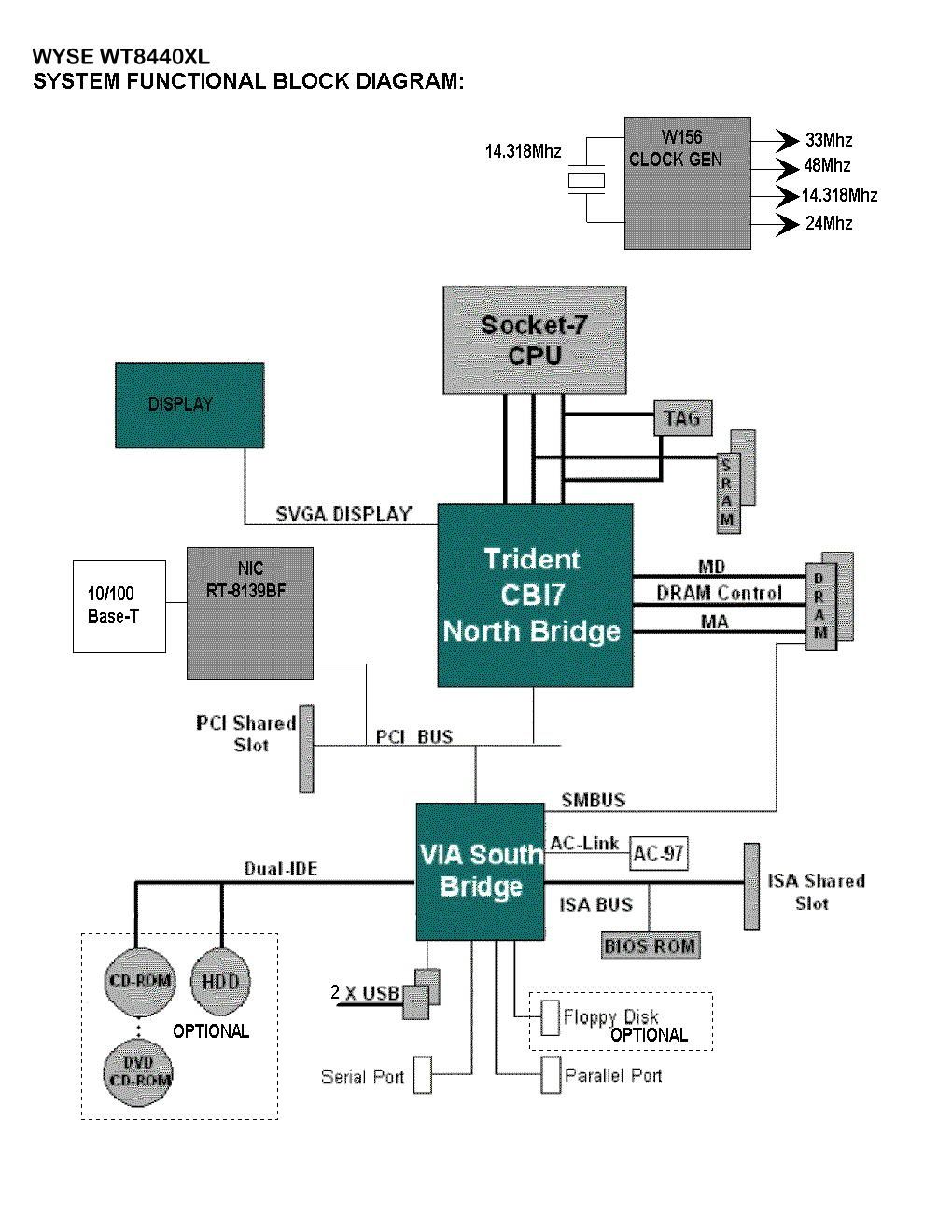

May 30, 2001 WYSE Technology EN 55022-B Test Record for Window Based Terminal Model Number: WT8440XL Tests performed by WYSE Technology 3471 N. First Street, San Jose, CA Test completed: May 25, 2001 Test Engineer: Harinder Phul Approved by: Jimmy Nguyen May 30, 2001 1.0INTRODUCTION 1.1 Scope This record is intended to document conformance with the EMC Directive (89/336/EEC) and details the results of testing performed on May 25, 2001 on the model WT8440XL . 1.2 Purpose Testing was performed to evaluate the emissions performance of the WT8440XL with respect to EN 55022 Class B . 1.3 Summary The Windows Terminal WT8440XL was found to be compliant to EN 55022 Class B Emission Requirements. 1.4 Testing Requirements Testing was performed using procedures and criteria contained in EN 55022 . 2.0TEST ENVIRONMENT 2.1 Test Sample Description WT8440XL is designed to communicate with a host system via Twiste d Pair LAN interface on NT Windows Server. Test Software The software used during the test was a continuous loop batch file on Windows NT station. The program creates an entire page of “H”’s and writes the entire page to the screen, and it also prints to the serial and parallel devices as used in the test setup. The cables were moved around to find the maximum emission from the EUT. 2.2 Test Facilities 2.2.1 Emissions Test Site Radiated emissions testing was performed on a weather protected Open Area Test Site. The description of OATS is filed at the WYSE Regulatory Engineering Department. The OATS is located at 3471 N. First Street, San Jose, California, USA. Conducted emission testing was performed inside a shielded enclosure ( Screen Room ) in the WYSE RFI laboratory. The description of the screen room is filed at WYSE Regulatory Engineering Department. The Screen Room is located at 3471 N. First Street, San Jose, California, USA. May 30, 2001 2.3 Test Equipment The following are the list of equipment used during the radiation and conducted testing. Radiated: HP Receiver model 85460A (RES BW: 30 KHz-100KHz, VBW: 10KHz – 30KHz) Conducted: HP 85650A Quasi-Peak Adapter HP 85680B Spectrum Analyzer (RES BW: 30KHz –100KHz, VBW: 10KHz – 30KHz) SETUP: In accordance with WYSE Technology test procedure. PROCEDURE: Biconilog antenna w as used for frequency range 30MHz - 2 GHz. The frequency range w as checked for signals strength. The antenna w as then raised and low ered for final maximization. The frequency range w as checked with antennas in the horizontal and vertical polarization. 3.0TEST RESULTS 3.1 Test Description CISPR Publication 22:1997 , limits and methods of measurements of radio interface of information technology equipment, was the guiding document for the test. The product’s radiated emissions from 30 MHz to 1000 MHz and its power mains conducted emissions from 150 KHz to 30 MHz were measured. 3.2 Test Configuration The EUT was configured with a typical mix of available peripherals which fully configured all types of communications ports of the EUT and exercised it in a typical manner. 3.3 Test Procedure For radiated emissions testing, the equipment is installed on a 0.8 meter high non-conductive turntable 10 meters from the receiving antenna mast. The EUT is fully exercised during the test to maximize emissions. The receiving antenna is scanned over the height range of 1 to 4 meters is both polarities and the turntable is rotated with emissions level observed at each frequency. During the process the equipment configuration is also modified by moving the interconnecting cables to find the typical configuration that maximizes emissions at each frequency. The frequency range from 30 MHz to 1000 MHz is explored. Measurement data is compared to Class B limit. May 30, 2001 For conducted emissions testing the equipment is moved to a 0.8 meter high platform and the EUT and Configurations equipment are powered from a different LISNs. Both sides of the AC line are measured and the results compared to the Class B limit. 3.4 Test Results A comparison of the measured data with the Class B limit of CISPR shows that Windows Terminal T20 was 4.10 dB below the limits at the worst case frequency of 100.082976 MHz in a Horizontal Polarization. 3.5 Product Specification Model: WT8440XL (Logic Board P/N 961386-01 Rev A) Clock Circuit: U13 = IC,W156,CLOCK GEN,SOP-48, 205565-51 Filters: 33 MHZ CLK Li ne: R186 = RES,CHIP,1/10W,OHM,22,5%,0603, 370513-09 14 MHZ CLK Li ne: R188 = FERRITE BEAD,60 OHM,25%,.4A,0805, 400032-11 48 MHZ CLK Li ne: R151 = RES,CHIP,1/10W,OHM,22,5%,0603, 370513-09 U8 = IC,CPU,400MHZ,AMD, 200068-01 Main Powe r Filte rs: L95, L90, L85 = FERRITE BEAD,43MTL,2T,6HOLES,24AWG, 400022-03 EC30, EC25, BC73, EC53, EC1 = CAP,ASE,UF,10,16V,M,4X5MM,DIP, 310071-01 Vide o Circuit: U14 = IC,8420,NORTH BRIDGE,SMD,CBI7, 205140-50 Filters: L25 = BEAD,31R/100MHZ,0805,CB201209-310, 400043-03 C109,C123 = CAP,MC,PF,56,25V,J,0603 LOW,320022-07 L27 = BEAD,31R/100MHZ,0805,CB201209-310, 400043-03 C121, C113 = CAP,MC,PF,56,25V,J,0603 LOW,320022-07 L28 = BEAD,31R/100MHZ,0805,CB201209-310, 400043-03 C126, C101 = CAP,MC,PF,56,25V,J,0603 LOW,320022-07 Termination: R180, R189, R197 = RES,CHIP,1/10W,OHM,75,5%,0603, 370513-22 May 30, 2001 Audio Circuit: U19 = IC,AK4542,AC-97 AUDIO CODEC,TQFP-48, 205123-54 Filters: RL73= INDUCTOR,2.7UH,2012,SMD,EASY, 410037-01 C175 = CAP,MC,PF,120,25V,J,0603 LOW, 320022-09 R193 = RES,CHIP,1/10W,KOHM,47,5%,0603, 370513-89 C122 = CAP,MC,UF,0.1,25V,M,0603 LOW, 320024-02 LL74 = INDUCTOR,2.7UH,2012,SMD,EASY, 410037-01 C176 = CAP,MC,PF,120,25V,J,0603 LOW, 320022-09 R194 = RES,CHIP,1/10W,KOHM,47,5%,0603, 370513-89 C125 = CAP,MC,UF,0.1,25V,M,0603 LOW, 320024-02 Ne twork: U6 = IC,RT-8139BF,250MHZ,LAN CHIP SMD, 205137-50 U1 = XFM,10/100BT,68515,PULSE ONLY,SMD16, 429099-52 Filters: C23, C27 = CAP,MC,UF,0.1,25V,M,0603 LOW, 320024-02 R57, R74 = RES,CHIP,1/10W,OHM,49.9,1%,0603, 370508-68 U28 = CONN,PHONE-JK,RJ45,8P,LEAN HORN, 563660-06 Radiated Emission Test 10M OATS WYSE Technology Inc. 3471 North 1st …
