DYDWT9650Windows-Based Terminal

ix FCC Statement This equipment has been tested and found to comply with the limits for either Class A or Class B digital devices (refer to "Terminal Requirements Compliance"), pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution Changes or modifications not covered in this manual must be approved in writing by the manufacturer’s Regulatory Engineering department. Changes or modifications made without written approval may void the user’s authority to operate the equipment. Terminal Requirements Compliance FCC Compliance The Models 9235LE, 9440XL, 9450XE, 9455XL, and 9650XE terminals meet Class B requirements. IEC/EN Compliance The Models 9235LE, 9440XL, 9450XE, 9455XL, and 9650XE terminals meet Class B requirements. Canadian DOC Notices Refer to the previous section, "Terminal Requirements Compliance," to find out to which terminal model each of the statements below refers. Class A This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. x Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. IEC/EN Notice These products conform to the requirements of IEC950 and EN60950. These products conform to requirements of EN55022 for Class A equipment or EN55022 for Class B equipment (refer to "Terminal Requirements Compliance"). Cable Notice The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may cause interference and violate FCC and international regulations for electromagnetic interference. Noise Suppressor A noise suppressor (ferrite bead) must be installed on the network cable of your terminal. This installation is necessary to maintain compliance with U.S. FCC B limits and European CISPR B EN55022 Class B limits. The noise suppressor is supplied by the manufacturer and is packed in your terminal’s shipping carton. Device Power Supply Caution Replace power supply with the same or equivalent type as recommended by the manufacturer. Model 9235LE Terminals For use with External Power Supply DVE Model DSA-0301-05 or certified equivalent model supplied by the manufacturer, rated 5V/4A. Model 9440XL Terminals For use with External Power Supply Flytech/CARRY-I Model FT-8006A or certified equivalent model supplied by the manufacturer, rated 5V/7A, 12V/1.0A, 5Vsb/0.5A, -12V/ 0.1A. Model 9450XE and 9455XL Terminals For use with External Power Supply Li Shin Model LSE9802A1255 or certified equivalent model supplied by the manufacturer, rated 12V/4.58A. xi Model 9650XE Terminals For use with External Power Supply Li Shin Model LSE0219B1280 or certified equivalent model supplied by the manufacturer, rated +12V/6.67A. Battery Information The Models 9440XL, 9450XE, 9455XL, and 9650XE terminals contain a replaceable battery. Warning There is a risk of explosion if the battery is replaced by an incorrect type. Always dispose of used batteries according to the instructions accompanying the battery. xii This page intentionally blank.

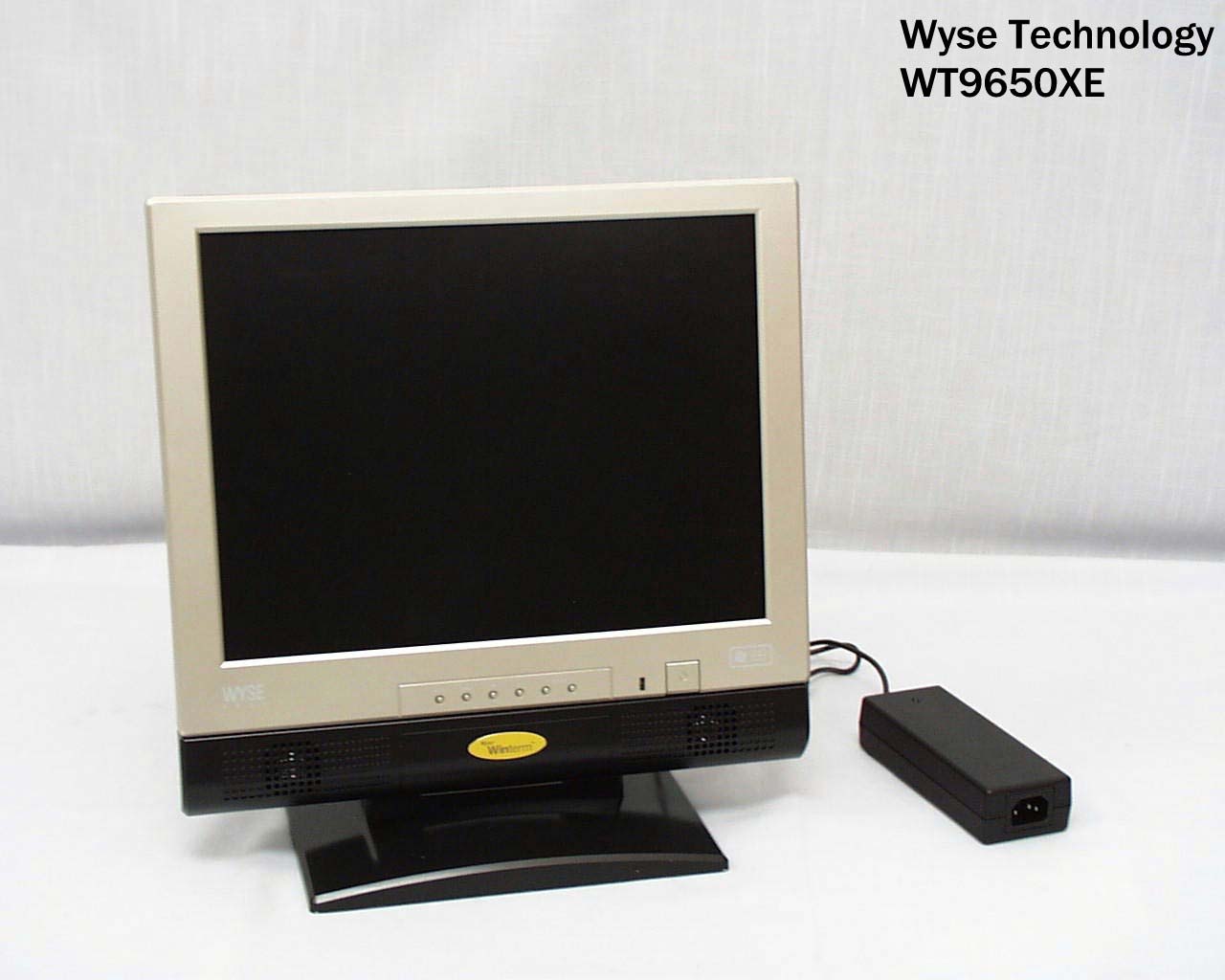

Winterm ™ Model 9650XE XPE-Based Terminal Quick-Start Guide ➊ Connect – Caution: Improper connection, mounting, or use of this product could result in component failure and/or flash memory corruption. Read the following caution statements before setting up and operating the terminal. (FIGURE TO BE SUPPLIED) Caution Statements: Setup • Do not connect power until all other connections are made. Connecting or disconnecting components or devices on the back panel when the terminal is receiving power can cause power surges and damage the terminal. (USB ports are hot-swappable.) • Do not force a connector into its socket. If any undue resistance is encountered, ensure that the connector is correctly oriented to the receptacle. Orientation and Venting • Mount the terminal only as shown above or in accordance with the instructions provided with the Wyse- approved wall mount (see Note that follows). Improper orientation (such as component side down, where the back panel’s symbols are upside down) could inhibit the dissipation of heat from the terminal and damage it. • Allow sufficient space around the terminal for ventilation; do not place the terminal in any enclosure that restricts airflow around the terminal; do not place any objects on the terminal. Product environmental specifications are available through Wyse’s Web site at http://www.wyse.com/products/winterm/products.htm . 1PS/2-type mouse interface6Video port11+12V Power cable interface 2Parallel port7USB port (2)12Floppy drive (optional) 3Network connection, 10/100Base-T8Speaker out13USB port (2)** 4Serial port9Line in14CD-ROM drive (optional) 5PS/2-type keyboard interface10Microphone *Supplied for U.S.A.; in other locales, check package contents or contact your Wyse reseller. **Front USB ports not available if floppy drive option is installed. 883793-01 Rev. A April 2003 Wyse Technology Inc. 3471 North First Street San Jose, CA 95134-1801 U.S.A. ©2003 Wyse Technology Inc. All rights reserved. Power Sources • To ensure regulatory compliance, use only the power supply included in the shipping box, or a Wyse-approved equivalent, with the terminal. Also, the noise suppressor (ferrite bead) included in the box with the terminal must be installed on the network cable as described following these caution statements. Refer to the regulatory notices in the terminal’s on-line documentation at http://www.wyse.com/products/ winterm/quickstart/9000.htm. • To prevent accidental loss of power, brown out, and spikes which could damage the terminal, avoid connecting it to any form of switching device (including power strips) or hard resetting the terminal by holding down the power button. • When turning off the terminal, be sure to perform a complete shutdown (via the user interface or power button); do not disconnect the power cord, shut off power at a circuit breaker, etc., to turn off the terminal. Note: Visit http://www.wyse.com/products/accessories/mounting.htm for information about approved wall-mount and monitor-mount accessory kits. Note: Rubber feet are provide for horizontal orientation on hard surfaces and plastic cylinder supports are provided for vertical orientation. Insert terminal into cylinders with the power button at the top, then press cylinder ends firmly towards the terminal. Note: To ensure that the product complies with EN55022B and FCC Class B requirements, follow these instructions to install the ferrite bead on your LAN cable. ➋ Turn On – Important: By unpacking and using the terminal, you agree to be bound by the license agreements in the users and administrators guides. See those agreements for specific details at http://www.wyse.com/products/winterm/ quickstart/9000.htm. ➌ Configure – Setup is quick and simple... The terminal is preset to auto-login as User (password: User). For administrative access, the terminal is preset to accept the user name Administrator (password: Administrator). VNC is also preset to start automatically (password: Wyse). User names are not case sensitive; passwords are case sensitive. To log in as administrator hold down the Shift key while logging out of the user account until you get to the login screen, then enter the user name and password for the administrator account. Caution: It is strongly advised that the administrative password be changed immediately upon configuring the terminal for use. ➍ Help – Need more information, upgrades/accessories, or Wyse’s automated
warranty registration  process? http://www.wyse.com/products/winterm/quickstart/9000.htm Need more information on Wyse Rapport, the remote management software that comes with this terminal? http://www.wyse.com/bundle
Register within 90 days to get 2 years’ extended warranty at no cost. (FIGURE TO BE SUPPLIED)

RE: Wyse Technology, FCC ID:DYDWT9650, NA03T2789From: Jimmy Nguyen [[email protected]] Sent: Monday, April 28, 2003 1:53 PM To: 'Mike Kuo' Cc: Suzanne Thomas Subject: RE: Wyse Technology, FCC ID:DYDWT9650, NA03T2789 Mike, We are sending you the following: 1. The photo of mother board (solder side) 2. Conducted test data with 20 highest points Please let us know if you need any additional information. Regards, -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Monday, April 28, 2003 12:03 PM To: Jimmy Nguyen Cc: Suzanne Thomas Subject: FW: Wyse Technology, FCC ID:DYDWT9650, NA03T2789 -----Original Message----- From: CERTADM Sent: Monday, April 28, 2003 12:01 PM To: '[email protected]' Subject: Wyse Technology, FCC ID:DYDWT9650, NA03T2789 Notice_content ------------- Question #1: Please provide additional internal photos to show the solder side of main board ( mother board ). Question #2: Please provide 6 highest AC line conducted emission data. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

April 16, 2003 WYSE Technology FCC 3M Class B Test Record for Window Based Terminal Model Number: WT9650XE Tests performed by WYSE Technology 3471 N. First Street, San Jose, CA Test completed: April 9, 2003 Test Engineer: Jimmy Nguyen April 16, 2003 1.0 INTRODUCTION 1.1 Scope This record is intended to document conformance with the EMC Directive (89/336/EEC) and details the results of testing performed on April 9, 2003 on the model WT9650XE . 1.2 Purpose Testing was performed to evaluate the emissions performance of the WT9650XE with respect to FCC 3m Class B . 1.3 Summary The Windows Terminal WT9650XE was found to be compliant to FCC 3m Class B Emission Requirements. 1.4 Testing Requirements Testing was performed using procedures and criteria contained in FCC 3m . 2.0 TEST ENVIRONMENT 2.1 Test Sample Description WT9650XE is designed to communicate with a host system via Twisted Pair LAN interface on NT Windows Server. Test Software The software used during the test was a continuous loop batch file on Windows NT station. The program creates an entire page of “H”’s and writes the entire page to the screen, and it also prints to the serial and parallel devices as used in the test setup. The cables were moved around to find the maximum emission from the EUT. 2.2 Test Facilities 2.2.1 Emissions Test Site Radiated emissions testing was performed in a 3m Semi-Anechoic Chamber. The description of the 3m Chamber is filed at the WYSE Regulatory Engineering Department. The Chamber is located at 3471 N. First Street, San Jose, California, USA. Conducted emission testing was performed inside a shielded enclosure (Screen Room) in the WYSE RFI laboratory. The description of the screen room is filed at WYSE Regulatory Engineering Department. The Screen Room is located at 3471 N. First Street, San Jose, California, USA. April 16, 2003 2.3 Test Equipment The following are the list of equipment used during the radiation and conducted testing. Radiated: HP Receiver model 85460A (RES BW: 30 KHz-100KHz, VBW: 10KHz – 30KHz) Conducted: HP 85650A Quasi-Peak Adapter HP 85680B Spectrum Analyzer (RES BW: 30KHz –100KHz, VBW: 10KHz – 30KHz) SETUP: In accordance with WYSE Technology test procedure. PROCEDURE: Biconilog antenna was used for frequency range 30MHz - 2 GHz. The frequency range was checked for signals strength. The antenna was then raised and lowered for final maximization. The frequency range was checked with antennas in the horizontal and vertical polarization. 3.0 TEST RESULTS 3.1 Test Description CISPR Publication 22:1997 , limits and methods of measurements of radio interface of information technology equipment, was the guiding document for the test. The product’s radiated emissions from 30 MHz to 2000 MHz and its power mains conducted emissions from 150 KHz to 30 MHz were measured. 3.2 Test Configuration The EUT was configured with a typical mix of available peripherals which fully configured all types of communications ports of the EUT and exercised it in a typical manner. 3.3 Test Procedure For radiated emissions testing, the equipment is installed on a 0.8 meter high non-conductive turntable 3 meters from the receiving antenna mast. The EUT is fully exercised during the test to maximize emissions. The receiving antenna is scanned over the height range of 1 to 4 meters is both polarities and the turntable is rotated with emissions level observed at each frequency. During the process the equipment configuration is also modified by moving the interconnecting cables to find the typical configuration that maximizes emissions at each frequency. The frequency range from 30 MHz to 2000 MHz is explored. Measurement data is compared to Class B limit. April 16, 2003 For conducted emissions testing the equipment is moved to a 0.8 meter high platform and the EUT and Configurations equipment are powered from a different LISNs. Both sides of the AC line are measured and the results compared to the Class B limit. 3.4 Test Results A comparison of the measured data with the Class B limit of FCC (3M) shows that Windows Terminal WT9650XE was 1.79 dB below the limits at the worst case frequency of 75.735 MHz in a Horizontal Polarization. 3.5 Product Specification Model: WT9650XE (Logic Board P/N 770428-01) Clock Circuit: U16 = ICS C9725-198 Filters: 33 MHZ CLK Line: R215-217 = 33 ohms 14 MHZ CLK Line: C164, 173 = 22 pF 48 MHZ CLK Line: R240 = 22 ohms U15 = VIA C3 CPU, 533 EBGA C61, 72, 59, 65 = 47 pF R117, 106 124, 122 = 27 ohms C56, 68 = 27 pF R120, 126, 113, 119 = 15 Kohms L12, L17 = BLMIIP 300S Main Power Filters: U17 = ISL6524 PL1 = 2uH Choke C188, C169, 168 = 10 uF Aluminum cap Video Circuit: U12 = IC,8601,NORTH BRIDGE Filters: L19, 20, 24, 25, 35, 32, 31 = BLM11P600S C119 = 1 uF C114 = 1000 pF B38 = 0.1 uF CT23 = 10 uF 16V L40, 41 = BLM11A121S C187, 192 = 1000 pF April 16, 2003 Termination: R149, 140, 141, 70, 138, 146, 151 = 22.5 ohms R242, 233 = 47 ohms Audio Circuit: U13 = VIA VT1621A AC97 CODEC and Audio Filters: L2, 8, 7, 3, 10, 1 = BLM11P600S B2, 9, 6, 7, 25, 30, C11, 32, 33 = 0.1 uF B16, B17 = 0.01 uF C26, 28, 24, 23, 25 = 0.22 uF C8, 9 = 27 pF C7, 6, 22 = 22 pF Network: U11 = VIA VT6103 LAN Filters: C77, 83, 79, 75, 86 = 0.1 uF C266, 267 = 47 pF C73, 74 = 22 pF R171, 175 = 330 ohms R156, 159 = 49.9 ohms CN3B = Conn, RJ45, 8P Radiated Emission Test 3m Chamber WYSE Technology Inc. 3471 North 1st Street San Jose Ca 95134 Test Description: EUT: WT9650XE Serial No. 9T21C300027 Part No. 902068-03 File No. 040903#1 Test Type: EN55022 EN55022 FCC-A { } FCC-B { X } CISPR-A { } CISPR-B { } PASS: X FAIL: Debug: Frequency Peak DelLim-Pk QP DelLim-QP Angle Hgt Pol MHz dV/m dB dBuV/m dB deg cm 75.735512 38.21 -1.79 37.12 -2.88 390 357 Horz 100.741264 39.56 -3.94 37.14 -6.36 219 2 Horz Configuration: 1) Fully configured 2) Video 1024X768 @ 60Hz Modifications: None Test Procedure Definition: EMI Receiver Model: 85460A (Cal. Date: 09 May 2002) SN: 3807A11445 (Cal. Due Date: 09 May 2003) Emco Biog Ant. (Type2) Model: 314…
