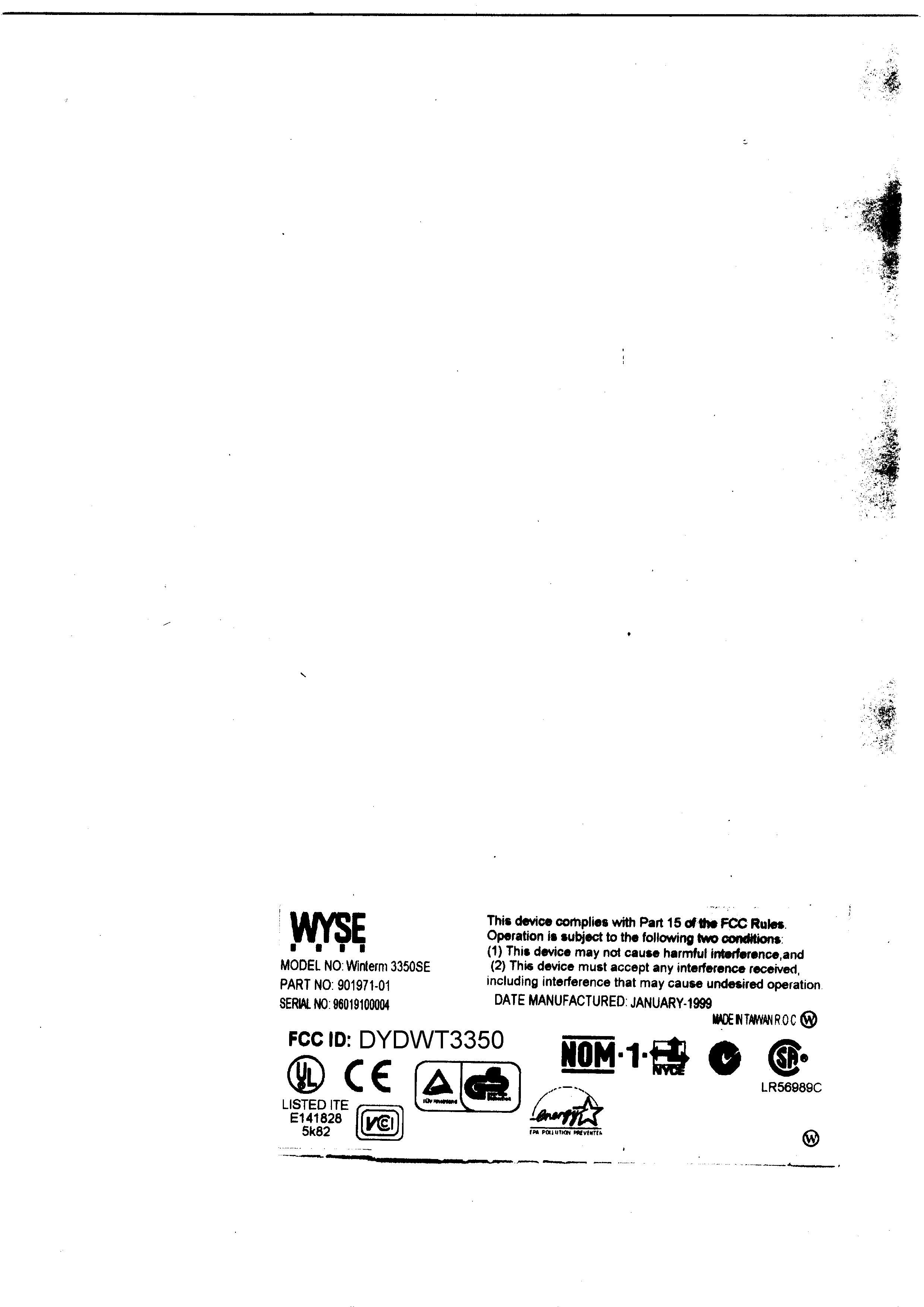

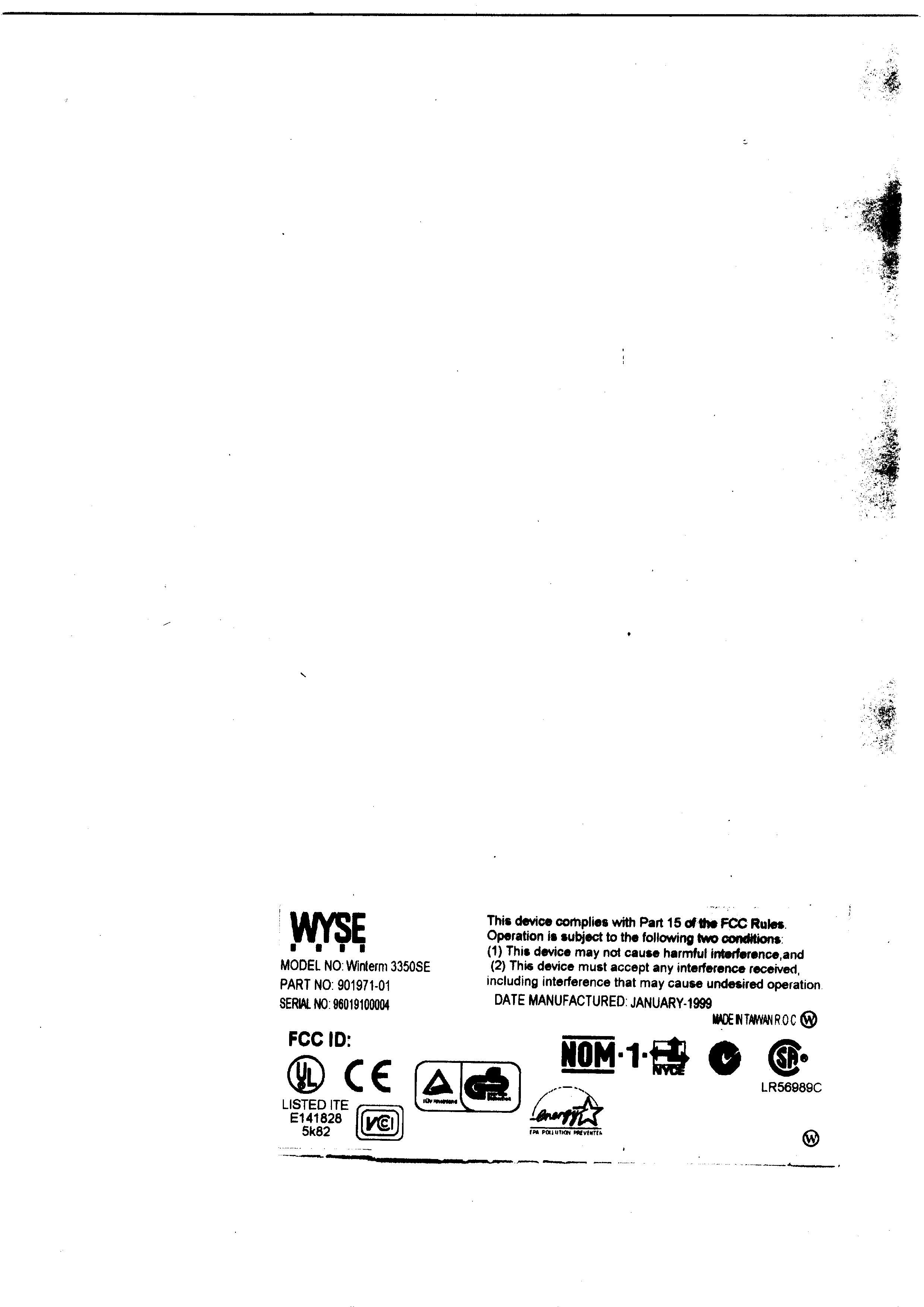

DYDWT3350Window Based Terminal

Compliance Agreements Copyright Notice © 1999 ALL RIGHTS RESERVED. This manual and the software and firmware described in it are copyrighted. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of this publication without express written permission. Trademarks WYSE is a registered trademark and Winterm is a trademark of Wyse Technology Inc. ICA 3 is a registered trademark and MetaFrame is a trademark of Citrix Systems Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other products are trademarks and/or registered trademarks of their respective companies. The Energy Star emblem does not represent endorsement of any product or service. Specifications subject to change without notice. Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Ordering Information For availability, pricing, and ordering information in the United States and Canada, call 1-800-GET-WYSE (1-800-438-9973). In all other countries, contact your sales representative. WYSE TECHNOLOGY INC. 3471 North First Street San Jose, CA 95134-1803 U.S.A. 1 of 12/10/99 1:35 PM Copyright Noticefile:///G|/TermInst/CompAgr/COPYRGHT.ht m Compliance Agreements FCC Statement This equipment has been tested and found to comply with the limits for either Class A or Class B digital devices (refer to "Terminal Requirements Compliance "), pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CAUTION Changes or modifications not covered in this manual must be approved in writing by the manufacturer’s Regulatory Engineering department. Changes or modifications made without written approval may void the user’s authority to operate the equipment. Terminal Requirements Compliance Models 3315SE, 3350SE, 3515SE, and 3715SE terminals meet Class B requirements. The Model 3615SE terminal meets Class A requirements. Canadian DOC Notices NOTE Refer to the previous section, "Terminal Requirements Compliance," to find out what model terminal each of the statements below refers to. Class A - This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. Class B - This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada. IEC/EN Notice This product conforms to the requirements of IEC950 and EN60950. This product conforms to requirements of EN55022 for Class A equipment or EN55022 for Class B equipment (refer to "Terminal Requirements Compliance "). 1 of 22/10/99 1:36 PM FCC Noticefile:///G|/TermInst/CompAgr/FCC.ht m Cable Notice The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may cause interference and violate FCC and international regulations for electromagnetic interference. 2 of 22/10/99 1:36 PM FCC Noticefile:///G|/TermInst/CompAgr/FCC.ht m Control No. 075B Compliance Agreements License Agreement YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS EQUIPMENT WHICH CONTAINS SOFTWARE IN A NON-VOLATILE FORMAT AND CERTAIN OTHER INTELLECTUAL PROPERTY (HEREAFTER “FIRMWARE”). USING THIS EQUIPMENT INDICATES YOUR ACCEPTANCE OF THE FOLLOWING TERMS AND CONDITIONS. Grant You may use the Firmware in or in conjunction with the Equipment as provided to You. You may transfer ownership of the Equipment, including the right to use the Firmware to another party so long as that party agrees to accept these terms and conditions. YOU MAY NOT USE, COPY, MODIFY, TRANSLATE OR TRANSFER THE FIRMWARE, OR MODIFICATION THEREOF, IN WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED FOR IN THIS LICENSE. YOU MAY NOT DECOMPILE, REVERSE ENGINEER OR OTHERWISE DECODE OR ALTER THE SOFTWARE CONTAINED IN THE FIRMWARE. Limited Software Warranty and Disclaimer WYSE warrants that, for a period of ninety (90) days from the date of shipment, the Firmware will, under normal use, be free from defects in materials and workmanship in the EPROM (or similar storage device). The foregoing warranty shall not apply to any Firmware which ha…

Text truncated - open the document above for the full version.

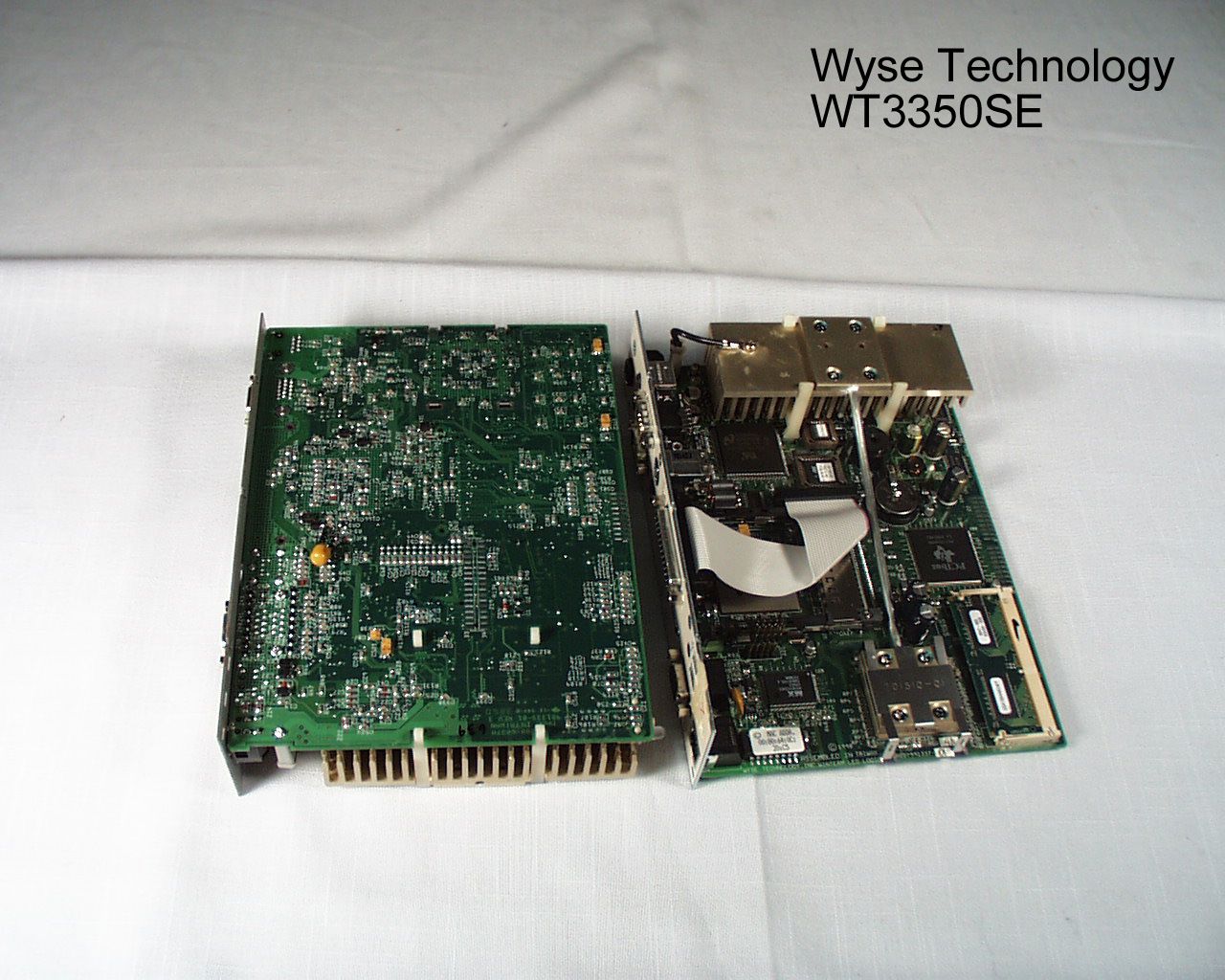

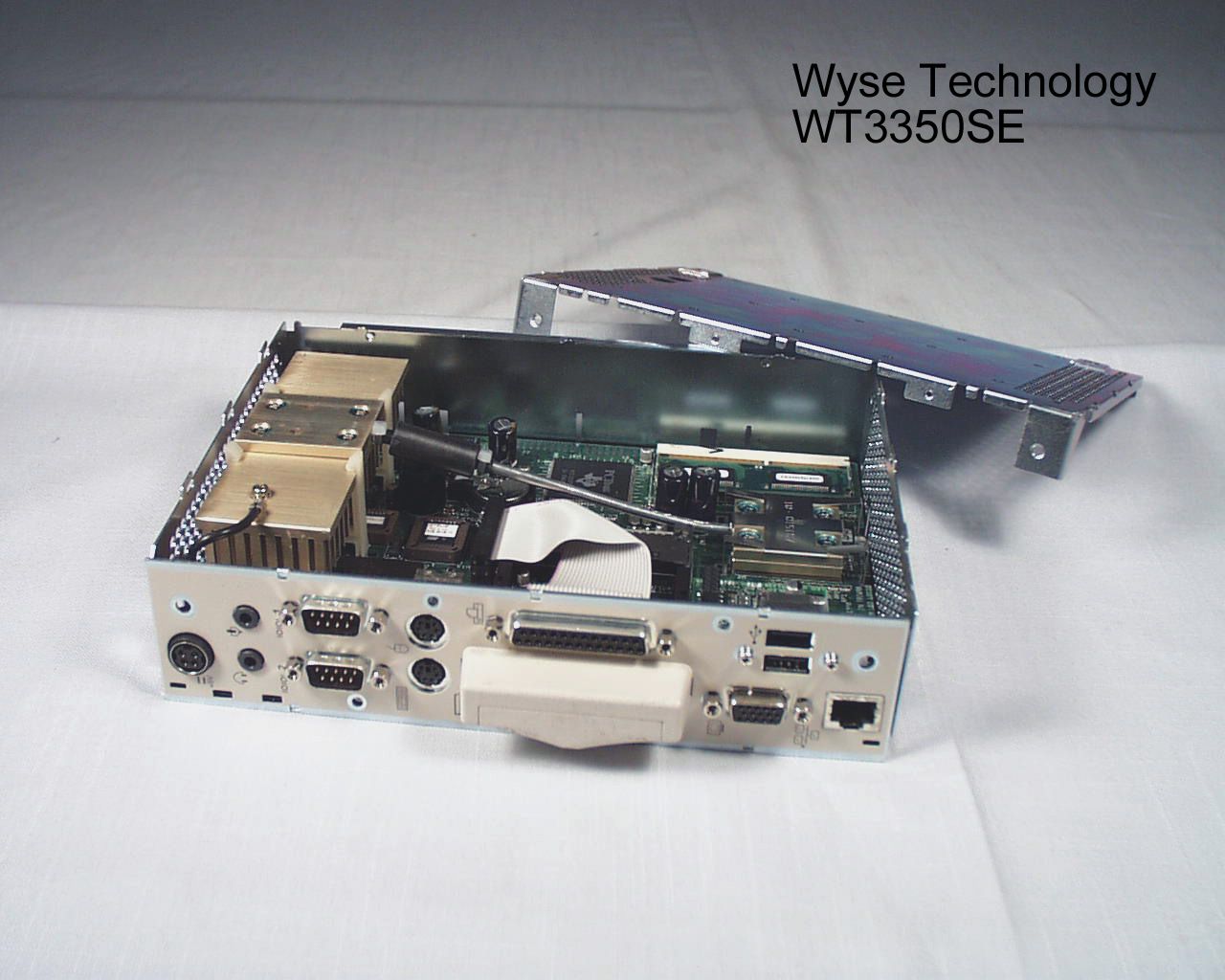

System Functional Block Diagram: MediaGX System Controller 0-64MB SDRAM (SODIMM) Banks 1/2 FLASH PAL 16V8 Super I/O PC9730 7 NETWORK MX98715 XCVR XCVR Cx5530 Companion Chip CARDBUS (ISA) AD1819A Codec BUF PCI1220 CARDBUS Controller KEYBOARD MOUSE 10/100 Base-T Serial 1 Serial 2 AUDIO Parallel port ISA PCI Expansion Video Conn. Video O/P (PCI) TC5864 NAND FLASH Bank 2 TC5864 NAND FLASH Bank 1 16MB SDRAM Bank 0

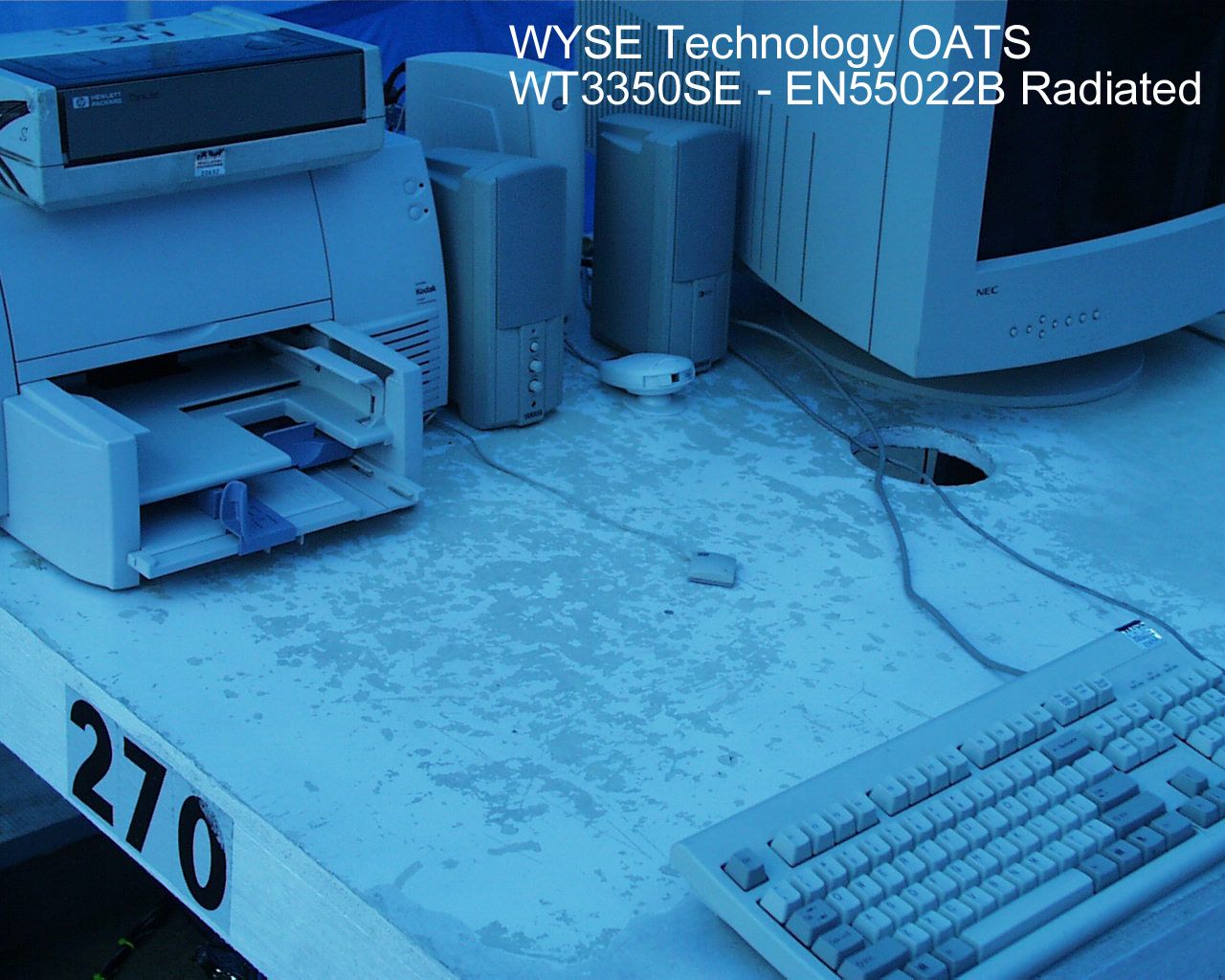

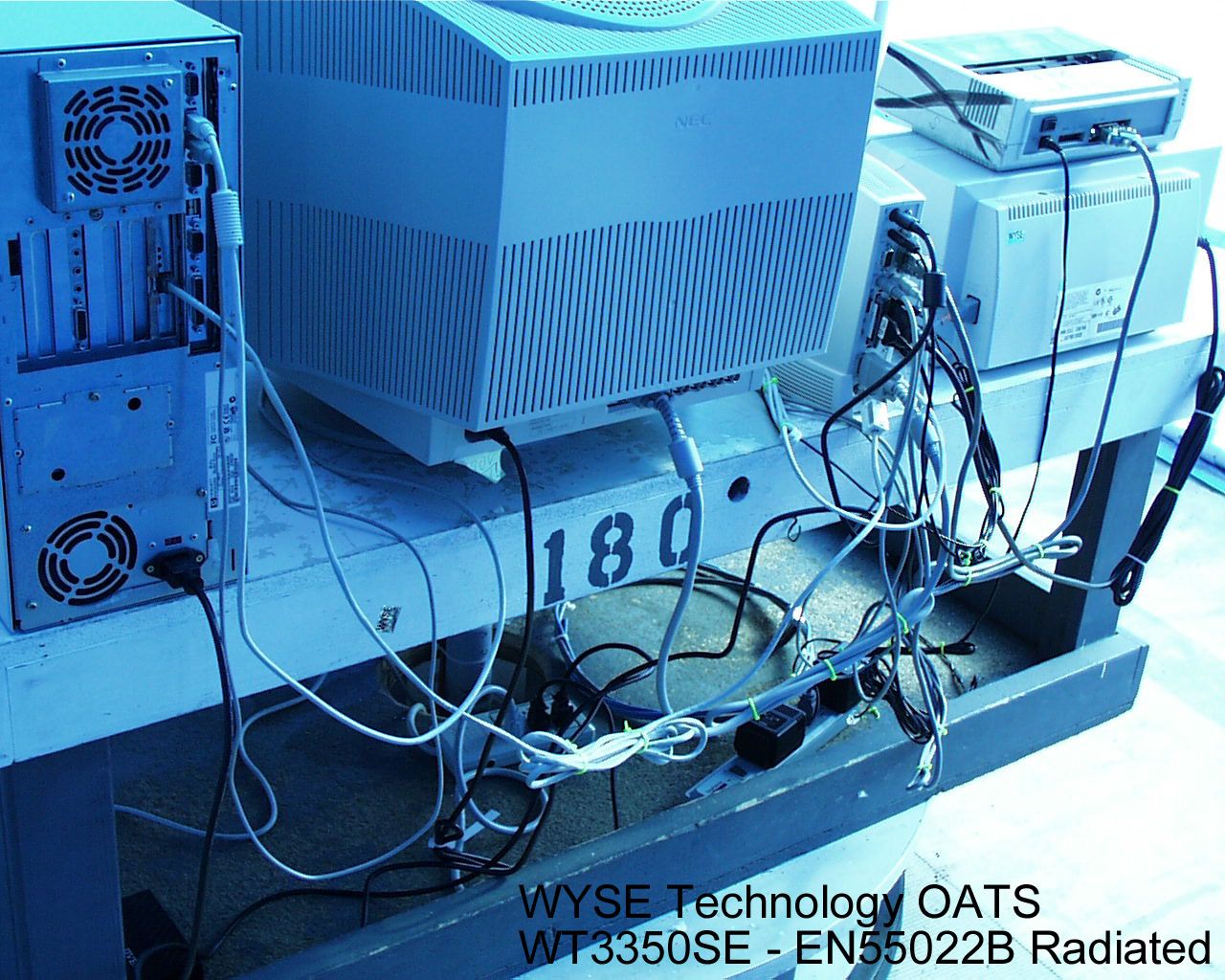

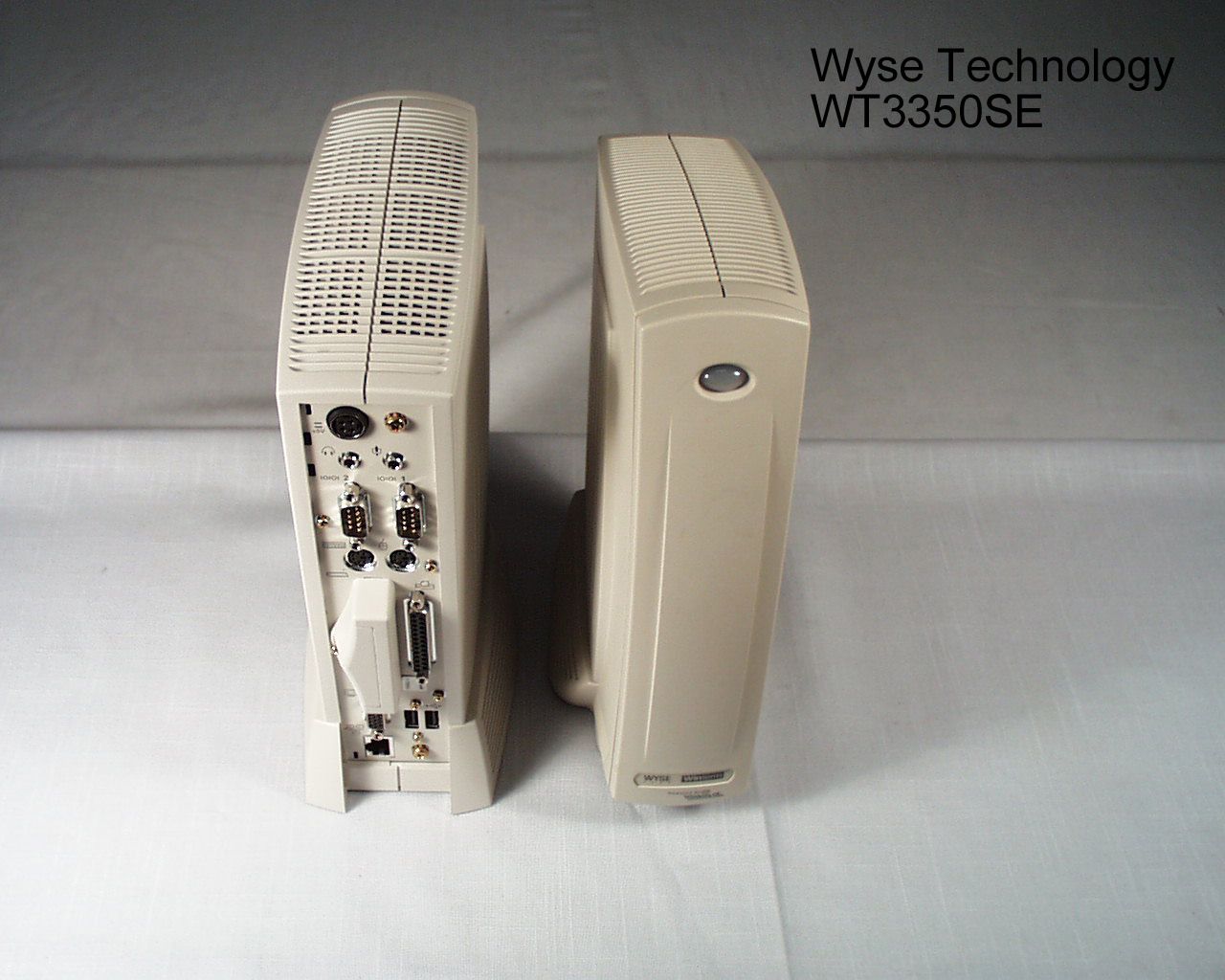

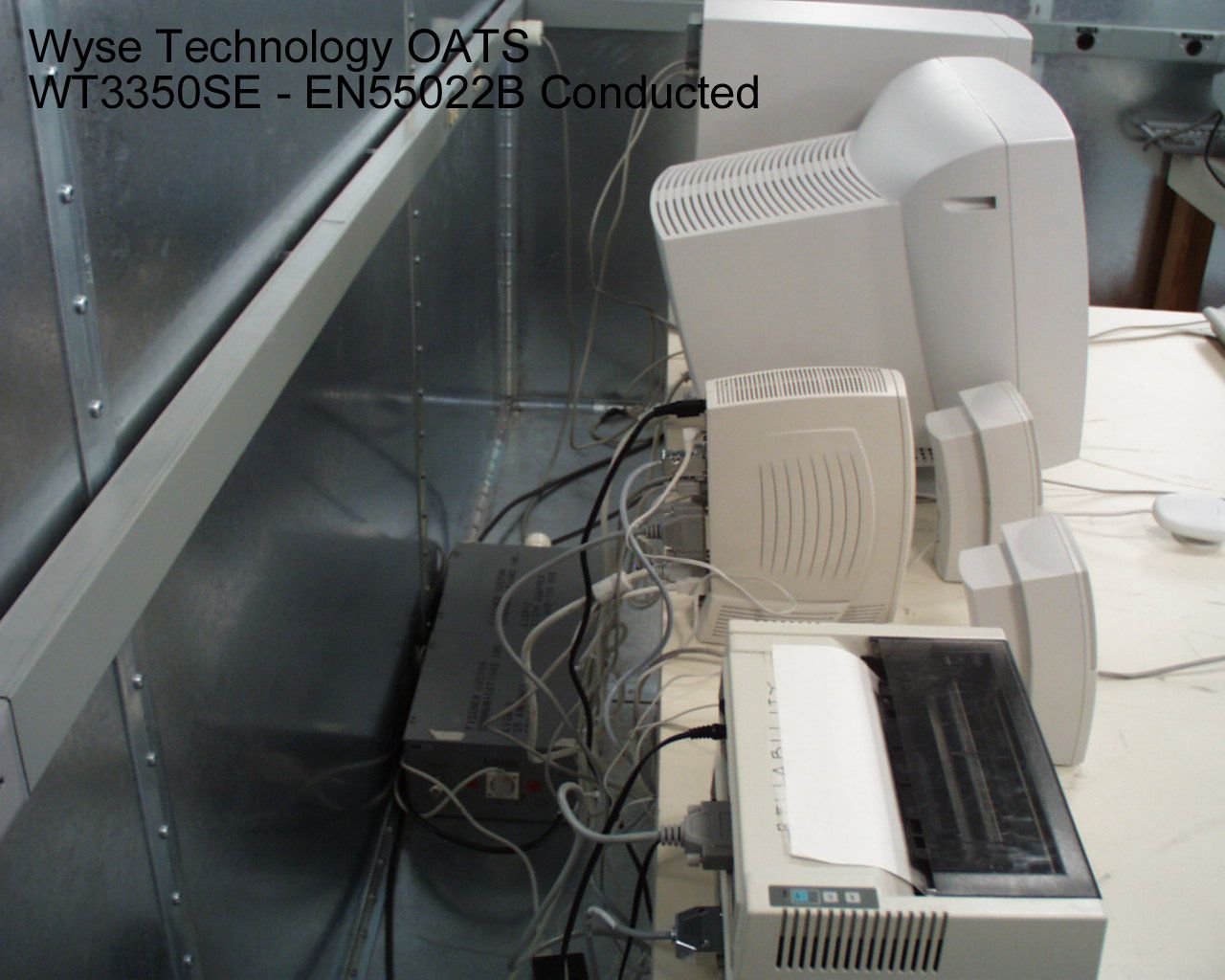

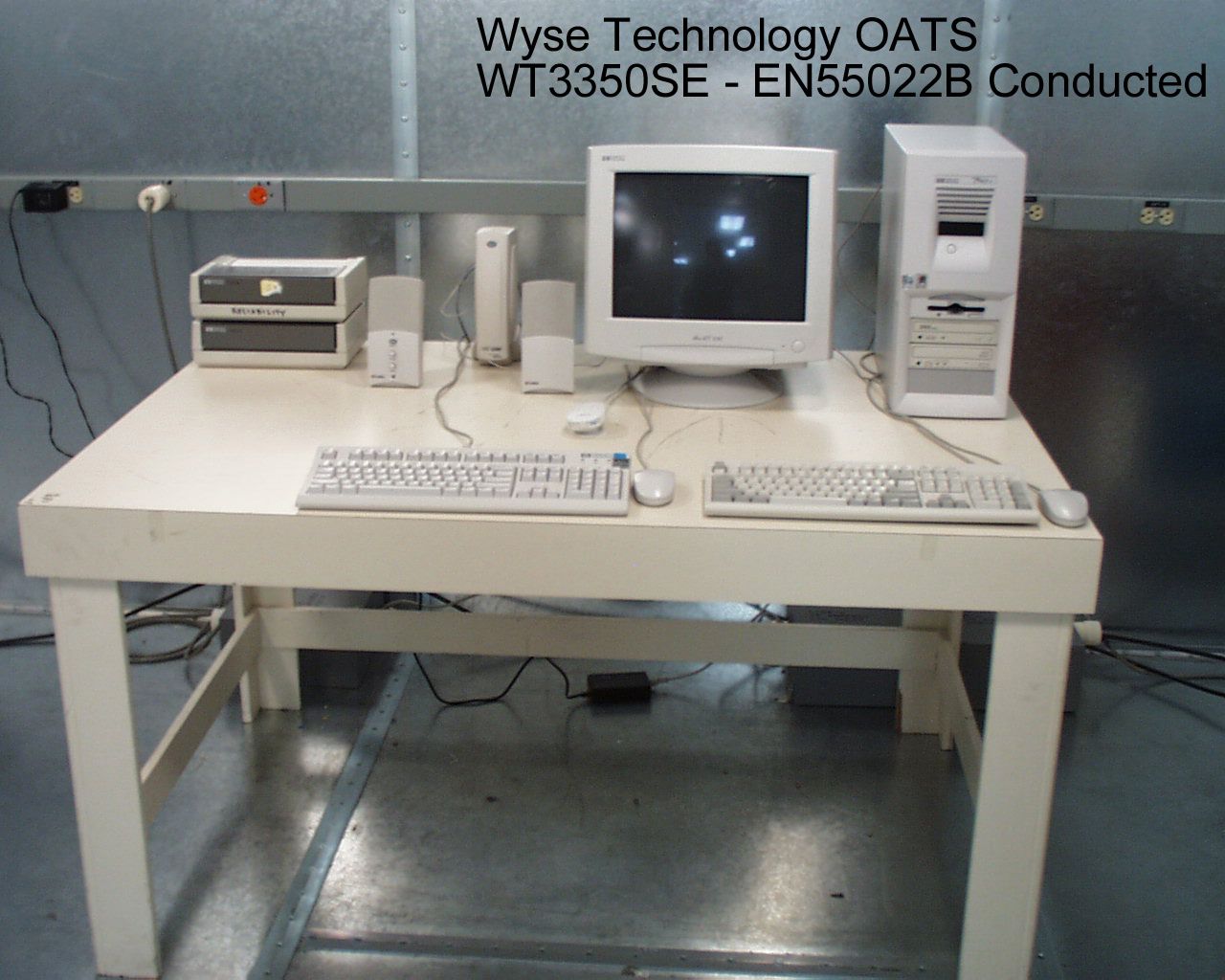

WYSEFebruary 19, 1999To: Mr. George Tannahill Federal Communication Commission Equipment Approval ServicesSubject: FCC approval of our new model WT3350SE, FCC ID: DYDWT3350Dear Mr. Tannahill:We are applying for the approval of our Window Based Terminal Model WT3350SE, the functionality of this model issimilar to our approved model WT2315Se (DYDWT2300) except we have redesigned the logic board using National GXMCPU and national video driver 5530. Also the EMI cage has been redesigned. With this letter I have provided all thenecessary documentation electronically and attached with this letter is the radiated and conducted setup drawing. All the testequipment information have been included as part of the radiated and conducted test report.We are planning to start production on March 15, it is greatly appreciated if you could process this request as soon aspossible. If you have any question or need additional information, please call me at (408)473-2697. Fax: (408)473-2245. E-mail: [email protected] Sincerely Yours;Masood Abrishamcar MouseFCC ID:DZL211029 TEST SETUP FOR RADIATED MEASUREMENT Parallel Printer FCC ID: B94C4602X EUT 21" Monitor FCC ID: A3DJC-2145UMA HP Brio DOC Serial Printer FCC ID: DSI6XU2225 USB Camera FCC ID: EDUYC76 Mic Speaker Keyboard FCC ID: G Y U R41 SK Speaker LAN Cable WT3350SE HP 2225D HP 890C MouseFCC ID:DZL211029 Support Device Power TEST SETUP FOR CONDUCTED MEASUREMENT Parallel Printer FCC ID: DSI6XU2225 EUT 17" HP Monitor D2835 FCC ID: A3LCGE750 HP Brio DOC Serial Printer FCC ID: DSI6XU2225 USB Camera FCC ID: EDUYC76 Mic Speaker Keyboard FCC ID: G Y U R41 SK Speaker LISN Boxes LAN Cable EUT Power WT3350SE HP 2225D HP 2225C

February 16, 1999 WYSE Technology EN 55022-B Test Record for Window Based Terminal Model Number: WT3350SE Tests performed by WYSE Technology 4399 Lick Mill Blvd. San Jose, CA Test completed: February 16, 1999 Test Engineer: Harinder Phul Approved by: Masood Abrishamcar February 16, 1999 1.0INTRODUCTION 1.1 Scope This record is intended to document conformance with the EMC Directive (89/336/EEC) and details the results of testing performed on February 16, 1999 on the WYSE WINTERM model: WT3350SE. 1.2 Purpose Testing was performed to evaluate the emissions performance of the WT3350SE with respect to EN 55022 Class B. 1.3 Summary The Power Adapter WT3350SE was found to be compliant to EN 55022 Class B Emission Requirements. 1.4Testing Requirements Testing was performed using procedures and criteria contained in EN 550022. 2.0 TEST ENVIRONMENT 2.1Test Sample Description WT3350SE is designed to communicate with a host system via Twisted Pair LAN interface on NT Windows Server. Test Software The software used during the test was a continuous loop batch file on Windows NT station. The program creates an entire page of “H”’s and writes the entire page to the screen, and it also prints to the serial and parallel devices as used in the test setup. The cables were moved around to find the maximum emission from the EUT. 2.2 Test Facilities 2.2.1 Emissions Test Site Radiated emissions testing was performed on a weather protected Open Area Test Site. The description of OATS is filed at the WYSE Regulatory Engineering Department. The OATS is located at 4399 Lick Mill Blvd., San Jose, California, USA. Conducted emission testing was performed inside a shielded enclosure (Screen Room) in the WYSE RFI laboratory. The description of screen room is filed at WYSE Regulatory Engineering Department. The Screen Room is located at 3471 N. First Street, San Jose, California, USA. February 16, 1999 2.3 Test Equipment The following are the list of equipment used during the radiation and conducted testing. Radiated: HP Receiver model 84560A (RES BW: 30 KHz-100KHz, VBW: 10KHz – 30KHz) Conducted: HP 85650A Quasi-Peak Adapter HP 8566B Spectrum Analyzer (RES BW: 30KHz –100KHz, VBW: 10KHz – 30KHz) SETUP: In accordance with WYSE Technology test procedure. PROCEDURE: Biconilog antenna was used for frequency range 30MHz - 2 GHz. The frequency range was checked for signals strength. The antenna was then raised and lowered for final maximization. The frequency range was checked with antennas in the horizontal and vertical polarization. 3.0 TEST RESULTS 3.1Test Description CISPR Publication 22:1985, limits and methods of measurements of radio interface of information technology equipment, was the guiding document for the test. The product’s radiated emissions from 30 MHz to 1000 MHz and its power mains conducted emissions from 150 KHz to 30 MHz were measured. 3.2 Test Configuration The EUT was configured with a typical mix of available peripherals which fully configured all types of communications ports of the EUT and exercised it in a typical manner. 3.3Test Procedure For radiated emissions testing, the equipment is installed on a 0.8 meter high non-conductive turntable 10 meter from the receiving antenna mast. The EUT is fully exercised during the test to maximize emissions. The receiving antenna is scanned over the height range of 1 to 4 meters is both polarities and the turntable is rotated with emissions level observed at each frequency. During the process the equipment configuration is also modified by moving the interconnecting cables to find the typical configuration that maximizes emissions at each frequency. The frequency range from 30 MHz to 1000 MHz is explored. Measurement data is compared to Class B limit. February 16, 1999 For conducted emissions testing the equipment is moved to a 0.4 meter high platform and the EUT and Configurations equipment are powered from a different LISNs. Both sides of the AC line are measured and the results compared to the Class B limit. 3.4Test Results A comparison of the measured data with the Class B limit of CISPR shows that Power Adapter WT3350SE was 3.44 dB below the limits at the worst case frequency of 355.49 MHz in a Vertical Polarization. 3.5 Product Specification Model: WT3350SE (Logic Board P/N 991337-01 Rev. 4D) Clock Circuit: U21 = MK1492-03, P/N 205565-50 Filters: 33 MHZ CLK Line: R85 = 100 Ohm, P/N 370508-97; Z61 = 15pF (not loaded) R86 = 100 Ohm, P/N 370508-97; Z58 = 15pF (not loaded) R87 = 100 Ohm, P/N 370508-97; Z64 = 15pF (not loaded) R88 = 100 Ohm, P/N 370508-97; Z59 = 15pF (not loaded) 14.3 MHZ CLK Line: R89 = 33 Ohm, P/N 370513-13; Z60 = 15pF (not loaded) 48 MHZ CLK Line: R90 = 33 Ohm, P/N 370513-13; Z51 = 15pF (not loaded) 24.5 MHZ ( Audio) CLK Line: R91 = 33 Ohm, P/N 370513-13; Z52 = 22pF, P/N 320310-21 Y4 = 14 MHZ, P/N 392010-51 Filters: R94 = 33 Ohm; Z56 = 15pF L21 = 2 Kohm, P/N 400032-31; C432, C449 = 0.1uF Y5 = 25 MHZ, P/N 392010-54 Filters: R95 = 33 Ohm; Z57 = 37pF L24 = 2 Kohm, P/N 400032-31; C311 = 0.1uF, P/N 320338-24; C450 = 0.1uF U2 = GXM200, P/N 200062-50 Power Filter U1 = CX5530, P/N 205122-50 Filters: R13 = 68 Ohm, P/N 370513-21; Z6 = 15pF (not loaded) R12 = 68 Ohm, P/N 370513-21; Z5 = 15pF (not loaded) L17, L18 = 2 Kohm, P/N 400032-31 February 16, 1999 Video Circuit: U1 = CX5530, P/N 205122-50 Filters: L1 = 43MTL, P/N 400021-01; C4, C5 = 33pF, P/N 320313-25 L2 = 43MTL, P/N 400021-01; C3, C6 = 33pF, P/N 320313-25 L3 = 43MTL, P/N 400021-01; C2, C7 = 33pF, P/N 320313-25 Termination: R4, R5, R6 = 75 Ohm, P/N 370508-85 Audio Circuit: U15 = LM4546, P/N 205123-53 Filters: L13, L22, L23 = 2 Kohm, P/N 400032-31 C19 = 100 pF, P/N 320313-37 Driving Transistor: Q3, Q4 = MMBT3904, P/N 270010-50 Network: U4 = MX98715, P/N 205125-50 Filters: R70, R71 = 49.9 Ohm, P/N 370508-68 U17 = Transformer, P/N 429099-50 Filters: C32, C33 = .1 uF, P/N 320338-24 C34 = .01 uF, P/N 320046-48 R72, R73, R74, R75 = 75 Ohm, P/N 370513-22 Zero Ohm Jumpers: RJE = 0 Ohm; Z13, Z14 = 0 …
