E86TLA853Pager receiver

Contents Introduction and Getting Started .............. 1 Switching the Pager On ............................ 1 Status and Operating Symbols ................ 2 Setting the Time and Date ........................ 4 Setting the Pager Alarm ........................... 6 Selecting the Pager Alert ......................... 8 Receiving a Message ............................. 10 Reviewing Stored Messages .................. 11 Archiving Messages ............................... 12 Reviewing Archived Messages .............. 13 Deleting Messages ................................. 13 Deleting All Messages ............................ 14 Timed Off ................................................ 14 Reviewing Information Service Messages ............................................. 16 Caring for your Pager ............................. 17 Fault-Finding ........................................... 17 (i) Releasing the Pager from the Holster Press on the bottom tag with your finger and slide the pager upward. (ii)1 Introduction and Getting Started Congratulations on selecting the TLA 850 alphanumeric pager from Multitone. Your pager has all the features you expect of a top class product yet it retains simplicity of operation through the superbly designed user interface and icon menu selection. This guide will describe the operation of the product and ensure that you receive the full benefits of paging with the TLA 850. On the back of your pager you will find the battery cover. Press down on the centre tab while sliding the battery cover outwards to remove. Insert the battery into the spring end first so that the + symbol on the battery is aligned with the moulded + symbol in the battery compartment. Carefully slide the cover back into position. Switching the Pager On To turn the pager on press and hold the •> button for one second. A short alert will 2 14:24 23.03.98 sound and the pre-programmed switch-on message will be displayed. After one second the time and date will be shown. This is the standby screen: Standby Screen Status and Operating Symbols The standby screen shows the current time and date. It also shows if there are unread messages, whether audible or vibrate alert is selected and, if appropriate, gives low battery and out-of-range warnings by displaying the following symbols: Status Symbols 14:26 23.03.98 3 From the standby screen press •> to enter the pager options screen. The following symbols are displayed: Pager Option Screen Unread MessagesLow Battery Audible AlertOut-of-Range VibrateMemory Full The status symbols are as follows: Archive Alert Section Time Setting and Timed Off Setup Off Alarm Function Backlight Delete All Messages 4 To turn the pager off press •> to show the pager options screen and then press < or > several times until the symbol is flashing. Press •> and the display will show the symbol plus a flashing ?. Press •> again to turn the pager off. Setting the Time and Date The standby screen will normally show the time and date. To set the current time and date press •> once to display the pager options and then press < or > several times until the symbol flashes. Press •> to display the time function edit screen. Time Function Screen The clock symbol will flash. To set the clock press •> and the clock symbol will 5 appear with 12 or 24 hour mode indicated. The hour will flash and the correct value may be selected by pressing either < or >. Once the hour is correct press •> and the tens of minutes will flash. Press < or > until the correct number is shown and then press •>. Press < or > until the correct number is shown and then press •> to set the minutes. The date is set with the same method. 5:27 pm 23.03.98 12 5:27 pm 23.03.98 12 5:29 pm 23.03.98 12 6 Once the display shows the correct time and date the 12 or 24 hour mode can be selected by pressing the < or > buttons to change as required. Press and hold •> for one second to return the pager to the standby screen. Setting the Pager Alarm The pager has a daily alarm feature and it may be set by pressing the •> to show the pager options and then selecting the symbol using the < or > buttons. Press the •> to display the alarm options screen. To turn the alarm on press < or > until the symbol shows and the time that the alarm is set to sound is displayed. 17:27 pm 23.03.98 24 7 To turn the alarm off press < or > until the symbol shows and the alarm time is turned off. To change the alarm time press •> and the hour will flash. Press < or > to change the numbers and when the correct value is set press •> and the tens of minutes will flash. Press < or > to change the numbers and when the correct value is shown press •>. Press < or > until the minutes display is correct and then press •> for one second to return to the standby screen. 07:00 8 The display will show the symbol indicating that the alarm is set. When the alarm time is reached the standby screen will show the symbol flashing and the alert will sound for eight seconds. Pressing any button within the eight second period will stop the alert. Selecting the Pager Alert To set the alert on the pager press •> to show the pager options and then press < or > several times until the symbol is flashing. Press •> to display the alert options screen which allows you to select the type of alert that the pager produces when a call is received. The pager has nine possible alert 9 settings. These are numbered 0 for No alert, 1 for Vibrate alert and 2 to 8 for the seven audible alerts. Press < or > to change the alert and the pager gives you a sample of the alert. To stop the alert press any button. If the vibrate alert is required then press the < or > until the symbol is displayed and the pager will vibrate for one second. The pager will now vibrate discreetly when a call is received. Once the desired alert has been selected press •> for one second to return to the standby screen. In the standby screen the pager will now show the symbol if the audible alert has been selected. T…

Text truncated - open the document above for the full version.

TLA 852/853 • Small and convenient • Two-line display • 32 Memories • Personal and Group RICs • 8 Special Services (mailboxes) • Vibrate as standard • Runs on one AAA battery • Alarm clock • Delete All feature • Battery saver Two-Line Alphanumeric Pagers The new Multitone™ TLA 850 range is small, attractive and easy to use. Two-line display The large LCD shows two rows, each of 14 easily visible alphanumeric characters. New messages appear instantly on the display - their time stamp appears last. Using the TLA In standby mode the display shows time, date and status information. Simply press the right button to view stored messages, the middle button to access the archive (Special Services instead if enabled) or the left button to set your user options. These include choosing the alert type, setting the clock, selecting the battery saver times and deleting all messages - all done via easily understood icons: Archive Alarm Backlight Battery Saver Delete All AlertOff Multitone Electronics plc Head Office Multitone House Beggarwood Lane Kempshott Hill Basingstoke Hampshire RG23 7LL Tel: +44 (0) 1256 320292 Fax: +44 (0) 1256 462643 E-Mail: [email protected] Web Site: www.multitone.com Northern/Scottish Office Unit 33, Geddes House Kirkton North Livingston West Lothian EH54 6GU Tel: 01506 418198 Fax: 01506 411711 Multiton Elektronik GmbH Dusseldorf, GERMANY Multiton Elektronik GmbH Vienna, AUSTRIA PL0319/1 The Multitone policy is one of continual improvement, so equipment may vary in detail from the description and specification in this publication. © Multitone Electronics plc 1998 Designed and manufactured in accordance with Quality System ISO 9000. Certificate Nos. FM20122 and Q10379. SPECIFICATION RADIO PERFORMANCETLA 852 (VHF)TLA 853 (UHF) Frequency range137.5-174MHz439-470MHz Channel spacing25kHz25kHz Sensitivity (typical for 40 character message) Best position 512 Baud5μV/m5μV/m 1200 Baud7μV/m8μV/m 2400 Baud10μV/m12μV/m 8 Position average 512 Baud8μV/m9μV/m 1200 Baud11μV/m12μV/m 2400 Baud15μV/m17μV/m Intermodulation rejection60dB55dB Adjacent channel sensitivity70dB60dB Spurious response60dB60dB Image response65dB50dB Spurious emission <1GHz (max.) 2nW2nW DISPLAYSTN LCD IlluminationBulb backlighting to LCD Display area48mm x 13.5mm Capacity2 Rows of 14 characters Time and date12 or 24 Hour selectable Alarm time functionSingle alarm, daily alert Also battery saving “Timed Off” function ALERTS Audible (typical)76dB SPL @ 30cm Alert tones7 Plus vibrate and silent Max. number of messages32 Personal messages Max. number of characters per message1024 Message archive capacity6 Archive locations Total Number of RICs4 Personal Paging RICs2 Information Service RICs2 Permitting a total of 8 services Message time stampStandard LanguagesCountry specific ASCII characters AccessoriesHolster, lanyard, battery and guide Code formatCCIR RPC No. 1 (POCSAG) CE Approved ENVIRONMENTAL Operating temperature-10°C to +55°C Storage temperature-20°C to +70°C PHYSICAL Width x Height75mm x 49mm Thickness16.5mm Volume60cm 3 Weight (including AAA battery)65g

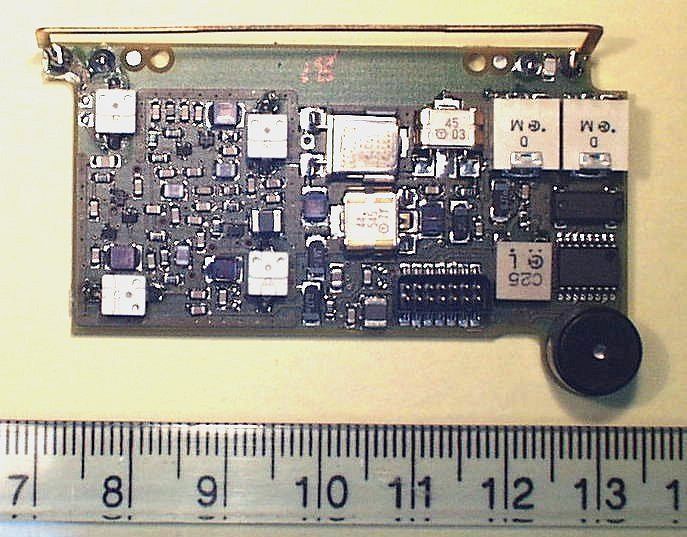

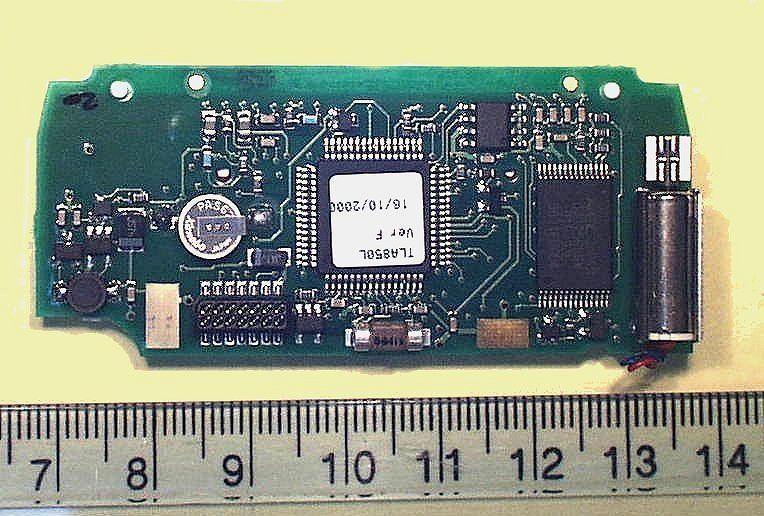

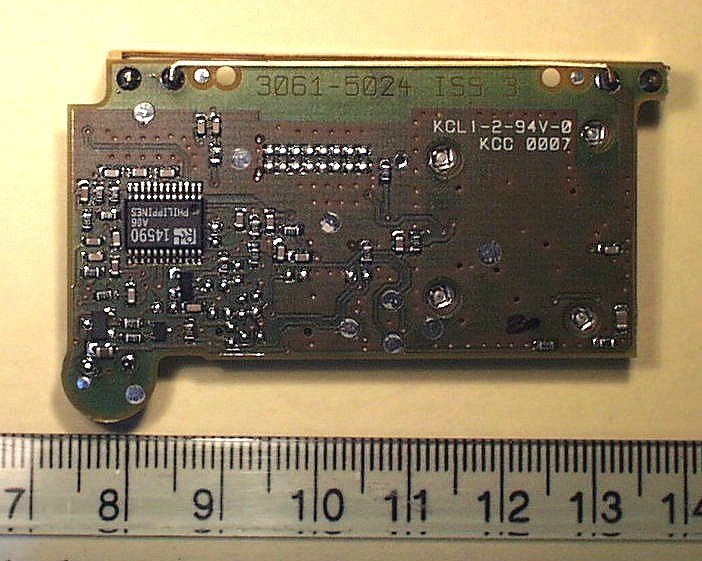

RADIO BOARDDECODER BOARD AUDIBLE ALERT BATTERY CONVERSION RECEIVER DUAL DECODER POCSAG CONVERTER SUPPLY VOLTAGE BACK-UP LIQUID EEPROM CRYSTAL DISPLAY MODULE SRAM M DISPLAY LAMP VIBRATE MOTOR MICRO- PROCESSOR B+ V DD PL401 SK1 DATA TAG11121-1 DATA ADDR CONTROL B+ V DD GND B+ VDD GND CHG RXEN LOBAT PROG 1 Figure 1: TLA 853 Block Diagram Multitone TLA 853 - Technical Description 1CIRCUIT SUMMARY The TLA 853 message receiver consists of two Printed Circuit Board (PCB) assemblies contained in a plastic case. The case is constructed in two main parts, the case front and the case back. A cover on the back of the TLA 853 provides access to the battery compartment. The two boards in the case are: a)The Radio Board which has the Dual Conversion Receiver, the POCSAG Decoder, the 1 Volt regulator and the audio alert output circuit and transducer. b)The Decoder Board which has the microprocessor, the EPROM, the SRAM, the Liquid Crystal Display Module, the LCD illumination lamp, the vibrate motor and the primary and backup power supplies. The block diagram of the functional areas of the TLA 853 is shown in Figure 1. 2 The RF signal enters the aerial and is fed to the dual conversion superheterodyne receiver. The signal is demodulated from RF to AF, converted to digital format and is then fed to the decoder. This results in the received data activating the memory, display and the selected audible alert or vibrate alert. To prolong the life of the battery, the receiver operates with battery economy mode. When the unit is in standby mode, the receiver is powered up at regular intervals (equivalent to once per batch) to allow the POCSAG decoder to search for pre-amble. While the unit is receiving preamble on its allocated channel, the receiver remains powered up. This allows the POCSAG decoder to search for a SYNC word. When the SYNC word is found, ‘batch lock’ is acheived. In batch lock the receiver is only powered up during the allocated frame to allow the POCSAG decoder to search for its address. If the address is found, the receiver stays ON for the duration of the message. RF AMPLIFIER TR403 MIXER AE401 AE402 2nd OSC. MIXER 455kHz TR401, TR402 45 MHz CER FL402 IC401 MIXER, IF AMP & DET. TR410, TR414 1st OSC. FL401 IF AMP XL402 XL401 TAG11120-1 455kHz CER FL403 CV404 AGC CONTROL TR407 TP403 IMAGE FILTER GNDGND CV407 CV406 CV405 TP405 RSSI DET DELAY FL404 DATA TO DECODER TP401 SINAD FSK COMP. FILTER QUICK CHARGE AMP PHASE 1V REG TR406 1V SUPPLY 1V TP402 INT. REF. RXEN LOWB 3 Figure 2: Receiver Block Diagram 2DUAL CONVERSION RECEIVER The incoming RF signal is received by the aerial AE401/AE402 which is tuned by CV404. Capacitors C401 and C441 provide matching to RF amplifier TR401, TR402. The amplifier, typically, yields a low noise gain of 10dB. R401, R402 and TR407 provide DC negative feedback. 4 Output from the RF amplifier passes through an image filter which provides these functions: a)Attenuation of the first image frequency. b)Attenuation of signals outside the required band. c)Matches the output impedance of the RF amplifier to the input impedance of the mixer stage. C406, L401 and CV407 form a parallel tuned circuit with the resonant frequency adjusted for minimum loss at the frequency of operation. C428, CV406 and L407 also form a parallel tuned circuit adjusted for minimum loss at the frequency of operation. In addition, C428 and L407 form a series resonant circuit with the resonant frequency close to the first image frequency. This gives approximately 40dB of attenuation at the image frequency. The local oscillator comprises transistor TR410, crystal XL402 and associated components. Frequency adjustment is by CV405. The local oscillator frequency is calculated as follows: carrier frequency - 45MHz fx = 3 where fx is the crystal frequency in MHz. The collector of TR410 is tuned to the third harmonic of XL402 by L411 and C459. The circuit provides the correct Local Oscillator frequency and reduces the level of 2nd, 4th and higher harmonics. The two tuned circuits, L413, C463 and L415, C464 give further filtering of unwanted harmonics. The mixer circuit, TR403 and associated components, receives the output of the image filter. This is mixed with the local oscillator output to produce a 45MHz product which is selected by the resonant circuit L406, C451. The 45MHz output passes through a monolithic crystal filter, FL401, which has a bandwidth of ±7.5 kHz at the -3 dB points. The output from FL401 is fed to IC401 pin 24. IC401 is a combined mixer/local oscillator/IF/detector. The second oscillator runs at 44.545MHz and, with the exception of XL401 and its associated components, is built into the IC. As the second oscillator is not trimmed, small frequency errors are absorbed when tuning the first local oscillator. The input at pin 24 is applied to the internal second mixer, and is mixed with the second oscillator output to produce a 455 kHz 2nd IF signal at pin 3. The IF signal then passes through two ceramic filters FL402 and FL403 which remove unwanted mixer products and provide further selectivity. The output from FL403 is split: one output connects through C450 to pin 6 of IC401 and the IF amplifier; the other connects to the Received Signal Strength Indicator (RSSI) circuit in IC401 through C419, R407 and pin 5. 5 Due to the characteristics of filters FL401, FL402 and FL403, the signal at the input to the IF amplifier has amplitude modulation (AM). The AM must be removed before the signal reaches the detector stage. This is performed by the IF amplifier in IC401 which has very high gain and is designed to limit the amplitude of the signal to remove the AM component and give a ‘square’ output. C479 and C480 provide de-coupling for the IF amplifier. The output from the IF amplifier passes to the detector in IC401. This circuit is a Quadrature Demodulator which has two inputs. One input connects directly to the IF amplifier, the other receives the signal from the IF amplifier through a phase del…

Text truncated - open the document above for the full version.

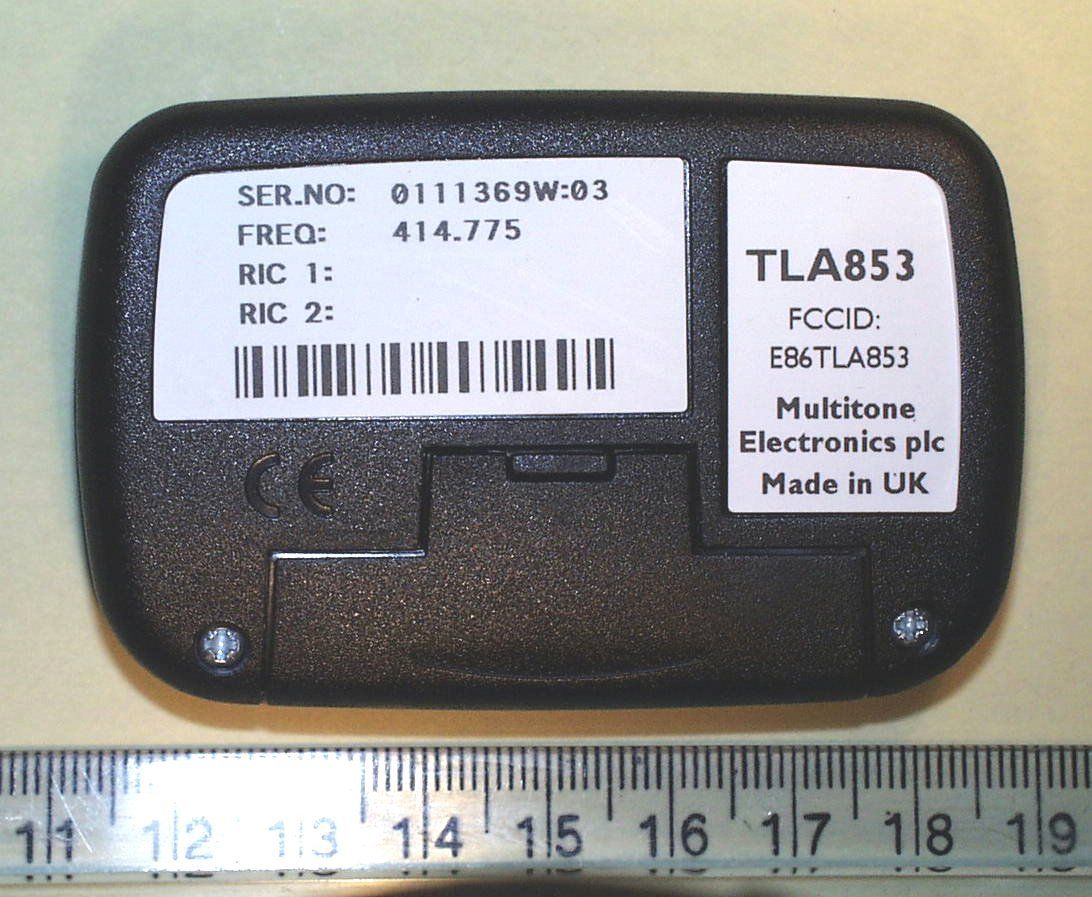

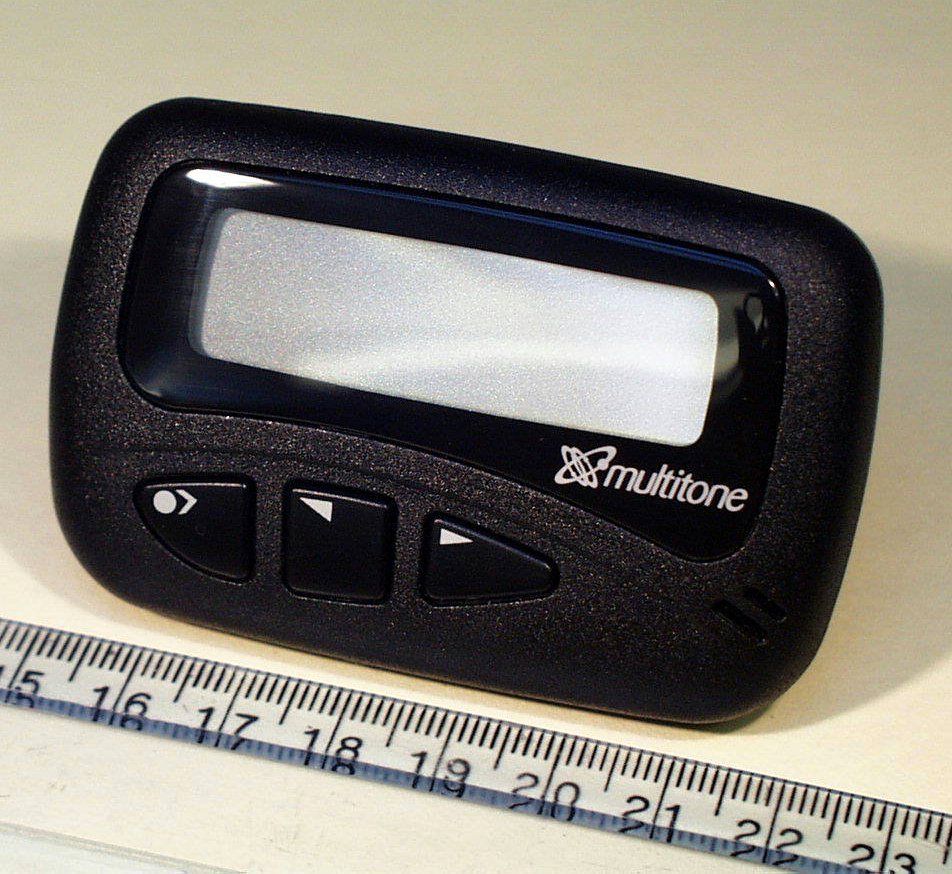

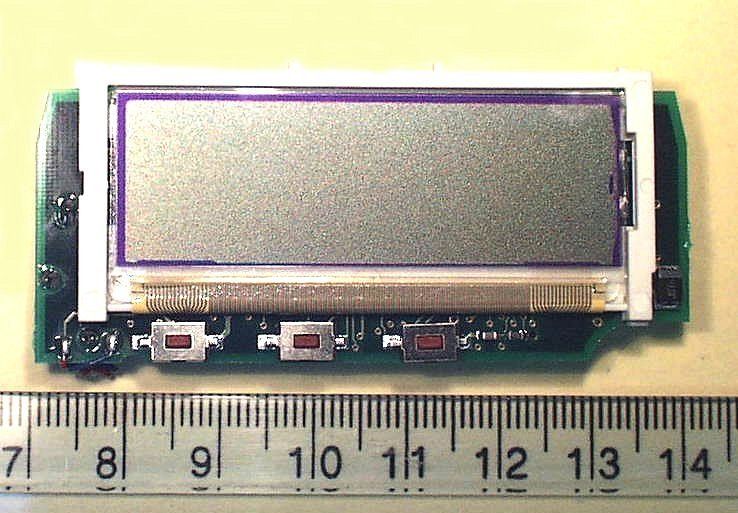

1 Multitone TLA 853 - Features & Specification INTRODUCTION The Multitone TLA 853 Radio Paging Receiver is a UHF receiver which receives alpha- numeric messages sent in CCIR Radiopaging Code No.1 (RPC1). The front panel of the unit has a Liquid Crystal Display (LCD) to display messages and other information. The three buttons on the front panel are used to control the functions of the unit. The LCD can show a maximum of two lines of 20 alphanumeric characters. If a message is longer than 40 characters, the excess is stored. The front panel buttons are used to transfer the stored part of the message to the screen as required. Message alert is provided by an audible beep tone or by the unit vibrating. The buttons are used to select the preferred alert. Power for the unit is supplied by a single AAA battery. A door on the rear of the unit gives access to the battery. A back-up supply for the unit is available when the battery is changed. The back-up supply is provided by a large-value capacitor mounted on the decoder board in the unit. The capacitor, when fully charged, can maintain data in the unit for 60 minutes. The unit case is a two-piece plastic moulding secured by two cross-head screws. A lanyard is supplied with the unit which can be fastened to the case and the attached clip used to secure the unit to a suitable object. FEATURES The unit has these features: CDisplays two lines of 20 characters CMessage Store CInformation Service Messages (Optional) CDisplay Backlight CDate/Time Display CSelectable Alert - Audible Beep or Vibration CAlarm COut of Range Indication (Optional) CTimed-off Mode CLow Battery Warning CBattery Economy 2 SPECIFICATIONS Receiver Performance Frequency Range:412MHz through 470MHz Frequency Bands: Band 0:412.000MHz - 416.000MHz Band 1:430.000MHz - 434.999MHz Band 2:435.000MHz - 439.999MHz Band 3:440.000MHz - 443.999MHz Band 5:447.000MHz - 450.999MHz Band 6:451.000MHz - 456.999MHz Band 7:457.000MHz - 462.999MHz Band 8:463.000MHz - 469.999MHz Channel Spacing:20kHz/25kHz Intermediate Frequencies:45MHz and 455kHz Crystal Frequencies: Local Oscillator:Carrier Frequency - 45MHz 3 2nd Oscillator:44.545MHz Sensitivity: The sensitivity figures quoted in Table 1 assume an ambient temperature in the range 18 EC through 25 EC. The battery voltage should be above the low battery trigger point of approximately 1.15 volts. At temperatures between the ambient and maximum / minimum, performance is at an intermediate value. At temperature extremes degradation of sensitivity shall not exceed 6dB. Table 1.1: Sensitivity Figures MEASUREMENTPOSITION, MODEGUARANTEED BEST MINIMUM BESTTEM CELL POSITION,(dBm), TYPICALTYPICAL BAUD RATE On Pole27dBμVm20dBμVm-105dBm1200 -1-1 3 NOTES:The following performance figures are typical for an ambient temperature range of 15EC through 35EC. The battery voltage must be above the low battery trigger point of approximately 1.15 volts. Adjacent Channel Selectivity:>60dB Image Response:>50dB Spurious Response:>50dB Intermodulation Response:>55dB Co-channel Rejection:> -6dB Power Supply Battery Type:Alkaline AAA (1.5Volts Nominal) Typical Battery Life:800hrs Code Format The Code Type is CCIR Radio Paging Code No.1 POCSAG Memory Capacity:The unit can accept messages to a maximum of 1024 alphanumeric characters. The pager can store a maximum of 32 read or unread messages and six archive messages. Recall:Stored messages can be retrieved in any order. 4 Displays, Controls and Alerts Liquid Crystal Display:The display shows two lines of characters with a maximum of 20 alphanumeric characters in each line. The top line can also show a maximum of seven symbols. Display Illumination:The lamp is selected ON or OFF by using the front panel controls. Control Buttons:Three push-buttons on the font panel of the unit control all the functions of the pager. Audible Alert:Various tones which can be selected or muted by using the front panel controls. Vibration:The vibration alert can be selected instead of an audible alert. Operational Environment The unit will operate to specification in these limits: Operating Temperature:-10EC through +55EC Storage Temperature:-20EC through +60EC NOTE:There may be some degradation of display performance below 0EC. Dimensions Width:75mm Height48mm Depth17mm Weight With battery:65g

6PCN 56281.11.00 0 412.000 - 416.000 0301-1092 10p 18p 12p 18n 680n470n470n470n470n470n470n470n470n 0201-1088 15n 330n 22n 2p7 15p L409 L411 L408 L407 C441 C401 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 8n2 270n 15n 1p8 8p2 Multitone Electronics plc 1997

TLA853 Radio Assembly Side 1 Sheet 1 of 2 Sheet1 of 2 0261-5023 P.McMullan 8.11.00 See Drawing. See Drawing. 8.11.00 0261-5023 c Title Drawn Checked Approved Approved Drg. No. Z Name Date Third angle projection Scale Dimensions in mm D C B Finish Material Tolerances Unless stated otherwise 0.4 to 1 decimal place 0.2 to 2 decimal places Angles 1 / 2 o 0.1 to 3 decimal places Holes + 0.05 up to 5 1% above Concentricity to within 0.1 diameter All threads to BS3643 pt2 1981 class 6H-6g A 5 Issue Amendment Date 3 Do not scale drawing 3 4 1 2 Drg. No. Z A B C D NTS Reproduced or disclosed to a third party without written consent Reserve the Copyright of this drawing which is not to be copied Multitone Electronics plc 2000

TLA853 Radio Assembly Side 2 Sheet2 of 2 Sheet 2 of 2 0261-5023 P.McMullan 8.11.00 See Drawing. See Drawing. 8.11.00 0261-5023 c Title Drawn Checked Approved Approved Drg. No. Z Name Date Third angle projection Scale Dimensions in mm D C B Finish Material Tolerances Unless stated otherwise 0.4 to 1 decimal place 0.2 to 2 decimal places Angles 1 / 2 o 0.1 to 3 decimal places Holes + 0.05 up to 5 1% above Concentricity to within 0.1 diameter All threads to BS3643 pt2 1981 class 6H-6g A 5 Issue Amendment Date 3 Do not scale drawing 3 4 1 2 Drg. No. Z A B C D NTS Reproduced or disclosed to a third party without written consent Reserve the Copyright of this drawing which is not to be copied Multitone Electronics plc 2000

TLA853 Decoder Assembly Side 1 Sheet 1 of 3 Sheet1 of 3 0261-4987 P.McMullan 8.11.00 See Drawing. See Drawing. 8.11.00 0261-4987 Title Drawn Checked Approved Approved Drg. No. Z Name Date Third angle projection Scale Dimensions in mm D C B Finish Material Tolerances Unless stated otherwise 0.4 to 1 decimal place 0.2 to 2 decimal places Angles 1 / 2 o 0.1 to 3 decimal places Holes + 0.05 up to 5 1% above Concentricity to within 0.1 diameter All threads to BS3643 pt2 1981 class 6H-6g A 5 Issue Amendment Date 3 Do not scale drawing 3 4 1 2 Drg. No. Z A B C D NTS c Reproduced or disclosed to a third party without written consent Reserve the Copyright of this drawing which is not to be copied

TLA853 Decoder Assembly Side 2 Sheet2 of 3 Sheet 2 of 3 0261-4987 P.McMullan 8.11.00 See Drawing. See Drawing. 8.11.00 0261-4987 Title Drawn Checked Approved Approved Drg. No. Z Name Date Third angle projection Scale Dimensions in mm D C B Finish Material Tolerances Unless stated otherwise 0.4 to 1 decimal place 0.2 to 2 decimal places Angles 1 / 2 o 0.1 to 3 decimal places Holes + 0.05 up to 5 1% above Concentricity to within 0.1 diameter All threads to BS3643 pt2 1981 class 6H-6g A 5 Issue Amendment Date 3 Do not scale drawing 3 4 1 2 Drg. No. Z A B C D NTS c Reproduced or disclosed to a third party without written consent Reserve the Copyright of this drawing which is not to be copied

TLA853 Decoder Inner Layers Sheet 3 of 3 Sheet3 of 3 0261-4987 P.McMullan 8.11.00 See Drawing. See Drawing. 8.11.00 0261-4987 Title Drawn Checked Approved Approved Drg. No. Z Name Date Third angle projection Scale Dimensions in mm D C B Finish Material Tolerances Unless stated otherwise 0.4 to 1 decimal place 0.2 to 2 decimal places Angles 1 / 2 o 0.1 to 3 decimal places Holes + 0.05 up to 5 1% above Concentricity to within 0.1 diameter All threads to BS3643 pt2 1981 class 6H-6g A 5 Issue Amendment Date 3 Do not scale drawing 3 4 1 2 Drg. No. Z A B C D NTS c Reproduced or disclosed to a third party without written consent Reserve the Copyright of this drawing which is not to be copied

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Multitone Electronics PLC. Radio Paging Receiver TLA 853 To: FCC Part 15: 1998 Class B (Radiated Emissions Only) Test Report Serial No: RFI/EMCB1/RP41589ETF01A This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 27 November 2000Test Date: 8 November 2000 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 2 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 3 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) Table of Contents 1. Client Information.........................................................................................................4 2. Equipment Under Test (EUT)........................................................................................5 3. Test Specification, Methods & Procedures.................................................................9 4. Deviations From The Test Specification.....................................................................11 5. Operation Of The EUT During Testing........................................................................12 6. Summary Of Test Results............................................................................................13 7. Measurements, Examinations And Derived Results..................................................14 8. Measurement Uncertainty............................................................................................21 Appendix 1. Test Equipment Used...................................................................................22 Appendix 2. Measurement Methods................................................................................23 Appendix 3. Test Configuration Drawings......................................................................25 Appendix 4. Photographs of EUT.....................................................................................28 RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 4 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) 1. Client Information Company Name: Multitone Electronics PLC. Address: Multitone House Beggarwood Lane Kempshot Hill Basingstoke RG23 7LL Hampshire. Contact Name: Mr. Brian Merchant. RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 5 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name Multitone (414.775 MHz version) Model Name or Number TLA 583 Unique Type Identification Not stated by client Serial Number 0111369W:03 Country Of Manufacture U.K. F.C.C. ID Number E86TLA853 Date Of Receipt 08 November 2000 Brand Name Multitone (430.35 MHz version) Model Name or Number TLA 853 Unique Type Identification Not stated by client Serial Number 0111370W:03 Country Of Manufacture U.K. F.C.C. ID Number E86TLA853 Date Of Receipt 08 November 2000 Brand Name Multitone (464.6875 MHz version) Model Name or Number TLA 853 Unique Type Identification Not stated by client Serial Number 0111368W:03 Country Of Manufacture U.K. F.C.C. ID Number E86TLA853 Date Of Receipt 08 November 2000 RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 6 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) 2.2. Description Of EUT The EUT is an alpha-numeric Radio Paging Receiver, utilising the CCIR No1 radio- paging code format (POCSAG). The unit has tone-alert, vibrate and alpha-numeric display facilities. 2.3. Modifications Incorporated In EUT The EUT incorporates the following modifications: No physical changes have been made to the EUT build, but the operating software has been adjusted to a "test mode" which allows for "continuous calling" with a faster reset cycle time, in order to more easily assimilate worst case EMC conditions. RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB1/RP41589ETF01A EMC DepartmentPage 7 of 28 Issue Date: 27 November 2000 Test Of:Multitone Electronics PLC. Radio Paging Receiver TLA 853 To:FCC Part 15: 1998 Class B (Radiated Emissions Only) 2.4. Additional Information Related To Testing Power Supply Requirement: Internal battery supply of +1.5V nominal Intended Operating Environment: Domestic, Office & light industrial, Industrial, Hospital Weight: 62 g Dimensions: 75 x 50 x 16 mm Interface Ports: None Cycle Time: 3 secs RADIO FREQUENCY INVESTIGATION LTD.Test Report S.No. RFI/EMCB…

Text truncated - open the document above for the full version.
