FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 5 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Wireless Microphone T25871-00-02XF External photo Front view Wireless Microphone T25871-00-02XF External photo Top view FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 6 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Wireless Microphone T25871-00-02XF External photo Rear view Wireless Microphone T25871-00-02XF External photo Label

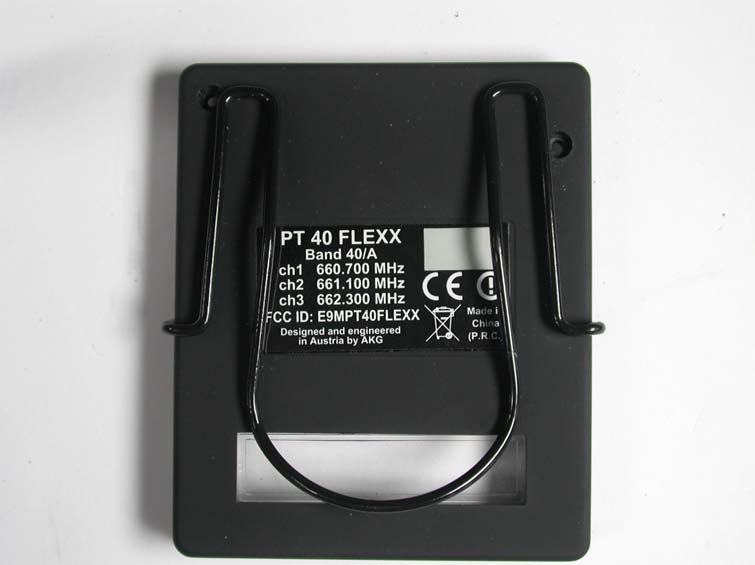

FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 6 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Wireless Microphone T25871-00-02XF External photo Rear view Wireless Microphone T25871-00-02XF External photo Label

FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 7 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Wireless Microphone T25871-00-02XF Internal photo Open view Wireless Microphone T25871-00-02XF Internal photo Front view of PCB Wireless Microphone FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 8 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 T25871-00-02XF Internal photo Rear view of PCB Wireless Microphone T25871-00-02XF Internal photo Rear view of PCB

FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 1 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 EMI -- T E S T R E P O R T Test Report No. : T25871-00-02XF May 18, 2005 ______________________________________________________________________________________________ Date of issue Type / Model Name : PT40 FLEXX Product Description : Wireless Microphone Applicant : AKG Acoustics GmbH Address : Lemböckgasse 21-25 A-1230 Vienna, Austria Manufacturer : Vtech Communications Ltd. Address : Vtech Science Park, Xia Ling Bei Management Zone, Liabou, Dongguan Guangdong 523411 Licence holder : AKG Acoustics, U.S. Address : 914 Airpark Center Dr., Nashville, TN 37217, U.S.A Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. TTI - P-G 089 / 94-11 DAT - P-011 / 91-02 FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 2 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 9 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 9 4 TEST ENVIRONMENT 10 4.1 ADDRESS OF THE TEST LABORATORY 10 4.2 ENVIRONMENTAL CONDITIONS 10 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 10 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 10 4.5 DISCOVERY OF WORST CASE MEASUREMENT CONDITIONS 12 5 TEST CONDITIONS AND RESULTS 13 5.1 CONDUCTED EMISSIONS 13 5.2 EFFECTIVE RADIATED POWER (CONDUCTED) 14 5.3 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 9 GHZ 16 5.4 MODULATION LIMITING DATA 20 5.5 OCCUPIED BANDWIDTH 23 5.6 FREQUENCY ERROR 38 5.7 KEEPING THE REQUIREMENTS OF THE EMISSION MASK 40 6 USED TEST EQUIPMENT AND ACCESSORIES 79 FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 3 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 1 TEST STANDARDS The tests were performed according to following standards: - Part 74 Experimental radio, auxiliary, special broadcast and other program distributional services - Part 74 Subpart H; §74.861 Technical requirements for low power auxiliary stations FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 4 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 2 SUMMARY GENERAL REMARKS: All spurious emissions not mentioned in this test report are from 25-1000MHz: < 40 dBμV/m above 1000MHz: < 30 dBμV/m FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records of MBPS Testing commenced on : April 27, 2005 Testing concluded on : May 04, 2005 Checked by: Tested by: _______________________________ _____________________________ Harald Buchwald Xaver Fischer Dipl. Ing.(FH) FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 5 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Wireless Microphone T25871-00-02XF External photo Front view Wireless Microphone T25871-00-02XF External photo Top view FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 6 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Wireless Microphone T25871-00-02XF External photo Rear view Wireless Microphone T25871-00-02XF External photo Label FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 7 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 Wireless Microphone T25871-00-02XF Internal photo Open view Wireless Microphone T25871-00-02XF Internal photo Front view of PCB Wireless Microphone FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 8 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 T25871-00-02XF Internal photo Rear view of PCB Wireless Microphone T25871-00-02XF Internal photo Rear view of PCB FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 9 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 3.2 Power supply system utilised Power supply voltage : 1.25 V / DC 3.3 Short description of the Equipment under Test (EuT) The PT40 FLEXX is a transmitter working in the UHF band (frequencies between 660.700 MHz to 751.550 MHz) where the frequency is changeable in one of three frequencies via a slider switch. Transmission frequencies are generated by fundamental-mode-crystal-oscillator where a harmonic of the oscillator is used for following signal preparation. The audio signal is fed through compressor and pre-emphasis stage before it gets to the varactor-diode of the oscillator. The generated RF signal is amplified and multiplied by three stages and filtered before it is coupled to the antenna (formed by the battery and the PCB). Number of tested samples: 3 Serial number: Prototype EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous transmitting mode without modulation - Continuous transmitting mode with normal modulation EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Spectrum analyzer Model : ESIB 40 - Model : - Model : - Model : - Model : - Model : FCC ID :E9MPT40…

Text truncated - open the document above for the full version.

FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 14 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.2 Effective radiated power (conducted) For test instruments and accessories used see section 6 Part CPC 2. 5.2.1 Description of the test location Test location: Area 4 5.2.2 Photo documentation of the test set-up 5.2.3 Description of Measurement Transmitter power is the power at the transmitter output terminals and delivered to the antenna, antenna transmission line, or any other impedance-matched, radio frequency load. No unusual transmitting antennas or antenna elevations shall be used as defined in §74.861(f) and the requirements in § 74.801 shall be fulfilled. FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 16 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.3 Radiated emissions (electric field) 30 MHz – 9 GHz For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS1 Anechoic Chamber A2 Test distance: 3m 5.3.2 Photo documentation of the test set-up FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 17 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 20 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.4 Modulation Limiting Data For test instruments and accessories used see section 6 Part MLD. 5.4.1 Description of the test location Test location: Area 4 5.4.2 Photo documentation of the test set-up 5.4.3 Description of Measurement The modulation limiting data were measured at the antenna terminals for EuT`s with external connector. Other EuT`s are tested via an adequate coupling device with antenna jack. The antenna jack was connected to the input of a communication test receiver. The internal batteries of the EuT have been removed also and an external DC power supply was used instead. The data have been taken by feeding the connectors used for connecting the microphone with different audio frequencies. These frequencies are generated in the communication test receiver. The level was varied in 10 dB steps from 20 dBμV to the maximum audio input level specified by the manufacturer. The frequency deviation at these levels has been recorded. PFD: Positive frequency deviation NFD: Negative frequency deviation FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 23 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.5 Occupied Bandwidth For test instruments and accessories used see section 6 Part BW. 5.5.1 Description of the test location Test location: Area 4 5.5.2 Photo documentation of the test set-up 5.5.3 Description of Measurement For the occupied bandwidth protocol the value of 50 % of the maximum frequency deviation was calculated. The level on the audio input was increased until this 50 % frequency deviation was achieved. To this level 16 dB have been added and a plot was made as described in the next chapter under section occupied bandwidth FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 38 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.6 Frequency error For test instruments and accessories used see section 6 Part FE. 5.6.1 Description of the test location Test location: Area 4 5.6.2 Photo documentation of the test set-up 5.6.3 Description of Measurement The frequency error was measured at the antenna terminals for EuT`s with external connector. Other EuT`s are tested via an adequate coupling device with antenna jack in a climatic test chamber. The antenna jack was connected to the input of a communication test receiver. The internal batteries have been removed also and a variable DC power supply was used instead. The measurements have been made with the EuT unmodulated. During the test the supply voltage and the temperature were varied and applied simultaneously. The lower supply voltage was given by the manufacturer. In case the equipment was switching off before, the switch off voltage was used instead. The frequency error is defined as the deviation of the transmitting frequency from the nominal frequency. FCC ID :E9MPT40FLEXX File No. T25871-00-02XF, page 40 of 79 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.3 5.7 Keeping the requirements of the emission mask For test instruments and accessories used see section 6 Part BW 5.7.1 Description of the test location Test location: Area 4 5.7.2 Photo documentation of the test set-up 5.7.3 Description of Measurement The requirements of the emission mask were measured with different input signals at the antenna terminals for EuT`s with external connector. Other EuT`s are tested via an adequate coupling device with antenna jack. The antenna jack was connected to the input of a spectrum analyzer. The spectrum analyzer was set up as following: - video and resolution bandwidth: 10 kHz - attenuation: automatic, low noise - center frequency: nominal transmit frequency - frequency span: 500 kHz The reference level was set to the maximum value of the unmodulated carrier. The internal batteries have been removed also and a variable DC power supply was used instead. The measurements have been made with a modulation frequency and voltage according to the specification of the manufacturer. The audio frequency was provided by a communication test receiver. During the test the supply voltage and the temperature were varied and applied simultaneously. The lower supply voltage was given by the manufacture…
