EF9MRS-2400G12UNSUSB Image Scanner

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 June 20, 2000 QTK2000-F022 731 Confirmation Number EA97970 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Class B Computing Device Peripheral FCC ID: EF9MRS-2400G12UNS / USB Scanner, Model MRS-2400G12UNS Gentlemen: Enclosed, please find Microtek International Inc’s application for equipment authorization dated June 20, 2000. This device is in compliance with Part 15, Subpart B of the FCC Rules. The subject device is a USB Color Image Scanner that supports color and gray scale resolutions up to 1200 by 1200 dpi. This scanner is marketed with such features as: (1) image data processor, type ASIC LM9832 that operates at 48 MHz; (2) USB output port and shielded 1.5m interface cable with one bonded ferrite core next to USB connector; and (3) Direct Plug-In AC Adapter with DC cable with one bonded ferrite core by Li Shin (LSE) type LSE9801B15. This scanner was system tested in accordance with ANSI C63.4-1992 to show compliance with CISPR Pub 22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting QTK2000-F022 Microtek USB Scanner, Model MRS-2400G12UNS FCC ID: EF9MRS-2400G12UNS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, use only the provided shielded interface cable with ferrite core when connecting to computer. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

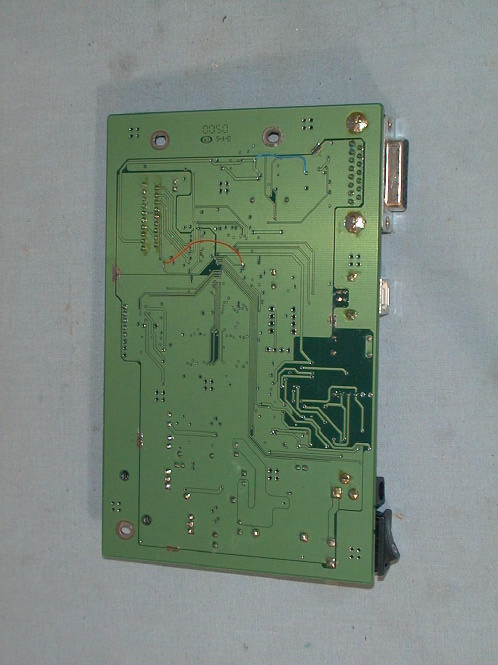

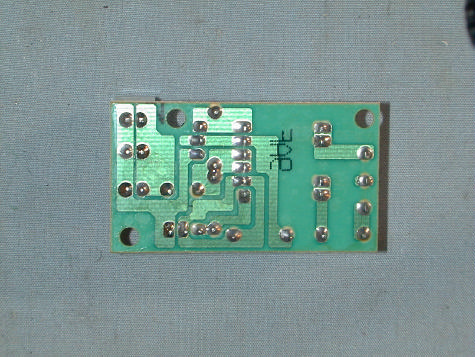

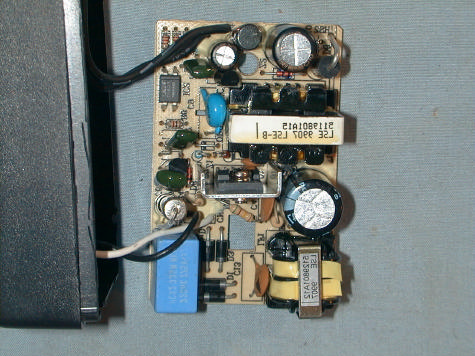

QuieTek Corporation Page: 1 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 6. Attachment 3 : EUT Detailed Photographs (1)EUT Photo (2)EUT Photo QuieTek Corporation Page: 2 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3)EUT Photo (4)EUT Photo QuieTek Corporation Page: 3 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5)EUT Photo (6)EUT Photo QuieTek Corporation Page: 4 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7)EUT Photo (8)EUT Photo QuieTek Corporation Page: 5 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9)EUT Photo (10)EUT Photo QuieTek Corporation Page: 6 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11)EUT Photo (12)EUT Photo QuieTek Corporation Page: 7 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (13)EUT Photo (14)EUT Photo QuieTek Corporation Page: 8 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (15)EUT Photo (16)EUT Photo QuieTek Corporation Page: 9 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (17)EUT Photo (18)EUT Photo QuieTek Corporation Page: 10 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (19)EUT Photo (20)EUT Photo QuieTek Corporation Page: 11 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (21)EUT Photo (22)EUT Photo QuieTek Corporation Page: 12 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (23)EUT Photo QuieTek Corporation Page: 13 of 13 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (24)EUT Photo

QuieTek Corporation Page: 1 of 15 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : MICROTEK INTERNATIONAL INC. Equipment Type : Image Scanner Model : MRS-2400G12UNS FCC ID : EF9MRS-2400G12UNS Report No. : 005H028FI QuieTek Corporation Page: 2 of 15 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : MICROTEK INTERNATIONAL INC. Address : No.6, Industry East Rd.3, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : Image Scanner Model : MRS-2400G12UNS Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 FCC ID : EF9MRS-1200G6U-2 Operation Voltage : 120VAC/60Hz Classification : Class B Test Result : Complied Test Date : May 23, 2000 Report No. : 005H028FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written appr oval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Lisa Chen Test Engineer: Sean Chang Approved: Kevin Wang QuieTek Corporation Page: 3 of 15 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.............................................................................................................4 1.1 EUT Description................................................................................................................................4 1.2 Tested System Details.........................................................................................................................5 1.3 EUT Configuration.............................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................8 1.5 Test performed...................................................................................................................................8 1.6 Test Facility......................................................................................................................................9 2. CONDUCTED EMISSION..............................................................................................................10 2.1 Test Equipment List..........................................................................................................................10 2.2 Test Setup.......................................................................................................................................10 2.3 Limits............................................................................................................................................10 2.4 Test Procedure.................................................................................................................................11 2.5 Test Results.....................................................................................................................................11 3. RADIATED EMISSION..................................................................................................................12 3.1 Test Equipment................................................................................................................................12 3.2 Test Setup.......................................................................................................................................12 3.3 Limits............................................................................................................................................13 3.4 Test Procedure.................................................................................................................................13 3.5 Test Results.....................................................................................................................................13 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING...................................................14 5. ATTACHMENT.............................................................................................................................15 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS REFERENCE LABORATORY OF LICENSE QuieTek Corporation Page: 4 of 15 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : MICROTEK INTERNATIONAL INC. Address : No.6, Industry East Rd.3, Science-Based Industrial Park, Hsin-Chu , Taiwan, R.O.C. Equipment Type : Image Scanner Model : MRS-2400G12UNS Operation Voltage : 120VAC/60Hz USB Cable : shielded, 1.5m, a ferrite core bonded Power Adapter : L.S.E, LSE9801B15(USA) in put:100~125V, Non-shielded, 1.8m, a ferrite core bonded, S/N:021978 Remark: 1.The EUT is a 1200×1200dpi Image Scanner . 2. QuieTek had verified the construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5 of 15 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 Image Scanner(EUT) Model Number : MRS-2400G12UNS Serial Number : N/A FCC ID : EF9MRS-2400G12UNS Manufacturer : MICROTEK USB Cable : Shielded, 1.5m, a …

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 2 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 2 FCC Report No.: 005H028FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1)
