EF9MRS-2500DLSCSI Scanner

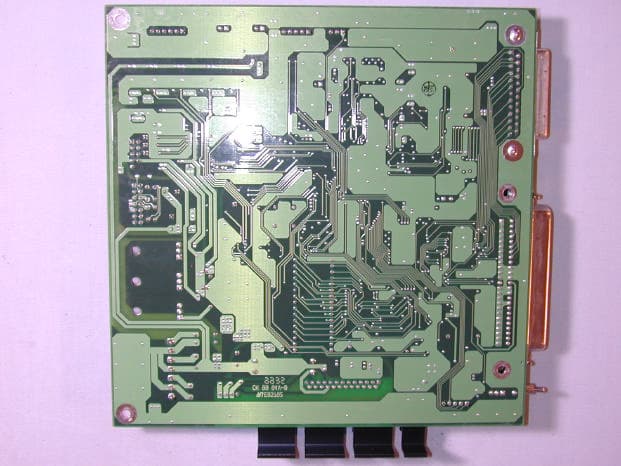

QuieTek Corporation Page: 1 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3: EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo (8) EUT Photo QuieTek Corporation Page: 5 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9) EUT Photo (10) EUT Photo QuieTek Corporation Page: 6 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11) EUT Photo (12) EUT Photo QuieTek Corporation Page: 7 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (13) EUT Photo (14) EUT Photo QuieTek Corporation Page: 8 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (15) EUT Photo QuieTek Corporation Page: 9 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (16) EUT Photo QuieTek Corporation Page: 10 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (17) EUT Photo (18) EUT Photo QuieTek Corporation Page: 11 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (19) EUT Photo (20) EUT Photo QuieTek Corporation Page: 12 of 12 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (21) EUT Photo

QuieTek Corporation Page: 1 of 15 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : MICROTEK INTERNATIONAL INC. Equipment Type : Image Scanner Model : MRS-2500DL FCC ID : EF9MRS-2500DL Report No. : 002H007FI QuieTek Corporation Page: 2 of 15 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : MICROTEK INTERNATIONAL INC. Address : No.6, Industry East Rd.3, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : Image Scanner Model : MRS-2500DL Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 FCC ID : EF9MRS-2500DL Operation Voltage : 120VAC/60Hz Classification : Class B Test Result : Complied Test Date : February 21, 2000 Report No. : 002H007FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Kim Hung Test Engineer: Jack Wu Approved: Kevin Wang QuieTek Corporation Page: 3 of 15 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................................8 1.5 Test performed....................................................................................................................................................8 1.6 Test Facility........................................................................................................................................................9 2. CONDUCTED EMISSION.............................................................................................................................10 2.1 Test Equipment List...........................................................................................................................................10 2.2 Test Setup.........................................................................................................................................................10 2.3 Limits...............................................................................................................................................................10 2.4 Test Procedure...................................................................................................................................................11 2.5 Test Results.......................................................................................................................................................11 3. RADIATED EMISSION.................................................................................................................................12 3.1 Test Equipment.................................................................................................................................................12 3.2 Test Setup.........................................................................................................................................................12 3.3 Limits...............................................................................................................................................................13 3.4 Test Procedure...................................................................................................................................................13 3.5 Test Results.......................................................................................................................................................13 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................14 5. ATTACHMENT..............................................................................................................................................15 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS REFERENCE LABORATORY OF LICENSE QuieTek Corporation Page: 4 of 15 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : MICROTEK INTERNATIONAL INC. Address : No.6, Industry East Rd.3, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : Image Scanner Model : MRS-2500DL FCC ID : EF9MRS-2500DL Maxinum Resolution : 2500dpi*2500dpi Data Cable : Shielded, 1.5m, a ferrite core bonded. Power Cord : Non-shielded, 1.5m Remark: 1. The EUT is a 2500dpi*2500dpi Image Scanner with two type of SCSI connectors.50 pin type was selected to connect PC, where another type was connected to a terminated dummy cable. 2. QuieTek had verified the construction and function in typical operation, then shown in this test report. QuieTek Corporation Page: 5…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 5 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission and immunity were performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission and immunity are listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1: Image Scanner (Link PC by SCSI port) The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 5 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Feb. 18, 2000 EUT : MRS-2500DL Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.183 0.01 0.10 44.02 44.13 64.34 0.219 0.02 0.10 41.86 41.98 62.86 0.252 0.03 0.10 38.41 38.54 61.71 1.916 0.14 0.13 35.26 35.53 56.00 *4.232 0.19 0.16 38.59 38.94 56.00 20.248 0.36 0.46 28.17 28.98 60.00 Average: 0.183 0.01 0.10 33.90 34.01 54.35 0.218 0.02 0.10 33.20 33.32 52.89 0.251 0.03 0.10 30.00 30.13 51.72 1.910 0.14 0.13 30.40 30.67 46.00 4.230 0.19 0.16 31.60 31.95 46.00 20.200 0.36 0.45 20.80 21.61 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 5 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Feb. 18, 2000 EUT : MRS-2500DL Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.151 0.00 0.10 44.92 45.02 65.93 0.216 0.02 0.10 41.64 41.76 62.96 0.252 0.03 0.10 37.49 37.62 61.71 1.771 0.14 0.12 32.48 32.74 56.00 *4.052 0.19 0.16 39.67 40.02 56.00 17.623 0.34 0.41 24.09 24.84 60.00 Average: 0.151 0.00 0.10 31.00 31.10 55.94 0.216 0.02 0.10 32.20 32.32 52.97 0.251 0.03 0.10 29.20 29.33 51.72 1.770 0.14 0.12 27.10 27.36 46.00 4.050 0.19 0.16 32.60 32.95 46.00 17.600 0.34 0.40 15.50 16.24 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 5 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : Feb. 18, 2000 EUT : MRS-2500DL Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 31.990 1.17 15.89 0.00 7.25 24.31 5.69 30.00 395 76 54.000 1.38 6.64 0.00 4.29 12.31 17.69 30.00 395 76 66.950 1.50 6.16 0.00 7.32 14.99 15.01 30.00 395 76 75.320 1.59 7.42 0.00 10.39 19.40 10.60 30.00 395 76 83.250 1.66 8.60 0.00 7.65 17.92 12.08 30.00 395 76 135.000 2.16 11.49 0.00 10.70 24.35 5.65 30.00 395 76 146.250 2.27 10.96 0.00 9.80 23.03 6.97 30.00 395 76 *153.750 2.35 10.98 0.00 13.56 26.89 3.11 30.00 395 76 162.500 2.43 9.69 0.00 11.59 23.71 6.29 30.00 395 76 172.500 2.52 9.43 0.00 9.77 21.72 8.28 30.00 395 76 186.250 2.65 8.98 0.00 10.89 22.52 7.48 30.00 395 76 196.250 2.76 9.10 0.00 15.01 26.87 3.13 30.00 395 76 205.000 2.83 9.38 0.00 10.82 23.03 6.97 30.00 395 76 243.755 3.20 11.82 0.00 6.12 21.14 15.86 37.00 395 76 Remarks: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. “ * ”, means this data is the worst emission level. 3. Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 5 of 5 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : Feb. 18, 2000 EUT : MRS-2500DL Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Vertical MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 39.998 1.24 12.84 0.00 9.16 23.24 6.76 30.00 99 78 43.745 1.28 10.67 0.00 6.62 18.57 11.43 30.00 99 78 53.748 1.37 6.74 0.00 8.69 16.81 13.19 30.00 99 78 60.000 1.44 6.00 0.00 13.26 20.70 9.30 30.00 99 78 66.680 1.50 5.46 0.00 7.83 14.79 15.21 30.00 99 78 74.740 1.58 6.83 0.00 14.06 22.47 7.53 30.00 99 78 84.600 1.67 8.26 0.00 12.75 22.68 7.32 30.00 99 78 136.247 2.18 11.55 0.00 12.13 25.86 4.14 30.00 99 78 *147.497 2.28 10.68 0.00 13.68 26.64 3.36 30.00 99 78 160.000 2.40 10.28 0.00 13.22 25.90 4.10 30.00 99 78 172.497 2.52 9.16 0.00 12.62 24.31 5.69 30.00 99 78 Remarks: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. “ * ”, means this data is the worst emission level. 3. Emission Level = Reading Level + Antenna Factor + Cable loss.

QuieTek Corporation Page: 1 of 2 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 2 FCC Report No.: 002H007FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1)
