EUGRC-30Measurement Insturment Remote Control

INSTRUCTION MANUAL Remote Controller for RL-VH3 Series RC-30 Foreword Thank you for purchasing the TOPCON Remote controller RC-30. For the best performance of the instruments, please read these instruc- tions carefully and keep them in a convenient location for future refer- ence. Handling Precautions Vibration and Impact Protection when transporting the instrument, provide protection to minimize risk of severe vibration or impact. Display for Safe Use In order to encourage the safe use of products and prevent any danger to the operator and others or damage to properties, important warnings are put on the products and inserted in the instruction manuals. We suggest that everyone understand the meaning of the following dis- plays and icons before reading the “Safety Cautions” and text. 1)Injury refers to hurt, burn, electric shock, etc. 2)Physical damage refers to extensive damage to buildings or equipment and furniture. Safety Cautions Specifications Nomenclature Key Functions How to Set Communication Channel The same communication channel must be assigned to both RC-30 and the RL- VH3 series. Remove the rubber cap and turn the rotary switch to set a channel. How Replace the RC-30 Batteries 1Remove the battery cover from the back of the RC-30 by pressing on the cover and sliding it in the direction of the arrow. 2Remove the old batteries and replace with new three “AA” cell alkaline batteries making sure each is placed in the proper direction as indicated. 3Replace the battery cover. You will hear a click when it snaps in place. DisplayMeaning WARNING Ignoring or disregard of this display may lead to death or serious injury. CAUTION Ignoring or disregard of this display may lead to personal injury or physical dam- age to the instrument. WARNING • There is a risk of fire, electric shock or physical harm if you attempt to disassemble or repair the instrument yourself. This is only to be carried out by TOPCON or an authorized dealer, only! • Risk of fire or electric shock. Do not use a wet battery or charger. • May ignite explosively. Never use an instrument near flammable gas, liquid matter, and do not use in a coal mine. • Battery can cause explosion or injury. Do not dispose in fire or heat. • The short circuit of a battery can cause a fire. Do not short circuit battery when storing it. CAUTION Do not allow skin or clothing to come into contact with acid from the batteries, if this does occur then wash off with copious amounts of water and seek medical advice. Power source Three “AA” cell batteries DC4.5V Operating time Alkaline manganese dry batteries Approx. 40 hours ( +20°C) Operating temperature -20°C to +50°C (-4°F to +122°F) Dimensions 157(L) x 64(W) x 34(H) mm (6.2 (L) x2.5 (W) x 1.3(H) ) in Weight 0.24kg (0.05 lbs) Transmission lamp Sends operation to the instrument. If the channel is not equal to the channel set at RL-VH3 side, the red lamp will light. Battery warning lamp for RC-30 Battery warning for RC-30. Replace the battery to new ones. Stop beam control Sets Stop beam mode and moves the laser. Speed control The rotation speed of the rotary head can be changed. Alignment control Setting slope for horizontal rotation. Alignment of the line for vertical rotation. X/Y axis lamp An axis selected turns on. Power switch for RL-VH3 series On/Off of the RL-VH3series by pressing this key for more than three seconds. (Sleep mode on/off) Mode switch con- trol Laser mode is switched alternately as follows. Scan mode / Laser sensor mode / Laser pointing mode. If this key is pressed in other modes except Scan, Laser sensor and Laser pointing modes, the mode will change to scan mode. If this key is pressed in manual focus mode, manual focus will be cancelled. Manual focus con- trol Laser beam can be focused manually. (Only for RL-VH3A/G) X/Y axis selection Sets slope mode by pressing for more than three seconds. Select X or Y axis for manual grading. To cancel the slope mode press this key for more than three seconds. Note • Replace all 3 batteries with new ones. • Do not mix old batteries and new ones. Battery warning lamp for RC-30 Transmission lamp Power switch for RL-VH3 series Mode switch control (RL-VH3G does not have Laser sensor mode.) Slope mode / X/Y axis selection X/Y axis lamp Alignment control Speed control Stop beam control Manual focus control ( Only for RL-VH3A/G) Rotary switch (with rubber cap) Battery cover (1a) RC-30 9910

2.0PRODUCT LABELING FIGURE 1: FCC ID AND DOC LABEL Alinco, Inc. Topcon RC-30 FCC ID: EUGRC-30 FIGURE 2: LOCATION OF LABELS ON EUT

2.0PRODUCT LABELING FIGURE 1: FCC ID AND DOC LABEL Alinco, Inc. Topcon RC-30 FCC ID: EUGRC-30 FIGURE 2: LOCATION OF LABELS ON EUT

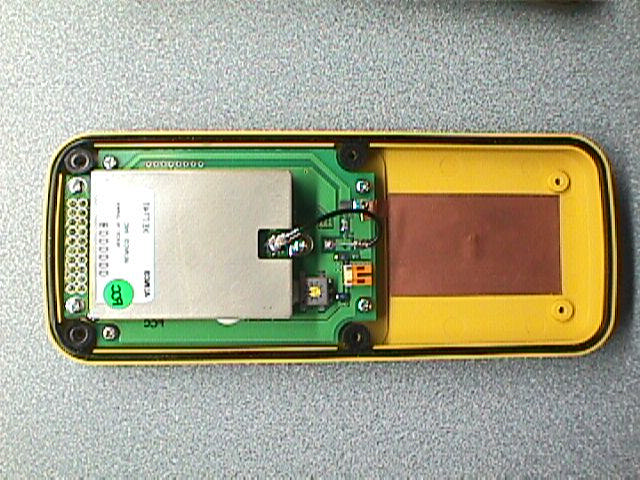

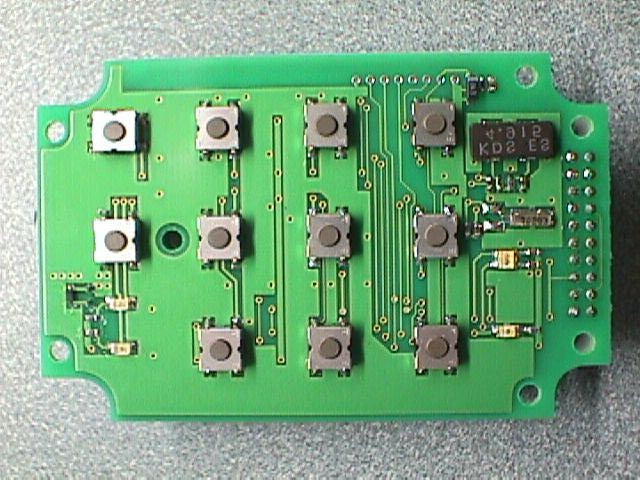

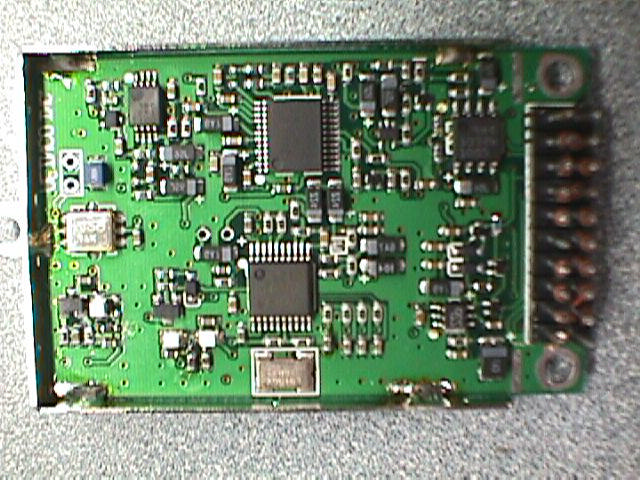

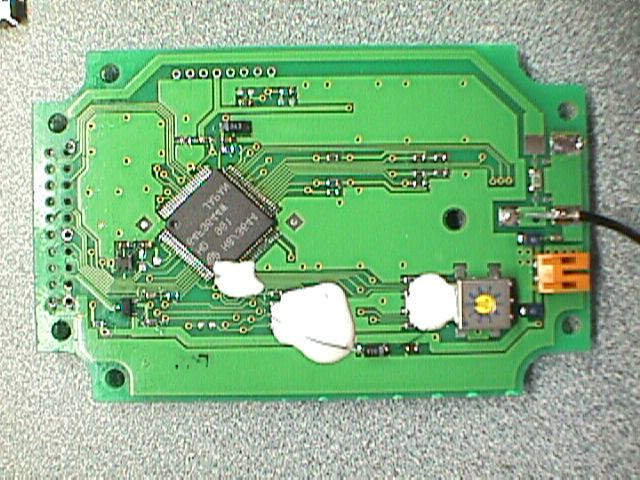

6.0PHOTOS OF TESTED EUT FRONT VIEW OF EUT REAR VIEW OF EUT BOTTOM VIEW OF KEYPAD PCB BOTTOM VIEW OF RF PCB INSIDE VIEW OF FRONT COVER INSIDE VIEW OF KEYPAD AND RF ASSEMBLY TOP COVER INSIDE VIEW OF KEYPAD AND RF PCB ASSEMBLY INSIDE VIEW OF REAR COVER KEYPAD AND RF PCB ASSEMBLY REAR VIEW OF BATTERY COMPARTMENT TOP VIEW OF KEYPAD PCB TOP VIEW OF RF PCB

EMC COMPLIANCE ENGINEERING AND TESTING Accredited 360 Herndon Parkway, Suite 1400 Herndon,VA 20170 703 689-0368 FAX 703 689-2056  APPLICATION FOR FCC CLASS B CERTIFICATION WIRELESS REMOTE CONTROLLER Alinco, Inc. 438 Amapola Ave. Suite 130 Torrance, CA 90501 MODEL: TOPCON RC-30 FCC ID: EUGRC-30 January 26, 2000 REPORT PREPARED BY: EMI Technician:Jon Wilson Administrative Writer:Melissa Fleming Rhein Tech Laboratories, Inc. Document Number: 990510 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. This report concerns (check one):Original Grant: X Class II Change: Equipment Type: Remote Controller Deferred grant requested per 47 CFR 0.457 (d) (1) (ii)?Yes:No: X If yes, defer until: Date Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision.. Client:Alinco, Inc. EUT:TOPCON RC-30 FCC ID:EUGRC-30 Work Order Number:990510 Page 2 of 28 TABLE OF CONTENTS 1.0GENERAL INFORMATION..................................................................................................................3 1.1MODIFICATIONS......................................................................................................................................3 1.2PRODUCT DESCRIPTION.....................................................................ERROR! BOOKMARK NOT DEFINED. 1.3RELATED SUBMITTAL(S)/GRANT(S).........................................................................................................5 1.4TEST SYSTEM DETAILS...........................................................................................................................5 1.5TEST METHODOLOGY.............................................................................................................................5 1.6TEST FACILITY.......................................................................................................................................5 2.0PRODUCT LABELING............................................................ERROR! BOOKMARK NOT DEFINED. 3.0SYSTEM TEST CONFIGURATION......................................................................................................7 3.1JUSTIFICATION........................................................................................................................................7 3.2EUT EXERCISE SOFTWARE.....................................................................................................................7 3.3CONFORMANCE STATEMENT...................................................................................................................8 4.0RADIATED MEASUREMENT PHOTOS................................ERROR! BOOKMARK NOT DEFINED. 5.0RADIATED EMISSION DATA............................................................................................................11 5.1FIELD STRENGTH CALCULATION...........................................................................................................14 6.0PHOTOS OF TESTED EUT.....................................................ERROR! BOOKMARK NOT DEFINED. APPENDIX LISTING APPENDIX A: SCHEMATICS/BLOCK DIAGRAM OF TOPCON RC-30..........................................................9 APPENDIX B: EMISSIONS EQUIPMENT LIST..............................................................................................16 APPENDIX C: RADIATED TEST METHODOLOGY.......................................................................................17 APPENDIX D: USER’S MANUAL...................................................................................................................18 FIGURE INDEX FIGURE 1: FCC ID AND DOC LABEL..............................................................ERROR! BOOKMARK NOT DEFINED. FIGURE 2: LOCATION OF LABELS ON EUT......................................................ERROR! BOOKMARK NOT DEFINED. TABLE INDEX TABLE 5: RADIATED EMISSIONS: (135 MHZ)............................................................................................11 TABLE 8: EMISSIONS TEST EQUIPMENT............................................................................................................16 Client:Alinco, Inc. EUT:TOPCON RC-30 FCC ID:EUGRC-30 Work Order Number:990510 Page 3 of 28 1.0GENERAL INFORMATION The following Application for FCC Type Certification of a Wireless Remote Controller is prepared on behalf of Alinco, Inc. in accordance with Part 2, and Part 15, Subparts A and B of the Federal Communications Commissions rules and regulations. The Equipment Under Test (EUT) was the TOPCON RC-30, FCC ID: EUGRC-30. The test results reported in this document relate only to the item that was tested. All measurements contained in this Application were conducted in accordance with ANSI C63.4 Methods of Measurement of Radio Noise Emissions, 1992. The instrumentation utilized for the measurements conforms to the ANSI C63.4 standard for EMI and Field Strength Instrumentation. Some accessories are used to increase sensitivity and prevent overloading of the measuring instrument. These are explained in the appendix of this report. Calibration checks are performed regularly on the instruments, and all accessories including the high pass filter, preamplifier and cables. All radiated emissions measurement were performed manually at Rhein Tech, Incorporated. The radiated emissions measurements required by the rules were performed on the three meter, open field, test range maintained by Rhein Tech Laboratories, Inc., 360 Herndon Parkway, Suite 1400, Herndon, Virginia 20170. Complete description and site attenuation measurement data have been placed on file with the Federal Communications Commission. The power line conducted emission measurements …
