F2QLYNXR7AU27MHz OPTICAL MOUSE

Lynx-R7 A 27MHz 5-Button Optical Mouse User Guide Thank you for purchasing Lynx-R7A 27MHz 5-Button Optical Mouse. Please read this user guide to help you using this product easily. If you have any questions, please contact us at the website www.ione.com.tw, www.ione-usa.com or www.ione-europe.com. Introduction Lynx-R7A is designed for short distance wireless operation of personal computer. Plug in Lynx-R7A’s receiver to your USB port and you can use this wireless mouse without cable cluttering on your desk. The wireless operational range can reach up to 1.5 meters in open space depending on the radio interference in the environment. Lynx-R7A is equipped with high performance CMOS process optical sensor and performs high speed motion detection up to 37 inches per second. The embedded 800dpi optical resolution sensor can accurately estimate motions over a wide range of surfaces. For using in the USB environment of Win 98SE/ME/2000/XP/XP MCE/VISTA Lynx-R7A does not require any driver. Just plug and play. You can enjoy this convenient device. Feature ． Fashion and modern design ． 5-button optical mouse with scroll wheel ． 27MHz RF technology with 256 IDs ． 800 dpi optical resolution with motion detection up to 37 inches/sec ． Wireless operational range can reach up to 1.5 meters in open space ． Low power consumption with smart power saving function ． Battery low indicator Package Contents: 1. 27MHz 5-Button Optical Mouse 2. Dongle Receiver 3. 2 AA Batteries 4. User's Guide System Requirements: 1. IBM or Compatible PC System 2. Win 98SE/ME/2000/XP/XP MCE/VISTA Hardware Installation Step1: Insert 2 AA batteries into the battery compartment with correct polarity. Step2: Please refer to the +, - diagram inside the battery compartment. Step3: Turn on your computer and plug the dongle receiver into a USB port of your computer. Step4: Your computer will detect this USB device automatically. Software Setup: The mouse does NOT require a driver. However, we offer software to configure the scroll wheel button and provide self-defined 12 shortcuts for various applications and files. This Magic-Pop-Up function (Scroll Wheel Button software) can be downloaded from our website www.ione.com.tw or www.ione-europe.com. Download from www.ione.com.tw: Step1: Go to “Support” section and choose the item "3D mouse driver" (Magic-Pop-Up) Step2: Choose the version that suits with your language requirement. Step3: Double-click the icon or execute the .exe file to install the software. Step4: Select the interface. Step5: Follow the steps to complete the installation. Download from www.ione-europe.com: Step1: Go to “Download – Driver / Manuals” Step2: Download the version that suits with your operating system Step3: Extract the .zip-file. Step4: Navigate to the Folder to which you extracted the zip-file and double-click the icon or execute the .exe file to install the software. Step5: Select the interface. Step6: Follow the steps to complete the installation. Note: If you still have problems with this program, please read the “help” file or contact us at [email protected] or [email protected] Key definition 1. Left Click  2. Right Click 3. Scroll Wheel Button 4. Previous Web Page 5. Next Web Page 6. Battery Low Indicator ID Setting In some cases, it may be necessary to synchronize or reset the connection of mouse with the receiver after removing and inserting the batteries. Please follow the process below for the ID setting. Step 1: Plug the dongle receiver into your computer. For the best performance, please plug the dongle receiver into the front USB port of your computer, or use the USB extension cable to place the dongle receiver 20cm away from monitor, speaker, power supply, USB hub and other RF interference sources. Step 2: Press the connect button on the dongle receiver. The LED will start to blink. Step 3: Press the connect button on the bottom of the Wireless Mouse within 8 seconds after Step 2. Step 4: The LED on the dongle receiver will blink faster for few seconds. This means that ID setting is completed. Note: If the Wireless Mouse does not work properly, please go back to step 2. Reminder: For optimal performance, please plug the dongle receiver into the front USB port of your computer, or use the USB extension cable to place the dongle receiver 20cm away from monitor, speaker, power supply, USB hub and other RF interference sources. Note: You can turn off the mouse manually if you don’t use this mouse for long period of time. To turn the mouse off, please press the connect button of the mouse for 10 seconds. To turn the mouse on, just press the connect button of the mouse. Now, Enjoy and Have a Fun!!! TROUBLE SHOOTING GUIDE Symptom Possible Reason Remedy The LED of dongle receiver does not light or blink when the mouse is moving. The ID is lost or the distance is beyond RF transmitting range Follow the above ID setting procedure, or move the mouse closer to the dongle receiver until the LED blinks, when you move the mouse. The mouse cursor on the screen does not move smoothly Radio frequency is interfered or the distance is beyond RF transmitting range Move the mouse closer to the dongle receiver until the mouse cursor move smoothly. After ID synchronization procedure several times, the device still can't work. Device can't connect to the receiver and ID setting is messed up. Press and hold the connect button on the receiver for 10 seconds. Then removed the batteries from the mouse and re-installed them. The red LED of battery low indicator is lit. Battery power is low Change new batteries. Further questions. Please send an email to [email protected], [email protected] or [email protected] WA R N I N G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition : (1) this device may not cause Harmful interference, and (2) this device must accept any interference Received, including interference that may cause undesired operation. FCC Statement Thi…

Text truncated - open the document above for the full version.

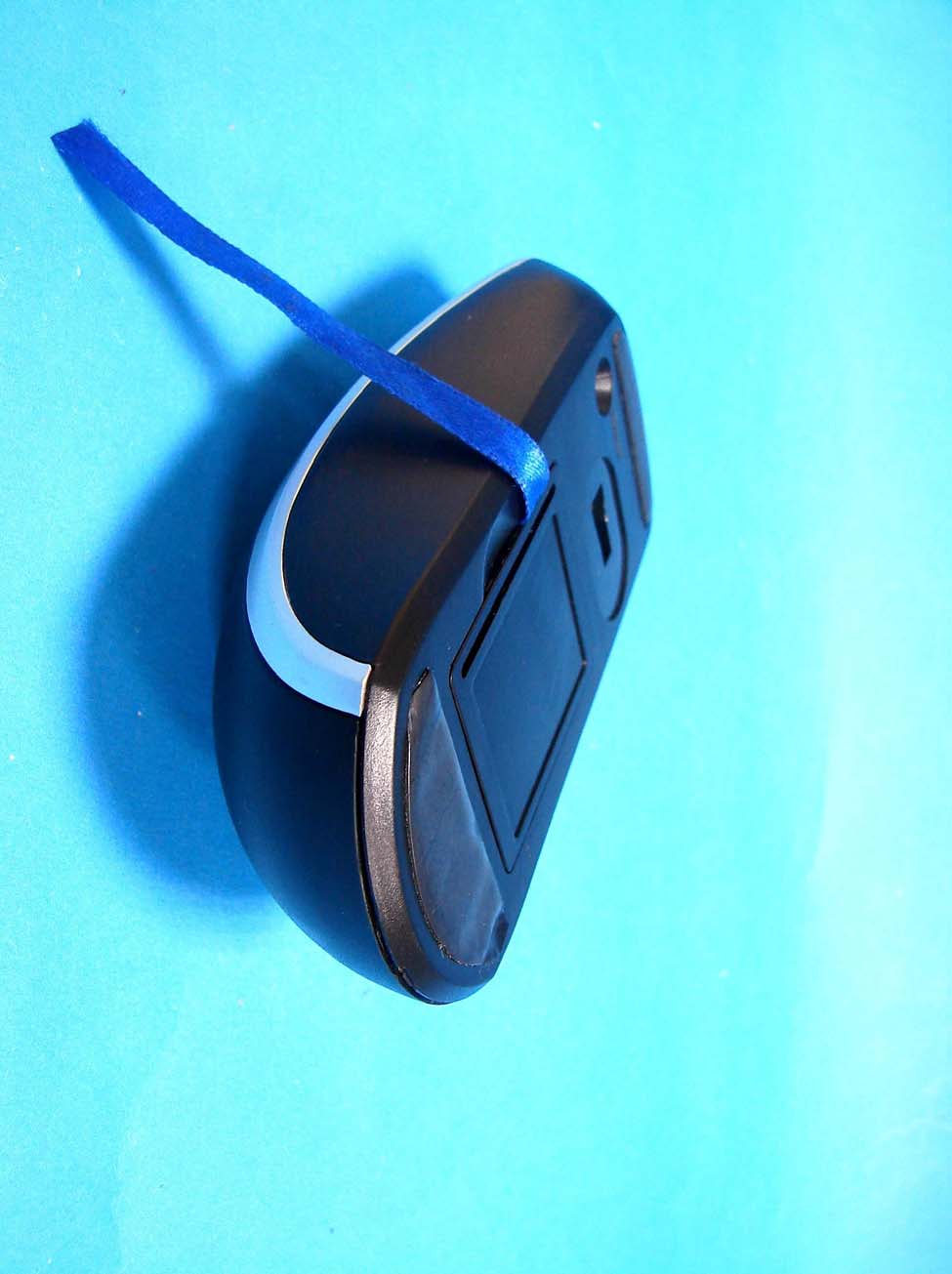

External Photos of EUT -------------------------------------------------------------- 1/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT -------------------------------------------------------------- 2/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------ 1/1 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Format: LABEL Size: 15 x 15 mm LABEL Position: The device complies with Part 15 of the FCC Rules. See instruction FCC ID: F2QLYNXR7AU Model No.: Lynx-R7A

Internal Photos of EUT --------------------------------------------------------------- 3/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 4/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 5/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 6/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 7/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 8/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT --------------------------------------------------------------- 9/ 9 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Report ------------------------------------------------------------------------------- 1/14 Report No.: I2615060964, FCC Part 15.227 Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of 27MHz Optical Mouse Applicant : Itron Technology Inc. EUT : 27MHz Optical Mouse Model No. : Lynx-R7A FCC ID : F2QLYNXR7AU Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan Test Report ------------------------------------------------------------------------------- 2/14 Report No.: I2615060964, FCC Part 15.227 Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All tests were conducted by Training Research Co., Ltd., No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.227. Applicant : Itron Technology Inc. Applicant address : 9F, No. 75, Sec 1, Hsin Tai Wu Road, Hsichih, Taipei Hsien, Taiwan Product Name : 27MHz Optical Mouse Model : Lynx-R7A Report No. : I2615060964 Test Date : March 28, 2007 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ------------------------------------------------------------------------------- 3/14 Report No.: I2615060964, FCC Part 15.227 Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents CHAPTER 1 GENERAL........................................................................................... 4 1.1 INTRODUCTION...........................................................................................4 1.2 DESCRIPTION OF EUT.................................................................................4 1.3 TEST METHOD.............................................................................................4 1.4 DESCRIPTION OF SUPPORT EQUIPMENT......................................................4 1.5 TEST PROCEDURE.......................................................................................5 1.6 LOCATION OF THE TEST SITE......................................................................5 1.7 GENERAL TEST CONDITION........................................................................5 CHAPTER 2 CONDUCTED EMISSIONS MEASUREMENTS....................................... 6 2.1 TEST CONDITION & SETUP.........................................................................6 2.2 LIST OF TEST INSTRUMENTS.......................................................................6 2.3 TEST RESULT OF CONDUCTED EMISSIONS..................................................6 CHAPTER 3 RADIATED EMISSION MEASUREMENTS............................................ 7 3.1 HARMONIC AND SPURIOUS EMISSION.........................................................7 3.1.1 Test Condition and Setup...............................................................7 3.1.2 List of Test Instruments .................................................................8 3.1.3 Configuration of System Under Test .............................................9 3.1.4 Test Result of Harmonic and Spurious Emission ........................10 3.2 PEAK POWER MEASUREMENT OF FUNDAMENTAL FREQUENCY................11 3.2.1 Test Condition and Setup.............................................................11 3.2.2 List of Test Instruments ...............................................................11 3.2.3 Configuration of System Under Test ...........................................12 3.2.4 Test Result of Fundamental Emission .........................................13 3.3 TEST RESULT OF THE BANDEDGE.............................................................14 Test Report ------------------------------------------------------------------------------- 4/14 Report No.: I2615060964, FCC Part 15.227 Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 Chapter 1 General 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a RF mouse certification in accordance with Part 2 Subpart J and Part 15 Subpart C of the Commission's Rules and Regulations. 1.2 Description of EUT FCC ID : F2QLYNXR7AU Product Name : 27MHz Optical Mouse Model : Lynx-R7A Frequency Range : 26.96MHz ~ 27.28MHz Operating Frequency : 27.045MHz Modulation Skill : FSK Power Type : Powered by 1.5V batteries (SIZE AA*2) 1.3 Test method All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4 – 2003. Pretest was found that the emission of operating mode is worse than standby mode. So, the final test is made at the operating mode (transmitted). The EUT set in 27.045MHz continuously transmitting mode, which transmitted the maximum emission. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) 1.4 Description of Support Equipment No support equipment: The EUT itself forms a system. No support equipment is requited for its normal operation Test Report -----…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/1 Applicant: Itron Technology Inc., Ltd. FCC ID: F2QLYNXR7AU Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional test) Front View of the Test Configuration Rear View of the Test Configuration
