F2QRFLIBRA-S10HUWireless Presenter Mouse

Please DO NOT direct the laser beam at anyone’s eye. ENGLISH I.Feature • 2.4GHz RF wireless technology • Omni-directional cursor control • LED indicator for low battery alert • Built-in Laser pointer • Low power consumption and smart power saving function II.Package Contents 1. Presenter Mouse 2. User Guide 3. Accessory Package (Carrying pouch & strap) 4. 2 X AAA batteries III.System requirements IBM or Compatible PC System Microsoft Windows 2000/XP/Vista/7 IV.Hardware Installation Step1: Insert 2 AAA batteries into the battery compartment with correct polarity. Step2: Please refer to the +, - diagram inside the battery compartment. ENGLISH Step3: Turn on your computer and plug the dongle receiver into a USB port of your computer. Step4: Your computer will detect this USB device automatically. Key Definition: 1. Omni-directional hall mouse 2. Enter/Escape powerpoint mode 3. Mouse left button 4. Mouse right button 5. Laser pointer 6. Page up 7. Page down 8. Task switch *(Flip) 9. Power on/off V.ID Setting The product has been pre-set in ID for radio frequency and dongle receiver are already paired. It is not necessary to do the ID setting when you use Libra-S10H for the first time. However, in case you need to re-set the connection ID, please follow the process below for setting. When Battery Low LED indicator signals the battery level is low, please replace the battery as soon as possible to ensure proper functioning. Now, Enjoy and Have Fun!!! Troubleshooting Should you encounter any problem or question during the usage of this device, please feel free to send an email to [email protected] or [email protected]. ENGLISH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the device. User's Guide Libra-S10H Wireless Presenter Mouse ENGLISH Libra-S10H Wireless Presenter Mouse User Guide Thank you for purchasing Libra-S10H, another great addition to our IONE innovative creations. Please read this user guide for information on using this product. If you have any questions, please visit us at the following website www.ione.com.tw , www.ione-usa.com or www.ione-europe.com. Safety Notice ． This product complies with IEC 60825-1, class Il laser product. ． Your product complies with FCC and CE rules. ． Avoid Direct Exposure to laser beam. ． This product has no serviceable parts. Use of controls or adjustments of procedures other than the user guide may result in danger. 1 2 34 5 67 8 9 1234

No. 65, Ku Dai Keng St., Hsichih, Taipei 221, R.O. C. Tel: 886-2-2646-2550 FAX: 886-2-26464641 No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan, R.O.C. Tel: 886-3-407-1718 FAX:886-3-407-1738 Request for Confidentiality Date: Nov. 23th, 2010 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 FCC ID: F2QRFLIBRA-S10HU Gentlemen: Please be advised that the following information is to be held confidential on behalf of Ione Technology Inc.  Block Diagram  Schematics  Operation Description The application contains technical information which Ione Technology Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, --------------------------------------- Jim Chu/ Director International Standards Laboratory

lone Technology Inc. 8F-I, No. 75, Sec. I, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R. O. C. TEL: 8862 2698-2566 FAX: 88622698-3133 Letter of Agency Date: Nov. 23th, 2010 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 FCC [0: F2QRFLIBRA-SIOHU To Whom It May Concern: Please be advised that lone Technology Inc. authorizes Mr. Jim Chu of International Standards Laboratory (ISL) to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Cettification Body, Inc. (ATCB). Thank you for your attention to this matter. ~fO ~J:<r ~(ilj4) Ming Wang / Electronic E;;gineer Supervisor lone Technology Inc.

--I----f-+---,e-+-­ lone Technology Inc. 8F-I, No. 75, Sec. I, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R. O. C. TEL: 886 2 2698-2566 FAX: 886 2 2698-3133 Date: Nov. 23th, 2010 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 This device complies with Part IS of the FCC Rules. The test result has been shown in the ISL test report with number ISL-IOLE359FB. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: Wireless Presenter Mouse Model: LIBRA-SIOH Name of Responsible Party: lone Technology Inc. Address of Responsible Paliy: 8F-I, No. 75, Sec. I, Hsin Tai Wu Rd., Hsichih, Taipei Hsien,Taiwan, R. O. C. Phone No.: 886 2 2698-2566 Fax: 88622698-3133 We, lone Technology Inc., hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commissions requirements. 'W¥/0; Engineer Supervisor

International Standards Laboratory Report Number: ISL-10LR045P -1- EUT-1. EUT-2. International Standards Laboratory Report Number: ISL-10LR045P -2- EUT-3. EUT-4.

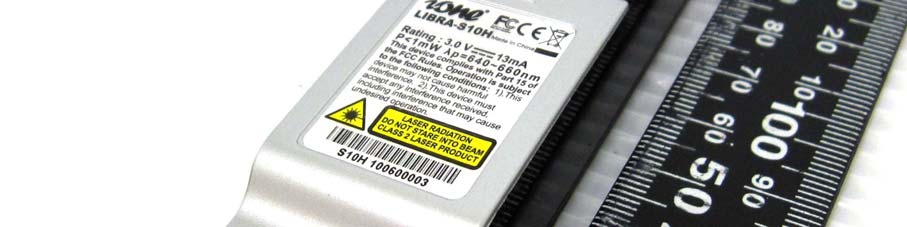

Label Location Label Drawing FCC ID: F2QRFLIBRA-S10HU

International Standards Laboratory Report Number: ISL-10LR045P-FC -3- EUT-5. EUT-6. International Standards Laboratory Report Number: ISL-10LR045P-FC -4- EUT-7. EUT-8. International Standards Laboratory Report Number: ISL-10LR045P-FC -5- EUT-9. EUT-10. International Standards Laboratory Report Number: ISL-10LR045P-FC -6- EUT-11. EUT-12. International Standards Laboratory Report Number: ISL-10LR045P-FC -7- EUT-13.

Report Number: ISL-10LR014V Issue Date: 2010/05/12 ISL-T10-R5-14 TEST REPORT of FCC Part 15 Subpart C Product : Wireless Presenter Mouse Model: LIBRA-S10H Brand: ione Applicant: Ione Technology Inc. Address: 8F-1, No. 75, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R. O. C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; TAF: 0997; IC: IC4067B-1; VCCI: R-1435, C-1440, T-1676, G-17, R-2598, C-2845, T-1464, G-16, G-211, NEMKO: ELA 113B *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-10LR045FC Issue Date : 2010/11/22 This report totally contains 41 pages including this cover page and contents page. Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -i- FCC ID: F2QRFLIBRA-S10HU International Standards Laboratory Report Number: ISL-10LR045FC Contents of Report 1. General ......................................................................................................... 1 1.1 Certification of Accuracy of Test Data ........................................................................ 1 1.2 Test Results Summary .................................................................................................. 2 1.3 Test Frequencies of the wireless module.................................................................... 2 1.4 Test Conditions.............................................................................................................2 1.5 Description of Controlling transmitter continuously.................................................... 2 2. Description of Equipment Under Test (EUT) .............................................. 3 3. TEST RESULTS .......................................................................................... 4 3.1 Powerline Conducted Emissions .................................................................................. 4 3.1.1 EUT Configuration ......................................................................................................................... 4 3.1.2 Test Procedure ................................................................................................................................ 4 3.1.3 EMI Receiver/Spectrum Analyzer Configuration (for the frequencies tested)............................... 4 3.2 Radiated Emission Measurement ................................................................................. 5 3.2.1 EUT Configuration ......................................................................................................................... 5 3.2.2 Test Procedure ................................................................................................................................ 5 3.2.3 EMI Receiver/Spectrum Analyzer Configuration (for the frequencies tested)............................... 5 3.2.4 Test Data:........................................................................................................................................ 7 3.3 Band Edge & Fundamental Emission Measurement .................................................. 21 3.3.1 Test Procedure .............................................................................................................................. 21 3.3.2 Test Setup ..................................................................................................................................... 21 3.3.3 Test Data:...................................................................................................................................... 22 3.4 Band Edge Restricted Bands & Fundamental Emission Measurement...................... 25 3.4.1 Test Procedure (Radiated & Fundamental)................................................................................... 25 3.4.2 Test Setup (Radiated & Fundamental).......................................................................................... 25 3.4.3 Test Data....................................................................................................................................... 26 4. Appendix .................................................................................................... 33 4.1 Appendix A: Measurement Procedure for Power line Conducted Emissions............ 33 4.2 Appendix B: Test Procedure for Radiated Emissions ................................................ 34 4.3 Appendix C: Test Equipment ..................................................................................... 35 4.3.1 Test Equipment List...................................................................................................................... 35 4.3.2 Software for Controlling Spectrum/Receiver and Calculating Test Data ..................................... 35 4.4 Appendix D: Layout of EUT and Support Equipment ............................................... 36 4.4.1 General Conducted Test Configuration ........................................................................................ 36 4.4.2 General Radiation Test Configuration .......................................................................................... 37 4.5 Appendix E: Accuracy of Measurement ................................................................... 38 4.6 Appendix F: Photographs of EUT Configuration Test Set Up................................... 39 -1- FCC ID: F2QRFLIBRA-S10HU International Standards Laboratory Report Number: ISL-10LR045FC 1. General 1.1 Certification of Accuracy of Test Data Standards: C…

Text truncated - open the document above for the full version.

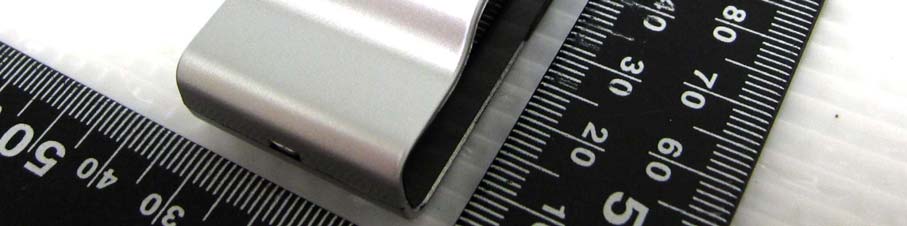

The Front View of Highest Radiated Set-up For EUT The Back View of Highest Radiated Set-up For EUT
