F2QSCORPIUSU9WLWireless Keyboard

Trouble Shooting Guide 2.4GHz Wireless Mechanical Keyboard Scorpius-U9WL Reminder : For optimal performance , please place the dongle receiver 20cm away from the other RF interference devices such as computer monitors and speakers. Re-set the connection ID . Please follow the process steps below 1. Remove the nano receiver and re-install. 2. Press the connect button under mouse or keyboard in 30 seconds. 3. ID register has been completed. If ID is not been registered, please follow steps below to reset the ID. Keyboard 1. Remove the batteries 2. Push and Hold on the connect button then re-insert the batteries. 3. Now release the connect button to clean ID Now, enjoy and have fun! SymptomRemedyPossible Reason System does not recognize The low battery indicator LED is lit Battery power is lowChange new batteries. For further questions Please feel free to send an email to [email protected] , [email protected] or [email protected] Plugged the device to an USB port without enough power support. Try a different USB port or use an USB hub with external power supply 2. Pull out the nano dongle from the bottom part of the keyboard. 3. Turn on your computer and plug in the dongle receiver into a USB port of your computer. 4. Your computer will automatically detect this USB device and install all necessary driver. Wrist Pad Installation: ID Setting The product has been pre-set in ID for radio frequency, keyboard and mouse with dongle receiver are paried already. It is not necessary to do the ID setting when you use Scorpius-U9WL for the first time.   Note : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the device. Thank you for purchasing your very own Scorpius-U9WL 2.4GHz Wireless Mechanical Keyboard . Featuring Cherry mechanical switches, it is the best choice for optimizing the users experience. Please read this quick guide to help you use this product easily. Introduction Scorpius-U9WL is designed for long distance wireless operation. Plug in the nano-receiver to your USB port and you can use this wireless keyboard without cable cluttering on your desk. The wireless operational range can reach up to 10 meters in open space depending on the radio interference in the your environment. When low battery indicator of the mechaical keyboard lit, please use attached USB cables to connect keyboard and the computer, this keyboard is available for wired type.  Notice : the keyboard is not rechargeable when using USB power cable connection. Combo Set Features • 2.4GHz wireless technology • Smart power saving function • Connect / low battery indicators Keyboard • Cherry mechanical switches • Wired/wireless dual mode available Package Contents • 2.4GHz wireless mechanical Keyboard x 1 • Wrist pad x 1 • nano-dongle receiver x 1 • USB cable x 1 • AA battery x 2 • Quick guide x 1 Compatibility USB 1.1/2.0 compatible with Windows® XP / Vista / 7 System Requirements IBM or competible PC systems Microsoft Windows® 2000/XP/Vista/7 Installation 1. Please refer to the +, - symbol inside the battery compartment, insert 2 AA batteries into the battery compartment of the keyboard Insert the wrist pad under the keyboard and align the wrist pad with the keyboard Use both thumb and push on postion A and B to snap it in A B ENGLISHENGLISH ENGLISHENGLISH 1 2 4 1 2 3 4

Authority to Act as Agent Ameri an Certification Bod Inc, 6731 Whittier nue Suite ClIO McLean, A 2101 To Whom It a Con ern: International Standards Laboratorv is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of J988, 2 J U.S.c. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: __.....(~T....y""'-p.:..::ic:..:::a..:.:lI.J-v-"8'----=-1=2...:.m'-'-0=I..:.:lt..:.:h.=:..s)'-__ Title: Electronic Engin'eer Supervisor On behalf of: lone International Co., Ltd. (Company Name) Telephone: 886 2 2698-2566

Date: 4/13/2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: F2QSCORPIUSU9WL Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily . released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying docllmentation will not be made before the date of the Grant for this application. Sincerely, --------'litter WMO'_ Ming Wang / Electronic Engineer Supervisor lone International Co., Ltd.

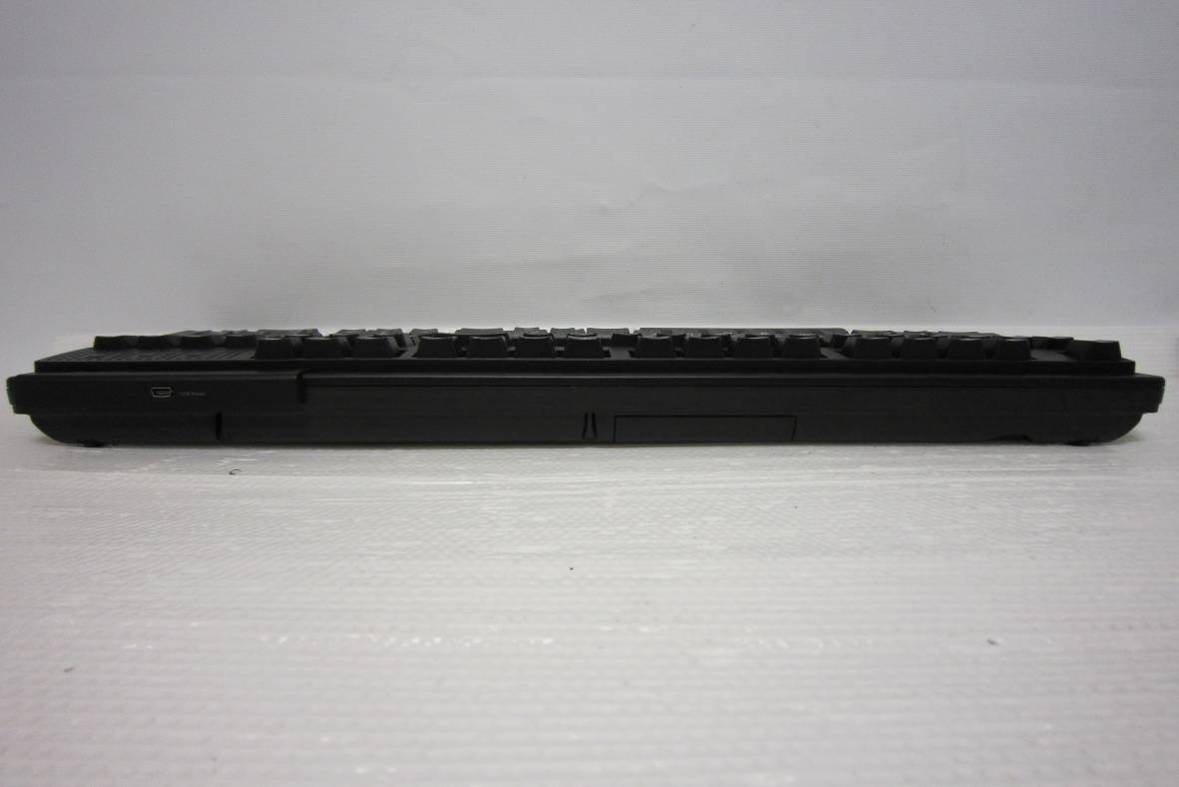

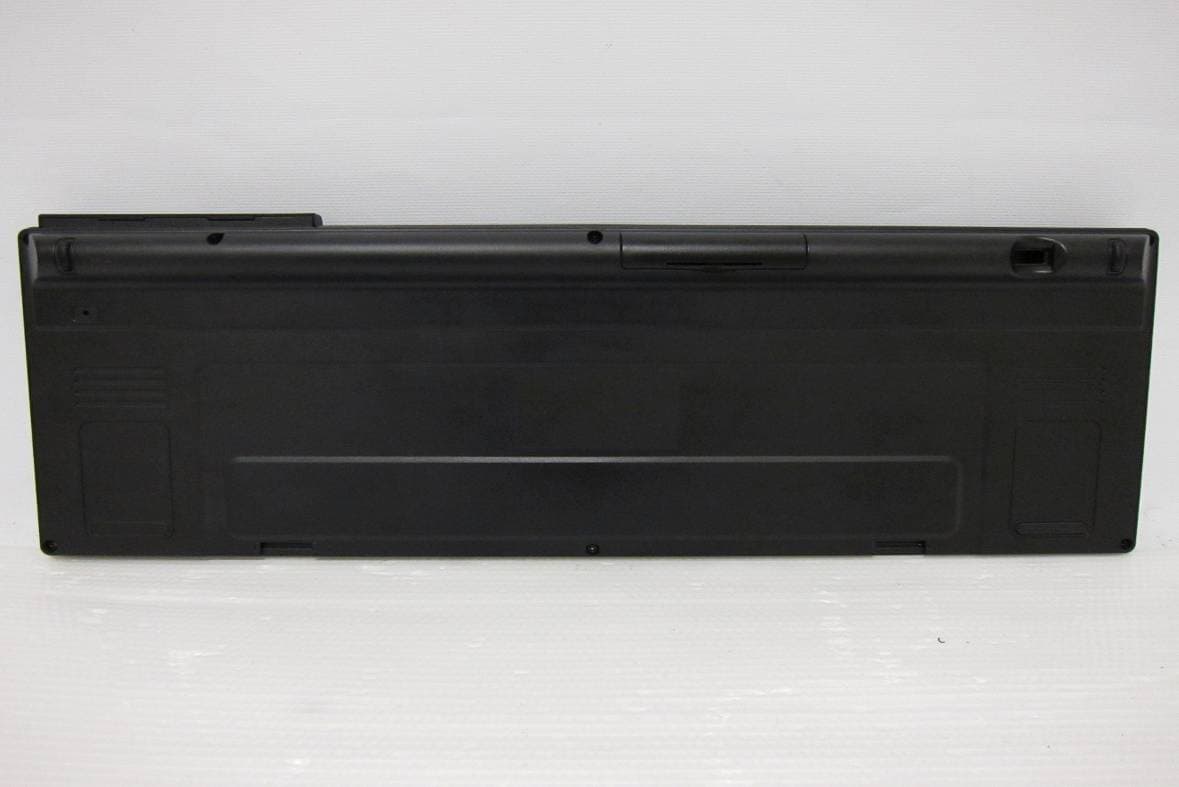

FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Front View of EUT Back View of EUT FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Site View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Ione International Co., Ltd. FCC ID: F2QSCORPIUSU9WL

FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Open View of EUT Internal of EUT – 1 FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Internal of EUT – 2 Internal of EUT – 2 RF Antenna

Page: 1 of 41 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : Wireless Keyboard Model: SCORPIUS-U9WL, TESORO-G1W Model Difference: N/A Brand: ione FCC ID: F2QSCORPIUSU9WL FCC Rule Part: §15.249 Applicant: Ione International Co., Ltd. Address: 8F-2, No. 75, Sec 1, Hsin Tai Wu Road, Hsi Chih District, New Taipei City, Taiwan, R.O.C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-11LR017FC Issue Date : 2011/04/14 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 41- FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC VERIFICATION OF COMPLIANCE Applicant: Ione International Co., Ltd. Product Description: Wireless Keyboard Brand Name: ione FCC ID: F2QSCORPIUSU9WL Model No.: SCORPIUS-U9WL, TESORO-G1W Model Difference: N/A Date of test: 2011/03/25 ~ 2011/04/14 Date of EUT Received: 2011/03/25 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: Apr. 14, 2011 Dion Chang / Engineer Prepared By: Date: Apr. 14, 2011 Eva Kao / Asst. Supervisor Approved By: Date: Apr. 14, 2011 Vincent Su / RF Manager -3 of 41- FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Version Version No. Date Description 00 Apr. 14, 2011 Initial creation of document -4 of 41- FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Table of Contents 1 GENERAL INFORMATION ................................................................................. 5 1.1 PRODUCT DESCRIPTION......................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .................................................................................... 5 1.3 TEST METHODOLOGY............................................................................................................ 5 1.4 TEST FACILITY....................................................................................................................... 5 1.5 SPECIAL ACCESSORIES........................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS................................................................................................. 5 2 SYSTEM TEST CONFIGURATION .................................................................... 6 2.1 EUT CONFIGURATION............................................................................................................ 6 2.2 EUT EXERCISE....................................................................................................................... 6 2.3 TEST PROCEDURE................................................................................................................... 6 2.4 MEASUREMENT EQUIPMENT USED: ....................................................................................... 7 2.5 LIMITATION............................................................................................................................ 9 2.6 CONFIGURATION OF TESTED SYSTEM.................................................................................. 11 3 SUMMARY OF TEST RESULTS........................................................................ 12 4 DESCRIPTION OF TEST MODES..................................................................... 12 5 CONDUCTED EMISSIONS TEST...................................................................... 13 5.1 MEASUREMENT PROCEDURE: .............................................................................................. 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ...................................................... 13 5.3 MEASUREMENT EQUIPMENT USED: ..................................................................................... 13 5.4 MEASUREMENT RESULT: ..................................................................................................... 13 6 RADIATED EMISSION TEST ............................................................................ 16 6.1 MEASUREMENT PROCEDURE............................................................................................... 16 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ...................................................... 16 6.3 MEASUREMENT EQUIPMENT USED: ..................................................................................... 16 6.4 FIELD STRENGTH CALCULATION......................................................................................... 17 6.5 MEASUREMENT RESULT...................................................................................................... 18 7 20 DB BAND WIDTH MEASUREMENT ........................................................... 30 7.1 MEASUREMENT PROCEDURE....................................................................…

Text truncated - open the document above for the full version.

FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC APPENDIX 1 PHOTOGRAPHS OF SETUP FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Radiated Emission Setup Photos FCC ID: F2QSCORPIUSU9WL International Standards Laboratory Report Number: ISL-11LR017FC Conducted Emission Setup Photos
