F4AWLNG1802.11 b/g module

Airborne TM 802.11b/g Radio Module Data Book Quatech, Inc. Confidential Page ii Airborne™ Wireless LAN Radio Module Data Book TBD QUATECH Confidential Rev. A 6/12/2006 Copyright © 2004 QUATECH ® Inc. ALL RIGHTS RESERVED. No part of this publication may be copied in any form, by photocopy, microfilm, retrieval system, or by any other means now known or hereafter invented without the prior written permission of QUATECH ® Inc.. This document may not be used as the basis for manufacture or sale of any items without the prior written consent of QUATECH Inc.. QUATECH Inc. is a registered trademark of QUATECH Inc.. Airborne™ is a trademark of QUATECH Inc.. All other trademarks used in this document are the property of their respective owners. Disclaimer The information in the document is believed to be correct at the time of print. The reader remains responsible for the system design and for ensuring that the overall system satisfies its design objectives taking due account of the information presented herein, the specifications of other associated equipment, and the test environment. QUATECH ® Inc. has made commercially reasonable efforts to ensure that the information contained in this document is accurate and reliable. However, the information is subject to change without notice. No responsibility is assumed by QUATECH for the use of the information, nor for infringements of patents or other rights of third parties. This document is the property of QUATECH ® Inc.. and does not imply license under patents, copyrights, or trade secrets. Quatech, Inc. Headquarters QUATECH ® Inc.. 5675 Hudson Industrial Parkway Hudson, OH 44236 USA Telephone: 330-655-9000 Toll Free: 800-553-1170 Fax: 330-655-9010 Technical Support: 714-899-7543 / [email protected] Web Site: www.quatech.com Page iii Airborne™ Wireless LAN Radio Module Data Book TBD QUATECH Confidential Rev. A 6/12/2006 CONTENTS CHAPTER 1 INTRODUCTION ............................................................................................................. 1 1.1 OVERVIEW.................................................................................................................................... 1 1.2 CONFIGURATIONS.......................................................................................................................... 1 1.3 FEATURES..................................................................................................................................... 1 1.3.1 General Features................................................................................................................. 1 1.3.2 Radio Features .................................................................................................................... 2 1.3.3 Medium Access Controller and Baseband Processor Features .......................................... 2 1.4 MODULE BLOCK DIAGRAM............................................................................................................... 3 1.5 USING THIS DOCUMENT................................................................................................................. 3 1.6 CONVENTIONS...............................................................................................................................4 1.6.1 Terminology ......................................................................................................................... 4 1.6.2 Notes ................................................................................................................................... 4 1.6.3 Cautions............................................................................................................................... 4 1.7 RELATED DOCUMENTATION............................................................................................................ 4 1.8 FCC STATEMENT.......................................................................................................................... 5 1.9 FCC RF EXPOSURE STATEMENT................................................................................................... 5 1.10 INFORMATION FOR CANADIAN USERS (IC NOTICE).......................................................................... 5 CHAPTER 2 SPECIFICATIONS........................................................................................................... 2 2.1 ELECTRICAL SPECIFICATIONS......................................................................................................... 2 2.1.1 Absolute Maximum Ratings ................................................................................................. 5 2.1.2 Electrical Characteristics .....................................................................................................6 2.2 RADIO FREQUENCY SPECIFICATIONS.............................................................................................. 7 2.2.1 AC Electrical Characteristics – Transmitter ......................................................................... 7 2.2.2 Performance/Range............................................................................................................. 7 2.3 INTERFACE SPECIFICATIONS........................................................................................................... 8 2.3.1 Interface Specifications........................................................................................................8 2.3.2 Pin Assignments .................................................................................................................. 8 2.3.3 Pin Features* ..................................................................................................................... 10 2.3.4 Antenna Pin Assignments and Descriptions...................................................................... 13 2.4 MECHANICAL SPECIFICATIONS...................................................................................................... 14 CHA…

Text truncated - open the document above for the full version.

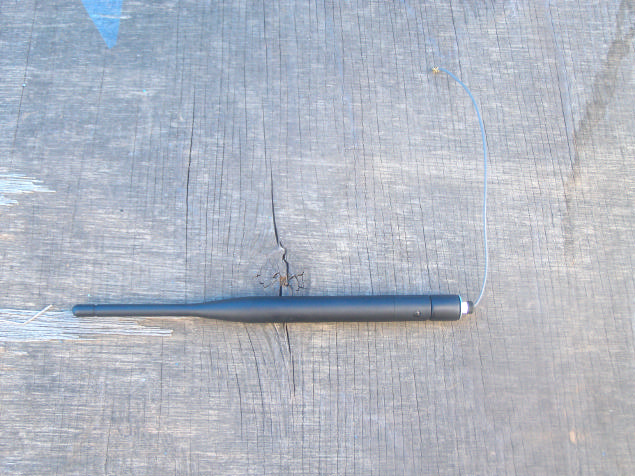

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Friday, July 07, 2006 10:34 AM To: '[email protected]' Cc: '[email protected]' Subject: FCC ID: F4AWLNG1 7/7/2006 Mr. Fujimoto: In order for processing of this permissive change application (FCC ID: F4AWLNG1) to continue, the following issue(s) will have to be addressed: 1) According to the data sheets for two of the antennas (P/N: S141AM-2450, and P/N: S151M2-L-2450S), they utilize standard SMA connectors; yet, according to the external photos, these antennas have reverse polarity connectors. Please explain this discrepancy. 2) The block diagram submitted is not sufficient, per section 2.1033(b)(5). Please submit an updated diagram. 3) The operational description submitted appears to be a standard product data sheet, which would not be eligible for confidentiality. Please revise the confidentiality letter. 4) The two condition statement required under section 15.19 of the FCC rules is listed under “information to Canadian users”. This statement should also be listed in the FCC section. 5) In the test report, it is indicated that the power output test for 802.11g mode was performed with the equipment operating at a data rate of 1 Mbps, but according to the operational description, the lowest data rate is 6 Mbps for 802.11g. Please explain. 6) Please indicate compliance with the voltage variation requirements of section 15.31 (e). The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is I28-F4AWLNG1-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Fax (714) 579-1850

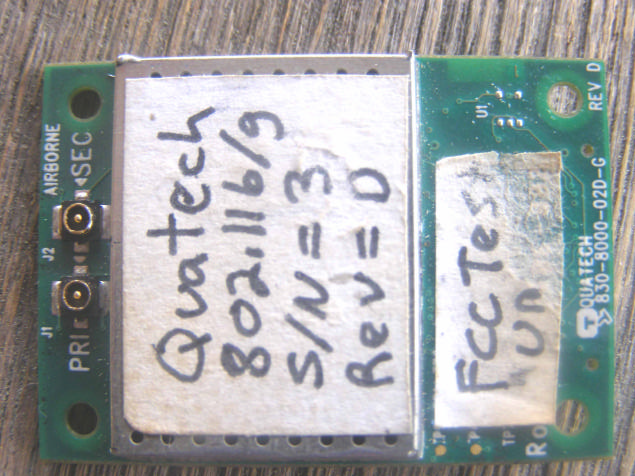

Airborne TM Embedded Radio Modules (802.11b/g) KEY FEATURES Extended operating temperature range (-40°C to +85°C) and environmental specifications Advanced Security Support for 802.11i through integrated AES/CCMP, WPA, TKIP, WEP Low power modes Quick time to market & reduced development costs FCC Part 15 Class B Sub C Modular Approval Reduces need for RF and communications expertise CF interface using high density SMT connector Support for antenna diversity Device drivers available for a range of embedded OS’s Five year warranty High performance embedded device networking solutions Airborne TM is a line of highly integrated 802.11 wireless modules. Airborne TM Embedded Radio Modules provide instant LAN and Internet connectivity, and connect through standard interfaces to a wide variety of applications. By contrast, the wireless device server and ethernet bridge modules include the radio as well as a base-band processor, an application processor and software for a “drop-in” web-enabled WiFi solution. With all the modules, there’s no need to develop the software or the RF and communications expertise in-house, OEMs can realize reduced product development costs and a quick time-to-market. Interoperable with advanced security The extremely small footprint design makes Airborne TM easy to embed into new or existing designs. The radio integrates the 802.11 standards including the 802.11i security standard. The radio includes a full implementation of AES/CCMP, WPA and WEP security mechanisms. Enterprise applications are enabled by support for EAP. Additionally, the radio supports the 802.11e Quality of Service (QOS) and 802.11h Transmit Power Control (TPC ) standards. Allowing you access to the latest functionality and maximizing interoperability with existing infrastructure. Model No. WiFiInterfaceSecurity RoHS Compliant 802.11b802.11b/gCompactFlash WEP (64 & 128 bit) WPAAES/CCMPEAP WLRG-RA-DP101 Also available WLRB-RA-DP101 WLRB-RA-DP101-G To evaluate all available features and receive evaluation tools, order below. WLEG-RA-DP101Evaluation & Design Kit, b/g radio only WLEB-RA-DP101Evaluation & Design Kit, b radio only WLRG-RA-DP100 series WLRB-RA-DP100 series 5675 Hudson Industrial Parkway Hudson, OH 44236 1.800.553.1170 www.quatech.com Applications The Airborne TM Embedded Radio Modules have been designed to provide wireless LAN and Internet connectivity in these industries: transportation medical warehouse and logistics Point-of-sale (POS) industrial automation military scientific research Equipment with an Airborne TM Embedded Radio Module can be monitored and controlled by a handheld device, by a PC in a central location or over the Internet. The Evaluation & Design Kit provides software and utilities that allow a developer to quickly and easily operate and evaluate the radio module in a Wireless Device Server module or Wireless Ethernet Bridge module. Preliminary For information about Airborne Modules and Evaluation Kits, please call or go to www.quatech.com Model Selection Guide Mechanical Outline Technology IEEE 802.11b/g, WiFi compliant (802.11i, 802.11e, 802.11d capable) Frequency 2.400 ~ 2.4835 GHz (US/Can/Europe) 2.471 ~ 2.497 GHz (Japan) Modulation TechnologyDSSS, CCK, OFDM Modulation TypeDBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM Network Access ModesAd-hoc, infrastructure Channels USA/Canada: 11 channels (1 - 11) Europe:13 channels (1 - 13) Japan:14 channels (1 - 13 for g rates) (1 - 14 for b rates) France:4 channels (10 - 13) Wireless Data Rate802.11b - 11, 5.5, 2, 1 Mbps 802.11g - 54, 48, 36, 24, 12, 9, 6 Mbps MAC CSMA/CA with ACK, RTS, CTS RF Power +19.3 dBm peak (85mW) at 802.11b data rates +15 dBm average (32mW) at 802.11b data rates +21.5 dBm peak (141mW) at 802.11g data rates +12 dBm average (16mW) 802.11g data rates Sensitivity -71dBm for 54Mbps -77dBm for 36Mbps -83dBm for 18 Mbps -85dBm for 11Mbps -87dBm for 1Mbps SecurityWEP 64 and 128bit (RC4), WPA (TKIP), 802.1x (EAP) Antenna Two U.FL coaxial connectors, 50 ohms, supports receive diversity Supply3.3 Vdc +/-5% Current Consumption475mA - transmit mode (typical) 275mA - receive mode (typical) To be spec’d - power save mode (IEEE) 5 mA sleep mode (full power down) Power Up Inrush Current 3000 mA (max) 20ms Operating Temperature Temperature: -40°C - +85°C Relative humidity: 5% - 95% (non-condensing) Vibration: 20G peak-to-peak, 20 Hz-2KHz Shock: 1500G, peak-to-peak, 0.5mS Connector50 Pin (P/N: Hirose DF12-50DS-0.5 V) 4-mm height Interface CF+ via a 50pin Hirose 0.5mm pitch surface mount connector Agency ApprovalsFCC Part 15 Class B Sub C Intentional Radiator CE ETSI EN300 328, EN301 489, ETSI 60950-1 IC RSS210 RoHS and WEEE complaint Block Diagram 5675 Hudson Industrial Parkway Hudson, OH 44236 1.800.553.1170 www.quatech.com Rev. E 6/2006© 2006 Quatech, Inc. Specifications (B/G radio)

MPE Calculations For RF Exposure Requirements Airborne Embedded Radio Module Model: WLRG-RA-DP101 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (142.89 * 3.162) / (4 * 20 2 * π) S = 0.08988637 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) – 21.55 dBm G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dBi antenna gain/10) G = Log -1 (5 dBi/10) G = 3.162

Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 21 FCC PART 15, SUBPART B and C TEST REPORT for AIRBORNE EMBEDDED RADIO MODULE MODEL: WLRG-RA-DP101 Prepared for QUATECH, INC. 5675 HUDSON INDUSTRIAL PARKWAY HUDSON, OHIO 44236 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JUNE 22, 2006 REPORT APPENDICES TOTAL BODY A B C D E PAGES 21 2 2 2 28 202 257 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 21 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment for Brea Facility – Part 1 12 5.3 EMI Test Equipment for Brea Facility – Part 2 13 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. CHARACTERISTICS OF THE TRANSMITTER 15 7.1 Antenna Gain 15 8. TEST PROCEDURES 16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 17 8.2 6 dB Bandwidth 19 8.3 Peak Output Power 19 8.4 RF Antenna Conducted Test 19 8.5 Spectral Density Output 20 8.6 RF Band Edges 20 9. CONCLUSIONS 21 Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 21 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map and Layout of 3 Meter Radiated Site Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 21 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government. Device Tested: Airborne Embedded Radio Module Model: WLRG-RA-DP101 S/N: 3 Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Quatech, Inc. 5675 Hudson Industrial Parkway Hudson, Ohio 44236 Test Dates: May 5, 9, 12, 15, 16, 17, 31; and June 22, 2006 Test Specifications : EMI requirements Limits: CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 21 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 10 kHz - 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 40 GHz Complies with the relevant requirements of CFR Title 47, Part 15, Subpart C, sectio…

Text truncated - open the document above for the full version.

Report Number: B60602D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Embedded Radio Module Model: WLRG-RA-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page E1 APPENDIX E DATA SHEETS FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna X-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482453.61V74-20.39Peak2.79135 482450.96V54-3.04Avg2.79135 723650.25V74-23.75Peak2.21180 723636.37V54-17.63Avg2.21180 964853.67V----Peak1.88225 Not in Restricted Band 964837.16V----Avg1.88225 Not in Restricted Band 12060V74-74Peak No Emissions 12060V54-54Avg Detected 14472V74-74Peak No Emissions 14472V54-54Avg Detected 16884V----Peak No Emissions 16884V----Avg Detected 19296V74-74Peak No Emissions 19296V54-54Avg Detected 21708V----Peak No Emissions 21708V----Avg Detected 24120V----Peak No Emissions 24120V----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna X-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482453.21H74-20.79Peak2.46180 482449.98H54-4.02Avg2.46180 723648.81H74-25.19Peak2.32135 723636.52H54-17.48Avg2.32135 964851.38H----Peak2.67180 Not in Restricted Band 964838.91H----Avg2.67180 Not in Restricted Band 12060H74-74Peak No Emissions 12060H54-54Avg Detected 14472H74-74Peak No Emissions 14472H54-54Avg Detected 16884H----Peak No Emissions 16884H----Avg Detected 19296H74-74Peak No Emissions 19296H54-54Avg Detected 21708H----Peak No Emissions 21708H----Avg Detected 24120H----Peak No Emissions 24120H----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna Y-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482452.39V74-21.61Peak2.17225 482450.38V54-3.62Avg2.17225 723640.41V74-33.59Peak2.1745 723627.86V54-26.14Avg2.1745 964841.29V----Peak2.17180 Not in Restricted Band 964828.87V----Avg2.17180 Not in Restricted Band 12060V74-74Peak No Emissions 12060V54-54Avg Detected 14472V74-74Peak No Emissions 14472V54-54Avg Detected 16884V----Peak No Emissions 16884V----Avg Detected 19296V74-74Peak No Emissions 19296V54-54Avg Detected 21708V----Peak No Emissions 21708V----Avg Detected 24120V----Peak No Emissions 24120V----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna Y-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482452.16H74-21.84Peak2.32315 482448.77H54-5.23Avg2.32315 723649.2H74-24.8Peak2.59315 723636.52H54-17.48Avg2.59315 964849.66H----Peak2.55225 Not in Restricted Band 964837.1H----Avg2.55225 Not in Restricted Band 12060H74-74Peak No Emissions 12060H54-54Avg Detected 14472H74-74Peak No Emissions 14472H54-54Avg Detected 16884H----Peak No Emissions 16884H----Avg Detected 19296H74-74Peak No Emissions 19296H54-54Avg Detected 21708H----Peak No Emissions 21708H----Avg Detected 24120H----Peak No Emissions 24120H----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna Z-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482452.66V74-21.34Peak1.9135 482449.87V54-4.13Avg1.9135 723648.7V74-25.3Peak1.66135 723636.45V54-17.55Avg1.66135 964850.43V----Peak1.68315 Not in Restricted Band 964837.33V----Avg1.68315 Not in Restricted Band 12060V74-74Peak No Emissions 12060V54-54Avg Detected 14472V74-74Peak No Emissions 14472V54-54Avg Detected 16884V----Peak No Emissions 16884V----Avg Detected 19296V74-74Peak No Emissions 19296V54-54Avg Detected 21708V----Peak No Emissions 21708V----Avg Detected 24120V----Peak No Emissions 24120V----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna Z-Axis Channel 1 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 482453.12H74-20.88Peak1.33180 482449.97H54-4.03Avg1.33180 723646.63H74-27.37Peak1.56180 723633.58H54-20.42Avg1.56180 964851.6H----Peak2.0490 Not in Restricted Band 964837.13H----Avg2.0490 Not in Restricted Band 12060H74-74Peak No Emissions 12060H54-54Avg Detected 14472H74-74Peak No Emissions 14472H54-54Avg Detected 16884H----Peak No Emissions 16884H----Avg Detected 19296H74-74Peak No Emissions 19296H54-54Avg Detected 21708H----Peak No Emissions 21708H----Avg Detected 24120H----Peak No Emissions 24120H----Avg Detected FCC 15.247 Quatech, Inc.Date: 05/17/06 Airborne Embedded Radio ModuleLab: B Model: WLRG-RA-DP101Tested By: Kyle Fujimoto Configuration: With P/N: S141AH-2450 Antenna X-Axis Channel 6 - 802.11 b Transmit Mode Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 487452.58V74-21.42Peak1.88180 487450.5V54-3.5Avg1.88180 731150.01V74-23.99Peak1.88180 731136.66V54-17.34Avg1.88180 974849.41V----Peak2.06180 Not in Restricted Band 974837.48V----Avg2.06180 Not in Restricted Band 12185V74-74Pe…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE QUATECH, INC. AIRBORNE EMBEDDED RADIO MODULE MODEL: WLRG-RA-DP101 TEST DATE: 05/16/06 The fundamental was maximized on the Lab B test site using a normal test setup with the EUT’s AC Adapter connected directly to the AC public mains (115 Vac). Next, the Power Supply for the EUT was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 956410240, Calibration Due Date: December 15, 2006. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
