F4AWLNG551Ethernet Device Adapter

B plus B SmartWorx, Inc.
Ethernet Device Adapter - FCC ID F4AWLNG551 - B plus B SmartWorx, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 18, 2011
Application Purpose
Original Equipment
Date of Application
Apr 17, 2011
Equipment Note
Ethernet Device Adapter
Frequency Range
2412.00000000 - 2462.00000000
Company
B plus B SmartWorx, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Specification 802.11b/g Advanced Enterprise Device Server Revision: v1.0 April 2011 File name: dp550 platform product specification.doc Document Number: 100-8090-100 Quatech, Inc. Airborne DP550 Family Databook 2 4/14/2011 100-8090-100 <Page Intentionally Left Blank> Airborne DP550 Family Databook Quatech, Inc. 100-8090-100 4/14/2011 3 Quatech Confidential Copyright © 2011 QUATECH ® Inc. ALL RIGHTS RESERVED. No part of this publication may be copied in any form, by photocopy, microfilm, retrieval system, or by any other means now known or hereafter invented without the prior written permission of QUATECH ® Inc.. This document may not be used as the basis for manufacture or sale of any items without the prior written consent of QUATECH Inc.. QUATECH Inc. is a registered trademark of QUATECH Inc.. Airborne™ is a trademark of QUATECH Inc.. All other trademarks used in this document are the property of their respective owners. Disclaimer The information in the document is believed to be correct at the time of print. The reader remains responsible for the system design and for ensuring that the overall system satisfies its design objectives taking due account of the information presented herein, the specifications of other associated equipment, and the test environment. QUATECH ® Inc. has made commercially reasonable efforts to ensure that the information contained in this document is accurate and reliable. However, the information is subject to change without notice. No responsibility is assumed by QUATECH for the use of the information or for infringements of patents or other rights of third parties. This document is the property of QUATECH ® Inc. and does not imply license under patents, copyrights, or trade secrets. Quatech, Inc. Headquarters QUATECH ® Inc.. 5675 Hudson Industrial Parkway Hudson, OH 44236 USA Telephone: 330.655.9000 Toll Free (USA): 800.553.1170 Fax: 330.655.9010 Technical Support: 800.553.1170 / [email protected] Web Site: www.quatech.com Quatech, Inc. Airborne DP550 Family Databook 4 4/14/2011 100-8090-100 <Page Intentionally Left Blank> Airborne DP550 Family Databook Quatech, Inc. 100-8090-100 4/14/2011 5 Contents 1.0 Conventions ........................................................................................................................................................ 7 1.1 Terminology ................................................................................................................................................... 7 1.2 Notes .............................................................................................................................................................. 7 1.3 Caution ........................................................................................................................................................... 7 1.4 File Format ..................................................................................................................................................... 7 2.0 Product Description ............................................................................................................................................. 8 3.0 Block Diagram ..................................................................................................................................................... 9 4.0 Model Numbers ................................................................................................................................................. 10 5.0 Pin out and Connectors ..................................................................................................................................... 11 5.1 Digital UART Ports ....................................................................................................................................... 13 5.2 Ethernet PHY Port ........................................................................................................................................ 13 5.3 Serial Peripheral Interface (SPI) ................................................................................................................... 14 5.4 Debug/Console Port ..................................................................................................................................... 14 5.5 General Purpose Input/Output (GPIO) .......................................................................................................... 14 5.6 Connector Definition ..................................................................................................................................... 15 6.0 Electrical & RF Specification.............................................................................................................................. 16 6.1 AC Electrical Characteristics – Transmitter ................................................................................................... 19 6.2 Performance/Range ..................................................................................................................................... 19 7.0 SPI Interface ..................................................................................................................................................... 20 7.1 Pin-out .......................................................................................................................................................... 20 7.2 SPI AC Characteristics ................................................................................................................................. 21 7.3 SPI Protocol ................................................................................................................................................. 22 7.4 SPI Modes .................................................................................................................................................... 23 7.5 SPI Commands ............................…

Text truncated - open the document above for the full version.

External Photos

Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551

ID Label/Location Info

Airborne DP550 Family Databook Quatech, Inc. 100-8090-100 4/14/2011 37 Contact Quatech Technical support for a copy of the FCC and IOC grant certificates, the test reports and updated approved antenna list. 12.5 End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the FCC and Industry of Canada Grant numbers as shown in Table 20. The following label or similar must be placed on the outside of the product, utilizing the Airborne™ device, whenever physically possible: Figure 8 - Full FCC/IC Label Contains Transmitter Module, FCC ID: F4AWLNG551 Contains Canadian Certification Number, IC: 3913A-WLNG551 The radio component is an integral part of the equipment and cannot be removed. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Figure 9 - Minimum FCC/IC Label Contains FCC ID: F4AWLNG551 IC: 3913A-WLNG551 USAGE RESTRICTIONS APPLY (SEE DOCUMENTATION) When the device is so small or for such use that it is not practicable to place the label shown in Figure 8, the label shown in Figure 9 may be used, however the information required shall also be placed in a prominent location in the instruction manual or pamphlet supplied to the user. Alternatively, the required information shown in Figure 8 shall be placed on the container in which the device is marketed. In all cases the FCC and IC identifiers must be displayed on the device in which the module is installed. 12.6 Regulatory Test Mode Support The Airborne Device Server includes support for all FCC, IC and ETSI test modes required to perform regulatory compliance testing on the module, please

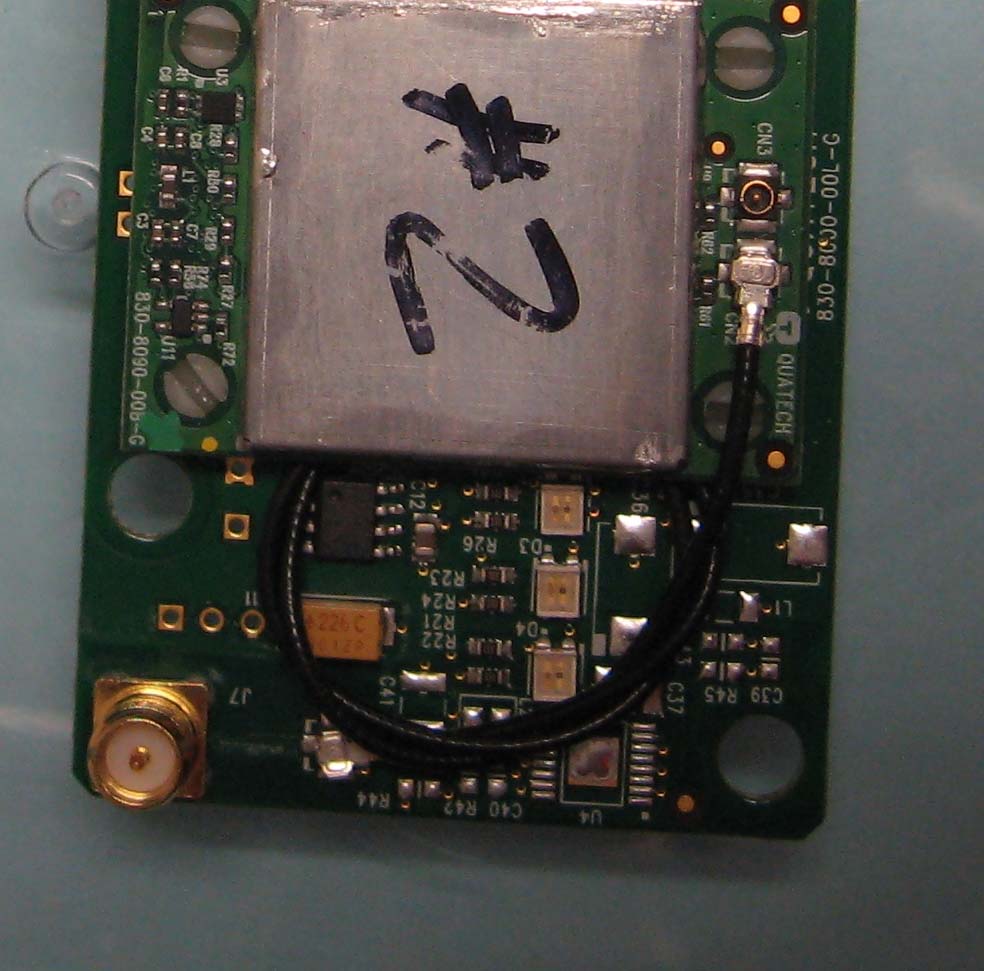

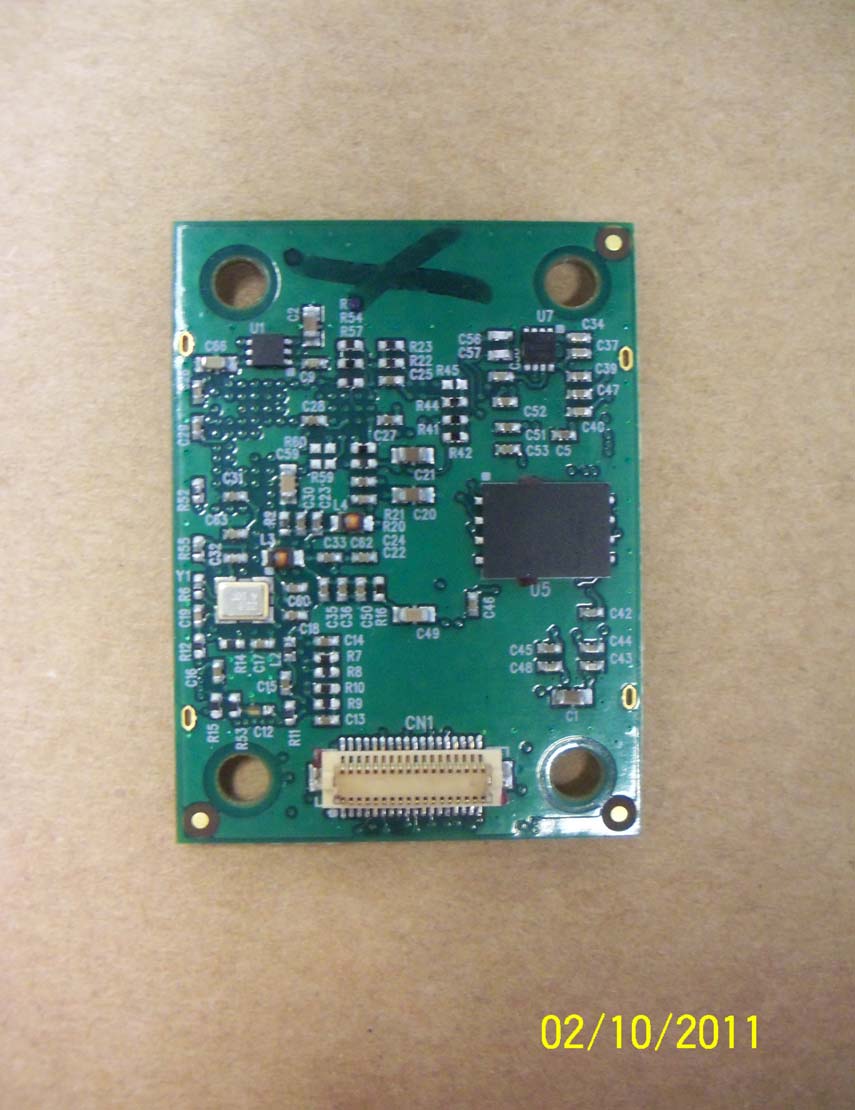

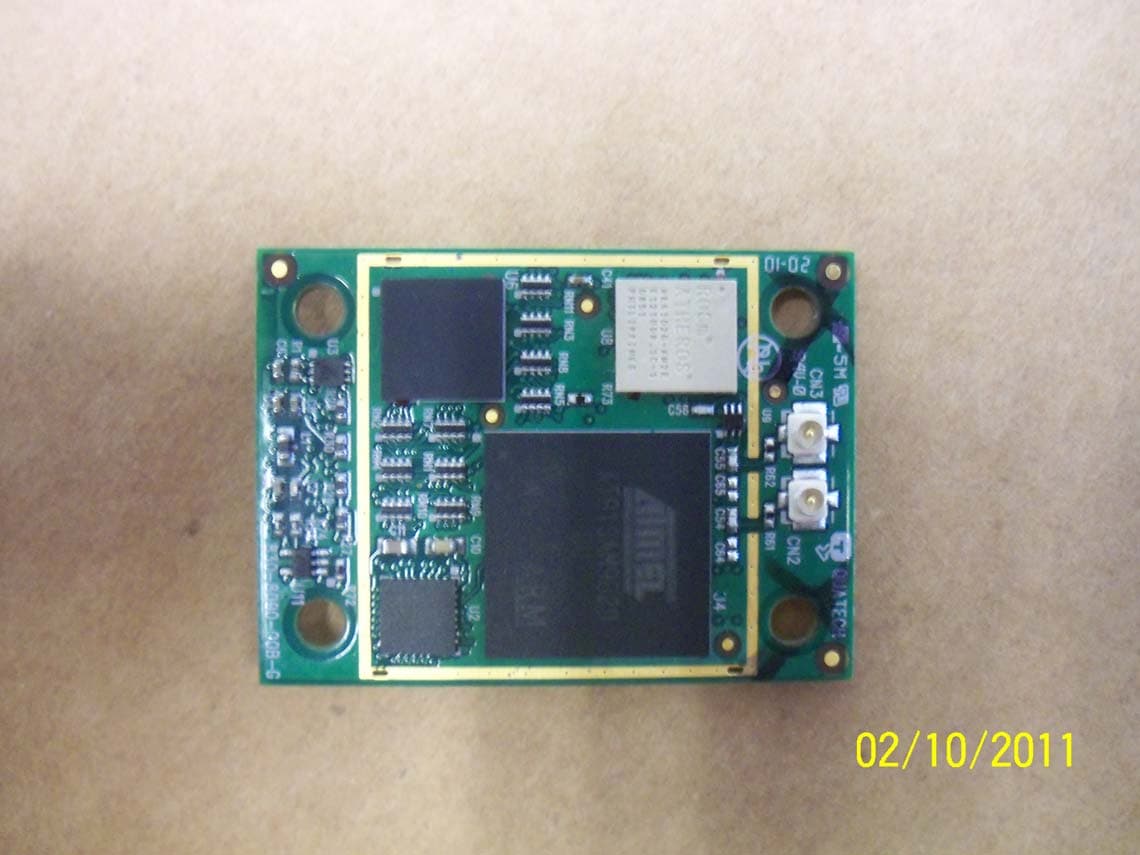

Internal Photos

Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551 Internal/External Photos ©2008 Washington Laboratories, Ltd FCC ID: F4AWLNG551

Operational Description

Quatech, Inc. Airborne DP550 Family Databook 8 3/15/2011 100-8090-100 2.0 Product Description The WLNG-AN-DP550 family is the latest generation of 802.11 wireless device servers and adapters from Quatech. The radio features the following:  802.11b/g WiFi Radio with 32bit ARM9 CPU (128Mb SDRAM, 64Mb Flash)  Atheros AR6002 802.11b/g radio shipset.  Supports WEP, WPA, WPA2, 802.11i and 802.1x Supplicant, with Certificates.  The wireless device server includes integrated:  802.11b/g radio driver  TCP/IP stack, UDP, telnet, FTP server  Data bridging and buffering  Command Line Interface  Web interface  WPA Supplicant  802.11 Radio Driver  Supports antenna diversity  Operating Temperature (-40°C to 85°C)  Storage temp (-50°C to 125°C)  36 pin high density SMT connector (Hirose DF12-36)  Dual (2) Hirose U.FL RF connector for RF antenna  Multiple host interfaces supported:  Dual UART (960K BAUD)  Serial (RS232/422/485)  SPI  10/100 Ethernet PHY  Advanced Low power modes  Rugged mounting options.  No host driver required  Small form factor module (Dimensions: 40.6mm x 29.6mm x 7.5mm)  Worldwide Regulatory Support

RF Exposure Info

Certificates and reports shall not be reproduced except in full, without the written permission of Washington Labs, Limited. Maximum Permissible Exposure Evaluation For the Quatech Inc. Airborne WLAN Module FCC ID: F4AWLNG551 IC: 3913A-WLNG551 February 28, 2011 WLL Report: 11843-MPE Prepared for: QUATECH INC. 5675 HUDSON INDUSTRIAL PARKWAY H UDSON, OH 44236 Prepared by: WASHINGTON LABORATORIES, LTD. 7560 LINDBERGH DRIVE G AITHERSBURG, MARYLAND 20879 Testing Certificate AT-1448 Quatech Inc. Airborne WLAN Module RF Exposure Test Report February, 2011 WLL Report #11843-MPE - ii - © 2011 Washington Laboratories, Ltd. Maximum Permissible Exposure Evaluation For the Quatech Inc. Airborne WLAN Module February 28, 2011 WLL Report # 11843-MPE Prepared by: James Ritter EMC Compliance Engineer Reviewed by: Steven D. Koster EMC Operations Manager Quatech Inc. Airborne WLAN Module RF Exposure Test Report February, 2011 WLL Report #11843-MPE - iii - © 2011 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Quatech Inc. Airborne WLAN Module to document the findings of the maximum permissible exposure evaluation on the Quatech Inc. Airborne WLAN Module. The purpose of this evaluation is to establish a minimum safe distance as per the RF exposure requirements as defined in FCC §1.1307 & §1.1310 and Industry Canada RSS 102. This report documents the results of testing to the requirements of:  CFR Title 47 Volume 1 Practice and Procedure; (1.1307) Environmental Assessments The Evaluation was performed by Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Washington Laboratories, Ltd. has been accepted as an EMC Conformity Assessment Body (CAB) under the United States/European Union Memorandum of Agreement. Washington Laboratories, Ltd. is accredited by ACLASS under Testing Certificate AT-1448. Revision History Reason Date Rev 0 Initial Release February 28, 2011 Quatech Inc. Airborne WLAN Module RF Exposure Test Report February, 2011 WLL Report #11843-MPE - iv - © 2011 Washington Laboratories, Ltd. Table of Contents Abstract .................................................................................................................................................................... ii 1 Introduction ................................................................................................................................................ 1 2 Requirements .............................................................................................................................................. 1 2.1 Transmitter Categories ............................................................................................................................. 1 2.2 Exposure Categories ................................................................................................................................ 1 3 Device Summary ......................................................................................................................................... 3 4 Radio Frequency Radiation Exposure Evaluation .................................................................................. 3 Quatech Inc. Airborne WLAN Module RF Exposure Test Report February, 2011 WLL Report #11843-MPE - v - © 2011 Washington Laboratories, Ltd. List of Tables Table 1: MPE Limits ..................................................................................................................................................2 Table 2: Device Summary of the Airborne WLAN Module ......................................................................................3 Table 3: Transmitter MPE Calculation Summary ......................................................................................................4 Quatech Inc. Airborne WLAN Module RF Exposure Test Report February, 2011 WLL Report #11843-MPE - Page 1 of 4 - © 2011 Washington Laboratories, Ltd. 1 Introduction This report has been prepared on behalf of Quatech Inc. Airborne WLAN Module Transmitter to show compliance with the RF exposure requirements as defined in FCC §1.1307. Testing supporting this evaluation was performed at Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Washington Laboratories, Ltd. has been accepted as an EMC Conformity Assessment Body (CAB) under the United States/European Union Memorandum of Agreement. Washington Laboratories, Ltd. is accredited with ACLASS under Testing Certificate AT-1448. 2 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable. Additionally, the FCC categorizes the use of the devices based on the user’s awareness and the ability to exercise control over his or her exposure. The two categories are defined as Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. 2.1 Transmitter Categories 2.1.1 Fixed Installations A fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. 2.1.2 Mobile Devices A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. 2.1.3 Portable Devices A portable device is defined as a transmitting device designed to be used so that the radiat…

Text truncated - open the document above for the full version.

Test Report

Certificates and reports shall not be reproduced except in full, without the written permission of Washington Laboratories, Limited. FCC & Industry Canada Certification Test Report For the Quatech Inc. Airborne WLAN Module FCC ID: F4AWLNG551 IC: 3913A-WLNG551 WLL JOB# 11843-01 February 28, 2011 Prepared for: Quatech Inc. 5675 Hudson Industrial Parkway Hudson, OH 44236 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Testing Certificate AT-1448 Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - ii - © 2011 Washington Laboratories, Ltd. FCC & Industry Canada Certification Test Report for the Quatech Inc. Airborne WLAN Module FCC ID: F4AWLNG551 IC: 3913A-WLNG551 February 28, 2011 WLL JOB# 11843-01 Prepared by: James Ritter Compliance Engineer Reviewed by: Steven D. Koster EMC Operations Manager Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - iii - © 2011 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Quatech Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for a Direct Sequence Spread Spectrum Transmitter under Part 15.247 (10/2009) of the FCC Rules and Regulations and Spectrum Management and Telecommunications Policy RSS-210 issue 8 of Industry Canada. This Certification Test Report documents the test configuration and test results for the Quatech Inc. Airborne WLAN Module. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by ACLASS under Certificate AT-1448 as an independent FCC test laboratory. The Quatech Inc. Airborne WLAN Module complies with the limits for a Direct Sequence Spread Spectrum Transmitter under FCC Part 15.247 and Industry Canada RSS-210. Revision History Description of Change Date Rev 0 Initial Release February 28, 2011 Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - iv - © 2011 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction ..........................................................................................................................1 1.1 Compliance Statement .................................................................................................... 1 1.2 Test Scope ....................................................................................................................... 1 1.3 Contract Information ....................................................................................................... 1 1.4 Test Dates ....................................................................................................................... 1 1.5 Test and Support Personnel ............................................................................................ 1 1.6 Abbreviations .................................................................................................................. 2 2 Equipment Under Test .........................................................................................................3 2.1 EUT Identification & Description .................................................................................. 3 2.2 Antenna Listings ............................................................................................................. 4 2.3 Test Configuration .......................................................................................................... 4 2.4 Testing Algorithm ........................................................................................................... 4 2.5 Test Location .................................................................................................................. 4 2.6 Measurements ................................................................................................................. 5 2.6.1 References ................................................................................................................... 5 2.7 Measurement Uncertainty ............................................................................................... 5 3 Test Results ..........................................................................................................................8 3.1 Test Summary ................................................................................................................. 8 3.2 Occupied Bandwidth: (FCC Part §15.247 (2)) ............................................................... 9 3.3 RF Power Output: (FCC Part §15.247(b)) .................................................................... 22 3.4 Power Spectral Density (Section §15.247(e)) ............................................................... 23 3.5 Conducted Spurious Emissions at Antenna Terminals (FCC Part §15.247(c)) ............ 36 3.5.1 Band Edge Compliance ............................................................................................. 85 3.6 AC Conducted Emissions (FCC Part §15.207)............................................................. 93 3.6.1 Requirements ............................................................................................................ 93 3.6.2 Test Procedure .......................................................................................................... 93 3.6.3 Test Data .......…

Text truncated - open the document above for the full version.

Test Report

Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 54 of 111- © 2011 Washington Laboratories, Ltd. Figure 42: Conducted Spurious Emissions, Channel 6, 11Mbps, 1 – 2.39GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 55 of 111- © 2011 Washington Laboratories, Ltd. Figure 43: Conducted Spurious Emissions, Channel 6, 11Mbps, 2.39 – 2.485GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 56 of 111- © 2011 Washington Laboratories, Ltd. Figure 44: Conducted Spurious Emissions, Channel 6, 11Mbps, 2.485 - 5GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 57 of 111- © 2011 Washington Laboratories, Ltd. Figure 45: Conducted Spurious Emissions, Channel 6, 11Mbps, 5 - 10GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 58 of 111- © 2011 Washington Laboratories, Ltd. Figure 46: Conducted Spurious Emissions, Channel 6, 11Mbps, 10-15GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 59 of 111- © 2011 Washington Laboratories, Ltd. Figure 47: Conducted Spurious Emissions, Channel 6, 11Mbps, 15-20GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 60 of 111- © 2011 Washington Laboratories, Ltd. Figure 48: Conducted Spurious Emissions, Channel 6, 11Mbps, 20-25 GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 61 of 111- © 2011 Washington Laboratories, Ltd. Figure 49: Conducted Spurious Emissions, Channel 6, 54Mbps, 30 - 1000MHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 62 of 111- © 2011 Washington Laboratories, Ltd. Figure 50: Conducted Spurious Emissions, Channel 6, 54Mbps, 1 – 2.39GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 63 of 111- © 2011 Washington Laboratories, Ltd. Figure 51: Conducted Spurious Emissions, Channel 6, 54Mbps, 2.39 – 2.485GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 64 of 111- © 2011 Washington Laboratories, Ltd. Figure 52: Conducted Spurious Emissions, Channel 6, 54Mbps, 2.485 - 5GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 65 of 111- © 2011 Washington Laboratories, Ltd. Figure 53: Conducted Spurious Emissions, Channel 6, 54Mbps, 5 - 10GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 66 of 111- © 2011 Washington Laboratories, Ltd. Figure 54: Conducted Spurious Emissions, Channel 6, 54Mbps, 10-15GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 67 of 111- © 2011 Washington Laboratories, Ltd. Figure 55: Conducted Spurious Emissions, Channel 6, 54Mbps, 15-20GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 68 of 111- © 2011 Washington Laboratories, Ltd. Figure 56: Conducted Spurious Emissions, Channel 6, 54Mbps, 20-25 GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 69 of 111- © 2011 Washington Laboratories, Ltd. Figure 57: Conducted Spurious Emissions, Channel 11, 11Mbps, 30 - 1000MHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 70 of 111- © 2011 Washington Laboratories, Ltd. Figure 58: Conducted Spurious Emissions, Channel 11, 11Mbps, 1 – 2.39GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 71 of 111- © 2011 Washington Laboratories, Ltd. Figure 59: Conducted Spurious Emissions, Channel 11, 11Mbps, 2.39 – 2.485GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 72 of 111- © 2011 Washington Laboratories, Ltd. Figure 60: Conducted Spurious Emissions, Channel 11, 11Mbps, 2.485 - 5GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 73 of 111- © 2011 Washington Laboratories, Ltd. Figure 61: Conducted Spurious Emissions, Channel 11, 11Mbps, 5 - 10GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 74 of 111- © 2011 Washington Laboratories, Ltd. Figure 62: Conducted Spurious Emissions, Channel 11, 11Mbps, 10-15GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 75 of 111- © 2011 Washington Laboratories, Ltd. Figure 63: Conducted Spurious Emissions, Channel 11, 11Mbps, 15-20GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 76 of 111- © 2011 Washington Laboratories, Ltd. Figure 64: Conducted Spurious Emissions, Channel 11, 11Mbps, 20-25 GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 77 of 111- © 2011 Washington Laboratories, Ltd. Figure 65: Conducted Spurious Emissions, Channel 11, 54Mbps, 30 - 1000MHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 78 of 111- © 2011 Washington Laboratories, Ltd. Figure 66: Conducted Spurious Emissions, Channel 11, 54Mbps, 1 – 2.39GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 79 of 111- © 2011 Washington Laboratories, Ltd. Figure 67: Conducted Spurious Emissions, Channel 11, 54Mbps, 2.39 – 2.485GHz Quatech Inc. Airborne WLAN Module FCC Certification Test Report February 2011 WLL Report #11843-01 - 80 of 111- © 2011 Washington Laboratories, Ltd. Figure 68: Conducted Spurious Emissions, Channel 11, 54Mbps, 2.485 - 5GHz Quatech Inc. Airborne WLAN M…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd Test Setup Photos ©2008 Washington Laboratories, Ltd

Contact Information

Applicant

Mike McNatt(Compliance Engineer)
[email protected]815-433-5100Fax: 815-433-5100

Technical Contact

Washington LabsSteve Koster
[email protected]301-216-1500

7560 Lindbergh Drive · Gaithersburg, Maryland · United States

Test Firm

Washington Laboratories, Ltd.Steve Koster
[email protected]301-216-1500Fax: 301-216-1590

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz81.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The unit requires professional installation, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain maybe used with this transmitter. End-users and professional installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
