FDI-01309347-0MiniStation Air

HDW-P500U3 Installation Guide 0 Table of Contents Overview.....................................................................2 Requirements................................................................3-4 Section I .................................................................5-8 Connecting to the HDW-P500U3 .................5-8 Section II......................................................................9-19 Playing Music.......................................................10 Playing Video.......................................................11 Viewing Photos...............................................12-13 Uploading Photos/Videos....................................14 Downloading Files..........................................15-16 Create/Copy/Move Files & Folders..................17-19 Section III..............................................................20-23 Connecting to HDW-P500U3 Using Computer....20-21 Mounting the Hard Drive.......................................22-23 Section IV...................................................................24-25 Accessing the HDW-P500U3 GUI........................24-25 1 Overview Supported File Formats for iPhone/iPad app: 1. Video  m4v, mp4, mov (using H.264 or Mpeg-4 codec only and must be DRM free) 2. Audio  AAC (NO-DRM), AIFF, Apple Lossless, Mp3, WAV 3. Pictures (Viewable Only)  JPG, BMP, TIF, PNG, and GIF 4. Documents (Viewable Only)  ppt (Power point), xls (Excel), .docx or .doc (Word), pdf 2 Requirements The following procedures are instructions on how to establish a connection with the HDW-P500U3. Please make sure you have the following requirements. Hardware Requirements  PC or Mac computer with USB 3.0/2.0 port (For Samba sharing, file transfer, or to access the HDW-P500U3 Connect user interface)  iPhone (3G or better), iPad (1 or better) or iPod Touch (2 nd generation or better)  Android device and Tablet  NTFS formatted 2.5 inch hard drive 3 Requirements Software Requirements  Windows XP/Vista/7 or higher  Mac OSX 10.5 or higher  HDW-P500U3 Connect application for IOS (IOS 4.0 or higher)  HDW-P500U3 Connect application for Android (Android phone 2.3 or 3.0 for tablets)  Web browser to access the User Interface (IE 6 or better, Firefox 3 or better, or Safari 4 or better) 4 Section I Connecting to the HDW-P500U3 using an iPhone, iPod Touch or iPad 1. Press the “Settings” button on your device. 2. Select the “General” tab. 3. Select the “Wi-Fi” tab. Your device will be searching for any wireless hotspot within in range (See screenshot below). 5 Section I 4. Select the hotspot called “WiFi DAS”. 6 Section I 5. Make sure an IP address has been assigned (10.10.10.xxx) 6. Once the connection is established, launch the HDW-P500U3 Connect iOS application. This “App” can be downloaded App store. 7 Section I 7. Once you have open the application you will be able to browse the HDW-P500U3. 8 Section II Navigating the HDW-P500U3 Connect Application The following is a description of the icons that appears in the home screen:  WiFi DAS – This is where you can view files that are in the HDW-P500U3.  MyDevice – This folder contains files that were downloaded from the HDW-P500U3 to your phone or tablet.  Upload – This is where you can upload from your phone or tablet to the HDW-P500U3. At the moment you can only upload pictures or videos that are in your device’s photo library.  Download- This is where you can download files from the HDW-P500U3 and store them to your phone or tablet.  Settings- This is where you can change the settings for the HDW-P500U3. 9 Section II Playing Music 1. Select the audio file that you wish to play. 2. Once the song begins to play the music player will appear. 3. Select the “Back” button if you wish to return to the main 10 Section II Playing Video 1. Select the video file that you wish to play. 2. Once the video has been selected it will need to load. 3. Once the video finishes loading it will start playing 11 Section II Viewing Photos 1. Select the photo you wish to view. 2. Once you have selected the photo the picture viewer will start. Pressing the “Play” button will begin the slideshow 12 Section II The slide show settings can be changed by pressing the “Settings” tab on the main screen. 13 Section II Uploading photos/video to HDW-P500U3 1. Select the “upload” tab. 2. The upload screen will then appear. 3. Press the “+” button. 4. Select the files that you wish to upload to the HDW-P500U3. Once the files have been chosen, press the “upload” button. This should start the upload process to the HDW-P500U3. 14 Section II Downloading files from HDW-P500U3 to your phone or tablet 1. Select the “download” tab. 2. The download screen will then appear. 3. Press the “+” button. 4. Select the files that you wish to download from HDW-P500U3. Once the files have been chosen, press the “download” button. This should start the download process from HDW-P500U3 to your device 15 Section II 5. Files that have been downloaded are located in the “MyDevice” folder. 16 Section II Create/Copy/Move Files or Folders 1. Select the “MyDevice” folder tab. 2. Select the “edit” tab. 3. You can now create a new folder, in order to move or copy files to. 17 Section II 4. In order to copy/move a file you will need to select the files. 5. Choose the files or folders that will be copied or moved. 6. Once the files have been chosen press the “Done” tab. 7. Select the new folder that was created. 18 Section II 8. Press the “edit” tab. A new screen will appear. 9. Press the “paste” tab. The files that were selected will now be copied/moved to the new folder. 19 Section III Connecting to the Wi-Fi Settings of Your Operating System 1. Navigate to the Wi-Fi settings of your operating system Window 7 20 Section III OSX 2. Select the hotspot called “WiFi DAS”. 3. Make sure an IP address has been assigned. 21 Section III Mounting the Hard Drive Once you have connected your computer to the WiFi DAS, the device should app…

Text truncated - open the document above for the full version.

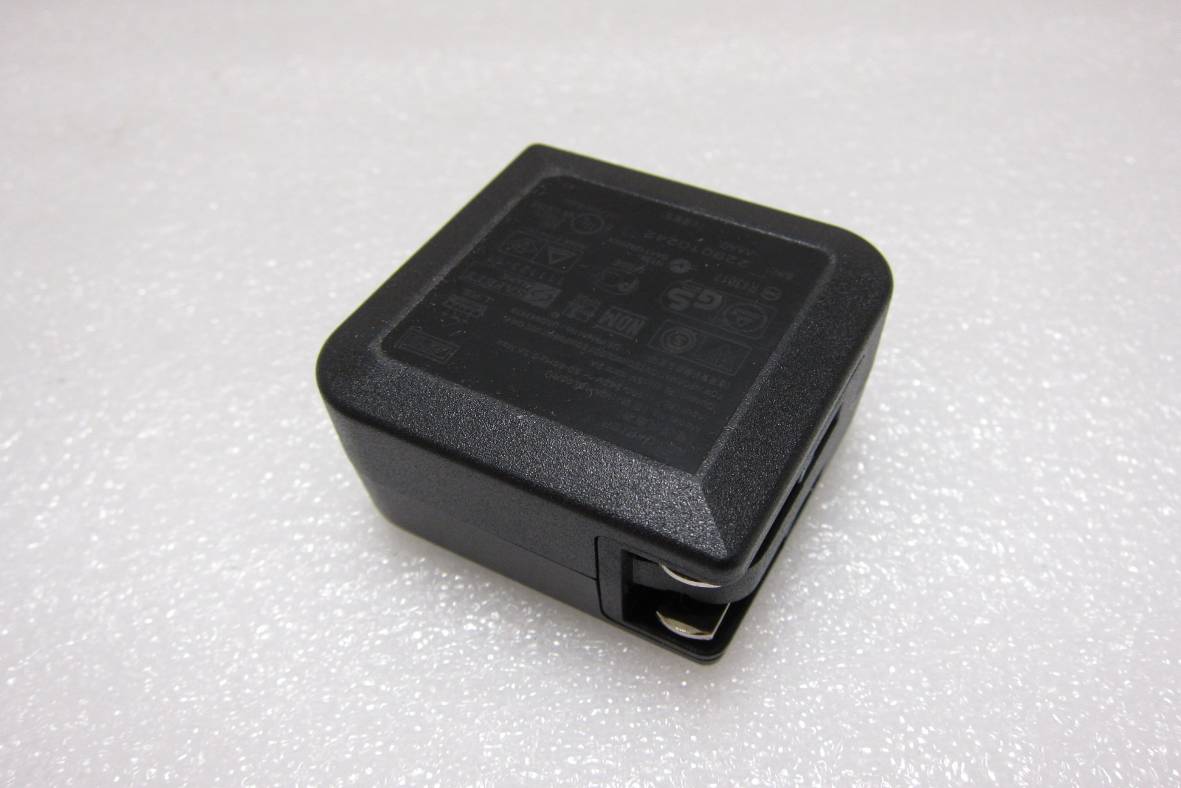

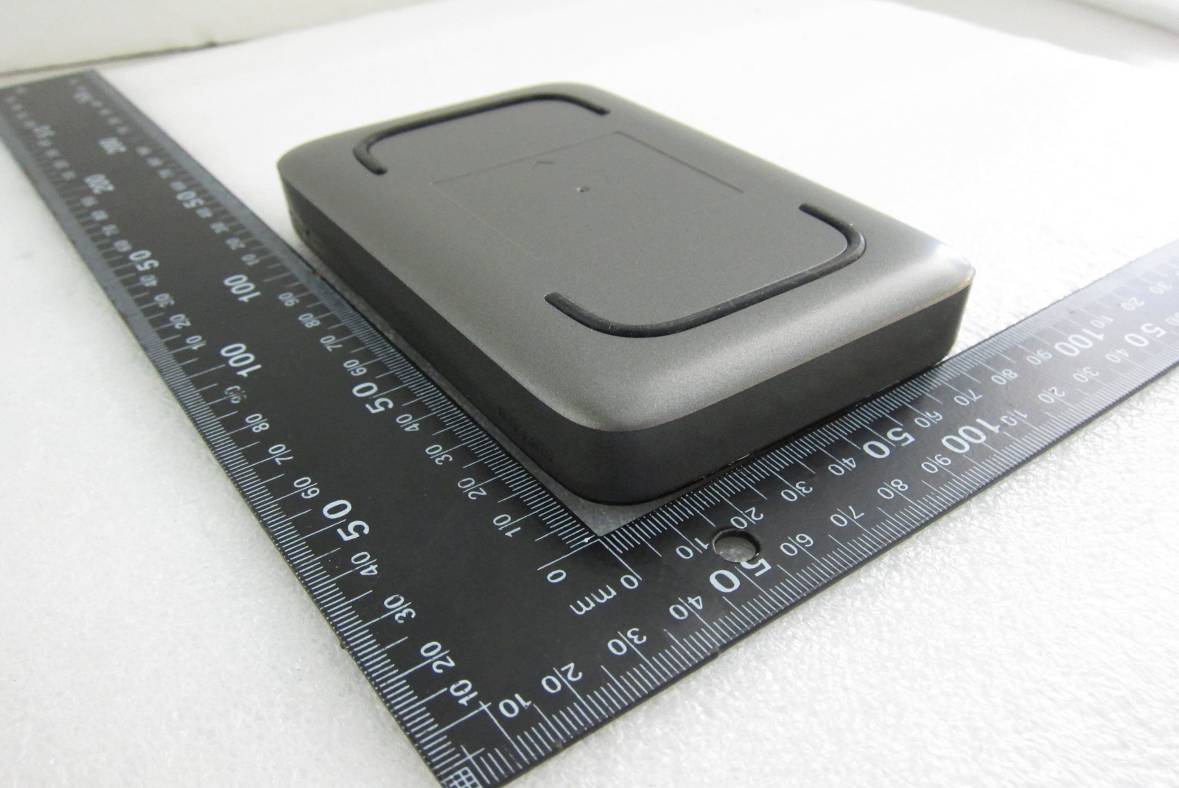

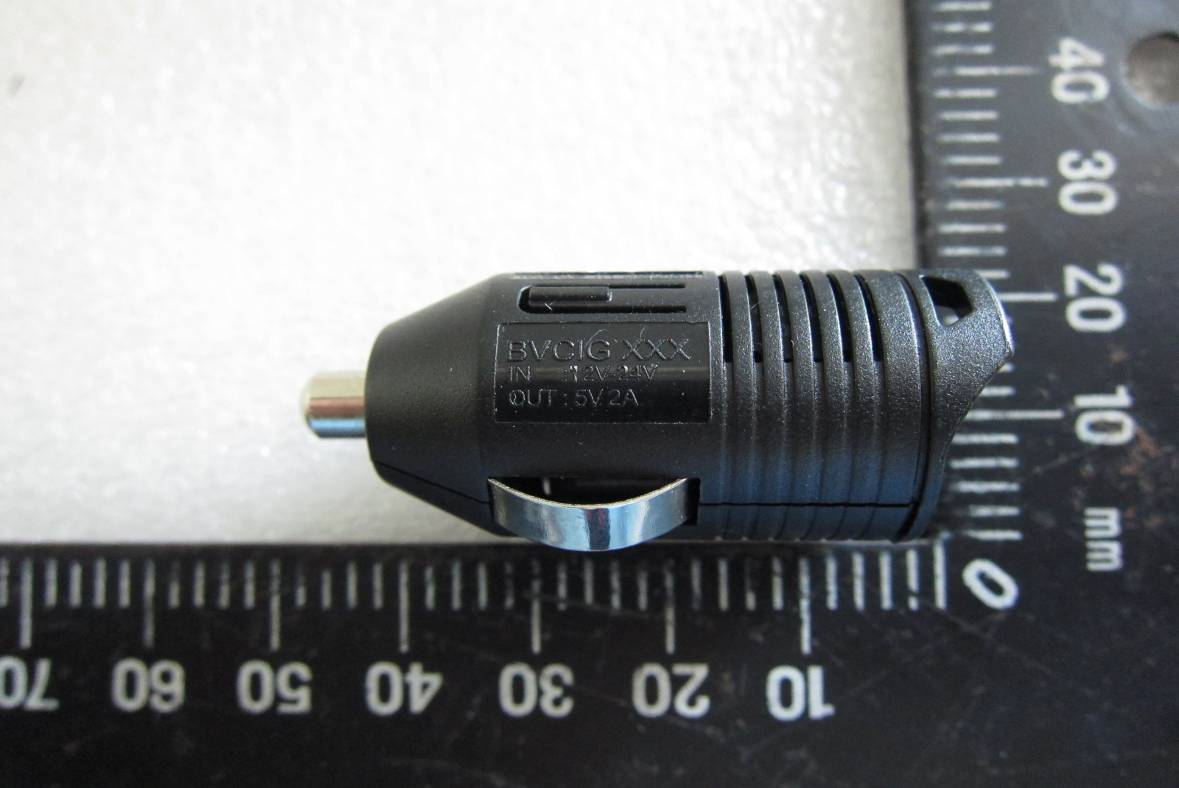

FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC EXTERNAL PHOTOGRAPHS OF EUT FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC All of EUT External of EUT – 1 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC External of EUT – 2 External of EUT – 3 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC External of EUT – 4 External of EUT – 5 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC External of EUT – 6 External of EUT – 7

HDW-PU3 series MADE IN CHINA MAC : XXXXXXXXXXXX KEY : XXXXXXXXXXXX SSID : XXXXXXXXXXXX S/N : XXXXXXXXXXXX XXXX [[G]] PIN : XXXXXXXX 2AInput:5V 2AInput:5V 2AInput:5V FCC ID : FDI-01309347-0 xxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxx HDW-PU3 series MADE IN CHINA MAC : XXXXXXXXXXXX KEY : XXXXXXXXXXXX SSID : XXXXXXXXXXXX S/N : XXXXXXXXXXXX XXXX [[G]] PIN : XXXXXXXX HDW-PU3 series MADE IN CHINA MAC : XXXXXXXXXXXX KEY : XXXXXXXXXXXX SSID : XXXXXXXXXXXX S/N : XXXXXXXXXXXX XXXX [[G]] PIN : XXXXXXXX HDW-PU3 series MADE IN CHINA MAC : XXXXXXXXXXXX KEY : XXXXXXXXXXXX SSID : XXXXXXXXXXXX S/N : XXXXXXXXXXXX XXXX [[G]] PIN : XXXXXXXX XXXXXXXXXXXXXX 2A5V 输入/輸入 电压/電壓 电流/電流 해당 무선설비는 운용 중 전파혼신 가능성이 있음 KCC-REM-BUF-HDW-PU3

FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC INTERNAL PHOTOGRAPHS OF EUT FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Internal of EUT – 1 Internal of EUT-2 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Internal of EUT – 3 Internal of EUT-4 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Internal of EUT – 5 Internal of EUT – 6 FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Internal of EUT – 7 (WLAN Antenna)

Page: 1 of 30 TEST REPORT of SAR New Application; Class I PC; Class II PC Product: MiniStation Air Brand: BUFFALO Mode: HDW-PU3 Model Difference: N/A FCC ID: FDI-01309347-0 Standard: FCC 47 CFR Part2(2.1093) IIEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) Applicant: BUFFALO INC. Address: AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya, 460-8315, Japan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR077FSAR Issue Date : 2012/07/10 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 30- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FSAR VERIFICATION OF COMPLIANCE Applicant: BUFFALO INC. Product: MiniStation Air Brand Name: BUFFALO Model No.: HDW-PU3 Model Difference: N/A FCC ID: FDI-01309347-0 Date of test: 2012/05/16 ~ 2012/06/29 Date of EUT Received: 2012/05/16 Standard: FCC 47 CFR Part2(2.1093) IIEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/07/10 Arno Hsieh / Supervisor Prepared By: Date: 2012/07/10 Arno Hsieh / Supervisor Approved By: Date: 2012/07/10 Vincent Su / Technical Manager -3 of 30- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FSAR Version Version No. Date Description 00 2012/07/10 Initial creation of document -4 of 30- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FSAR 1. Table of Contents 1 STATEMENT OF COMPLIANCE ................................................................................. 5 2 GENERAL INFORMATION ........................................................................................... 6 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) ................................................................................. 6 2.2 DUT PHOTOS .................................................................................................................................... 7 2.3 APPLIED STANDARDS ....................................................................................................................... 7 2.4 DEVICE CATEGORY AND SAR LIMITS .............................................................................................. 7 2.5 TEST ENVIRONMENT ......................................................................................................................... 7 2.6 TEST CONFIGURATION ...................................................................................................................... 8 3 SPECIFIC ABSORPTION RATE (SAR) ........................................................................ 8 3.1 INTRODUCTION ................................................................................................................................. 8 3.2 SAR DEFINITION .............................................................................................................................. 8 4 SAR MEASUREMENT SYSTEM ................................................................................... 9 4.1 ALSAS-10U SYSTEM DESCRIPTION ................................................................................................. 9 4.2 E-FIELD PROBE ALS-E-020S ......................................................................................................... 10 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ...................................................................................................................... 12 4.4 AXIS ARTICULATED ROBOT ALS-F3 ............................................................................................. 14 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ............................................................................ 14 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ....................................................................... 15 4.7 UNIVERSAL DEVICE POSITIONER ................................................................................................... 17 4.8 TEST EQUIPMENT LIST .................................................................................................................... 18 5 TISSUE SIMULATING LIQUIDS ................................................................................ 19 6 SAR MEASUREMENT EVALUATION ...................................................................... 20 7 DUT TESTING POSITION ............................................................................................ 22 8 SAR MEASUREMENT PROCEDURES ...................................................................... 25 9 SAR TEST RESULTS ..................................................................................................... 27 9.1 CONDUCTED POWER TABLE: ........................................................................................................... 27 9.2 TEST RECORDS FOR BODY SAR…

Text truncated - open the document above for the full version.

Page: 1 of 88 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : MiniStation Air Brand: BUFFALO Model: HDW-PU3 Model Difference: N/A FCC ID: FDI-01309347-0 FCC Rule Part: §15.247, Cat: DTS Applicant: BUFFALO INC. Address: AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya, 460-8315, Japan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR077FC Issue Date : 2012/07/10 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 88- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC VERIFICATION OF COMPLIANCE Applicant: BUFFALO INC. Product Description: MiniStation Air Brand Name: BUFFALO Model No.: HDW-PU3 Model Difference: N/A FCC ID: FDI-01309347-0 Date of test: 2012/05/16 ~ 2012/06/29 Date of EUT Received: 2012/05/16 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/07/10 Dion Chang / Engineer Prepared By: Date: 2012/07/10 Eva Kao / Technical Supervisor Approved By: Date: 2012/07/10 Vincent Su / Technical Manager -3 of 88- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Version Version No. Date Description 00 2012/07/10 Initial creation of document -4 of 88- FCC ID: FDI-01309347-0 International Standards Laboratory Report Number: ISL-12LR077FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK OUTPUT POWER MEASUREMENT ....................................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 18 7 6dB Bandwidth ...............................................................…

Text truncated - open the document above for the full version.

-1 of 2- International Standards Laboratory Report Number: ISL-12LR077ESAR Appendix C: System Performance Check Report Date : 23-May-2012 By Operator : Dino Chen DUT : Dipole Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 2450.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 266 Last Calib. Date : 08-Aug-2011 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Separation : 1cm -2 of 2- International Standards Laboratory Report Number: ISL-12LR077ESAR 1 gram SAR value : 53.214 W/kg 10 gram SAR value : 25.098 W/kg Area Scan Peak SAR : 65.553 W/kg Zoom Scan Peak SAR : 104.07 W/kg

-1 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Appendix D: SAR Measurement Data Data No. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 1 Wifi 802.11b EUT Bottom 0.5 1 0.001 2 Wifi 802.11b EUT Top 0.5 1 0.263 3 Wifi 802.11b EUT Edge of Right 0.5 1 0.001 4 Wifi 802.11b EUT Edge of Lift 0.5 1 0.001 5 Wifi 802.11b EUT Edge of Bottom 0.5 1 0.001 6 Wifi 802.11b EUT Top 0.5 6 0.168 7 Wifi 802.11b EUT Top 0.5 11 0.146 8 Wifi 802.11g EUT Top 0.5 6 0.105 9 Wifi 802.11n 20 EUT Top 0.5 6 0.129 10 Wifi 802.11n 40 EUT Top 0.5 6 0.165 -2 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Data No. 1: Report Date : 23-May-2012 By Operator : Dino Measurement Date : 23-May-2012 Starting Time : 23-May-2012 02:12:02 PM End Time : 23-May-2012 02:29:15 PM Scanning Time : 1033 secs Product Data Device Name : 12LR077 Serial No. : NA Type : Other Model : HDW-PU3 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 80 mm Width : 130 mm Depth : 20 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-3.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 23-May-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.63 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -3 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 23-May-2012 Set-up Time : 1:29:14 PM Area Scan : 8x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 5mm Channel : Low -4 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR 1 gram SAR value : 0.001 W/kg 10 gram SAR value : 0.001 W/kg Area Scan Peak SAR : 0.001 W/kg Zoom Scan Peak SAR : 0.000 W/kg -5 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Data No. 2: Report Date : 23-May-2012 By Operator : Dino Measurement Date : 23-May-2012 Starting Time : 23-May-2012 09:16:56 PM End Time : 23-May-2012 09:36:11 PM Scanning Time : 1155 secs Product Data Device Name : 12LR077 Serial No. : NA Type : Other Model : HDW-PU3 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 80 mm Width : 130 mm Depth : 20 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.114 W/kg Power Drift-Finish: 0.080 W/kg Power Drift (%) : -30.211 Picture : C:\alsas\bitmap\Device-5.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 23-May-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.63 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -6 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 23-May-2012 Set-up Time : 1:29:14 PM Area Scan : 9x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 5mm Channel : Low -7 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR 1 gram SAR value : 0.263 W/kg 10 gram SAR value : 0.095 W/kg Area Scan Peak SAR : 0.355 W/kg Zoom Scan Peak SAR : 0.540 W/kg -8 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Data No. 3: Report Date : 23-May-2012 By Operator : Dino Measurement Date : 23-May-2012 Starting Time : 23-May-2012 04:58:05 PM End Time : 23-May-2012 05:12:21 PM Scanning Time : 856 secs Product Data Device Name : 12LR077 Serial No. : NA Type : Other Model : HDW-PU3 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 20 mm Width : 130 mm Depth : 80 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-4.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 23-May-2012 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 53.63 F/m Sigma : 2.04 S/m Density : 1000.00 kg/cu. m -9 of 32- International Standards Laboratory Report Number: ISL-12LR077ESAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 23-May-2012 Set-up Time : 1:29:14 PM Area Scan : 5x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: 1289-1298 Client.: ISL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe Record of Calibration Head and Body Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 266 Calibration Procedure: D01-032-E020-V2, D22-012-Tissue, D28-002-Dipole Project No: ISL-E020-5612 Calibrated: 8 th August 2011 Released on: 15 th August 2011 Approved By: Stuart Nicol NCL CALIBRATION LABORATORIES 303 Terry Fox Drive, Suite 102 Division of APREL Kanata, Ontario TEL: (613) 435-8300 CANADA K2K 3J1 FAX: (613) 435-8306 NCL Calibration Laboratories Division of APREL Inc. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the references listed below. Calibration is performed using accepted methodologies as per the references listed below. Probes are calibrated for air, and tissue and the values reported are the results from the physical quantification of the probe through meteorgical practices. Calibration Method Probes are calibrated using the following methods. <1000MHz TEM Cell for sensitivity in air Standard phantom using temperature transfer method for sensitivity in tissue >1000MHz Waveguide* method to determine sensitivity in air and tissue *Waveguide is numerically (simulation) assessed to determine the field distribution and power The boundary effect for the probe is assessed using a standard flat phantom where the probe output is compared against a numerically simulated series of data points References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz NCL Calibration Laboratories Division of APREL Inc. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conditions Probe 266 was a recalibration. **The probe was received in good working order, although …

Text truncated - open the document above for the full version.
