FDI000000027MiniStation

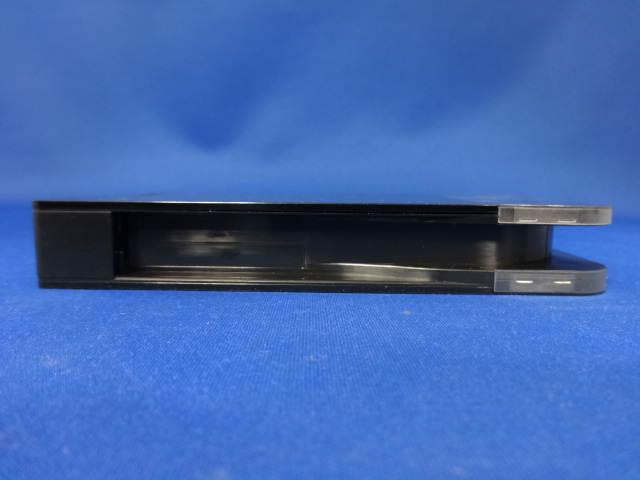

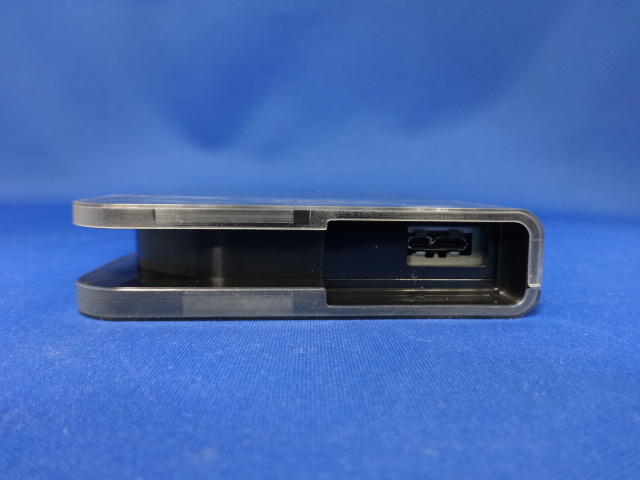

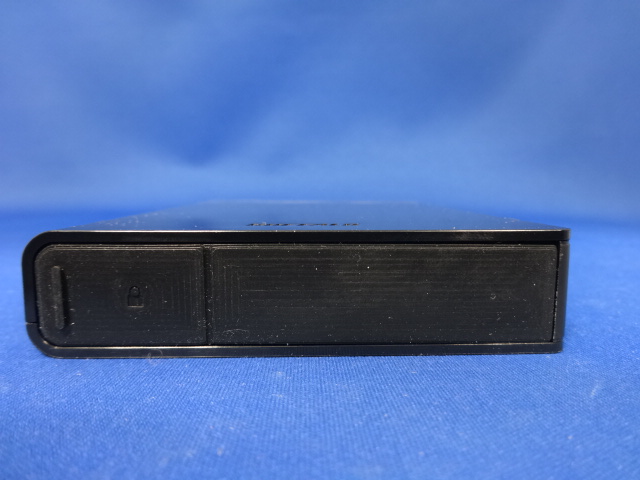

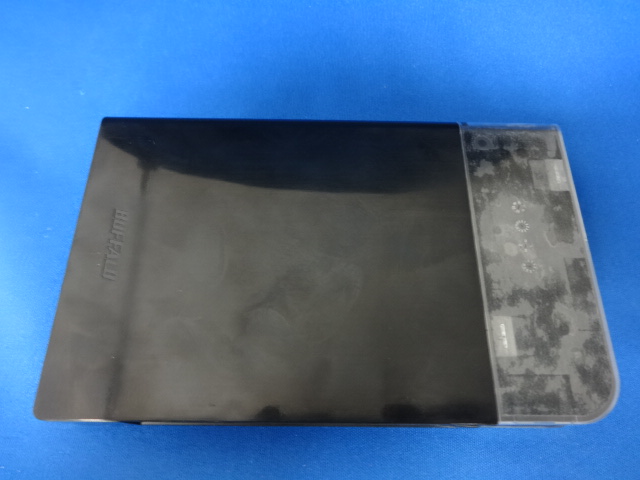

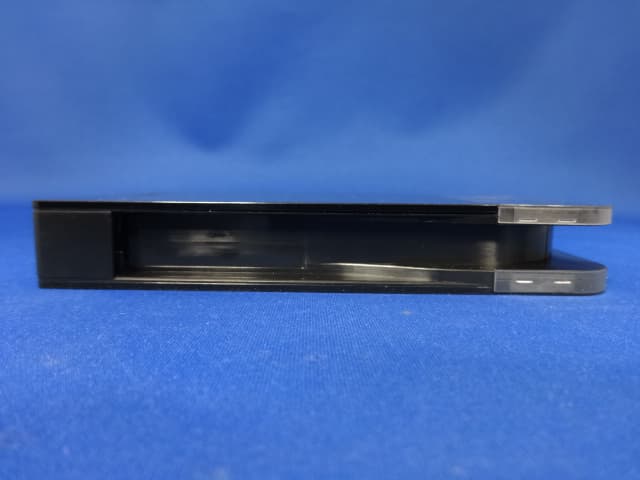

External Photo BUFFALO INC. Mini Station [Model: HD-PZNU3] Front Rear External Photo BUFFALO INC. Mini Station [Model: HD-PZNU3] Top Bottom External Photo BUFFALO INC. Mini Station [Model: HD-PZNU3] Right Left

Internal Photo BUFFALO INC. Mini Station [Model: HD-PZNU3] Front Rear Internal Photo BUFFALO INC. Mini Station [Model: HD-PZNU3] PCB (Front) PCB (Rear)

Test report No. : 10610722H-A Page : 1 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10610722H-A Applicant : Buffalo Inc. Type of Equipment : MiniStation Model No. : HD-PZNU3 Test regulation : FCC Part 15 Subpart C: 2014 FCC ID : FDI000000027 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) Date of test: December 25, 2014 to January 12, 2015 Representative test engineer: Shinichi Miyazono Engineer Consumer Technology Division Approved by: Takayuki Shimada Engineer Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10610722H-A Page : 2 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10610722H-A Revision Test report No. Date Page revised Contents - (Original) 10610722H-A January 21, 2015 - - Test report No. : 10610722H-A Page : 3 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask) ....... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission ..............................................................................................................................................................13 Fundamental emission and Spectrum Mask .......................................................................................................................16 Spurious emission .................................................................................................................................................................19 20dB Bandwidth and 99% Occupied Bandwidth ...............................................................................................................25 Frequency Tolerance ............................................................................................................................................................26 APPENDIX 2: Test instruments ........................................................................................................ 27 APPENDIX 3: Photographs of test setup ......................................................................................... 29 Conducted emission ..............................................................................................................................................................29 Radiated emission .................................................................................................................................................................30 Worst Case Position ..............................................................................................................................................................31 Test report No. : 10610722H-A Page : 4 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Buffalo Inc. Address : AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya 460-8315 Japan Telephone Number : +81-50-5830-8892 Facsimile Number : +81-50-5830-8871 Contact Person : Atsushi Hanada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : MiniStation Model No. : HD-PZNU3 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : December 18, 2014 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 2.5GHz (max) Radio Specification Radio Type : Tra…

Text truncated - open the document above for the full version.

Test report No. : 10610722H-A Page : 29 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 10610722H-A Page : 30 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 Test report No. : 10610722H-A Page : 31 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz:Z-axis Above 30MHz:Horizontal:Z-axis / Vertical:Z-axis X-axis Y-axis Z-axis Test report No. : 10610722H-A Page : 32 of 32 Issued date : January 21, 2015 FCC ID : FDI000000027 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 With/Without Tag With Tag (Worst) Without Tag End of Report
