  1. Home/
  2. BUFFALO INC./
  3. FDI000000026

FDI000000026AirStation

BUFFALO INC.
AirStation - FCC ID FDI000000026 - BUFFALO INC.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 01, 2014
Application Purpose
Original Equipment
Date of Application
Oct 01, 2014
Equipment Note
AirStation
Frequency Range
2412.00000000 - 2462.00000000
Company
BUFFALO INC.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AirStation WZR-450HP2D User Manual www.buffalotech.com 35020xxx-01 2014-09 1 Contents Chapter 1 - Setup ...............................................................2 Diagrams and Layout ...........................................................................2 Front Panel ......................................................................................................2 Back Panel .......................................................................................................3 Bottom .............................................................................................................4 Top ....................................................................................................................4 How to Set Up AirStation for the First Time .......................................5 Opening Settings .................................................................................5 Chapter 2 - Supplemental Information ............................6 Technical Specifications ......................................................................6 2 Chapter 1 - Setup Diagrams and Layout Front Panel 1 Power/Diag LED 2 Wireless LED 3 3 Internet LED 4 Router LED Back Panel 1 Mode Switch 2 LAN LED 3 LAN Ports 4 Internet LED 5 Internet Port 6 DC connector 4 Bottom 1 Reset button Top 1 Antenna connector 5 How to Set Up AirStation for the First Time To configure your AirStation, follow the procedure below. Wired Wireless Notes: • On your device, search for available networks and find the AirStation. If a password is required, enter the AirStation’s encryption key. • Your AirStation’s default SSID and encryption key are on the setup card. Opening Settings To configure the AirStation, log in to Settings as shown below. 1 Launch a web browser. 2 Enter the AirStation’s LAN-side IP address in the address field and press the enter key. The status page will be displayed. 3 When you click on a tab, the login window will pop up. Enter the username and password you previously set. 6 Chapter 2 - Supplemental Information Technical Specifications Wireless Interface Standard ComplianceIEEE 802.11n / IEEE 802.11g / IEEE 802.11b Transmission MethodDirect sequence spread spectrum (DSSS), OFDM, MIMO Frequency RangeAvailable frequencies depend on the country of purchase. Transmission Rate IEEE 802.11n 20 MHz BW <Long GI>: 195/175.5/156/117/78/58.5/39/19.5 Mbps (3 streams) 130/117/104/78/52/39/26/13 Mbps (2 streams) 65/58.5/52/39/26/19.5/13/6.5 Mbps (1 stream) IEEE 802.11n 20 MHz BW <Short GI>: 216.7/195/173.3/130/86.7/65/43.3/21.7 Mbps (3 streams) 144.4/130/115.6/86.7/57.8/43.3/28.9/14.4 Mbps (2 streams) 72.2/65/57.8/43.3/28.9/21.7/14.4/7.2 Mbps (1 stream) IEEE 802.11n 40 MHz BW <Long GI>: 405/364.5/324/243/162/121.5/81/40.5 Mbps (3 streams) 270/243/216/162/108/81/54/27 Mbps (2 streams) 135/121.5/108/81/54/40.5/27/13.5 Mbps (1 stream) IEEE 802.11n 40 MHz BW <Short GI>: 450/405/360/270/180/135/90/45 Mbps (3 streams) 300/270/240/180/120/90/60/30 Mbps (2 streams) 150/135/120/90/60/45/30/15 Mbps (1 stream) IEEE 802.11a/IEEE 802.11g: 54/48/36/24/18/12/9/6 Mbps IEEE 802.11b: 11/5.5/2/1 Mbps Access ModeInfrastructure Mode SecurityAOSS, WPA/WPA2 mixed PSK, WPA2-PSK (AES), 64-bit or 128-bit WEP, MAC address filter Wired Interface Standard ComplianceIEEE 802.3 ab (1000BASE-T) / IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T) Transmission Rate10 / 100 / 1000 Mbps Transmission Encoding 1000BASE-T: 8B1Q4/PAM5 100BASE-TX: 4B5B/MLT-3 10BASE-T: Manchester Coding Access MethodCSMA/CD Speed and Flow Control10 / 100 / 1000 Mbps, Auto Sensing, Auto MDIX Number of Ports LAN: 4 WAN: 1 7 Other Power Supply External AC 100-240 V Universal, 50/60 Hz AC Adapter Type: WA-12M12FU/R (Depends on the region) Manufacturer: Asian Power Devices Inc. Power Consumption5.65 W (Max) Dimensions158 x 165 x 35 mm (6.22 x 6.50 x 1.38 in.) (Exclude antennas and stand) Weight420 g (14.81 oz.) (Exclude stand) Operating Environment0 - 40° C (32 - 104° F), 10 - 85% (non-condensing) The following notice is only for EU and Middle East region. Only use the cables and accessories that are included in the package. Don't use other accessories or cables unless specifically instructed to in the documentation. EU Declaration of Conformity Buffalo Inc. hereby declares that this WZR-450HP2D is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.buffalo-technology.com/declaration-of-conformity. Environmental Information • The equipment that you have purchased has required the extraction and use of natural resources for its production. • The equipment may contain hazardous substances that could impact health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. • The take-back systems will reuse or recycle most of the materials of your end of life equipment in a sound way. • The crossed-out wheeled bin symbol invites you to use those systems. • If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. Regulatory Compliance Information Note: This device is also authorized for use in the following EFTA member states: CH, IS, NO, LI The following notice is only for US region. Only use the cables and accessories that are included in the package. Don't use other accessories or cables unless specifically instructed to in the documentation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includi…

Text truncated - open the document above for the full version.

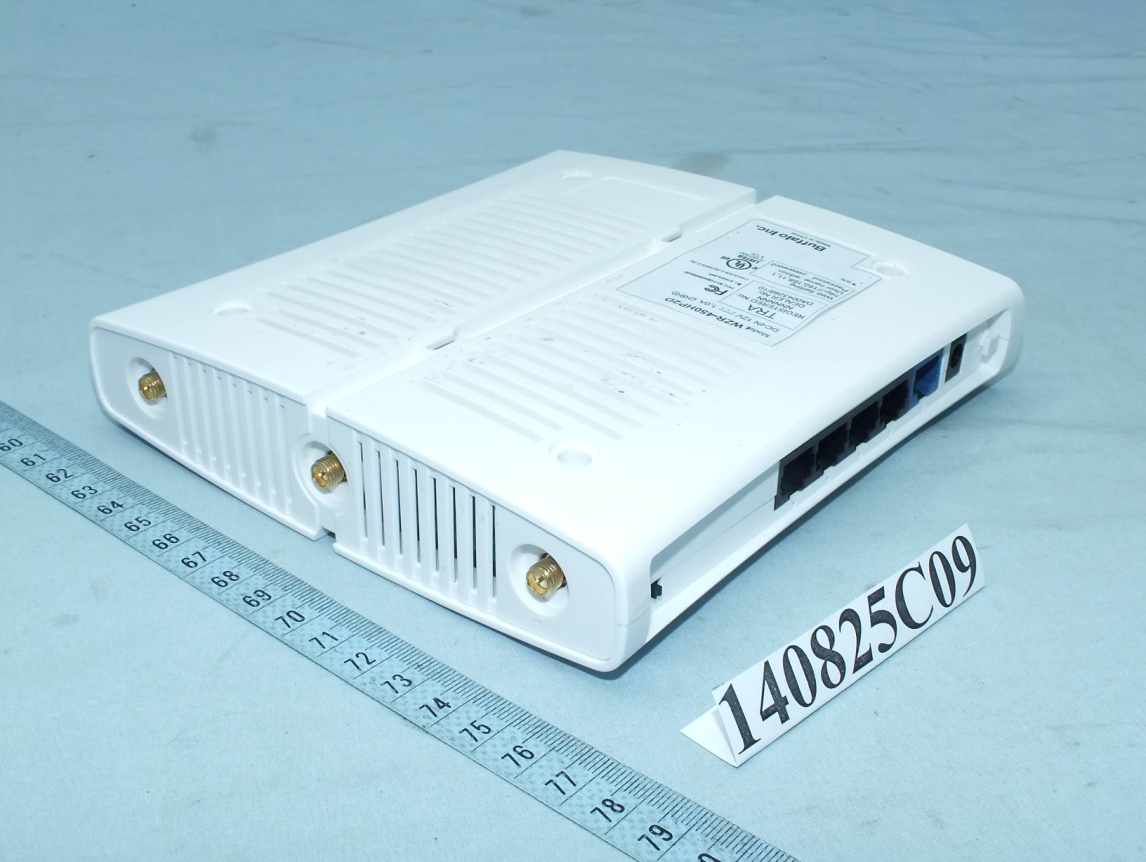

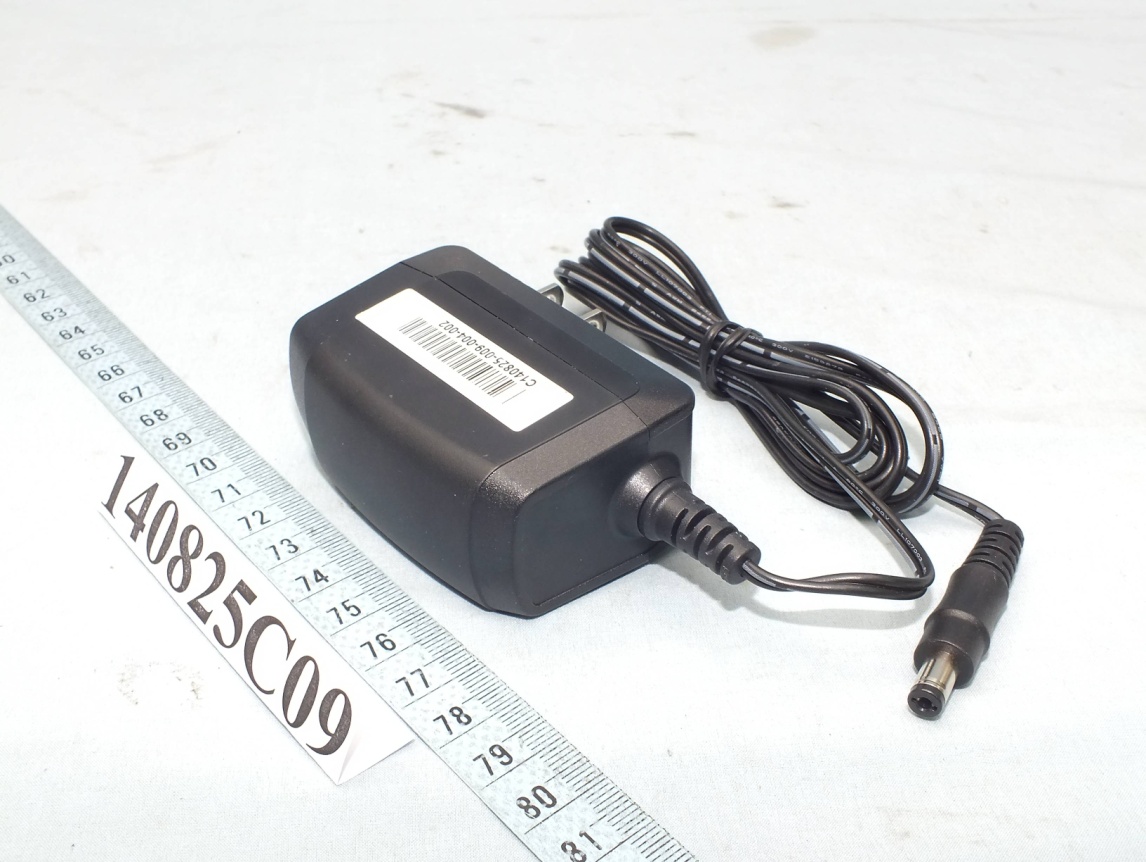

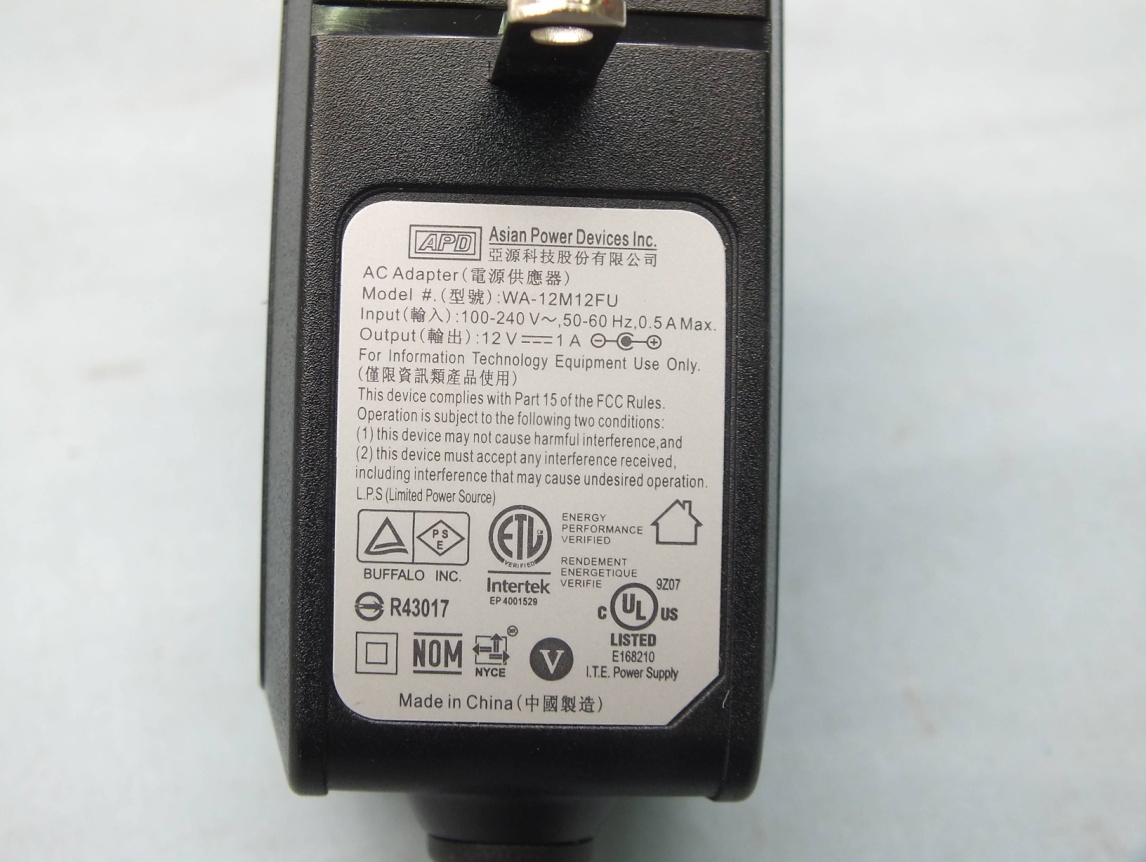

External Photos

Report No.: 140806C19 1 of 10 CONSTRUCTION PHOTOS OF EUT Report No.: 140806C19 2 of 10 Report No.: 140806C19 3 of 10 Report No.: 140806C19 4 of 10 Report No.: 140806C19 5 of 10

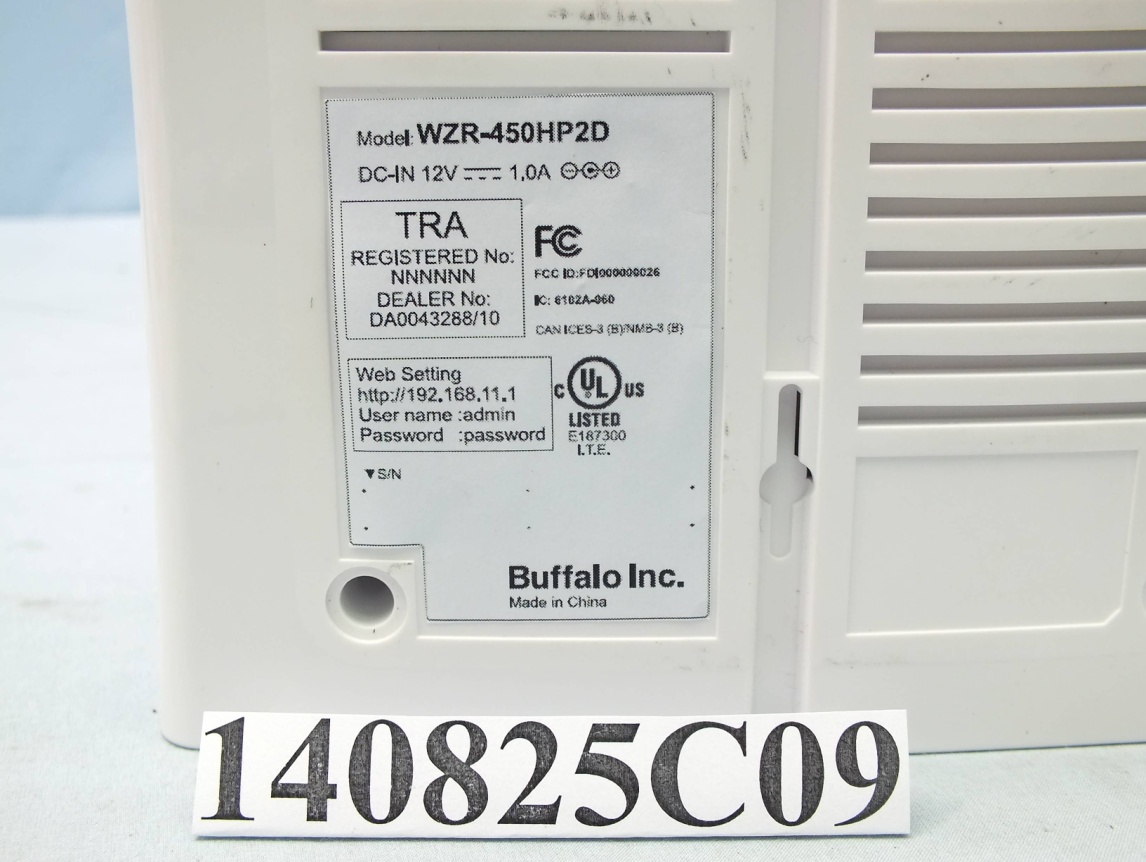

ID Label/Location Info

Label Location

Internal Photos

Report No.: 140806C19 6 of 10 Report No.: 140806C19 7 of 10 Report No.: 140806C19 8 of 10 Report No.: 140806C19 9 of 10 Report No.: 140806C19 10 of 10

Operational Description

FCC ID: FDI000000026 Report No.: RF140825C09 Operational Description This device is an AirStation, which operates in 2.4GHz; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc adapter. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

RF Exposure Info

Report No.: SA140825C09 1 of 5 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA140825C09 MODEL NO.: WZR-450HP2D FCC ID: FDI000000026 RECEIVED: Jul. 25, 2014 TESTED: Aug. 20 ~ Sep. 10, 2014 ISSUED: Sep. 12, 2014 APPLICANT: Buffalo Inc. ADDRESS: AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya 460-8315, Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA140825C09 2 of 5 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 5 Report No.: SA140825C09 3 of 5 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140825C09 Original release. Sep. 12, 2014 Report No.: SA140825C09 4 of 5 Report Format Version 5.0.1 1. CERTIFICATION PRODUCT: AirStation MODEL: WZR-450HP2D BRAND: BUFFALO TRADE NAME: Buffalo Inc. APPLICANT: Buffalo Inc. TESTED: Aug. 20 ~ Sep. 10, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment (Model: WZR-450HP2D) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Sep. 12, 2014 Polly Chien / Specialist APPROVED BY : , DATE : Sep. 12, 2014 Ken Liu / Senior Manager Report No.: SA140825C09 5 of 5 Report Format Version 5.0.1 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 26.72 9.51 20 0.835 1 NOTE: Directional gain = 4.74dBi + 10log(3) = 9.51dBi

Test Report

Report No.: RF140825C09 1 of 63 Report Format Version 5.2.1 FCC TEST REPORT REPORT NO.: RF140825C09 MODEL NO.: WZR-450HP2D FCC ID: FDI000000026 RECEIVED: Jul. 25, 2014 TESTED: Aug. 20 ~ Sep. 10, 2014 ISSUED: Sep. 12, 2014 APPLICANT: Buffalo Inc. ADDRESS: AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya 460-8315, Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140825C09 2 of 63 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................. 4 1. CERTIFICATION ......................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................................ 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 6 3. GENERAL INFORMATION ......................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................. 9 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................................. 11 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 13 4. TEST TYPES AND RESULTS .................................................................................................. 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 14 4.1.2 TEST INSTRUMENTS .............................................................................................................. 15 4.1.3 TEST PROCEDURES .............................................................................................................. 16 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 16 4.1.5 TEST SETUP ............................................................................................................................ 17 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 18 4.1.7 TEST RESULTS ....................................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................ 32 4.2.2 TEST INSTRUMENTS .............................................................................................................. 32 4.2.3 TEST PROCEDURES .............................................................................................................. 33 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 33 4.2.5 TEST SETUP ............................................................................................................................ 33 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 33 4.2.7 TEST RESULTS ....................................................................................................................... 34 4.3 6dB BANDWIDTH MEASUREMENT ....................................................................................... 36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................................................... 36 4.3.2 TEST SETUP .....…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST

Contact Information

Applicant

Mr. Masaya Ishimaru(General Manager)
[email protected]81(50)5830-8818Fax: 81(50)5830-8897

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz470.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation in accordance with FCC multi-transmitter product guidelines.
