FDI-04600022-0Wireless LAN 802.11g USB2.0 Adapter

User Manual Buffalo AirStation™ Wireless USB 2.0 Adapter WLI-U2-KG54AI www.buffalotech.com/wireless 2 Installation Wireless USB 2.0 Adapter Installation & Configuration 1. Installing the Wireless USB 2.0 Adapter: ◗ Insert the USB Adapter into your Laptop or Desktop PC as shown. USB ports may be located on the rear, front or side of your PC depending on the design. If there are multiple ports, choose the port that is free of interference to maximize antenna reception. 3 2. Device Discovery: ◗ Once inserted, Windows will automatically discover the presence of new hardware. Various popup clouds will appear from the Windows taskbar. During this time, allow Windows and the Wireless USB Adapter to communicate. The process should take about one minute. Click Next if the Found New Hardware Wizard appears as shown above. Installation 4 Installation 3. Wireless Adapter Driver Installation: ◗ In Windows XP or 2000, the following dialog box may appear as drivers are installed. If so click Yes or Continue Anyway to finish installing the necessary drivers. Windows 98SE/ME/2000 users should skip to page 9. 5 Completing Installation on Windows XP 4. Completing Driver Installation for Windows XP: ◗ When the driver has completed installing on a Windows XP PC click Finish. If you wish to use Windows Wireless Zero Configuration Service click No on the new dialog box and go on to page 6. Otherwise, click Yes on the new dialog box that will appear to install Buffalo’s Client Manager and go on to page 12. 6 3. Configuring Wireless Zero Configuration Service: ◗ If the Wireless Zero Configuration Service is activated, Windows will scan for available wireless access points once the Wireless PCI Adapter is properly installed. If Windows detects one or more access points, a network - ing icon appears on the task bar. One or more wireless networks are available appears as a caption accompanying the icon. ■ Note: If the Wireless Zero Configuration Ser- vice is not functioning, select Start>Control Panel>Administrative Tools>Services. Select Automatic in the Startup Type field of Wire - less Zero Configuration Service to enable the Wireless Zero Configuration Service. The default value of Wireless Zero Configuration Service is Automatic. ◗ Right click the networking icon in the taskbar and select View Available Wireless Networks to display a list of available wireless networks. Select an access point network name or SSID and click the Connect button to establish a connec - Using Wireless Zero Configuration Service 7 ◗ Click the Advanced button to enter an SSID network name or WEP/WPA en- cryption key, if either is necessary. To add an SSID network name that is not Using Wireless Zero Configuration Service 8 Using Wireless Zero Configuration Service ◗ To configure a WEP/WPA encryption key, select the appropriate wireless network and click the Con- figure button. ◗ From the pull down menu, select the appropriate Network Authentication and Data Encryption for the wireless network. Enter and confirm the Network Key and Key Index. Click the OK button when finished. ■ Note: Buffalo Technology recommends that users of the Wireless Zero Configuration Service upgrade to the latest version freely available at: http://www.microsoft.com . For advanced support in using Window’s XP’s Wireless Zero Configuration Service, refer to the Buffalo Support Web Site: http://www.buffalotech. com/wireless/support Skip to Page 12 if you are not using Windows XP or prefer not to use Windows XP's Wireless Zero Configuration Service. 9 Completing Installation on Windows 98SE/ME/2000 4. Completing Driver Installation for Windows 98SE/ME/2000: ◗ When the driver has completed installing on a Windows XP PC click Finish. Click Yes on the new dialog box that will appear to install Buffalo’s Client Man - ager. 10 Placeholder 11 Placeholder 12 Client Manager Use Client Manager to configure your wireless network. Use Client Manager to survey and connect to available access points, enable and use WEP/WPA en- cryption, and create connection profiles. ■ Note: Client Manager does not function properly if the Windows XP Wireless Zero Configuration Service is enabled. Installing Client Manager ◗ Once the InstallShield Wizard launches, click the Next button to begin the software installation. Client Manager

13 Client Manager ◗ Once the Installer Wizard launches, click the Next button to begin the software installation. ◗ Press I Agree to accept the license agreement and continue the installation 14 Client Manager ◗ Press the OK button to finish and close the installation program. ◗ Press the Exit button to exit the Client Manager installation utility. ◗ The Buffalo Client Manager is now installed and running, right clicking on its icon (the black notebook icon) will allow you to begin using it. 15 Client Manager Configuration Use Client Manager to configure your wireless network. To assist in configuring your wireless network, Client Manager consists of the Status page, the Survey page, and the Profiles page. You can access each page by clicking the corre - sponding button on Client Manager. In addition to these pages, several dialog boxes are available to meet specialized configuration needs. You can access the Edit Profile dialog box, New Profile dialog box, IP Configuration dialog box, or WEP Configuration dialog box using the Client Manager pages. Status Page Click the Status button to open this page. By default, this page is dis- played when you start Client Manager. This page displays the status of the connection be - tween the wireless adapter and another wireless device. This page only displays connection information no changes to the connection can be made from this screen. This page includes the following components: Client Manager Configuration 16 Client Manager Configuration • Rate – The speed that the two wireless clients are communicating at. If the Client Manager is not connected to a remote wireless device (access point or another client) then no rate will be displayed. • Channel – The channel that the two wireless clients are communicating at. If the Client Manager is not connected to a remote wireless device (access point of another client) then no channel will be displayed. The available chan - nels for use are 1-11. • Security– The type of encryption that the two wireless clients are communicat- ing with. If the Client Manager is not connected to a remote wireless device (access point of another client) then ‘No Encryption’ will be displayed. • IP Address – The IP address of the machine the Client Manager is installed on. If the Client Manager is not connected to a remote wireless device (access point of another client) or is not connected to a network with DHCP, then no IP address will be displayed. • MAC Address – The MAC address of the wireless client device inside the com- puter Client Manager is installed on. If no wireless device is present in the computer, then no MAC Address will be displayed. • Signal Strength – Displays the strength of the signal. Signal Strength is based on the peak signal level the wireless adapter receives from the wireless device to which it is connected. Next to the signal level is the wireless hardware type 17 Client Manager Configuration Survey Page Click the Survey button to open this page. Use this page to survey the area, dis- play available access points, and connect to available access points. This page includes the following components: • Wireless SSID – Displays the SSID as- sociated with each available access point. The SSID is the unique net - work name that functions as an iden - tifier for your wireless devices. All wireless devices on a network must use identical SSIDs to successfully associate with other devices on the network. buffalo_test is an example of a valid SSID. • Mode – Displays the mode/rate set that the remote wireless device is offering. • Key – Displays whether the wireless network is using any sort of encryption. 18 Client Manager Configuration Once the ‘Connect’ button is pressed, you will be prompted to enter any encryp- tion related information. The ‘Acquire IP automatically’ checkbox tells the client device to obtain an IP automati- cally from a DHCP server. This is the rec- ommended setting. The ‘ Encryption’ drop down list allows you to select the type of encryption for the net - work. By default the proper encryption type should already be selected. In the event that no encryption is used, leave the ‘No Encryption’ option selected. by the wireless network must be inputted. Please consult your wireless access point or router’s documentation for proper input of the encryption keys. Some wireless networks may require you to enter multiple keys, in this event, four separate fields are available for encryption keys. The ‘Save settings as a profile’ option will store this wireless network in your pro - files. This means you will automatically connect to this network when inside 19 Profiles Page Click the Profiles button to open this page. Use this page to access your profiles. Profiles allow you to save the information associated with a specific wireless network so you can quickly and easily connect to that network when you are in that loca - tion. The Profiles page allows you to add, delete, and edit your profiles, as well as import and export data. • Connect – Click the Connect button to connect to the selected profile and return to the ‘Status’ page. • Edit – Click the Edit button to edit the selected profile’s settings. The Edit but- ton also allows you to delete a profile no longer used or required. • Add – Click the Add button to add a profile manually. You will need important information such as SSID, encryption settings, and network type. Client Manager Configuration 20 New Profile Dialog Box Use this dialog box to create a new profile. Client Manager Configuration • Profile Name – Enter the name you want to associ- ate with the new profile. • Network Type – Select the network mode you want to associate with the new profile. Select Infra- structure if your network consists of both wired and wireless devices that communicate through a central device, such as an access point. Select Ad-hoc if your network consists of only wire- less devices that communicate with each other directly. • Network Name SSID …

Text truncated - open the document above for the full version.

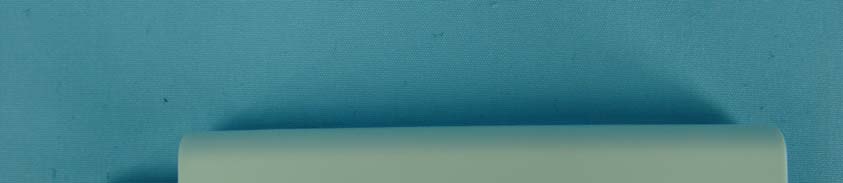

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: FDI-04600022-0 Report No.: RF930518L06 Operational Description This device is a Wireless LAN 802.11g USB2.0 Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is Printed Inverted F antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: FDI-04600022-0 Report No.: SA930518L061Issued: 21 May, 2004 SAR TEST REPORT REPORT NO.: SA930518L06 MODEL NO.: WLI-U2-KG54-YB RECEIVED: 19 May, 2004 TESTED: 20 May, 2004 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: FDI-04600022-0 Report No.: SA930518L062Issued: 21 May, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................14 5.TEST RESULTS ........................................................................................................15 5.1 TEST PROCEDURES ...............................................................................................15 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................20 6.SYSTEM VALIDATION ..............................................................................................21 6.1 TEST EQUIPMENT ...................................................................................................21 6.2 TEST PROCEDURE .................................................................................................21 6.3 VALIDATION RESULT...............................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................25 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................25 7.2 ISOTROPY UNCERTAINTY......................................................................................25 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................26 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................26 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................26 7.6 RESPONSE TIME UNCERTAINTY...........................................................................27 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................28 7.9 PROBE POSITIONING .............................................................................................29 7.10 PHANTOM UNCERTAINTY ......................................................................................29 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................30 8.INFORMATION ON THE TESTING LABORATORIES ..............................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: FDI-04600022-0 Report No.: SA930518L063Issued: 21 May, 2004 1. CERTIFICATION PRODUCT : Wireless LAN 802.11g USB2.0 Adapter MODEL NO. : WLI-U2-KG54-YB BRAND NAME : Buffalo APPLICANT : Buffalo Inc. TESTED: 20 May, 2004 TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. FCC ID: FDI-04600022-0 Report No.: SA930518L064Issued: 21 May, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless LAN 802.11g USB2.0 Adapter MODEL NO. WLI-U2-KG54-YB POWER SUPPLY 5.0Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 16.00dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 15.00dBm ANTENNA TYPE Printed Inverted F antenna with 1dBi gain AVERAGE SAR(1g) (FOR CCK) 0.586W/kg AVERAGE SAR(1g) (FOR OFDM) 0.167W/kg DATA CABLE NA I/O PORTS USB ASSOCIATED DEVICES NA NOTE: 1. Normal operating condition of the EUT shall be plugged into the laptop PC. Then the pro…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

D3: DAE

FCC ID: FDI-04600022-0 Report No.: RF930518L061Issued: May 21, 2004 FCC TEST REPORT REPORT NO.: RF930518L06 MODEL NO.: WLI-U2-KG54 , WLI-U2-KG54-AI RECEIVED: May 17, 2004 TESTED: May 17 ~ May 20, 2004 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: FDI-04600022-0 Report No.: RF930518L062Issued: May 21, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.2.8TEST RESULTS (A) .................................................................................... 25 4.2.9TEST RESULTS (B) .................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT .......................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 31 4.3.2TEST INSTRUMENTS ................................................................................ 31 4.3.3TEST PROCEDURE ................................................................................... 32 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 32 4.3.5TEST SETUP .............................................................................................. 32 4.3.6EUT OPERATING CONDITIONS................................................................ 32 4.3.7TEST RESULTS (A) .................................................................................... 33 FCC ID: FDI-04600022-0 Report No.: RF930518L063Issued: May 21, 2004 4.3.8TEST RESULTS (B) .................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 41 4.4.2TEST INSTRUMENTS ................................................................................ 41 4.4.3TEST PROCEDURES................................................................................. 42 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 42 4.4.5TEST SETUP .............................................................................................. 42 4.4.6EUT OPERATING CONDITIONS................................................................ 42 4.4.7TEST RESULTS (A) .................................................................................... 43 4.4.8TEST RESULTS (B) .................................................................................... 44 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 45 4.5.2TEST INSTRUMENTS ................................................................................ 45 4.5.3TEST PROCEDURE ................................................................................... 46 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 46 4.5.5TEST SETUP .............................................................................................. 46 4.5.6EUT OPERATING CONDITIONS........…

Text truncated - open the document above for the full version.

FCC ID: FDI-04600022-0 Report No.: RF930518L0667Issued: May 21, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: FDI-04600022-0 Report No.: RF930518L0668Issued: May 21, 2004 RADIATED EMISSION TEST
