FDI-04600043-0Wireless LAN PCI Card

54Mbps 802.11g Wireless LAN Card User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documenta tion without warranty, term, or condition of any kind. The seller may make improvements or changes in the product( s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners.  2002 All rights reserved. Rev: 01 January 2003 I Contents About This Manual.............................................................................................................. .......................................... V Chapter 1 In troduct ion........................................................................................................ ....................................... 1 Wireless LAN Basics ............................................................................................................ ....................................... 2 Local Area Ne twork (LAN)....................................................................................................... .................................................2 Ad-Hoc Mode .................................................................................................................... ........................................................3 Infrastructu re Mode ............................................................................................................ ......................................................4 Roaming ........................................................................................................................ ............................................................5 Chapter 2 Installing the Wireless LAN Card.................................................................................... ........................ 7 System Requirements ............................................................................................................ ..................................... 7 Installing Wireless LA N Driver and Software .................................................................................... .......................... 8 Chapter 3 Using Broadcom Wi reless Configur ation Utility ....................................................................... .......... 11 Accessing Broadcom Wireless Configurat ion Utility .............................................................................. ................... 12 Notice When Assessing Broadc om Utility unde r Windows XP........................................................................ ........................12 Wireless Netw orks Tab .......................................................................................................... ................................... 15 Connecting to an Exis ting Wireless Network ..................................................................................... .....................................15 Configuring a New Wirele ss Network Co nnection.................................................................................. ................................17 54Mbps 802.11g Wireless LAN Card II Configuring an Existing Wire less Network Connection ............................................................................ ..............................20 Specifying a Network Type to Access ............................................................................................ ..........................................21 Link Status Tab ................................................................................................................ ......................................... 22 Statistics ..................................................................................................................... ............................................... 25 Site Monitor ................................................................................................................... ............................................ 26 Advanced Site Monitor .......................................................................................................... ..................................................29 Diagnostics Tab................................................................................................................ ......................................... 32 Informati on Tab ................................................................................................................ ......................................... 35 Chapter 4 Windows XP Wirel ess Zero Configur ation Utility ...................................................................... ......... 37 Connecting to an Access Poin t or Wireless LAN Card ............................................................................. ..............................37 Viewing Wireless C onnection Status ............................................................................................. ..........................................39 Configuring Your Wi reless Prop erties ........................................................................................... .........................................40 Chapter 7 Tr oubleshoo ting ..................................................................................................... ................................ 47 Radio Inte rference............................................................................................................. ........................................ 47 Card Not Detected.............................................................................................................. ....................................... 48 Cannot Connect to Anot her Wireless LAN…

Text truncated - open the document above for the full version.

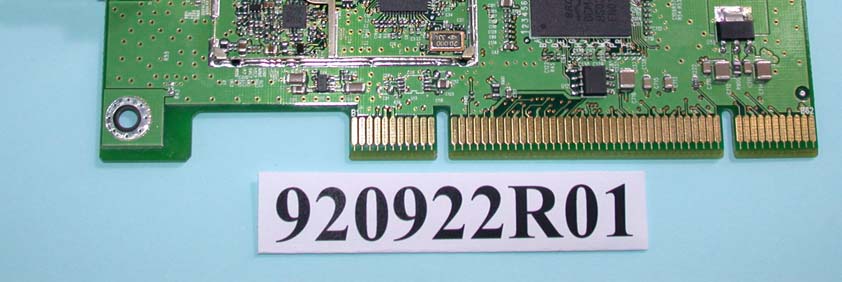

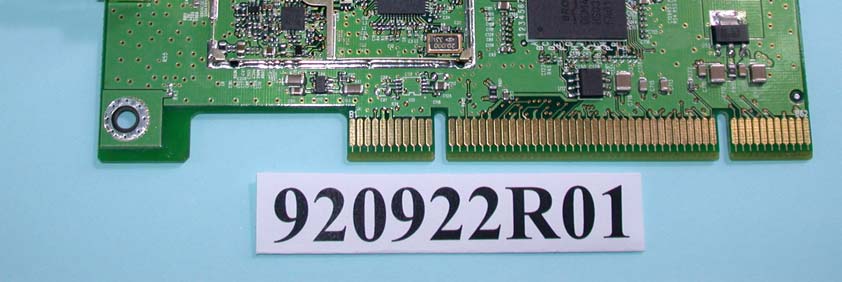

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

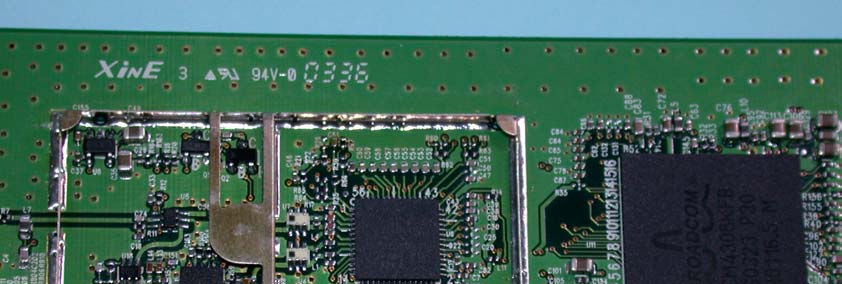

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: FDI-04600043-0 ADT No. 920922R01 Operational Description This device is a Wireless LAN PCI Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with reversed SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: FDI-04600043-0 ADT No.: 920922R01 FCC TEST REPORT REPORT NO.: RF920922R01 MODEL NO.: WLI2-PCI-G54 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: MELCO INC. ADDRESS: 1704 4-Chome, Shimard Tempaku-ku, Nagoya City, Aichi Prefecture, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: FDI-04600043-0 ADT No.: 920922R01 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Classification The modular is installed in the laptop PC with antennas mounted around LCD panel, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: FDI-04600043-0 ADT No.: 920922R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: FDI-04600043-0 ADT No.: 920922R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.8dBi or 1.514 (numeric) . 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 33.420 0.011 62437 34.672 0.011 112462 32.810 0.011 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 31.623 0.011 62437 32.509 0.011 112462 31.550 0.011

FCC ID: FDI-04600043-0 Report No.: RF920922R011Issued: September 30, 2003 FCC TEST REPORT REPORT NO.: RF920922R01 MODEL NO.: WLI2-PCI-G54 RECEIVED: September 22, 2003 TESTED: Sep. 25, 2003 ~ Sep. 26, 2003 APPLICANT: MELCO INC. ADDRESS: 1704 4-Chome, Shimard Tempaku-ku, Nagoya City, Aichi Prefecture, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: FDI-04600043-0 Report No.: RF920922R012Issued: September 30, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 9 4TEST TYPES AND RESULTS ..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 11 4.1.3TEST PROCEDURES ................................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 12 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS ................................................................ 12 4.1.7TEST RESULTS .......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES ................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS ................................................................ 22 4.2.7TEST RESULTS .......................................................................................... 23 4.2.8TEST RESULTS (A) .................................................................................... 24 4.2.9TEST RESULTS (B) .................................................................................... 27 4.36dB BANDWIDTH MEASUREMENT........................................................... 30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 30 4.3.2TEST INSTRUMENTS ................................................................................ 30 4.3.3TEST PROCEDURE ................................................................................... 30 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 31 4.3.5TEST SETUP .............................................................................................. 31 4.3.6EUT OPERATING CONDITIONS ................................................................ 31 FCC ID: FDI-04600043-0 Report No.: RF920922R013Issued: September 30, 2003 4.3.7TEST RESULTS (A) .................................................................................... 32 4.3.8TEST RESULTS (B) .................................................................................... 36 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 40 4.4.2TEST INSTRUMENTS ................................................................................ 40 4.4.3TEST PROCEDURES ................................................................................. 40 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 40 4.4.5TEST SETUP .............................................................................................. 41 4.4.6EUT OPERATING CONDITIONS ................................................................ 41 4.4.7TEST RESULTS (A) .................................................................................... 42 4.4.8TEST RESULTS (B) .................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 44 4.5.2TEST INSTRUMENTS ................................................................................ 44 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 45 4.5.5TEST SETUP ..................................................…

Text truncated - open the document above for the full version.

FCC ID: FDI-04600043-0 Report No.: RF920922R0162Issued: September 30, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: FDI-04600043-0 Report No.: RF920922R0163Issued: September 30, 2003 RADIATED EMISSION TEST
