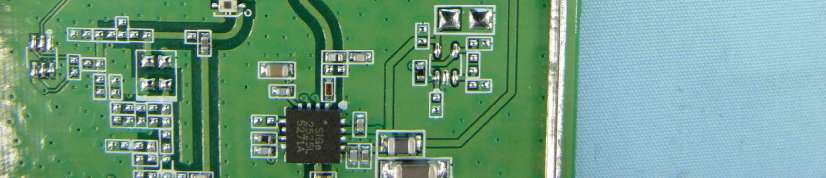

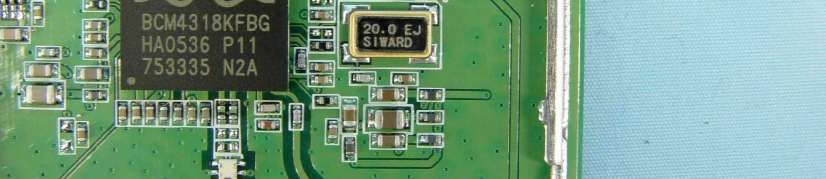

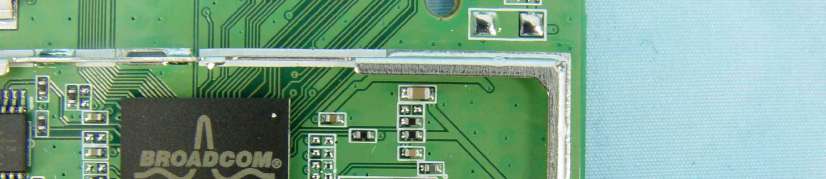

FDI-04600046-1Wireless Notebook Adapter

User Manual 125* High Speed Mode™ Wireless Notebook Adapter WLI-CB-G54S www.buffalotech.com/wireless 125* Hi Wireless Notebook 2 Introduction 802.11g Wireless Notebook Adapter Windows XP – Installation & Configuration 1. Installing the Wireless Notebook Adapter Drivers: ◗ Insert the AirNavigator CD into the CD-ROM drive of the PC. The Air Navigator Setup Wizard launches automatically. If the Air Navigator Setup Wiz - ard does not launch automati- cally, launch the wizard manu- ally by selecting Start>>Run to open the Run dialog box. Enter D:\Setup.exe in the Open field. D: represents the letter as- signed to the CD-ROM drive. If another letter is assigned to the CD-ROM drive, your command should refelect that difference. Click the OK button to launch the wizard. 3 ◗ Select Install Wireles Adapter. Click the OK button to begin the installation pro- cess. ◗ Review the Software License Agreement. Click the Yes but- ton to confirm your agreement with the terms and continue installing the Wireless PCI Adapter drivers. Click the No button to abort the installation process. Introduction 4 Introduction 2. Installing the Wireless Notebook Adapter: ◗ Power on the notebook PC and let it boot into Windows. Firmly insert the Wireless Notebook Adapter into an available CardBus slot. CardBus slots are located on one side of the notebook. Please consult the Notebook Manufacturer's documentation for CardBus installation instruc- tions. Once the Wireless Notebook Adapter is installed correctly, then the Found New Hardware Wizard will launch automatically. If the Found New Hardware Wizard does not launch, turn off the computer, remove the Wireless Notebook Adapter , restart the Notebook, and reinsert the Wireless Notebook Adapter after Windows has restarted. ◗ Select Install the software automatically. Click the Next button. 5 Introduction ◗ Select the driver you want to install. If multiple drivers are listed, select the most recent driver version. Click the Next button. ◗ If a window opens, stating that your driver does not pass Windows Logo testing, click the Continue Anyway button. When the Wireless 54Mbps Notebook Adapter is successfully in- stalled, click the Finish button. Restart your PC if prompted. 6 3. Configuring Wireless Zero Configuration Service: ◗ If the Wireless Zero Configuration Service is activated, Windows will scan for available wireless access points once the Wireless PCI Adapter is properly installed. If Windows detects one or more access points, a network - ing icon appears on the task bar. One or more wireless networks are available appears as a caption accompany - ing the icon. ■ Note: If the Wireless Zero Configuration Service is not functioning, select Start>Control Panel>Administrative Tools>Services. Select Automatic in the Startup Type field of Wireless Zero Configuration Service to enable the Wireless Zero Configuration Service. The default value of Wireless Zero Configuration Service is Automatic . ◗ Right click the networking icon in the taskbar and se- lect View Available Wireless Networks to display a list of available wireless networks. Select an access point network name or SSID and click the Connect button to establish a connection. You may need to check the box indicating you are connecting to an unsecured network. See Page 7 if you need to enter an SSID network name or WEP/WPA encryption key. Introduction 7 ◗ Click the Advanced button to enter an SSID network name or WEP/WPA encryption key, if either is necessary. To add an SSID network name that is not available, click the Add button. Introduction 8 Introduction ◗ To configure a WEP/WPA encryption key, select the ap- propriate wireless network and click the Configure button. ◗ From the pull down menu, select the appropriate Net- work Authentication and Data Encryption for the wireless network. Enter and confirm the Network Key and Key Index. Click the OK button when finished. ■ Note: Buffalo Technology recommends that users of the Wireless Zero Configuration Service upgrade to the latest version freely available at: http://www.microsoft.com. For advanced support in using Window’s XP’s Wireless Zero Configuration Service, refer to the Buffalo Support Web Site: http://www.buffalotech.com/wireless/support Skip to Page 12 if you are not using Windows XP or prefer not to use Windows XP's Wireless Zero Configuration Service. 9 Installation / Setup Windows 98/ME/2000 Installation & Configuration 1. Installing the Wireless Notebook Adapter: ◗ Power on the notebook PC and let it boot into Windows. Firmly insert the Wireless Notebook Adapter into an available CardBus slot. CardBus slots are located on one side of the notebook. Please consult the Notebook Manufacturer's documentation for CardBus installation instructions. Once the Wireless Notebook Adapter is installed correctly, then the Found New Hardware Wizard will launch automatically. If the Found New Hardware Wizard does not launch, turn off the computer, remove the Wireless Notebook Adapter , restart the Notebook, and reinsert the Wireless Notebook Adapter after Windows has restarted. 10 Installation / Setup 2. Installing the Wireless Notebook Adapter-Drivers: ◗ Insert the AirNavigator CD. Click Next at the Welcome to the Found New Hardware Wizard . Select Search for a suitable driver for my device. Click the Next button to continue. ◗ Select only the CD-ROM drives checkbox, and clear any other checkboxes that are selected. Click the Next button to continue. 11 Installation / Setup ◗ Windows will display a driver you can use with the Wireless Notebook Adapter. Click the Next button to continue. ◗ Windows 2000: If the Digital Signature Not Found page opens, informing that no digital signature exists for the driver you are installing, click the Yes button to continue the installation process. When the Wireless Desktop PCI Adapter is successfully installed, click the Finish button. Restart your computer if prompted. See the Installing Client Manager section to install t…
