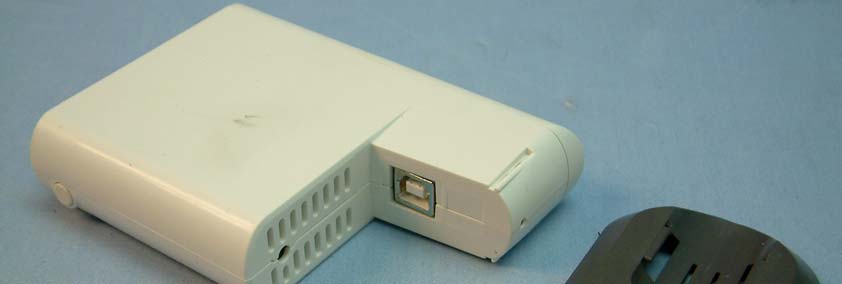

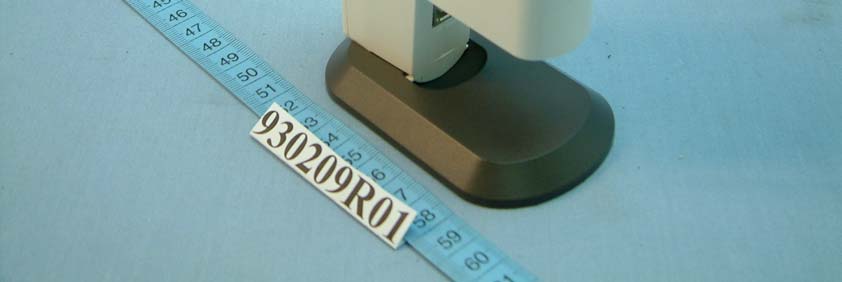

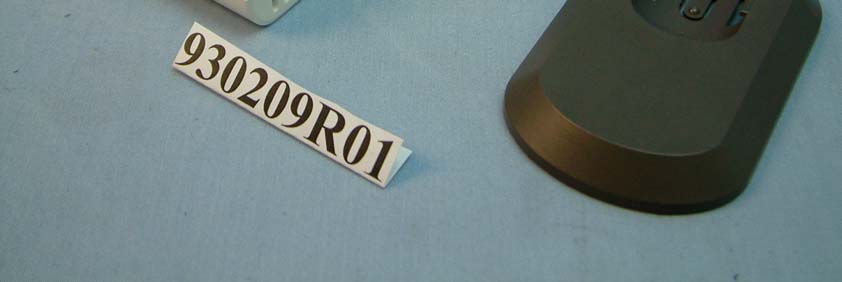

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

003NY04038

Page 3 Page 4 Page 5 Page 6

FCC ID: FDI-04600050-0 ADT No.930209R01 Operational Description This device is an 802.11 g Wireless USB2.0 Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is printed antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: FDI-04600050-0 Report No: SA930209R01 1 RF EXPOSURE REPORT REPORT NO.: SA930209R01 MODEL NO.: WLI2-USB2-G54 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: FDI-04600050-0 Report No: SA930209R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: FDI-04600050-0 Report No: SA930209R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: FDI-04600050-0 Report No: SA930209R01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -2dBi or 0.6310(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.8110.0051.0 6243739.8110.0051.0 11246239.8110.0051.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0041.0 6243731.6230.0041.0 11246231.6230.0041.0

FCC ID: FDI-04600050-0 Report No.: RF930209R011Issued: February 17, 2004 FCC TEST REPORT REPORT NO.: RF930209R01 MODEL NO.: WLI2-USB2-G54 RECEIVED: February 9, 2004 TESTED: February 9, 2004 ~ February 12, 2004 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457- 8520, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: FDI-04600050-0 Report No.: RF930209R012Issued: February 17, 2004 Table of Contents 1CERTIFICATION.............................................................................................. 4 2SUMMARY OF TEST RESULTS ..................................................................... 5 3GENERAL INFORMATION .............................................................................. 6 3.1GENERAL DESCRIPTION OF EUT ................................................................ 6 3.2DESCRIPTION OF TEST MODES .................................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ................................. 7 3.4DESCRIPTION OF SUPPORT UNITS ............................................................ 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................. 9 4TEST TYPES AND RESULTS ....................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT................................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 10 4.1.2 TEST INSTRUMENTS ................................................................................... 10 4.1.3 TEST PROCEDURES ....................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD ...........................................................11 4.1.5 TEST SETUP................................................................................................. 12 4.1.6 EUT OPERATING CONDITIONS .................................................................. 12 4.1.7 TEST RESULTS ............................................................................................ 13 4.2RADIATED EMISSION MEASUREMENT ..................................................... 19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 19 4.2.2 TEST INSTRUMENTS ................................................................................... 20 4.2.3 TEST PROCEDURES ................................................................................... 21 4.2.4 DEVIATION FROM TEST STANDARD .......................................................... 21 4.2.5 TEST SETUP................................................................................................. 22 4.2.6 EUT OPERATING CONDITIONS .................................................................. 22 4.2.7. TEST RESULTS ............................................................................................ 23 4.2.8. TEST RESULTS (A)....................................................................................... 25 4.2.9. TEST RESULTS (B)....................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT ............................................................. 31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................... 31 4.3.2 TEST INSTRUMENTS ................................................................................... 31 4.3.3 TEST PROCEDURE ...................................................................................... 32 4.3.4 DEVIATION FROM TEST STANDARD .......................................................... 32 4.3.5 TEST SETUP................................................................................................. 32 4.3.6 EUT OPERATING CONDITIONS .................................................................. 32 4.3.7 TEST RESULTS (A)....................................................................................... 33 FCC ID: FDI-04600050-0 Report No.: RF930209R013Issued: February 17, 2004 4.3.8 TEST RESULTS (B)....................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER............................................................. 41 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............. 41 4.4.2 TEST INSTRUMENTS ................................................................................... 41 4.4.3 TEST PROCEDURES ................................................................................... 42 4.4.4 DEVIATION FROM TEST STANDARD .......................................................... 42 4.4.5 TEST SETUP................................................................................................. 42 4.4.6 EUT OPERATING CONDITIONS .................................................................. 42 4.4.7 TEST RESULTS (A)....................................................................................... 43 4.4.8 TEST RESULTS (B)....................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT ........................................ 44 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................... 44 4.5.2 TEST INSTRUMENTS................................................................................... 44 4.5.3 TEST PROCEDURE ...................................................................................... 45 4.5.4 DEVIATION FROM TEST STANDARD ......…

Text truncated - open the document above for the full version.

FCC ID: FDI-04600050-0 Report No.: RF930209R0166Issued: February 17, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: FDI-04600050-0 Report No.: RF930209R0167Issued: February 17, 2004 RADIATED EMISSION TEST
