User Manual Wireless Cable/DSL Router-G WBR2-G54 www.buffalotech.com/wireless 2 Introduction 1.1 AirStation Broadband Router Base Station (WBR2-G54) Welcome to AirStation, the easy way to ultra fast wireless networking. This manual, which describes the most common confi gurations, introduces you to the AirStation Cable/DSL Router, and will help you connect to your network quickly. The WBR2-G54 router, is a wireless 4-port router small/medium business (SMB) network device that complies with the 2.4GHz IEEE 802.11g standard specifi cation on wireless LANs. The WBR2- G54 supports enhanced built-in NAT/SPI fi rewall functions and is used as a multi-functional router/ link between wired and wireless LAN computers. Summary of the AirStation WBR2-G54 features: • Wi-Fi™ (Wireless Fidelity) certifi ed by the Wi-Fi Alliance as an 802.11b/g device. AirStation will communicate with other IEEE 802.11b/g/Wi-Fi compliant wireless LAN products. • Support for Wi-Fi Protected Access™ (WPA), 802.1x, TKIP, AES, and WEP. • Automatic Transmit Rate Select mechanism transmits at speeds of 54, 36, 24, 11, 5.5, 2 and 1 Mbps. • Supports Frame Bursting for enhanced performance. • DHCP client/server function. • Auto roaming, supports seamless roaming over multiple channels. • VPN pass-through, for secure communications. • Packet Filtering for eliminating unwanted communications. 3 • SOHO/SMB routing and fi rewall functions provide a safer private networking environment, includ- ing support for MS NetMeeting and MSN-Messenger. • Additional SPI Firewall Functions - DMZ, intrusion detection and notifi cation • Syslog transmits some or all system activities to a central Syslog server. • Extended range, with optional add-on antennas or WDS (Wireless Distribution System). • Auto Media Dependent Interface/Crossover (MDI/X) port, allows connection by standard and crossover CAT5 cables. • Supports Universal Plug and Play (UPnP). • Buffalo’s AOSS System for easy, secure wireless client confi guration. 1.2 AirStation Wireless Network Features • Enhanced security features: - SPI Firewall and DMZ zone functions to prevent unknown intruders. - Intrusion Detector Firewall (NAT) with a pop-up or email alert warning unwanted attacks. - Dynamic packet fi ltering. - WPA, 802.1x, TKIP, AES, and WEP. - VPN (IPSec, PPTP and L2TP) pass-through - Packet monitoring and fi ltering by MAC address, IP address and port. - PPPoE support Introduction 4 - WDS support • Buffalo’s easy web interface confi guration • Broadband router static and dynamic routing methods between WAN and LAN based on updated routing tables. An economical way to bridge multiple networks. • Optional external antennas for boosting range and signal quality. • Buffalo’s AOSS System for easy, secure wireless client confi guration. 1.3 Home Networking 1 For the future home entertainment applications that carry hard drives for storing hundreds of titles, IEEE 802.11g can transmit three channels of CD-quality voice to every room in the home simulta- neously. Buffalo AirStation wireless access points enable sharing broadband by simply connecting the AirStation to a DSL or CATV modem to: • Share fi les and printers • Access and share the Internet • Share media fi les 1.4 SOHO/SMB Networking Introduction 5 With high-speed DSL or CATV connections readily available, many users can work effectively from a home offi ce, connected securely to a corporate network. Buffalo’s solutions are ideal for home networks that require secure, high-speed access to the corporate LAN. Tools that play an integral part in Buffalo’s solutions include VPN connectivity for secure access to corporate resources, which enable the remote employee to handle information from clients or coworkers as if they were in the offi ce. Connect the Buffalo AirStation Broadband router AP to a CATV or DSL modem in order to: •Share broadband access •Share fi les and printers •Bridge between multiple networks and multiple computer platforms •Provide easy and secure access to home or company networks from remote locations 1.5 System Requirements Figure 1.4 SOHO/SMB Networking Introduction 6 • Broadband (High-Speed) Internet connection or existing Local area connection • Any Wi-Fi (wireless) compatible computer with a Web Browser Internet Explorer or Netscape 4.5 or later. (Safari 1.0 is supported with Macintosh OS X.2) 1.6 AirStation WBR2-G54 Package Contents The AirStation WBR2-G54 package consists of the following items. 1. WBR2-G54 Base Station 2. AC adapter and power cable 3. CAT5 LAN cable 4. Utility CD with Manual 5. Quick Setup Guides 6. Warranty Statement Introduction 7 1.7 Product Views Power - Lit when the device is powered on. Wireless - Lit when the wireless radio is on. Flashes when wireless traffi c is present. WAN - Lit when connection to Cable/DSL modem is present. Flashes when internet traffi c is present. Diag - Flashes red when performing diagnostic functions. AOSS - Flashes when in AOSS mode. Ethernet - 1, 2, 3, or 4 lit when ethernet clients are connected. Flashes when ethernet traffi c is present. Introduction The LAN or Wired MAC address is the default ESS-ID (SSID) of the AirStation. The LAN MAC address is clearly labeled on the back of the AirStation. 8 1.8 About the AirStation CD The AirStation does not require any software to be installed on your computer for confi guration. The AirStation CD contains client drivers for Buffalo Wireless Adapters (i.e. Notebook Adapter and Desktop PCI Adapter) and the AirStation documentation. Prior to copying or installing any software, please read the Software License Agreement “license. txt”, located in the root folder of the CD. By installing, copying or using the AirStation software, you are consenting to the terms of this agreement. If you do not agree to all of the terms of the Software License Agreement, do not download, copy or install the AirStation software. It is the policy of Buffalo Technology to improve products as new technology, components, software an…

Text truncated - open the document above for the full version.

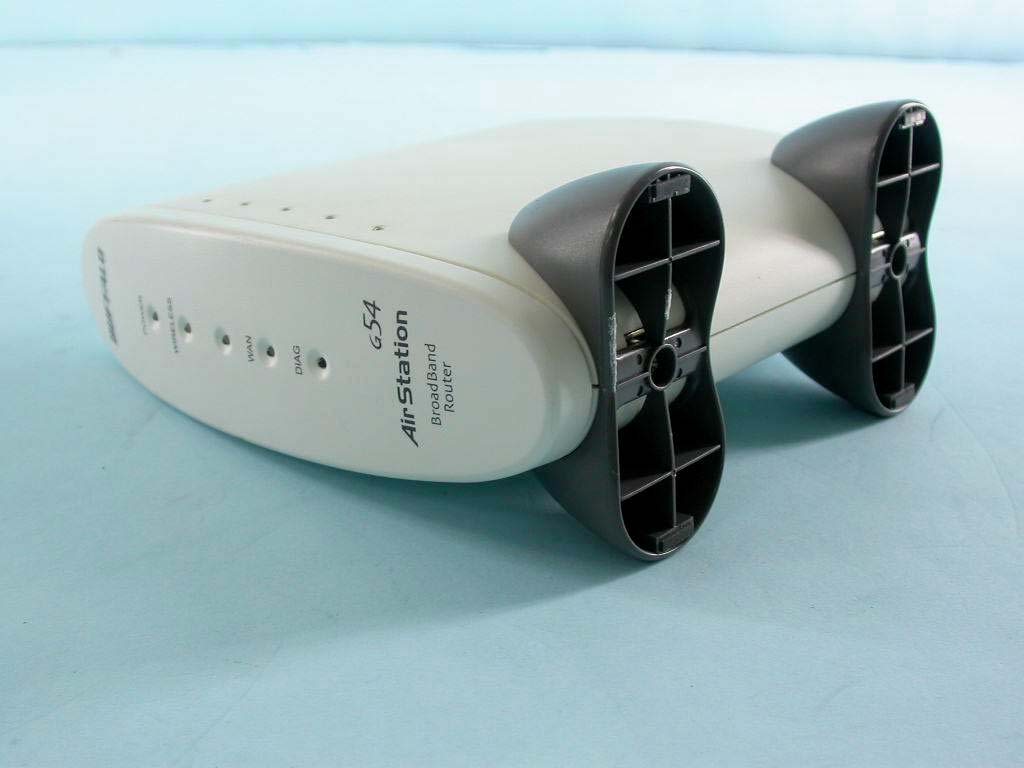

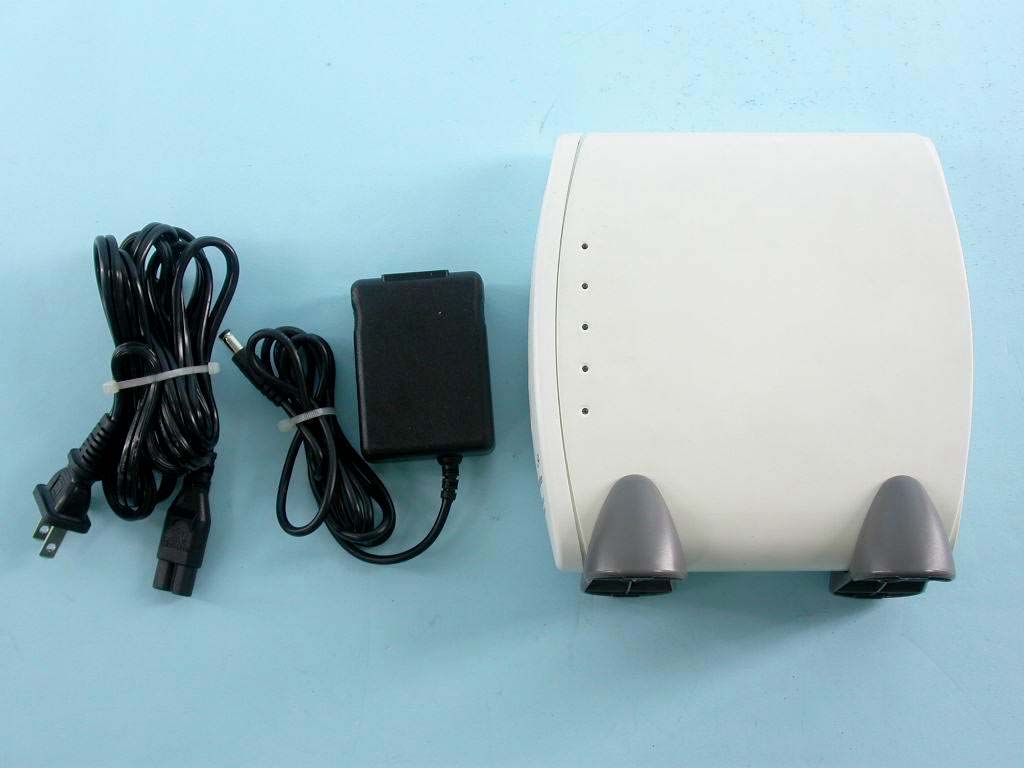

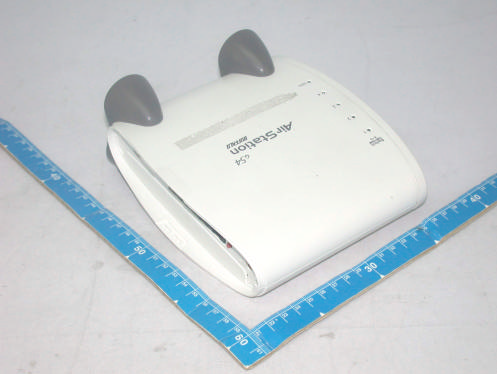

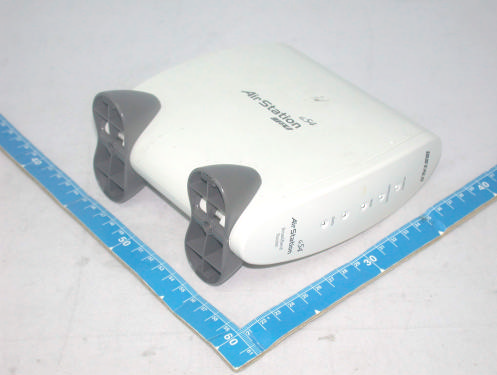

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 4 For Model: WLA2-G54 Page 5 Page 6

1 2 3 4 5 A A B B C C D D E E F F 6 SOURCE ORGANIZATION 5 TITLE: Assembly drawing for Milky way TAIWAN / COM 4 MODEL NO Milky way DWG NO 10-002405 3 DESIGNER DATE UNIT: mm 2 Michael Chang 11/21/03 USI P/N SHEET REV 1 APP BY DATE G NO DESCRIPTION ReV Unless otherwise Tolerance specified N/A 3 11 G 1 2 3 4 5 Foot P/N:51-100035- 01 Rubber foot P/N:51- 100036-01 Screw M3x5 P/N:48-260001-01 13. Attached two “Rubber foot” into the bottom of “Foot”. And it’s become Foot Assy. Note: We need 2X “Foot Assy” in one set of router. 14. Fix the Main unit and 2X “Foot Assy” by using 2X screw. 13 Product ID label(FCC) 59-512418-01 WAN Mac Address label 59-404391-00 TYPE C LAN MAC LABEL 59-404391-00 TYPE B 15. Attached the Product ID label in indicated position. Note: The label is attached on the side of cover. 16. Attach the LAN MAC label, WAN MAC LABEL and S/N label. Note: position is show on drawing. 15 S/N LABEL 59-404391-00: TYPE A

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 7 For Model : WLA2-G54 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Auxiliary Antenna Main Antenna Page 14 WLE-DA WLE-NDR

FCC ID: FDI-04600142-0 ADT No. RF921112R05B Operational Description This device is a AirStation Access Point, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (AirStation Access Point) is powered by adapters. The antenna type used in this product are PIFA antenna, Printed Inverse F Antenna without connector and External Antenna with MC connector. The other instruction, please have a look at the users manual.

Report No.: RF921112R05B 1 RF EXPOSURE REPORT REPORT NO.:RF921112R05B MODEL NO.:WBR2-G54, WBR2-B11, WLA2-G54S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: BUFFALO INC. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457- 8520, Japan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: RF921112R05B 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: RF921112R05B 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No.: RF921112R05B 4 6. Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain of the antenna is 1.99dBi. Antenna 2: The maximum Gain of the antenna is 2.15dBi. Antenna 3: The maximum Gain of the antenna is 2.0dBi. Antenna 4: The maximum Gain of the antenna is 4.0dBi. FOR DSSS: Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.810720.0005011.0 6243748.977880.0006161.0 11246248.977880.0006161.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241238.018940.0004961.0 6243746.773510.0006111.0 11246247.863010.0006251.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.810720.0125521.0 6243740.457590.0127561.0 11246241.686940.0131441.0 Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241230.690220.0153371.0 6243732.359370.0161711.0 11246234.197940.0170891.0 Report No.: RF921112R05B 5 FOR OFDM: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412104.712850.0013181.0 62437107.151930.0013481.0 112462114.815360.0014451.0 Turbo 6243753.7031800.0006761.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412102.32930.00133591.0 624371000.00130551.0 112462109.64780.00143151.0 Turbo 6243752.480750.0006851.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.230520.0316031.0 62437105.681750.0333221.0 112462103.992020.0327891.0 Turbo 6243752.480750.0165471.0 Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.095730.0315301.0 6243766.527320.0332451.0 11246269.183100.0345721.0 Turbo 6243734.673690.0173271.0

FCC ID: FDI-04600142-0 Report No.: RF921112R05B1Issued: Mar. 12, 2004 FCC TEST REPORT REPORT NO.: RF921112R05B MODEL NO.: WBR2-G54, WBR2-B11, WLA2-G54S RECEIVED: Feb. 05, 2004 TESTED: Feb. 06 to Mar. 09, 2004 APPLICANT: BUFFALO INC. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457- 8520, Japan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 117 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: FDI-04600142-0 Report No.: RF921112R05B2Issued: Mar. 12, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 5 2SUMMARY OF TEST RESULTS................................................................... 6 3GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT.............................................................. 7 3.2DESCRIPTION OF TEST MODES................................................................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.4DESCRIPTION OF SUPPORT UNITS........................................................ 10 4TEST TYPES AND RESULTS..................................................................... 13 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST PROCEDURES................................................................................. 14 4.1.4TEST SETUP .............................................................................................. 14 4.1.5EUT OPERATING CONDITIONS................................................................ 15 4.1.6TEST RESULTS (Adapter 1) ....................................................................... 16 4.1.7TEST RESULTS (Adapter 2) ....................................................................... 18 4.2Radiated Emission Measurement ............................................................... 20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 20 4.2.2TEST INSTRUMENTS ................................................................................ 21 4.2.3TEST PROCEDURES................................................................................. 22 4.2.4TEST SETUP .............................................................................................. 23 4.2.5EUT OPERATING CONDITIONS................................................................ 23 4.2.6TEST RESULTS.......................................................................................... 24 4.2.7TEST RESULTS – DSSS (Antenna 1) ........................................................ 32 4.2.8TEST RESULTS – DSSS (Antenna 2) ........................................................ 35 4.2.9TEST RESULTS – DSSS (Antenna 3) ........................................................ 38 4.2.10 TEST RESULTS – DSSS (Antenna 4) ........................................................ 41 4.2.11 TEST RESULTS –OFDM (Antenna 1)......................................................... 44 4.2.12 TEST RESULTS –OFDM (Antenna 2)......................................................... 48 4.2.13 TEST RESULTS –OFDM (Antenna 3)......................................................... 52 4.2.14 TEST RESULTS –OFDM (Antenna 4)......................................................... 56 4.36dB BANDWIDTH MEASUREMENT .......................................................... 60 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 60 4.3.2TEST INSTRUMENTS ................................................................................ 60 4.3.3TEST PROCEDURE ................................................................................... 61 FCC ID: FDI-04600142-0 Report No.: RF921112R05B3Issued: Mar. 12, 2004 4.3.4TEST SETUP .............................................................................................. 61 4.3.5EUT OPERATING CONDITIONS................................................................ 61 4.3.6TEST RESULTS-DSSS............................................................................... 62 4.3.7TEST RESULTS-OFDM .............................................................................. 66 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 71 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 71 4.4.2TEST INSTRUMENTS ................................................................................ 71 4.4.3TEST PROCEDURES................................................................................. 72 4.4.4TEST SETUP .............................................................................................. 72 4.4.5EUT OPERATING CONDITIONS................................................................ 72 4.4.6TEST RESULTS- DSSS.............................................................................. 73 4.4.7TEST RESULTS- OFDM ............................................................................. 74 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 75 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 75 4.5.2TEST INSTRUMENTS ................................................................................ 75 4.5.3TEST PROCEDURE ....................................................................…

Text truncated - open the document above for the full version.

Report No. RF921112R05B 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037May. 06, 2004 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF921112R05B 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. RF921112R05B 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF921112R05B 4 Ch1 Report No. RF921112R05B 5 Ch11 Report No. RF921112R05B 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF921112R05B 7 Ch1 Report No. RF921112R05B 8 Ch11

FCC ID: FDI-04600142-0 Report No.: RF921112R05B112Issued: Mar. 12, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Adapter 1) FCC ID: FDI-04600142-0 Report No.: RF921112R05B113Issued: Mar. 12, 2004 CONDUCTED EMISSION TEST (Adapter 2) FCC ID: FDI-04600142-0 Report No.: RF921112R05B114Issued: Mar. 12, 2004 RADIATED EMISSION TEST (Antenna 1 and 2) FCC ID: FDI-04600142-0 Report No.: RF921112R05B115Issued: Mar. 12, 2004 RADIATED EMISSION TEST (Antenna 3) FCC ID: FDI-04600142-0 Report No.: RF921112R05B116Issued: Mar. 12, 2004 RADIATED EMISSION TEST (Antenna 4)
