FDI-04600264-0802.11g 54Mbps Wireless Router

User Manual High Speed Wireless Broadband Router WHR-G54S www.buffalotech.com Rev A 2 Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 05 Installation / Setup . . . . . . . . . . . . . . . . . . . . . . 10 Internal Antennas. . . . . . . . . . . . . . . . . . . . . . 12 Standard Settings . . . . . . . . . . . . . . . . . . . . . . . 13 AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Advanced Setup . . . . . . . . . . . . . . . . . . . . . . . . 25 LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . 25 Wireless Settings . . . . . . . . . . . . . . . . . . 25 Wireless LAN Security . . . . . . . . . . . . . . 27 LAN Port . . . . . . . . . . . . . . . . . . . . . . . . 30 DHCP Server . . . . . . . . . . . . . . . . . . . . . 31 Wireless MAC Filter . . . . . . . . . . . . . 34 Wireless Bridge (WDS) . . . . . . . . . . . . . 36 WAN Settings . . . . . . . . . . . . . . . . . . . . . . . 38 WAN Port . . . . . . . . . . . . . . . . . . . . . . . . 38 WAN Network . . . . . . . . . . . . . . . . . . . . . 41 3 Table of Contents Network Settings. . . . . . . . . . . . . . . . . . . . . 42 Router Setup . . . . . . . . . . . . . . . . . . . . 42 Address Translation . . . . . . . . . . . . . . . . 44 Packet Filter . . . . . . . . . . . . . . . . . . . . . . 47 Intrusion Detector . . . . . . . . . . . . . . . . . 52 UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Management . . . . . . . . . . . . . . . . . . . . . . . . 55 System Information . . . . . . . . . . . . . . . . 55 Change Password . . . . . . . . . . . . . . . . . 56 Time Setup . . . . . . . . . . . . . . . . . . . . . . 57 Packet Traffic Information . . . . . . . . . . . . . . . . . 58 Client Monitor . . . . . . . . . . . . . . . . . . . . 59 Ping Test . . . . . . . . . . . . . . . . . . . . . . . . 60 Log Information . . . . . . . . . . . . . . . . . . . 61 4 Table of Contents Syslog Transfer . . . . . . . . . . . . . . . . . . . 62 Save/Restore Settings . . . . . . . . . . . . . . 63 Reboot/Reload Settings . . . . . . . . . . . . . 64 Firmware Update . . . . . . . . . . . . . . . . . 65 AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 File & Printer Sharing / Audio/Video Playback . . 68 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 69 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 72 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 FCC/CE Information . . . . . . . . . . . . . . . . . . . . . . . . 86 Warranty Information. . . . . . . . . . . . . . . . . . . . . 91 Contact Information . . . . . . . . . . . . . . . . . . . . . 92 5 AirStation High Speed Mode Wireless Cable/DSL Router (WHR-G54S) This manual introduces you to the AirStation Cable/DSL Router, and will help you connect to your network quickly. The WHR-G54S router, is a wireless 4-port router network device that complies with the 2.4GHz IEEE 802.11g standard specification on wireless LANs. It also supports High Speed Mode technol - ogy. The WHR-G54S supports enhanced built-in NAT/SPI firewall functions and is used as a multi- functional router/link between wired and wireless LAN computers. Summary of the AirStation WHR-G54S features: • Wi-Fi™ (Wireless Fidelity) certified by the Wi-Fi Alliance as an 802.11b/g device. The AirStation will communicate with other IEEE 802.11b/g/Wi-Fi compliant wireless LAN products. • Support s High Speed Mode • Auto-Channel Selection • Support for Wi-Fi Protected Access™ (WPA), TKIP, AES, and WEP. • DHCP client/server function. • Auto roaming, supports seamless roaming over multiple channels. • Packet Filtering for eliminating unwanted communications. • SOHO/SMB routing and firewall functions provide a safer private networking environment, includ - ing support for MS NetMeeting and MSN-Messenger. • Additional SPI Firewall Functions - DMZ, intrusion detection and notification • Syslog transmits some or all system activities to a central Syslog server. Introduction 6 • Extended range WDS (Wireless Distribution System). • Auto Media Dependent Interface/Crossover (MDI/X) port, allows connection by standard and crossover CAT5 cables. • Supports Universal Plug and Play (UPnP). • Buffalo’s AOSS System for easy, secure wireless client configuration. • Enhanced security features: - SPI Firewall and DMZ zone functions to prevent unknown intruders. - Intrusion Detector Firewall (NAT) with a pop-up or email alert warning unwanted attacks. - Dynamic packet filtering. - WPA, TKIP, AES, and WEP. - Packet monitoring and filtering by MAC address, IP address and port. - PPPoE support - WDS support • Buffalo’s easy web interface configuration • Broadband router static and dynamic routing methods between WAN and LAN based on updated routing tables. An economical way to bridge multiple networks. • Buffalo’s AOSS System for easy, secure wireless client configuration. Introduction 7 Home Networking 1 Buffalo AirStation wireless access points enable sharing broadband by simply connecting the AirStation to a DSL or Cable modem to: • Share files and printers • Access and share the Internet • Share media files System Requirements • Broadband (High-Speed) Internet connection or existing Local area connection • Any Wi-Fi (wireless) compatible computer with a Web Browser Internet Explorer or Netscape 4.5 or later. AirStation WHR-G54S Package Contents The AirStation WHR-G54S package consists of the following items. 1. WHR-G54S Base Station and antenna 2. AC adapter and Power cable 3. CAT5 LAN cable 4. Utility CD with Manual 5. Quick Setup Guides 6. Warranty Statement 7. Base Plate Introduction 8 Product Views Power - Lit when the device is powered on. Wireless - Lit when the wireless radio is on. Flashes when wireless traffic is present. Bridge - Lit when the Bridge mode is running. Off when the Router mode is running. WAN - Lit when connection to Cable/DSL modem is present. Flashes when internet traffic is present. Diag - Flashes red when pe…

Text truncated - open the document above for the full version.

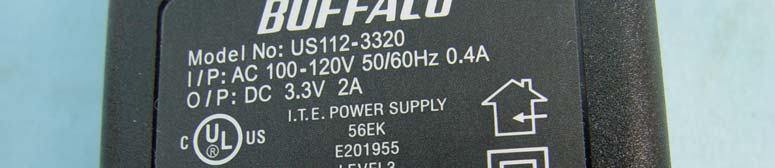

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location (FCC ID: FDI-04600264-0)

Page 3 Page 4 Page 5 Page 6

FCC ID: FDI-04600264-0 Report No. RF940429L08 Operational Description This device is a 802.11g 54Mbps Wireless Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is printed and Dipole antenna with RSMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: FDI-04600264-0 Report No: SA940429L08 1 RF EXPOSURE REPORT REPORT NO.: SA940429L08 MODEL NO.: WHR-G54S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-chome, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: FDI-04600264-0 Report No: SA940429L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: FDI-04600264-0 Report No: SA940429L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: FDI-04600264-0 Report No: SA940429L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.514(numeric) and -1dBi or 0.794(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : Dipole antenna with 1.8dBi gain For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.7990.0241.0 6243780.3530.0241.0 11246279.6160.0241.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.9940.0121.0 6243740.3650.0121.0 11246240.0870.0121.0 printed antenna with -1dBi gain For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.7990.0131.0 6243780.3530.0131.0 11246279.6160.0131.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.9940.0061.0 6243740.3650.0061.0 11246240.0870.0061.0

FCC ID: FDI-04600264-0 Report No.: RF940429L081Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940429L08 MODEL NO.: WHR-G54S RECEIVED: Apr. 29, 2005 TESTED: May 05 ~ Jun. 08, 2005 ISSUED: Jun. 13, 2005 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-chome, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: FDI-04600264-0 Report No.: RF940429L082Report Format Version 2.0.2 TABLE OF CONTENTS 1. CERTIFICATION ............................................................................................ 4 2. SUMMARY OF TEST RESULTS.................................................................... 5 2.1 MEASUREMENT UNCERTAINTY.................................................................. 5 3. GENERAL INFORMATION ............................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................... 6 3.2 DESCRIPTION OF TEST MODES ................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ............................................. 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ................. 8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 10 3.2.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 10 4. TEST TYPES AND RESULTS .......................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT ................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ..............................11 4.1.2 TEST INSTRUMENTS ...................................................................................11 4.1.3 TEST PROCEDURES................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD......................................................... 12 4.1.5 TEST SETUP ................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS.................................................................. 13 4.1.7 TEST RESULTS............................................................................................ 14 4.2 RADIATED EMISSION MEASUREMENT .................................................... 20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .................................. 20 4.2.2 TEST INSTRUMENTS .................................................................................. 21 4.2.3 TEST PROCEDURES................................................................................... 22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................... 23 4.2.5 TEST SETUP ................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS.................................................................. 23 4.2.7 TEST RESULTS............................................................................................ 24 4.3 6dB BANDWIDTH MEASUREMENT............................................................ 32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.......................................... 32 4.3.2 TEST INSTRUMENTS .................................................................................. 32 4.3.3 TEST PROCEDURE ..................................................................................... 33 4.3.4 DEVIATION FROM TEST STANDARD ......................................................... 33 4.3.5 TEST SETUP ................................................................................................ 33 4.3.6 EUT OPERATING CONDITIONS.................................................................. 33 FCC ID: FDI-04600264-0 Report No.: RF940429L083Report Format Version 2.0.2 4.3.7 TEST RESULTS............................................................................................ 34 4.4 MAXIMUM PEAK OUTPUT POWER ........................................................... 40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT............. 40 4.4.2 INSTRUMENTS............................................................................................ 40 4.4.3 TEST PROCEDURES................................................................................... 41 4.4.4 DEVIATION FROM TEST STANDARD ......................................................... 41 4.4.5 TEST SETUP ................................................................................................ 41 4.4.6 EUT OPERATING CONDITIONS.................................................................. 41 4.4.7 TEST RESULTS............................................................................................ 42 4.5 POWER SPECTRAL DENSITY MEASUREMENT ....................................... 43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................... 43 4.5.2 TEST INSTRUMENTS .................................................................................. 43 4.5.3 TEST PROCEDURE ..................................................................................... 44 4.5.4 DEVIATION FROM TEST STANDARD ......................................................... 44 4.5.5 TEST SETUP .......................................................................…

Text truncated - open the document above for the full version.

FCC ID: FDI-04600264-0 Report No.: RF940429L0861Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: FDI-04600264-0 Report No.: RF940429L0862Report Format Version 2.0.2 RADIATED EMISSION TEST
