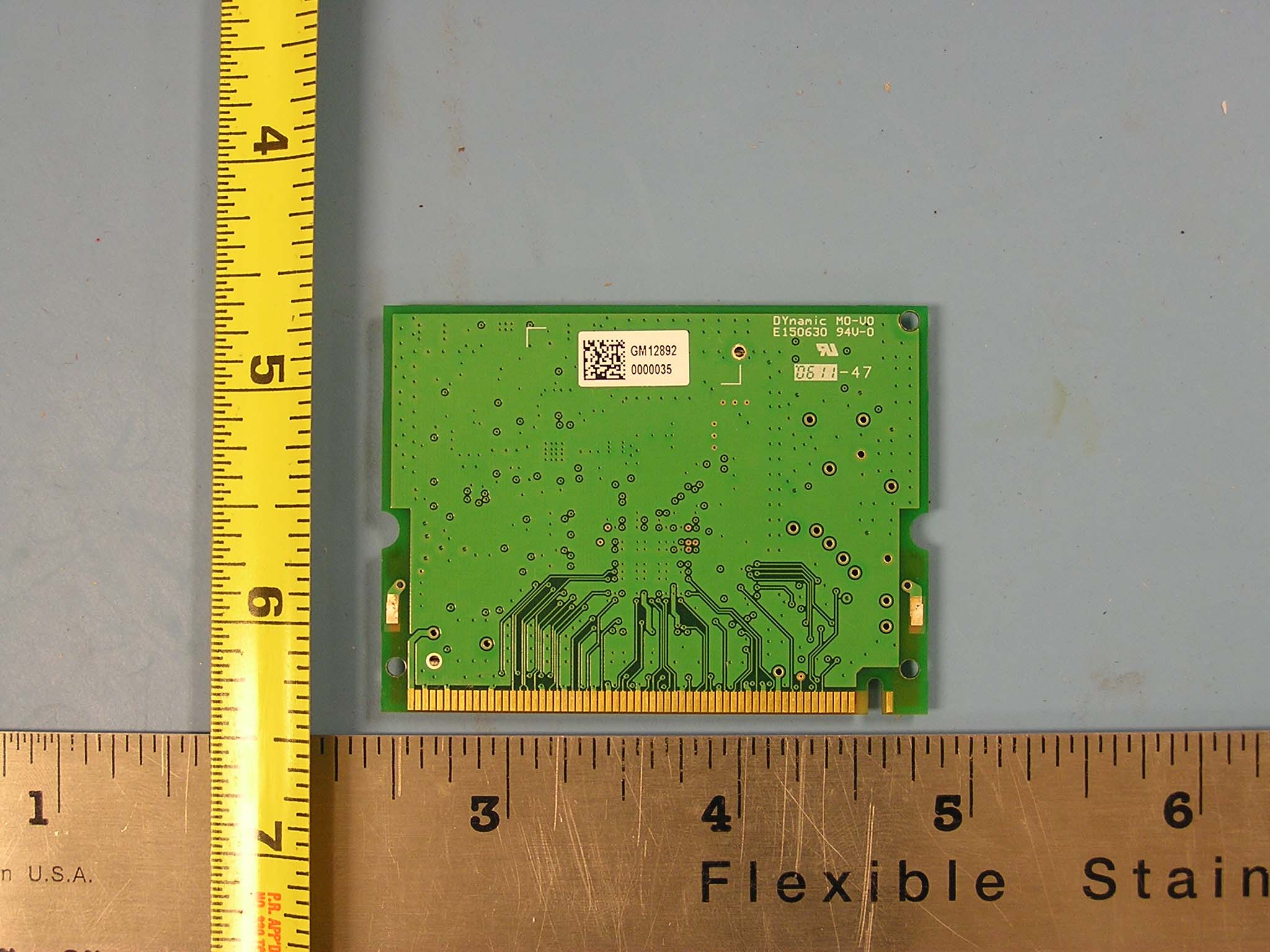

FDI-06197952-0802.11 a+b+g Mini PCI Module

WMIA-204AG User’s Guide 802.11a+b+g mini-PCI Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, and 3) The antenna should be integral if the end device is intended to be operated in 5.15 ~ 5.25GHz frequency range. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module install ed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop conf igurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example : Access point, Router...mobile device.). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: FDI-06197952 ”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for end users must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter”. If the end product integrating this module is going to be operated in 5.15 ~ 5.25GHz frequency range, the warning statement in the user manual of the end product should include the restriction of operating this device in indoor could void the user’s authority to operate the equipment. Buffalo declares that US model of WMIA-204AG(R) (FCC ID: FDI-06197952-0) is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. Table of Contents Introduction.....................................................1 Hardware Installation........................................2 Software Installation..........................................3 Introduction While Orthogonal Frequency Division Multiplexing (OFDM) is adopted by 802.11g for the high-speed transfer rate in a 2.4GHz range. Buffalo WMIA-204AG(R) fully utilizes the benefits of 802.11g standard on the proven compatibility between two transfer modes and the high speed bit transfer that is desirable for multimedia application in Wireless environment. The internal Wireless LAN module allows your system (for example, your notebook) to connect wirelessly to other 802.11-enabled systems, devices, or network. Features The WMIA-204AG has the following features: z Wireless LAN Data rates of 1Mbps to 54Mbps for 802.11g and 1Mbps to 11Mbps for 802.11b. z Wireless security using WPA with TKIP encryption, 802.1X with EAP-type Authentication Hardware Installation Please follow the instruction to install your 11A/G mini PCI module on your system (for example, your notebook): Your computer comes with a unique Mini PCI Card socket, which allows the computer to add wireless LAN (IEEE802.11g). Step 1 Insert the mini-PCI at an angle of approximately 45 degrees into the empty Mini-PCI interface socket. Step 2 Press it firmly so that the contact edge is driven into the receiving socket. Step 3 Connect the internal…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Claire Hoque Sent: Wednesday, July 19, 2006 2:45 PM To: Mike Kuo Cc: Kathy Yao; Michael Heckrotte Subject: answer: Buffalo Inc., FCC ID: FDI-06197952-0, Assessment NO.: AN06T5983, Notice#1 Attachments: WMIA-204AG operating theory_Revised.pdf; Buffalo 06J10390-1B FCC DTS Report.pdf WMIA-204AG peratin g theory_Re. Buffalo 10390-1B FCC DTS Hi Mike, Pls see answer below, thanks. -----Original Message----- From: Mike Kuo Sent: Wednesday, July 19, 2006 12:36 PM To: Mike Kuo Subject: Buffalo Inc., FCC ID: FDI-06197952-0, Assessment NO.: AN06T5983, Notice#1 Question #1: As indicated in the functional block diagram, this module is using AR5413A chip set. Based upon the radio specification in the chip set manufacturer web site, this chip set is capable of tuning in the range from 4.9 GHz - 5.850 GHz. In the user manual and the theory of operation, no where mentioned the exact frequency turning frequency for 5 GHz band. In the associated UNII submission ( AN06T5984 ), only contains 5.15-5.35 GHz band. Please provide a statement from the manufacturer that this device will only be marketed with 2.4 GHz band ( 11 channel operation ) and 5.180 - 5.320 GHz ( 8 channel operation ) and use firmware to limit the operating frequency range in the U.S. <answer> manufacturer's statement is included in the revised theory of op. Question #2:Section 7.1.1 6dB bandwidth: the unit of measurement is not correct. Please make necessary changes. <answer> report is revised. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Company: Buffalo Inc. FCC ID: FDI-06197952-0 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic inputs. 3 Have it own power supply regulation Internal 1.8 V power regulator. Refer to Block diagram. 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna (20279-001E-01 (1- PEX) or U.FL-R-SMT-1(10) (HIROSE) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside of the laptop for full modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: FDI-06197952-0” shall be placed on the outside of final host system. “FDI-06197952-0” is the ID of the module. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Meet RF exposure compliance requirement

FCC ID and IC Label format Applicant: Buffalo Inc. FCC ID: FDI-06197952-0 IC Certification No.: 6102A-008 Model No.: WMIA-204AG WMIA-204AG FCC ID: FDI-06197952-0 IC: 6102A-008 Buffalo Inc. Back of Modular Label Location PROPOSED FCC ID LABEL FOR HOST DEVICE THIS DEVICE CONTAINS FCC ID: FDI-06197952-0

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11a+b+g mini-PCI MODEL NUMBER: WMIA-204AG FCC ID: FDI-06197952-0 REPORT NUMBER: 06J10390-1B ISSUE DATE: JULY 19, 2006 Prepared for BUFFALO INC. 15, SHIBATA HONDORI 4-CHOME, MINAMI-KU NAGOYA 457-8520, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10390-1B DATE: JULY 19, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 2 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 7/17/06 Initial Issue Thu B 7/19/06 Revised the unit of measurement on Section 7.1.1 6dB bandwidth Thu REPORT NO: 06J10390-1B DATE: JULY 19, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 3 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................4 2. TEST METHODOLOGY.........................................................................................................5 3. FACILITIES AND ACCREDITATION...................................................................................5 4. CALIBRATION AND UNCERTAINTY..................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST..................................................................................................6 5.1. DESCRIPTION OF EUT.....................................................................................................6 5.2. MAXIMUM OUTPUT POWER............................................................................................6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS......................................................................7 5.4. SOFTWARE AND FIRMWARE............................................................................................7 5.5. WORST-CASE CONFIGURATION AND MODE..................................................................7 5.6. DESCRIPTION OF TEST SETUP........................................................................................8 6. TEST AND MEASUREMENT EQUIPMENT.......................................................................10 7. LIMITS AND RESULTS........................................................................................................11 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND.................................................11 7.1.1. 6 dB BANDWIDTH...................................................................................................11 7.1.2. 99% BANDWIDTH...................................................................................................18 7.1.3. PEAK OUTPUT POWER...........................................................................................25 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE..................................................................33 7.1.5. AVERAGE POWER..................................................................................................36 7.1.6. PEAK POWER SPECTRAL DENSITY......................................................................37 7.1.7. CONDUCTED SPURIOUS EMISSIONS....................................................................44 7.2. RADIATED EMISSIONS...................................................................................................57 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS.............................................57 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND...........................60 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz..........................................78 7.3. POWERLINE CONDUCTED EMISSIONS.........................................................................80 8. SETUP PHOTOS...................................................................................................................84 REPORT NO: 06J10390-1B DATE: JULY 19, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 4 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: BUFFALO INC. 15, SHIBATA HONDORI 4-CHOME MONAMI-KU, NAGOYA 457-8520, JAPAN EUT DESCRIPTION: 802.11a+b+g mini-PCI MODEL: WMIA-204AG SERIAL NUMBER: 0000035 DATE TESTED: JULY 6-12, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certificatio…

Text truncated - open the document above for the full version.

REPORT NO: 06J10390-1 DATE: JULY 17, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 84 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06J10390-1 DATE: JULY 17, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 85 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06J10390-1 DATE: JULY 17, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 86 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06J10390-1 DATE: JULY 17, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 87 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06J10390-1 DATE: JULY 17, 2006 EUT: 802.11a+b+g mini-PCI FCC ID: FDI-06197952-0 Page 88 of 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
