FDI-09101595-0802.11b/g Access Point

www.buffalotech.com WCA-G Wi-Fi Gamer Wireless AP for Game Consoles v.77 Package Contents • Wi-Fi Gamer (main unit) • Base for horizontal placement • CAT5 LAN cable • AC Adapter • This manual • Warranty Statement  Introduction The Buffalo Wi-Fi Gamer is an access point. It connects a game console to the Internet wirelessly. It's designed to be connected to an existing router. When plugged into an existing router, the WiFi Gamer makes it very simple to connect your Nintendo DS ® , Wii ™ , Sony PSP ® or PLAYSTATION ® 3. ※ The Wi-Fi Gamer supports AOSS ™ automatic wireless configuration. ※ This product is a private wireless LAN access point, designed for use with AOSS compatable devices such as game consoles. For connecting PCs and other digital appliances, please use the AirStation series. ※ This product is intended for use in infrastructure mode. Ad hoc mode is not supported. ※ For informatin on configuring or using your PSP® or Playstation 3, consult your user manual or contact Sony, Inc. (www.playstation.com） ※ To use a PSP® with AOSS, the PSP's firmware must be version 2.0 or later. Contact Sony for information on upgrading your PSP's firmware if necessary. ※ For information on configuring or using your Nintendo DS or Wii, consult your user manual or contact Nintendo Inc. (www.nintendo.com) ※ The Wi-Fi Gamer does not include a router. For best security, connect it to a router with a firewall, rather than directly to a modem.  Assembly For horizontal placement, slide base into end of Wi-Fi Gamer.  Connecting your Cables LAN port on router Power to outlet or surge protector  AOSS Setup  The Wi-Fi Gamer supports AOSS™ automatic wireless configuration. Client devices, such as game consoles, must also support AOSS to connect to it. To connect a game console to the WiFi Gamer, press the AOSS buttons on both devices. It's that simple! Consult your game console's user manual for instructions on using its AOSS button if necessary. To use a PSP® with AOSS, the PSP's firmware must be version 2.0 or later. Contact Sony for information on upgrading your PSP's firmware if necessary. Connecting Your Game Console 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC / CE / R&TTE 8 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. IC Caution: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC / CE / R&TTE 9 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of compliance with the R&TTE Directive 1999/5/EC: • EN 60950 Safety of Information Technology Equipment • EN 300 328 Technical requirements for spread-spectrum radio equipment • EN 301 489-1/-17 EMC requirements for spread-spectrum radio equipment Taiwan: SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product could be used in typical laptop computer with CardBus slot. Other application like handheld PC or similar device has not been verified, may not comply with related RF exposure rules, and such use shall be prohibited. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric sho…

Text truncated - open the document above for the full version.

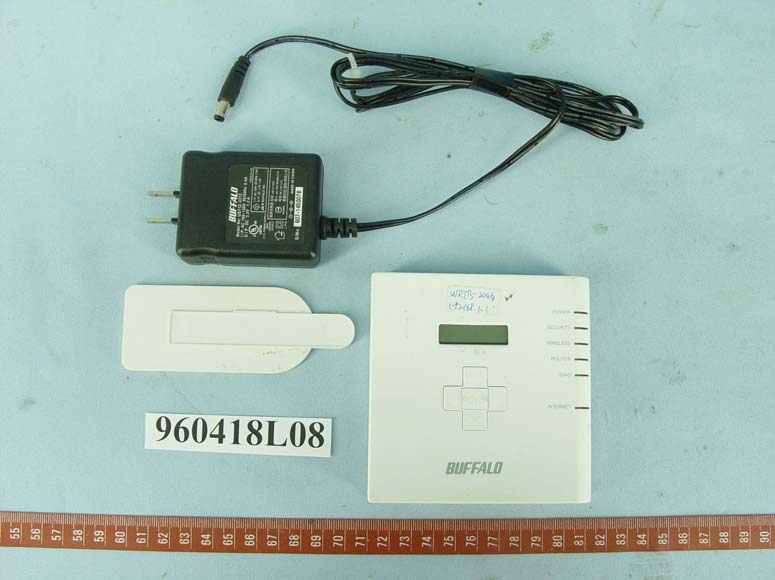

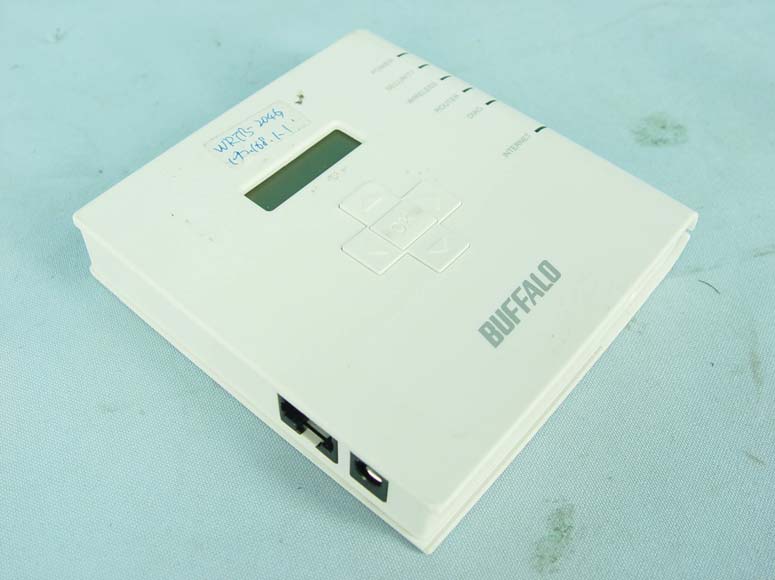

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

LABEL LOCATION FCC ID: FDI-09101595-0

Page 3 Page 4 Transformer Model: HN1669CG Page 5 Page 6 Page 7 Page 8 Transformer Model: LFE8298-R Page 9

FCC ID: FDI-09101595-0 Report No. RF960418L08 Operational Description This device is a 802.11b/g Access Point in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Printed antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: FDI-09101595-0 Report No: SA960418L08 1 RF EXPOSURE REPORT REPORT NO.: SA960418L08 MODEL NO.: WCA-G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-chome, Minami-ku, Nagoya 457-8520, Japan. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: FDI-09101595-0 Report No: SA960418L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: FDI-09101595-0 Report No: SA960418L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: FDI-09101595-0 Report No: SA960418L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.6dBi or 1.819701(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 63.096 0.023 1.0 6 2437 63.241 0.023 1.0 11 2462 63.533 0.023 1.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 80.910 0.029 1.0 6 2437 79.799 0.029 1.0 11 2462 81.470 0.029 1.0

Report No.: RF960418L08 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960418L08 MODEL NO.: WCA-G RECEIVED: Apr. 18, 2007 TESTED: Aug. 01 ~ Aug. 04, 2007 ISSUED: Aug. 07, 2007 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-chome, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960418L08 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION..............................................................................................4 2 SUMMARY OF TEST RESULTS......................................................................5 2.1 MEASUREMENT UNCERTAINTY...................................................................5 3 GENERAL INFORMATION ..............................................................................6 3.1 GENERAL DESCRIPTION OF EUT ................................................................6 3.2 DESCRIPTION OF TEST MODES ..................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST..............................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................10 3.4 DESCRIPTION OF SUPPORT UNITS ..........................................................10 4 TEST TYPES AND RESULTS........................................................................ 11 4.1 CONDUCTED EMISSION MEASUREMENT.................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 11 4.1.2 TEST INSTRUMENTS ................................................................................... 11 4.1.3 TEST PROCEDURES ...................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ..........................................................12 4.1.5 TEST SETUP.................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ..................................................................13 4.1.7 TEST RESULTS ............................................................................................14 4.2 RADIATED EMISSION MEASUREMENT .....................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................26 4.2.2 TEST INSTRUMENTS ...................................................................................27 4.2.3 TEST PROCEDURES ...................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD ..........................................................28 4.2.5 TEST SETUP.................................................................................................29 4.2.6 EUT OPERATING CONDITIONS ..................................................................29 4.2.7 TEST RESULTS ............................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT .............................................................38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..........................................38 4.3.2 TEST INSTRUMENTS ...................................................................................38 4.3.3 TEST PROCEDURE......................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD ..........................................................39 4.3.5 TEST SETUP.................................................................................................39 4.3.6 EUT OPERATING CONDITIONS ..................................................................39 4.3.7 TEST RESULTS ............................................................................................40 4.4 MAXIMUM PEAK OUTPUT POWER.............................................................46 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..............46 Report No.: RF960418L08 3 Report Format Version 2.0.6 4.4.2 TEST INSTRUMENTS ...................................................................................46 4.4.3 TEST PROCEDURES ...................................................................................47 4.4.4 DEVIATION FROM TEST STANDARD ..........................................................47 4.4.5 TEST SETUP.................................................................................................47 4.4.6 EUT OPERATING CONDITIONS ..................................................................47 4.4.7 TEST RESULTS ............................................................................................48 4.5 POWER SPECTRAL DENSITY MEASUREMENT ........................................49 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ......................49 4.5.2 TEST INSTRUMENTS ...................................................................................49 4.5.3 TEST PROCEDURE......................................................................................50 4.5.4 DEVIATION FROM TEST STANDARD ..........................................................50 4.5.5 TEST SETUP.................................................................................................50 4.5.6 EUT OPERATING CONDITIONS ..................................................................50 4.5.7 TEST RESULTS ...........…

Text truncated - open the document above for the full version.

Page 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) Page 2 (TEST MODE B) Page 3 RADIATED EMISSION TEST (TEST MODE A) Page 4 (TEST MODE B)
