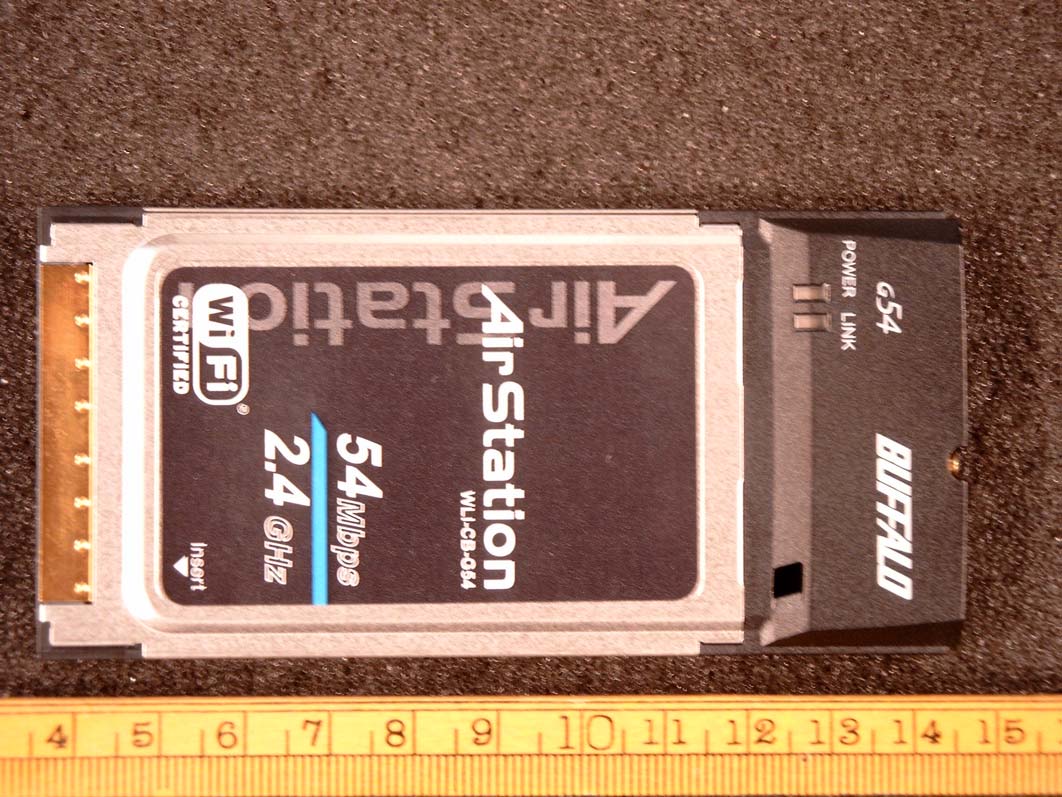

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03013104.p03 Page 1 of 5 EXTERIOR PHOTOGRAPHS OF A 2.4 GHZ IEEE 802.11b/g WLAN CARDBUS CARD, BRAND BUFFALO, MODEL WLI-CB-G54A. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p03 Page 2 of 5 Description of test item Test item : 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Manufacturer : Buffalo Technology Ireland Ltd. Brand : Buffalo Model : WLI-CB-G54A Serial numbers : n.a. Revision : n.a. Receipt number : 3 Receipt date : January 29, 2003 Applicant information Applicant's representative : Mr. J. Carroll Company : Buffalo Technology Ireland Ltd. Address : Unit 14B, Shannon Industrial Estate Postal code : n.a. City : Co. Clare PO-box : n.a. Postal code : n.a. City : n.a. Country : Ireland Telephone number : +353 61 475 908 Telefax number : +353 61 474 770 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p03 Page 3 of 5 Table of contents 1 Exterior photographs. .............................................................................................................................................................. 4 1.1 Top view. ......................................................................................................................................................................... 4 1.2 Bottom view. ................................................................................................................................................................... 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p03 Page 4 of 5 1 Exterior photographs. 1.1 Top view. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p03 Page 5 of 5 1.2 Bottom view.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03013104.p02 Page 1 of 5 INTERIOR PHOTOGRAPHS OF A 2.4 GHZ IEEE 802.11b/g WLAN CARDBUS CARD, BRAND BUFFALO, MODEL WLI-CB-G54A. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p02 Page 2 of 5 Description of test item Test item : 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Manufacturer : Buffalo Technology Ireland Ltd. Brand : Buffalo Model : WLI-CB-G54A Serial numbers : n.a. Revision : n.a. Receipt number : 3 Receipt date : January 29, 2003 Applicant information Applicant's representative : Mr. J. Carroll Company : Buffalo Technology Ireland Ltd. Address : Unit 14B, Shannon Industrial Estate Postal code : n.a. City : Co. Clare PO-box : n.a. Postal code : n.a. City : n.a. Country : Ireland Telephone number : +353 61 475 908 Telefax number : +353 61 474 770 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p02 Page 3 of 5 Table of contents 1 Interior photographs. ............................................................................................................................................................... 4 1.1 Top view PCB. ................................................................................................................................................................ 4 1.2 Bottom view PCB. ........................................................................................................................................................... 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p02 Page 4 of 5 1 Interior photographs. 1.1 Top view PCB. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 2.4 GHz IEEE 802.11b/g WLAN Cardbus card Buffalo Technology Ireland Ltd. Buffalo WLI-CB-G54A FDI-09101744-0 Project number: 03013104.p02 Page 5 of 5 1.2 Bottom view PCB.

SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 1 of 12 Appendix A: Measurement Plots Laptop #1, Dell Inspiron 4100: Plot 1. Date: 11/27/2002 Temperature Air / Liquid: 22.0
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.68 : 1.961 Position / host: Lap / Laptop #1 Dell Inspiron 4100 Channel / Frequency 6 / 2437 MHz Maximum 1 gram SAR: 0.584W/Kg Maximum 10 gram SAR: 0.272W/Kg Power reference start: 0.081W/Kg Power reference end 0.081W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 2 of 12 Plot 2. Date: 11/27/2002 Temperature Air / Liquid: 22.0
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.68 : 1.961 Position / host: Left bystander / Laptop #1 Dell Inspiron 4100 Channel / Frequency 6 / 2437 MHz Maximum 1 gram SAR: 0.040W/Kg Maximum 10 gram SAR: 0.015W/Kg Power reference start: 0.01W/Kg Power reference end 0.01W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 3 of 12 Plot 3. Date: 11/27/2002 Temperature Air / Liquid: 22.0
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.33 : 1.949 Position / host: Lap / Laptop #1 Dell Inspiron 4100 Channel / Frequency 1 / 2412 MHz Maximum 1 gram SAR: 0.572W/Kg Maximum 10 gram SAR: 0.285W/Kg Power reference start: 0.095W/Kg Power reference end 0.095W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 4 of 12 Plot 4. Date: 11/27/2002 Temperature Air / Liquid: 22.0
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.05 : 1.961 Position / host: Lap / Laptop #1 Dell Inspiron 4100 Channel / Frequency 11/ 2462 MHz Maximum 1 gram SAR: 0.623W/Kg Maximum 10 gram SAR: 0.310W/Kg Power reference start: 0.124W/Kg Power reference end 0.128W/Kg Power reference change 2 3.08% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 5 of 12 Laptop #2, Dell Inspiron 8200: Plot 5. Date: 11/26/2002 Temperature Air / Liquid: 20.7
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.68 : 1.961 Position / host: Lap / Laptop #2 Dell Inspiron 8200 Channel / Frequency 6 / 2437 MHz Maximum 1 gram SAR: 0.070W/Kg Maximum 10 gram SAR: 0.026W/Kg Power reference start: 0.01W/Kg Power reference end 0.01W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 6 of 12 Plot 6. Date: 11/26/2002 Temperature Air / Liquid: 22.3
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.68 : 1.961 Position / host: Right bystander / Laptop #2 Dell Inspiron 8200 Channel / Frequency 6 / 2437 MHz Maximum 1 gram SAR: 0.046W/Kg Maximum 10 gram SAR: 0.024W/Kg Power reference start: 0.003W/Kg Power reference end 0.003W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix A Page 7 of 12 Plot 7. Date: 11/26/2002 Temperature Air / Liquid: 22.5
C / 21.1
C Liquid mass density (
): 1 DCP 1 20 Probe factors (S/N 0106) (ConvF): X=0.897, Y=1.320, Z=0.810 Simulated tissue dielectric parameters:  r : 51.33 : 1.949 Position / host: Lap / Laptop #2 Dell Inspiron 8200 Channel / Frequency 1 / 2412 MHz Maximum 1 gram SAR: 0.061W/…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 1 of 13 Appendix B: Photos EUT Photos Photo 1. EUT front SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 2 of 13 Photo 2. EUT back SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 3 of 13 Set-up Photos Photo 3. Lap, PC #1 Dell Inspiron 4100 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 4 of 13 Photo 4. Left bystander, PC #1 Dell Inspiron 4100 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 5 of 13 Photo 5 Left bystander distance, PC #1 Dell Inspiron 4100 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 6 of 13 Photo 6 Lap, PC #2 Dell Inspiron 8200 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 7 of 13 Photo 7 Right bystander, PC #2 Dell Inspiron 8200 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 8 of 13 Photo 8 Right bystander distance, PC #2 Dell Inspiron 8200 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 9 of 13 Photo 9 Lap, PC #3 Toshiba Protégé 2000 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 10 of 13 Photo 10 Right bystander, PC #3 Toshiba Protégé 2000 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 11 of 13 Photo 11 Right bystander distance, PC #3 Toshiba Protégé 2000 SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 12 of 13 Photo 12. Photo to demonstrate 15 cm Z-axis head phantom SAR Test Report No.: SAR_281_2002_FCC_2450 Date of Report:11/27/2002 Appendix B Page 13 of 13 Photo 13. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No : SAR_381_2002_FCC_2450 Date of Report: 11/27/2002 Appendix C Page 1 of 23 Test Setup Position and Distance Diagrams: Laptop #1, Dell Inspiron 4100: Lap position: bottom of PC touching phantom Left bystander EUT position 2.5 cm edge 9mm
bottom of PCMCIA of EUT to phantom slot to…
