User Manual Wireless PCI Adapter WLI2-PCI-G54S www.buffalotech.com/wireless v2.3 2 • Insert the AirNavigator CD into the CD-ROM drive of your computer. The AirNavigator Setup Wizard should launch automatically. • To launch the AirNavigator Setup Wizard manually, click Start, then Run. Type “D:\ Setup.exe”, where D is the drive letter assigned to your CDrom. • Click OK to launch the wizard. Getting Started  • Select Install Wireless Drivers. Installing Wireless Drivers 4 • Click Next to install a driver for the PCI adaptor. • Select Agree and click Next to continue the process after reviewing the license agreemennt. • A window will appear prompting the installation of the Wireless PCI Adapter into the PC. You will need to shut down your PC to install the wireless PCI card. Press Cancel if necessary and shut down your PC. Installing Wireless Drivers 5 • Power off the desktop PC. Insert the Wireless PCI Adapter into an available PCI slot. PCI slots are located inside the desktop computer. Please consult the PC Manufacturer's documentation for PCI installation instructions. Once the Wireless PCI Adapter is installed correctly, attach the included antenna on the back of the PCI card, start the PC and let it boot into Windows. Then, the Found New Hardware Wizard will launch automatically. If the Found New Hardware Wizard does not launch, turn off the computer, remove the Wireless PCI Adapter, reinsert it into another PCI slot, and restart the computer. • Select Install the software automatically. Click the Next button. Installing Wireless Drivers  • When the ‘Found New Hardware Wizard’ launches, click Next. • If the ‘Digital Signature Not Found’ page opens, click Yes. • When the Wireless PCI Adapter is successfully installed, click Finish. Restart your computer if prompted. Installing Drivers  Connecting Wireless Clients to your Network Buffalo supports three different methods for connecting your wireless client device to your network. If your AP supports it, use the simple, utterly secure AOSS to connect. Install the Client Manager from your AirNavigator CD (page 8) and turn to page 11. You may also use the Client Manager software from your AirNavigator CD to configure your network manually. See page 16 for more on Client Manager. If you’re running Windows XP on your PC, you may use its built-in Zero Configuration tool to connect to your router/AP. See page 21 for more on Zero Configuration.  Client Manager can be used to survey and connect to available access points, configure WPA/WEP encryption, and create connection profiles. Note: When Client Manager is installed, Windows XP Wireless Zero Configuration is automatically disabled. Installing Client Manager Insert the AirNavigator CD into the CD- ROM drive of you computer. If the Air Navigator Setup Wizard does not launch automatically, launch it manually by clicking Start and then Run. Enter D:\ Setup.exe in the dialog box that appears. Click OK. Select Install Wireless Client Manager. Client Manager  Client Manager • Once the Client Manager Installer launches, click Next. • Press Agree to accept the license agreement and continue installation. 10 Client Manager • Click OK when Client Manager installation is complete. • Press Exit Setup to exit AirNavigator. • Client Manager is now installed and running. Right-click on its icon (the black antenna) to use it. 11 The AOSS button for this wireless client is in its Client Manager software. Start Client Manager by right clicking on the black antenna icon in your System Tray, or by launching the Client Manager from your Start Menu: Programs >> Buffalo >>AirStation Utility >> Client Manager. AOSS (AirStation One-Touch Secure System) is a simple, one-touch setup for connecting wireless clients to an access point while enforcing the most secure possible connection encryption type. Users no longer need to worry about choosing the proper security protocols, IP addresses, or SSID. AOSS determines the optimal connection and configures itself in seconds. If your router doesn’t support AOSS, turn to page 6 to configure your connection manually with Client Manager or Wireless Zero Config. Using AOSS 12 • From the Status Screen, select the Profiles tab. • Initiate AOSS by clicking the blue AOSS button on the Client Manager’s screen. The AOSS wizard will appear. • Now, press the AOSS button on the Access Point. Hold it down until the AOSS LED begins to flash. Using AOSS 1 Once AOSS is complete (about 30 seconds), the connection is archived as a profile for later use. To minimize Client Manager to the system tray, click the ‘X’ in the top right corner. Notes: AOSS will scan for an AOSS partner for about two minutes. If it times out before finding one, just press the AOSS buttons again. Output power is reduced to 25% of normal during AOSS for security reasons. If you’re having trouble making an AOSS connection, temporarily move the devices closer together. AOSS will automatically use the highest level of security available for all currently connected wireless devices. If you have trouble connecting with AOSS, temorarily disable all personal firewalls on your PC, such as ZoneAlarm or Microsoft Personal Firewall. These programs may be re-enabled after AOSS has finished. Using AOSS 14 You may use Client Manager to configure your wireless network. Client Manager consists of the Status page, the Survey page, and the Profiles page. You can access each page by clicking the corresponding button on Client Manager. In addition to these pages, several dialog boxes are also available. You can access the Edit Profile dialog box, New Profile dialog box, IP Configuration dialog box, or WEP Configuration dialog box using the Client Manager pages. You may also initiate AOSS. Status Page Click Status to open this page. By default, this page is displayed when you start Client Manager. Details of connection status are displayed. This page only displays connection information; no changes to settings are made here. This page …

Text truncated - open the document above for the full version.

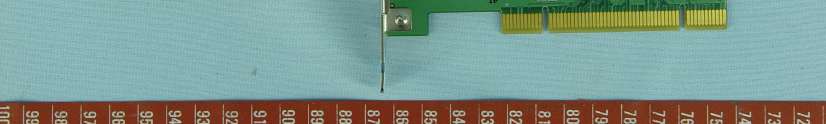

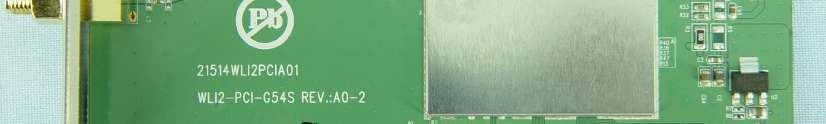

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: FDI-09101803 Label Location

Page 3 Page 4

FCC ID: FDI-09101803 Report No.:RF950928L10 Operational Description This device is a BCM4318 802.11b/g PCI Bus, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: FDI-09101803 Report No: SA950928L10 1 RF EXPOSURE REPORT REPORT NO.: SA950928L10 MODEL NO.: WLI2-PCI-G54S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: FDI-09101803 Report No: SA950928L10 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: FDI-09101803 Report No: SA950928L10 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION This device is fixed inside the host equipment. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: FDI-09101803 Report No: SA950928L10 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 18.155 0.006 1.0 6 2437 18.113 0.006 1.0 11 2462 17.947 0.006 1.0 802.11g OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 17.947 0.006 1.0 6 2437 17.906 0.006 1.0 11 2462 18.113 0.006 1.0

Report No.: RF950928L10 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950928L10 MODEL NO.: WLI2-PCI-G54S RECEIVED: Nov. 20, 2006 TESTED: Nov. 20 ~ Nov. 24, 2006 ISSUED: Nov. 28, 2006 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950928L10 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION.........................................................................................................4 2 SUMMARY OF TEST RESULTS.................................................................................5 2.1 MEASUREMENT UNCERTAINTY..............................................................................5 3 GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................11 3.4 DESCRIPTION OF SUPPORT UNITS......................................................................11 4 TEST TYPES AND RESULTS...................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT............................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................12 4.1.2 TEST INSTRUMENTS..............................................................................................12 4.1.3 TEST PROCEDURES..............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................13 4.1.5 TEST SETUP...........................................................................................................14 4.1.6 EUT OPERATING CONDITIONS.............................................................................14 4.1.7 TEST RESULTS.......................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT.................................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................21 4.2.2 TEST INSTRUMENTS..............................................................................................22 4.2.3 TEST PROCEDURES..............................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.....................................................................23 4.2.5 TEST SETUP...........................................................................................................24 4.2.6 EUT OPERATING CONDITIONS.............................................................................24 4.2.7 TEST RESULTS.......................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................32 4.3.2 TEST INSTRUMENTS..............................................................................................32 4.3.3 TEST PROCEDURE.................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.....................................................................33 4.3.5 TEST SETUP...........................................................................................................33 4.3.6 EUT OPERATING CONDITIONS.............................................................................33 4.3.7 TEST RESULTS.......................................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................40 4.4.2 TEST INSTRUMENTS..............................................................................................40 4.4.3 TEST PROCEDURES..............................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.....................................................................41 4.4.5 TEST SETUP...........................................................................................................41 4.4.6 EUT OPERATING CONDITIONS.............................................................................41 4.4.7 TEST RESULTS.......................................................................................................42 4.5 POWER SPECTRAL DENSITY MEASUREMENT....................................................43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.................................43 4.5.2 TEST INSTRUMENTS..............................................................................................43 4.5.3 TEST PR…
