FDI-09101841-0802.11 b/g High Power Cardbus Adapter

User Manual High Power Wireless Notebook Adapter WLI-CB-G54HP www.buffalotech.com 2 Table of Contents Table of Contents Card Info ...........................................................3 WinXP Setup ..................................................... 4 WinXP Zero Config (Client Manager) ................ 8 Win98, WinME, Win2K Setup .......................... 11 Buffalo Client Manager ................................... 14 Buffalo Client Manager Config ........................ 17 Antenna Information ....................................... 24 Specifications .................................................. 25 Troubleshooting .............................................. 26 Glossary .......................................................... 28 FCC/CE Information ......................................... 35 Warranty Information ...................................... 38 Technical Support ........................................... 39 3 Card Info High Power Wireless Notebook Adapter The High Power Wireless Notebook Adapter is a CardBus card that provides wireless connec- tivity to notebook PCs. It uses an internal amplifier to increase the radio output so that it can connect to APs/Wireless Routers furt her away and transfer data at range faster (than traditional 802.11g CardBus cards). Buffalo Technology recommends use with the High Power Wireless Router (WZR-HP-G54) for maximum range and performance. An external antenna can be added to the High Power Wireless Notebook Adapter to increase its range and versatility. Antenna information can be found on Page 24. 4 WinXP Setup Windows 2000 & XP – Installation & Configuration 1. Installing the Wireless Notebook Adapter Drivers: ◗ Insert the AirNavigator CD into the CD-ROM drive of the PC. The Air Navigator Setup Wizard launches automatically. If the Air Navigator Setup Wiz - ard does not launch automati- cally, launch the wizard manu - ally by selecting Start>>Run to open the Run dialog box. Enter D:\Setup.exe in the Open field. D: represents the letter as- signed to the CD-ROM drive. If another letter is assigned to the CD-ROM drive, your command should refelect that difference. Click the OK button to launch the wizard. 5 ◗ Select Install Wireles Adapter. Click the OK button to begin the installation process. ◗ Review the Software License Agreement. Click the Yes but- ton to confirm your agreement with the terms and continue in- stalling the Wireless Notebook Adapter drivers. Click the No button to abort the installation process. WinXP Setup 6 WinXP Setup 2. Installing the Wireless Notebook Adapter: ◗ Insert the Wireless Notebook Adapter, with the Buffalo logo facing up, into an available CardBus slot. CardBus slots are usually located on the left or right side of the notebook. Once the Wire- less Notebook Adapter is installed correctly, the Found New Hardware Wizard will launch auto- matically. If the Found New Hardware Wizard does not launch, remove the Wireless Notebook Adapter and restart the notebook. Reinsert the Wireless Notebook Adapter once the notebook has rebooted. Then, the Found New Hardware Wizard will launch automatically. 7 WinXP Setup ◗ Select the driver you want to install. If multiple drivers are listed, select the most recent driver version. Click the Next button. ◗ If a window opens, stating that your driver does not pass Windows Logo testing, click the Continue Anyway button. When the Wireless Notebook Adapter is successfully installed, click the Finish button. Restart your PC if prompted. 8 3. Configuring Wireless Zero Configuration Service: ◗ If the Wireless Zero Configuration Service is activated, Windows will scan for available wireless access points once the Wireless Notebook Adapter is properly installed. If Windows detects one or more access points, a net - working icon appears on the task bar. One or more wireless networks are available appears as a caption accompanying the icon. ■ Note: If the Wireless Zero Configuration Service is not functioning, select Start>Control Panel>Administrative Tools>Services. Select Automatic in the Startup Type field of Wireless Zero Configuration Service to enable the Wireless Zero Configuration Service. The default value of Wireless Zero Configuration Service is Automatic . ◗ Right click the networking icon in the taskbar and se- lect View Available Wireless Networks to display a list of available wireless networks. Select an access point network name or SSID and click the Connect button to establish a connection. You may need to check the box indicating you are connecting to an unsecured network. See Page 8 if you need to enter an SSID network name or WEP/WPA encryption key. WinXP Client Manager 9 ◗ Click the Advanced button to enter an SSID network name or WEP/WPA encryption key, if either is necessary. To add an SSID network name that is not available, click the Add button. WinXP Client Manager 10 WinXP Client Manager ◗ To configure a WEP/WPA encryption key, select the ap- propriate wireless network and click the Configure button. ◗ From the pull down menu, select the appropriate Net- work Authentication and Data Encryption for the wireless network. Enter and confirm the Network Key and Key Index. Click the OK button when finished. ■ Note: Buffalo Technology recommends that users of the Wireless Zero Configuration Service upgrade to the latest version freely available at: http://www.microsoft.com. For advanced support in using Window’s XP’s Wireless Zero Configuration Service, refer to the Buffalo Support Web Site: http://www.buffalotech.com Skip to Page 14 if you are not using Windows XP or prefer not to use Windows XP's Wireless Zero Configuration Service. If you plan on using AOSS then you will need to install Buffalo’s Client Manager software; skip to Page 14 to do so. 11 Win98, WinME, Win2K Setup Windows 98/ME/2000 Installation & Configuration 1. Installing the Wireless Notebook Adapter: ◗ Insert the Wireless Notebook Adapter, with the Buffalo logo facing up, into an a…

Text truncated - open the document above for the full version.

1 Mike Kuo To: Danielle Zhan Subject: RE: Buffalo Inc., FCC ID: FDI-09101841-0, Assessment NO.: AN05T4907, Notice#1 To:Mike Kuo Cc:Michael Heckrotte; Kathy Yao; Sunny Shih Subject:RE: Buffalo Inc., FCC ID: FDI-09101841-0, Assessment NO.: AN05T4907, Notice#1 Hi Mike, Below please find responses to your question in blue. Thank you for your review. Danielle Zhan Compliance Certification Services 561 F Monterey Road Morgan Hill, CA 95037 Tel: (408) 463 0885 Fax: (408) 463 0888 -----Original Message----- From: Compliance Certification Services [mailto:[email protected] ] Sent: Thursday, June 30, 2005 4:06 PM To: Mike Kuo Subject: Buffalo Inc., FCC ID: FDI-09101841-0, Assessment NO.: AN05T4907, Notice#1 Question #1: Page 36 of user manual indicated that this cardbus must be installed to provide 20 cm separation distance to the end user. Based upon the description contains in the user manual, the primary function for this cardbus is to be used with notebook computer. When cardbus card installed in the notebook computer, while at lap held position, the separation distance between the cardbus to the user is less than 20 cm. Please revise the RF exposure statement and take into account that when external antenna is used, the separation distance shall be at least 20 cm; when it is used with integral antenna with notebook computer, the separation distance is not required. [Danielle] Please find revised user manual that addresses the question. << File: WLI-CB-G54HP-Manual_R.pdf >> Question #2: Page 12 of DTS report, the measured 6dB bandwidth has wrong unit, please make necessary correction. [Danielle] Report revised as attached. << File: 05I3515-1 FCC DTS Report_Revised.pdf >> Question #3 : When the external antenna is connected to the cardbus card, will the internal antenna also acted as transmitting antenna ? If not, please provide engineering justification to support it. [Danielle] See revised Theory of Operation that addresses the question. << File: technical_description_Revised.pdf >> SAR portion Question #4: during G mode investigation, the duty cycle is 65%. Based upon FCC SAR evaluation guideline, for typical 802.11x device, a near 100 % duty cycle is expected. If the device can not achieve near 100 % duty cycle, tests must be performed to determine output linearity at the intended maximum duty factor for linear operations and half of the maximum duty factor. [Danielle] Additional SAR evaluation performed with result as attached. 2 << File: SAR vs Duty cycle.pdf >> Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

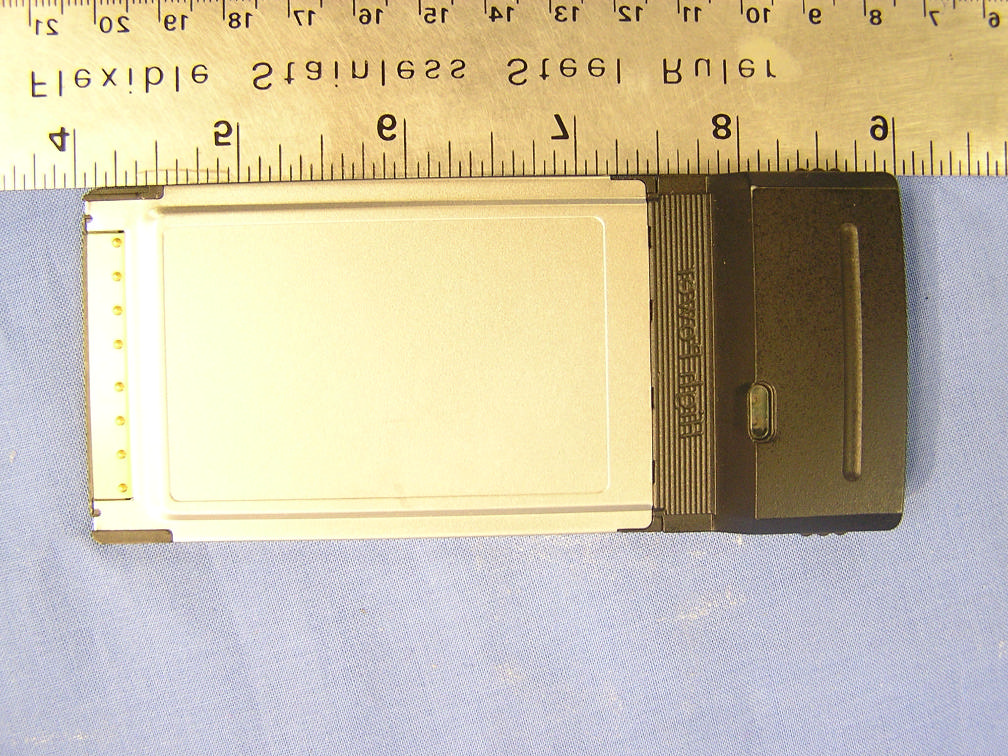

REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 25 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 12 PHOTO 12.1 EUT REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 26 of 33 This report shall not be reproduced except in full, without the written approval of CCS. REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 27 of 33 This report shall not be reproduced except in full, without the written approval of CCS.

REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 28 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 12.2 HOST DEVICE HOST # 1 (IBM) REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 29 of 33 This report shall not be reproduced except in full, without the written approval of CCS. HOST # 2 (TOSHIBA) REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 30 of 33 This report shall not be reproduced except in full, without the written approval of CCS. HOST # 3 (HP)

2005/06/17PMBU-30191-D005-02 09101841-0 PROPOSED FCC ID LABEL LOCATION FCC ID LABEL

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC REPORT AND ORDER: ET DOCKET 93-62, AND OET BULLETIN 65 SUPPLEMENT C FOR High Power CardBus Adapter Brand Name: BUFFALO Model: WLI-CB-G54HP FCC ID: FDI-09101841-0 REPORT NUMBER: 05I3515-3 ISSUE DATE: June 30, 2005 Prepared for Buffalo Inc. 15, Shibata Hondori 4-Chome Minami-Ku, Nagoya 457-8520, Japan Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By A Initial Issue HS REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 33 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: June 24, 28 and 30, 2005 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-Chome Minami-Ku, Nagoya 457-8520, Japan FCC ID: FDI-09101841-0 MODEL: WLI-CB-G54HP DEVICE CATEGORY: Portable Device EXPOSURE CATEGORY: General Population/Uncontrolled Explosure High Power CardBus Adaptor Installed in Laptop PCs (Hosts) Test Sample is a: Production unit Modulation type: • Direct Sequence Spread Spectrum (DSSS) for 802.11b • Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Host devices: • Host # 1 - IBM, model R50e (P/N: 1834-KC1, S/N:99-HDCD1) • Host # 2 - Toshiba, model Satellite (P/N: PS183U-00KP0X) • Host # 3 - HP, model ze4200 (S/N: CN25110374) FCC Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] 47 CFR 15.247 2412 - 2462 0.717 mW/g for Host # 1 0.689 mW/g for Host # 2 0.699 mW/g for Host # 3 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Explosure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01- 01). And RSS-102 Issue 1 (Provisional) September 25, 1999. The maximum 1g SAR level measured for all the tests performed did not exceed the limits for General Population/Uncontrolled Exposure (W/kg) Partial Body of 1.6 W/kg. Level defined in Supplement C (Edition 01-01) to OET Bulletin 65 (97-01). Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Released For CCS By: Hsin Fu Shih (Sunny Shih) COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05I3515-3 DATE: June 30, 2005 FCC ID: FDI-09101841-0 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 33 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 Equipment Under Test (EUT) Description............................................................................................ 5 2 FACILITIES AND ACCREDITATION ................................................................................................... 5 3 System Description............................................................................................................................... 6 4 System Component .............................................................................................................................. 7 4.1 DASY4 Measurement Server.......................................................................................................7 4.2 Data Acquisition Electronics (DAE)..............................................................................................7 4.3 EX3DV3 Isotropic E-Field Probe for Dosimetric Measurements ................................................. 7 4.4 Light Beam Unit............................................................................................................................ 8 4.5 SAM Phantom (V4.0) ................................................................................................................... 8 4.6 Device Holder for SAM Twin Phantom ........................................................................................ 9 4.7 System Validation Kits ................................................................................................................. 9 4.8 Composition of Ingredients for tissue simulating liquid................................................................ 9 5 Test positions for devices Operating Next To A Person’s Ear ........................................................... 10 5.1 Cheek/Touch Position ................................................................................................................ 11 5.2 Ear/Tilt Position .......................................................................................................................... 12 6 Test Positions For Body-worn And Other Similar Configurations ...................................................... 13 7 Simulating Liquid Parameters Check ................................................................................................. 14 7.1 Simulating Liquid Parameter Check Result ............................................................................... 15 8 System Performance Check............................................................................................................... 18 8.1 System Performance Check Results .........................................................................................…

Text truncated - open the document above for the full version.

Date/Time: 6/24/2005 4:27:01 PMDate/Time: 6/24/2005 4:34:08 PM Test Laboratory: Compliance Certification Services Host # 1 - IBM Laptop (Antenna 0) DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1.05 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode, d=11mm L-ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.625 mW/g b mode, d=11mm L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.75 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.588 mW/g; SAR(10 g) = 0.326 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.753 mW/g Date/Time: 6/24/2005 3:02:17 PMDate/Time: 6/24/2005 3:12:07 PM Test Laboratory: Compliance Certification Services Host # 1 - IBM Laptop (Antenna 0) DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.05 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.99 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode, d=11mm M-ch/Area Scan (12x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.647 mW/g b mode, d=11mm M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.964 W/kg SAR(1 g) = 0.541 mW/g; SAR(10 g) = 0.297 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.702 mW/g Date/Time: 6/24/2005 4:44:46 PMDate/Time: 6/24/2005 4:51:53 PM Test Laboratory: Compliance Certification Services Host # 1 - IBM Laptop (Antenna 0) DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2462 MHz;Duty Cycle: 1:1.05 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.02 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode, d=11mm H-ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.584 mW/g b mode, d=11mm H-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.23 V/m; Power Drift = -0.139 dB Peak SAR (extrapolated) = 0.942 W/kg SAR(1 g) = 0.539 mW/g; SAR(10 g) = 0.297 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.703 mW/g Date/Time: 6/28/2005 5:42:37 PMDate/Time: 6/28/2005 5:49:42 PM Test Laboratory: Compliance Certification Services Host # 1 - IBM Laptop (Antenna 1) DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1.05 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.91 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode, d=1.1mm L-ch/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.807 mW/g b mode, d=1.1mm L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.097 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.701 mW/g; SAR(10 g) = 0.417 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.961 mW/g Date/Time: 6/28/2005 5:55:12 PM Test Laboratory: Compliance Certification Services Host # 1 - IBM Laptop (Antenna 1) DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.05 b mode, d=1.1mm M-ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR e…

Text truncated - open the document above for the full version.

Date/Time: 6/24/2005 12:50:50 PMDate/Time: 6/24/2005 12:55:23 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.01 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 18.6 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 99.1 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 26.5 W/kg SAR(1 g) = 13.3 mW/g; SAR(10 g) = 6.17 mW/g Maximum value of SAR (measured) = 18.5 mW/g 0 dB = 18.5mW/g Date/Time: 6/24/2005 1:01:30 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 19.1 mW/g Date/Time: 6/28/2005 9:24:28 AMDate/Time: 6/28/2005 9:29:00 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.96 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 18.0 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.7 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 25.0 W/kg SAR(1 g) = 12.8 mW/g; SAR(10 g) = 6.02 mW/g Maximum value of SAR (measured) = 17.5 mW/g 0 dB = 17.5mW/g Date/Time: 6/28/2005 9:35:08 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 17.8 mW/g Date/Time: 6/29/2005 9:41:27 AMDate/Time: 6/29/2005 9:46:00 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.94 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.5 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 96.8 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 24.3 W/kg SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.87 mW/g Maximum value of SAR (measured) = 17.1 mW/g 0 dB = 17.1mW/g Date/Time: 6/29/2005 9:52:05 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 17.9 mW/g

SAR vs duty cycle f (MHz) Ch. No. Modulation Data Rate (Mbps) Duty Cycle (%) Output Power (dBm) SW Power Setting Measured 1-g SAR (W/kg) 100% 1-g SAR (W/kg) 2412 1 BPSK 6 64.4 15.45 21 0.548 0.549 2412 1 QPSK 12 68.75 15.45 21 0.548 0.549 2412 1 16-QAM 24 35.81 15.40 43 0.523 0.527 2412 1 64-QAM 48 21.67 15.90 65 0.488 0.496 2412 1 64-QAM 54 18.75 15.30 65 0.428 0.435 Date/Time: 6/30/2005 2:46:58 PMDate/Time: 6/30/2005 2:51:30 PM Test Laboratory: Compliance Certification Services Host # 1 IBM Laptop DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 G mode, Data Rate: 6 Mbps/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.665 mW/g G mode, Data Rate: 6 Mbps/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.188 dB Peak SAR (extrapolated) = 0.910 W/kg SAR(1 g) = 0.548 mW/g; SAR(10 g) = 0.310 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.700 mW/g Date/Time: 6/30/2005 2:46:58 PMDate/Time: 6/30/2005 2:51:30 PM Test Laboratory: Compliance Certification Services Host # 1 IBM Laptop DUT: Buffalo; Type: WLI-CB-G54HP; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1.55 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24 deg. C; Liquid Temperature: 23 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn5…

Text truncated - open the document above for the full version.
