FDI-09102019-0AirStation 11g 125Mbps Wireless LAN USB Adapter

User Manual Wireless 54 Mbps USB Adapter with Antenna Interface WLI2-USB-G54 www.buffalotech.com v1.0 User Manual AirStation WLI-U2-KG125S 2 Congratulations on your purchase! The AirStation WLI-U2-KG125S Turbo G wireless USB 2.0 Adapter connects your notebook computer or desktop PC to a 2.4ghz 802.11g or b network. System Requirements • A compatible G or B band access point. • A PC running Windows XP, 2000, ME, or 98se that has a USB 2.0 port. Package Contents • WLI-U2-KG125S USB Adapter • Utility CD with Manual • Quick Setup Guide • Warranty Statement Introduction 3 Table of Contents Getting Started ................................................................ 4 Installing Drivers .............................................................. 5 Installing with Windows XP ............................................. 7 Installing with Windows 98, Me, 2000 ............................ 8 Installing Client Manager ............................................ 11 Using Client Manager .................................................. 14 AOSS .............................................................................. 21 Wireless Zero Confi g ..................................................... 25 Specifi cations................................................................ 28 Troubleshooting/FAQ ................................................... 29 FCC/CE Information ..................................................... 32 Contact Information ..................................................... 50 4 Getting Started 1. Installing Drivers: Insert the AirNavigator CD into the CD-ROM drive of the PC. Do not insert the USB key into a USB port yet. If setup.exe does not launch automatically, click Start and select Run. Enter D:\Setup.exe in the Open fi eld, where D: is the letter assigned to your CD-ROM. Click OK to launch the wizard. 5 Select Install Wireless Drivers. Click Next. AirNavigator 6 The Software License Agreement will appear. Select Agree and then click Next. If you have Windows XP on your PC, turn to page 7 to install your adapter. If you are using Windows 98se, Me, or 2000, turn to page 8. AirNavigator - Installing Drivers 7 Installing with Windows XP 2. Installing the Wireless USB Adapter with Windows XP*: Plug the Wireless USB Adapter or stand into an available USB port on your PC. The Found New Hardware Wizard will launch automatically. If this screen doesn’t appear, remove the Wireless USB Adapter and restart the notebook. Reinsert the Wireless USB Adapter once the notebook has rebooted. If the wizard doesn’t run automatically, select Install the software automatically, and click Next, then Finish. * If you’re using Windows 98se, Me, or 2000, turn to page 8 for alternate instructions. 8 Installing with Windows 98/ME/2000 2. Installing the Wireless USB Adapter with Windows 98se/Me/2000: 1. Installing the Wireless USB Adapter: Power on the notebook PC and let it boot into Windows. Plug the Wireless USB Adapter into an available USB port on your PC. The Found New Hardware Wizard will launch automatically. If this screen doesn’t appear, remove the Wireless USB Adapter and restart the notebook. Reinsert the Wireless USB Adapter once the notebook has rebooted. Select Install the software automatically. Click the Next button. 9 Installation / Setup Insert the AirNavigator CD. Click Next at the Welcome to the Found New Hardware Wizard. Select Search for a suitable driver for my device. Click Next to continue. Check only the CD-ROM drives checkbox, and clear any other checkboxes that are selected. Click Next to continue. 10 Installation / Setup Windows will display a driver you can use with the Wireless USB Adapter. Click Next. In Windows 2000, if the Digital Signature Not Found page opens as shown, click Yes to continue the installation process. When the Wireless USB Adapter is successfully installed, click Finish. Restart your computer if prompted. See the next page to install the Client Manager. 11 3. Installing Client Manager Client Manager lets you confi gure your wireless network, survey and connect to available access points, enable and use WEP encryption, initiate AOSS, and create connection profi les. Note: During Installation, Client Manager disables Windows XP’s Zero Confi guration Tool. If you have Windows XP, and you don’t want to install or use Client Manager, turn to page 25 to use the built in Windows Zero Confi guration Tool instead. Insert the AirNavigator CD. The AirNavigator dialog box should open automatically. If it does not, click Start, then Run, and enter D:\Setup.exe in the “Open” fi eld, where D: is the letter assigned to your CD-ROM drive. Click the OK button. Select Install Client Manager to launch the InstallShieldWizard. Client Manager 12 Client Manager Once the Installer Wizard launches, click the Next button to begin the software installation. Press I Agree to accept the license agreement and continue the installation process. 13 Client Manager Press the OK button to fi nish and close the installation program. Press the Exit Setup button to close the AirNavigator installation utility. The Buffalo Client Manager is now installed and running; clicking on its icon (the black antenna icon) will allow you to begin using it. 14 You may use Client Manager to confi gure your wireless network manually. Client Manager consists of the Status page, the Survey page, and the Profi les page. You can access each page by clicking the corresponding button at the top of Client Manager. Several dialog boxes are also available. You can access the Edit Profi le dialog box, New Profi le dialog box, IP Confi guration dialog box, or WEP Confi guration dialog box using the Client Manager pages. You may also initiate AOSS (page 21). Status Page Click Status to open this page. By default, this page is displayed when you start Client Manager. Details of connection status are displayed. This page only displays connection information; no changes to settings are made here. This…

Text truncated - open the document above for the full version.

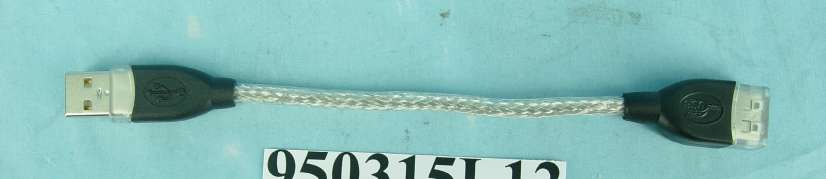

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: FDI-09102019-0 Label Location

Page 3 Page 4 Page 5

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm (DATE：2005 / 5 / 5) MSL 2450MHz D=150mm (DATE：2006 / 4 / 6) A - 2 Date/Time: 2005/5/5 09:31:39 Test Laboratory: Advance Data Technology D600-11b-CH1-Mode 1 DUT: AirStation 11g 125Mbps WirelessLAN USB Adapter ; Type: WLI-U2-KG125S ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Sleeve Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.28 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.83 V/m Peak SAR (extrapolated) = 3.34 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 1.34 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.83 V/m; Peak SAR (extrapolated) = 2.06 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.520 mW/g Maximum value of SAR (measured) = 1.12 mW/g A - 3 A - 4 Date/Time: 2005/5/5 09:50:12 Test Laboratory: Advance Data Technology D600-11b-CH6-Mode 1 DUT: AirStation 11g 125Mbps WirelessLAN USB Adapter ; Type: WLI-U2-KG125S ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Sleeve Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Mid Channel 6/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.18 V/m Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.503 mW/g Maximum value of SAR (measured) = 1.34 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.18 V/m; Peak SAR (extrapolated) = 2.10 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.529 mW/g Maximum value of SAR (measured) = 1.14 mW/g A - 5 Date/Time: 2005/5/5 10:09:25 Test Laboratory: Advance Data Technology D600-11b-CH11-Mode 1 DUT: AirStation 11g 125Mbps WirelessLAN USB Adapter ; Type: WLI-U2-KG125S ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Sleeve Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.05 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.95 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.459 mW/g Maximum value of SAR (measured) = 1.21 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.13 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.537 mW/g Maximum value of SAR (measured) = 1.16 mW/g A - 6 Date/Time: 2005/5/5 10:28:46 Test Laboratory: Advance Data Technology D600-11g-CH1-Mode 2 DUT: AirStation 11g 125Mbps WirelessLAN USB Adapter ; Type: WLI-U2-KG125S ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Sleeve Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.391 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.95 V/m Peak SAR (extrapolated) = 0.876 W/kg SAR(1 g) = 0.330 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.393 mW/g Low Channel 1/Zoom Scan (7x7x7…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D2: DOSIMETRIC E-FIELD PROBE SN: 1753 D2: DOSIMETRIC E-FIELD PROBE APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

D4: SYSTEM VALIDATION DIPOLE

D3: DAE SN: 579 D4：DAE3 (Cal Date：August 17.2005)

Report No.: SA940401L07A1Report Format Version 2.0.3 Reference: 950315L12 SAR TEST REPORT REPORT NO.: SA940401L07A MODEL NO.: WLI-U2-KG125S RECEIVED: Apr. 20, 2005 TESTED: May 05, 2005 (for mode 1~4) Apr. 06, 2006 (for mode 5~6) ISSUED: Apr. 18, 2006 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 40 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: SA940401L07A2Report Format Version 2.0.3 Reference: 950315L12 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT..........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1 DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3 DESCRIPTION OF TEST MODE.............................................................................15 4.4SUMMARY OF TEST RESULTS.............................................................................16 5.TEST RESULTS......................................................................................................17 5.1TEST PROCEDURES.............................................................................................17 5.2MEASURED SAR RESULTS...................................................................................19 5.3SAR LIMITS............................................................................................................22 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................23 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................26 6.SYSTEM VALIDATION............................................................................................27 6.1TEST EQUIPMENT.................................................................................................27 6.2TEST PROCEDURE...............................................................................................28 6.3VALIDATION RESULTS..........................................................................................30 6.4SYSTEM VALIDATION UNCERTAINTIES...............................................................31 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................32 7.1PROBE CALIBRATION UNCERTAINTY.................................................................32 7.2 ISOTROPY UNCERTAINTY....................................................................................33 7.3BOUNDARY EFFECT UNCERTAINTY...................................................................33 7.4PROBE LINEARITY UNCERTAINTY.......................................................................34 7.5READOUT ELECTRONICS UNCERTAINTY...........................................................34 7.6RESPONSE TIME UNCERTAINTY.........................................................................34 7.7INTEGRATION TIME UNCERTAINTY....................................................................35 7.8PROBE POSITIONER MECHANICAL TOLERANCE..............................................36 7.9PROBE POSITIONING............................................................................................36 7.10PHANTOM UNCERTAINTY....................................................................................37 7.11DASY4 UNCERTAINTY BUDGET...........................................................................38 8.INFORMATION ON THE TESTING LABORATORIES.............................................39 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA940401L07A3Report Format Version 2.0.3 Reference: 950315L12 1. CERTIFICATION PRODUCT: AirStation 11g 125Mbps WirelessLAN USB Adapter MODEL: WLI-U2-KG125S BRAND: Buffalo APPLICANT: Buffalo Inc. TESTED: May 05, 2005 (for mode 1~4) Apr. 06, 2006 (for mode 5~6) TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Apr. 18, 2006 ( Jessie Wang ) TECHNICAL ACCEPTANCE:, DATE:Apr. 18, 2006 Responsible for RF ( Stanely Hsu ) APPROVED BY:, DATE:Apr. 18, 2006 ( Gary Chang / Supervisor ) Report No.: SA940401L07A4Report Format Version 2.0.3 Reference: 950315L12 …

Text truncated - open the document above for the full version.

Report No.: RF940401L07A1Report Format Version 2.0.4 Reference No.: 950315L12 FCC TEST REPORT REPORT NO.: RF940401L07A MODEL NO.: WLI-U2-KG125S RECEIVED: Apr. 04, 2005 TESTED: Apr. 04 ~ Apr. 22, 2005 Apr. 06, 2006 (for conducted and radiated emission below 1GHz of test mode 1) ISSUED: Apr. 07, 2006 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF940401L07A2Report Format Version 2.0.4 Reference No.: 950315L12 Table of Contents 1.CERTIFICATION...................................................................................................4 2.SUMMARY OF TEST RESULTS...........................................................................5 2.1MEASUREMENT UNCERTAINTY.........................................................................5 3.GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST....................................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:........................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS......................................11 3.4DESCRIPTION OF SUPPORT UNITS.................................................................11 4.TEST TYPES AND RESULTS.............................................................................12 4.1CONDUCTED EMISSION MEASUREMENT.......................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................12 4.1.2TEST INSTRUMENTS.........................................................................................12 4.1.3TEST PROCEDURES.........................................................................................13 4.1.4DEVIATION FROM TEST STANDARD................................................................13 4.1.5TEST SETUP......................................................................................................14 4.1.6EUT OPERATING CONDITIONS........................................................................14 4.1.7TEST RESULTS..................................................................................................15 4.2RADIATED EMISSION MEASUREMENT............................................................27 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..........................................27 4.2.2TEST INSTRUMENTS.........................................................................................28 4.2.3TEST PROCEDURES.........................................................................................29 4.2.4DEVIATION FROM TEST STANDARD................................................................29 4.2.5TEST SETUP......................................................................................................30 4.2.6EUT OPERATING CONDITIONS........................................................................30 4.2.7TEST RESULTS..................................................................................................31 4.36dB BANDWIDTH MEASUREMENT...................................................................39 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................39 4.3.2TEST INSTRUMENTS.........................................................................................39 4.3.3TEST PROCEDURE............................................................................................40 4.3.4DEVIATION FROM TEST STANDARD................................................................40 4.3.5TEST SETUP......................................................................................................40 4.3.6EUT OPERATING CONDITIONS........................................................................40 4.3.7TEST RESULTS..................................................................................................41 4.4MAXIMUM PEAK OUTPUT POWER...................................................................47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................47 4.4.2INSTRUMENTS...................................................................................................47 Report No.: RF940401L07A3Report Format Version 2.0.4 Reference No.: 950315L12 4.4.3TEST PROCEDURES.........................................................................................48 4.4.4DEVIATION FROM TEST STANDARD................................................................48 4.4.5TEST SETUP......................................................................................................48 4.4.6EUT OPERATING CONDITIONS........................................................................48 4.4.7TEST RESULTS..................................................................................................49 4.5POWER SPECTRAL DENSITY MEASUREMENT...............................................50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............................50 4.5.2TEST INSTRUMENTS.........................................................................................50 4.5.3TEST PROCEDURE..........…

Text truncated - open the document above for the full version.

Report No.: RF940401L07A68Report Format Version 2.0.4 Reference No.: 950315L12 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST_TEST MODE 1 Report No.: RF940401L07A69Report Format Version 2.0.4 Reference No.: 950315L12 CONDUCTED EMISSION TEST_TEST MODE 2 Report No.: RF940401L07A70Report Format Version 2.0.4 Reference No.: 950315L12 RADIATED EMISSION TEST_TEST MODE 1 Report No.: RF940401L07A71Report Format Version 2.0.4 Reference No.: 950315L12 RADIATED EMISSION TEST_TEST MODE 2
