Dear Martin, Thanks for your comments and please find our response below: #################################################### Re: FCC ID: FDI-09102023-0 Applicant: Buffalo Inc Correspondence Reference Number: 28201 731 Confirmation Number: TC982575 Date of Original Email: 04/25/2006 Subject: Request for additional information #################################################### 1. Please detail how the multiple outputs were handled for power and power density evaluation. <Response> Multiple outputs power measurement is obtained by following procedure: a. Individual antenna port was tested separately for output power first to avoid phase cancellation problem. b. Convert all measured power to linear term if necessary (mW) c. The total transmitting power is linear-summed over all antenna ports involved. We follow same procedure for power density measurement. 2. Please justify crest factor used for SAR measurement. <Response> Transmitter output was setup to continue output mode during SAR measurement, the actual duty cycle measured is 98% (please refer to attached duty cycle plot), so we believe 1:1 is a reasonable number. To further evaluate the effect of SAR valve in term of crest factor, we have re-calculated the SAR value based on different crest factor and found that the result of worth case is still within the limit. Please refer to attached SAR evaluation for duty cycle of 100% (1:1), 98%(1:1.02) and 83%(1:1.2) 3. Please update the user manual RF exposure statement to include the type of host this certification was authorized with. <Response> User’s manual has been revised to include the type of host this certification was authorized with. The revised manual “UserMan_FDI-09102023-0_rev.pdf” uploaded. Best regards, Steve Cheng Curtis-Staus LLC

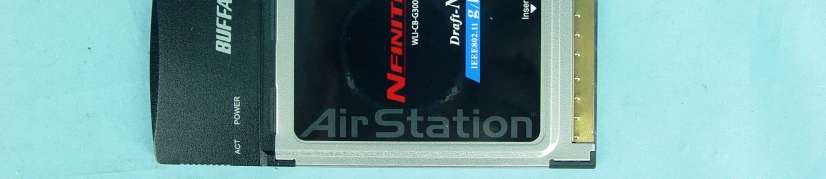

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : FDI-09102023-0 Label Location

Page 3 Page 4 Page 5

FCC ID: FDI-09102023-0 Report No.: RF950414L02 OPERATIONAL DESCRIPTION This device is a 802.11n Wireless CardBus Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=151mm A - 2 Date/Time: 2006/4/15 15:51:44 Test Laboratory: Advance Data Technology IBM T43-11b-CH1-Mode 1 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.49 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.1 V/m Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 1.39 mW/g; SAR(10 g) = 0.612 mW/g Maximum value of SAR (measured) = 1.53 mW/g A - 3 Date/Time: 2006/4/15 16:11:35 Test Laboratory: Advance Data Technology IBM T43-11b-CH6-Mode 1 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.60 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.0 V/m Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 1.5 mW/g; SAR(10 g) = 0.655 mW/g Maximum value of SAR (measured) = 1.66 mW/g A - 4 A - 5 Date/Time: 2006/4/15 16:29:56 Test Laboratory: Advance Data Technology IBM T43-11b-CH11-Mode 1 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 High Channel 11/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.28 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.5 V/m Peak SAR (extrapolated) = 2.91 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.529 mW/g Maximum value of SAR (measured) = 1.34 mW/g A - 6 Date/Time: 2006/4/15 16:52:30 Test Laboratory: Advance Data Technology IBM T43-11g-CH1-Mode 2 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.459 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.0 V/m Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.434 mW/g; SAR(10 g) = 0.190 mW/g Maximum value of SAR (measured) = 0.492 mW/g A - 7 Date/Time: 2006/4/15 17:10:40 Test Laboratory: Advance Data Technology IBM T43-11g-CH6-Mode 2 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 -…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D4: SYSTEM VALIDATION DIPOLE D4：DAE3 (Cal Date：August 17.2005) APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Report no.: SA950414L021Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950414L02 MODEL NO.: WLI-CB-G300N RECEIVED: Apr. 14, 2006 TESTED: Apr. 15, 2006 ISSUED: Apr. 18, 2006 APPLICANT: Buffalo Inc. ADDRESS: 4-15, Shibata Hondori, Minami-ku, Nagoya 457- 8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950414L022Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................7 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION......................10 3.DESCRIPTION OF SUPPORT UNITS................................................................................14 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................15 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................15 4.2.DESCRIPTION OF ASSESSMENT POSITION.............................................................16 4.3.DESCRIPTION OF TEST MODE..................................................................................17 4.4.SUMMARY OF TEST RESULTS...................................................................................17 5.TEST RESULTS.................................................................................................................19 5.1TEST PROCEDURES..................................................................................................19 5.2MEASURED SAR RESULTS........................................................................................21 5.3SAR LIMITS.................................................................................................................25 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................26 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................28 6.SYSTEM VALIDATION.......................................................................................................29 6.1TEST EQUIPMENT......................................................................................................29 6.2TEST PROCEDURE.....................................................................................................30 6.3VALIDATION RESULTS................................................................................................32 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................33 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................34 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................34 7.2.ISOTROPY UNCERTAINTY.........................................................................................35 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................35 7.4.PROBE LINEARITY UNCERTAINTY............................................................................36 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................36 7.6.RESPONSE TIME UNCERTAINTY..............................................................................36 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................37 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................38 7.9.PROBE POSITIONING.................................................................................................38 7.10.PHANTOM UNCERTAINTY.........................................................................................39 7.11.DASY4 UNCERTAINTY BUDGET................................................................................40 8.INFORMATION ON THE TESTING LABORATORIES.........................................................41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950414L023Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: 802.11n Wireless CardBus Adapter MODEL: WLI-CB-G300N BRAND: Buffalo APPLICANT: Buffalo Inc. TESTED : Apr. 15, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS:FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 18, 2006 Rennie Wang TECHNICAL ACCEPTANCE:, DATE:Apr. 18, 2006 Responsible for RF Stanely Hsu APPROVED BY : , DATE: Apr. 18, 2006 Gary Chang / Supervisor Report no.: SA950414L024Report Format Version 2.0.3…

Text truncated - open the document above for the full version.

11b-1Mbps Duty cycle = 12.64/12.86=0.9828 Ref -10 dBmAtt 0 dB * A RBW 100 kHz * VBW 100 kHz Center 2.437 GHz3 ms/ SWT 30 ms * VIEW *1 PK -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -82.85 dBm 2.940000 ms 2 Delta 2 [T1 ] -3.41 dB 12.640000 ms 3 Delta 3 [T1 ] -0.37 dB 12.860000 ms Date: 27.APR.2006 02:29:43

A - 1 Date/Time: 2006/4/15 16:11:35 Test Laboratory: Advance Data Technology IBM T43-11b-CH6 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.60 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.0 V/m Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 1.5 mW/g; SAR(10 g) = 0.655 mW/g Maximum value of SAR (measured) = 1.66 mW/g A - 2 Date/Time: 2006/4/15 16:11:35 Test Laboratory: Advance Data Technology IBM T43-11b-CH6 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1.02 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 23.4 degrees ; Liquid temp. : 22.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.60 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.0 V/m Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 1.5 mW/g; SAR(10 g) = 0.655 mW/g Maximum value of SAR (measured) = 1.67 mW/g A - 3 Date/Time: 2006/4/15 16:11:35 Test Laboratory: Advance Data Technology IBM T43-11b-CH6 DUT: 802.11n Wireless Cardbus Adapter ; Type: WLI-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1.2 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 7 mm (The bottom side …
