FDI-09102071-0AirStation Wireless-N NFINITI Cardbus Adapter

v.70 WLI2-CB-G300N Wireless CardBus Client  • Insert the AirNavigator CD into the CD-ROM drive of your computer. The AirNavigator Setup Wizard should launch automatically. • To launch the AirNavigator Setup Wizard manually, click Start, then Run. Type “D:\ Setup.exe”, where D is the drive letter assigned to your CDrom. • Click OK to launch the wizard.  • Select Install Wireless Drivers. Installing Wireless Drivers  • Click Next to install a driver for the CardBus. • Select Agree and click Next to continue the process after reviewing the license agreemennt. • A window will appear prompting the insertion of the Wireless CardBus Adapter. Firmly insert the AirStation Card into a CardBus slot on your notebook. Installing Wireless Drivers  • When the ‘Found New Hardware Wizard’ launches, click Next to run the wizard. • If the ‘Digital Signature Not Found’ page opens, click Yes. • When the Wireless CardBus Adapter is successfully installed, click Finish. Restart your computer if prompted. Installing Wireless Drivers  Connecting Wireless Clients to your Network Buffalo supports three different methods for connecting your wireless client device to your network. If your AP supports it, use the simple, utterly secure AOSS to connect. Install the Client Manager from your AirNavigator CD (page 7) and turn to page 10. You may also use the Client Manager software from your AirNavigator CD to configure your network manually. See page 15 for more on Client Manager. If you’re running Windows XP on your PC, you may use its built-in Zero Configuration tool to connect to your router/AP. See page 20 for more on Zero Configuration.  Client Manager can be used to survey and connect to available access points, configure WPA/WEP encryption, and create connection profiles. Note: When Client Manager is installed, Windows XP Wireless Zero Configuration is automatically disabled. Installing Client Manager Insert the AirNavigator CD into the CD- ROM drive of you computer. If the Air Navigator Setup Wizard does not launch automatically, launch it manually by clicking Start and then Run. Enter D:\ Setup.exe in the dialog box that appears. Click OK. Select Install Wireless Client Manager. Client Manager  Client Manager • Once the Client Manager Installer launches, click Next. • Press Agree to accept the license agreement and continue installation.  Client Manager • Click OK when Client Manager installation is complete. • Press Exit Setup to exit AirNavigator. • Client Manager is now installed and running. Right-click on its icon (the black antenna) to use it. 10 The AOSS button for this wireless client is in its Client Manager software. Start Client Manager by right clicking on the black antenna icon in your System Tray, or by launching the Client Manager from your Start Menu: Programs >> Buffalo >>AirStation Utility >> Client Manager. AOSS (AirStation One-Touch Secure System) is a simple, one-touch setup for connecting wireless clients to an access point while enforcing the most secure possible connection encryption type. Users no longer need to worry about choosing the proper security protocols, IP addresses, or SSID. AOSS determines the optimal connection and configures itself in seconds. If your router doesn’t support AOSS, turn to page 6 to configure your connection manually with Client Manager or Wireless Zero Config. Using AOSS 11 • From the Status Screen, select the Profiles tab. • Initiate AOSS by clicking the blue AOSS button on the Client Manager’s screen. The AOSS wizard will appear. • Now, press the AOSS button on the Access Point. Hold it down until the AOSS LED begins to flash. Using AOSS 1 Once AOSS is complete (about 30 seconds), the connection is archived as a profile for later use. To minimize Client Manager to the system tray, click the ‘X’ in the top right corner. Notes: AOSS will scan for an AOSS partner for about two minutes. If it times out before finding one, just press the AOSS buttons again. Output power is reduced to 25% of normal during AOSS for security reasons. If you’re having trouble making an AOSS connection, temporarily move the devices closer together. AOSS will automatically use the highest level of security available for all currently connected wireless devices. If you have trouble connecting with AOSS, temorarily disable all personal firewalls on your PC, such as ZoneAlarm or Microsoft Personal Firewall. These programs may be re-enabled after AOSS has finished. Using AOSS 1 You may use Client Manager to configure your wireless network. Client Manager consists of the Status page, the Survey page, and the Profiles page. You can access each page by clicking the corresponding button on Client Manager. In addition to these pages, several dialog boxes are also available. You can access the Edit Profile dialog box, New Profile dialog box, IP Configuration dialog box, or WEP Configuration dialog box using the Client Manager pages. You may also initiate AOSS. Status Page Click Status to open this page. By default, this page is displayed when you start Client Manager. Details of connection status are displayed. This page only displays connection information; no changes to settings are made here. This page includes the following components: • Adapter Name – Displays the part number of the wireless adaptor that is being used. Client Manager Configuration 1 Client Manager Configuration • Network Type - Displays whether network is in Ad-Hoc or Infrastructure mode. • Rate – The speed of communication between wireless devices. If the Client Manager is not connected to a remote wireless device (access point or another client), no rate will be displayed. • Channel – The channel that the two wireless clients are using for communication. If the Client Manager is not connected to a remote wireless device, no channel will be displayed. Channels 1-11 may be used. • Security – The type of encryption in use. If the Client Manager is not connected to a remote wireless device, then ‘No Encryption’ …

Text truncated - open the document above for the full version.

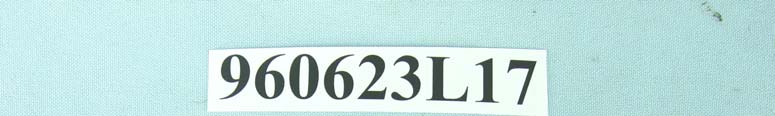

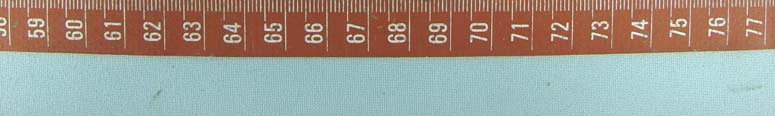

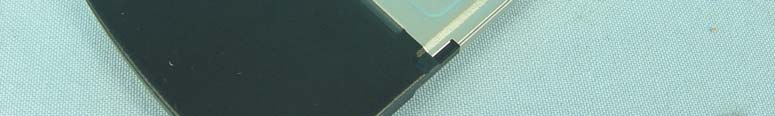

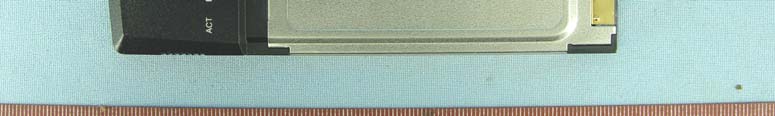

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 1 LABEL LOCATION FCC ID: FDI-09102071-0

Page 2 Page 3 Page 4

FCC ID: FDI-09102071-0 Report No.: RF951121L11A Operational Description This device is an AirStation Wireless-N NFINITI Notebook Cardbus Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Printed Dipole antenna without connector. The other instruction, please have a look at the users manual.

Report no.: SA951121L11A 1 Report Format Version 2.0.6 Reference No.: 960623L17 SAR TEST REPORT REPORT NO.: SA951121L11A MODEL NO.: WLI2-CB-G300N RECEIVED: Nov. 21, 2006 TESTED: Feb. 26, 2007 ISSUED: Jul. 12, 2007 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-Chome, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA951121L11A 2 Report Format Version 2.0.6 Reference No.: 960623L17 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................................... 3 2. GENERAL INFORMATION ...................................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ........................................................................................ 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................... 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ............................................................... 7 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ............................ 10 3. DESCRIPTION OF SUPPORT UNITS.................................................................................. 14 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS .............................................. 15 4.1. DESCRIPTION OF ANTENNA LOCATION ........................................................................... 15 4.2. DESCRIPTION OF ASSESSMENT POSITION..................................................................... 16 4.3. DESCRIPTION OF TEST MODE .......................................................................................... 17 4.4. SUMMARY OF TEST RESULTS ........................................................................................... 18 5. TEST RESULTS .................................................................................................................... 19 5.1 TEST PROCEDURES ...........................................................................................................19 5.2 MEASURED SAR RESULTS................................................................................................. 21 5.3 SAR LIMITS ........................................................................................................................... 25 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................. 26 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY .................................................................... 28 6. SYSTEM VALIDATION .......................................................................................................... 29 6.1 TEST EQUIPMENT ............................................................................................................... 29 6.2 TEST PROCEDURE.............................................................................................................. 30 6.3 VALIDATION RESULTS......................................................................................................... 32 6.4 SYSTEM VALIDATION UNCERTAINTIES ............................................................................ 33 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES..................................................... 34 7.1. PROBE CALIBRATION UNCERTAINTY............................................................................... 34 7.2. ISOTROPY UNCERTAINTY.................................................................................................. 35 7.3. BOUNDARY EFFECT UNCERTAINTY................................................................................. 35 7.4. PROBE LINEARITY UNCERTAINTY .................................................................................... 36 7.5. READOUT ELECTRONICS UNCERTAINTY ........................................................................ 36 7.6. RESPONSE TIME UNCERTAINTY....................................................................................... 36 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................. 37 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ...........................................................38 7.9. PROBE POSITIONING.......................................................................................................... 38 7.10. PHANTOM UNCERTAINTY .................................................................................................. 39 7.11. DASY4 UNCERTAINTY BUDGET ........................................................................................ 40 8. INFORMATION ON THE TESTING LABORATORIES .......................................................... 41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA951121L11A 3 Report Format Version 2.0.6 Reference No.: 960623L17 1. CERTIFICATION PRODUCT: AirStation Wireless-N NFINITI Notebook Cardbus Adapter MODEL: WLI2-CB-G300N BRAND: BUFFALO APPLICANT: Buffalo Inc. TESTED: Feb. 26, 2007 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment (model: WLI2-CB-G300N) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=151mm A - 2 Date/Time: 2007/2/26 11:38:02 Test Laboratory: Advance Data Technology N800C-11b-Ch1-Mode 1 DUT: AirtStation Wireless-N NFINITI Notebook Cardbus Adapter ; Type: WLI2-CB-G300N ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.390 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.90 V/m Peak SAR (extrapolated) = 0.891 W/kg SAR(1 g) = 0.405 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.426 mW/g A - 3 Date/Time: 2007/2/26 11:56:46 Test Laboratory: Advance Data Technology N800C-11b-Ch6-Mode 1 DUT: AirtStation Wireless-N NFINITI Notebook Cardbus Adapter ; Type: WLI2-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.367 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.10 V/m Peak SAR (extrapolated) = 0.905 W/kg SAR(1 g) = 0.394 mW/g; SAR(10 g) = 0.201 mW/g Maximum value of SAR (measured) = 0.419 mW/g A - 4 Date/Time: 2007/2/26 12:16:40 Test Laboratory: Advance Data Technology N800C-11b-Ch11-Mode 1 DUT: AirtStation Wireless-N NFINITI Notebook Cardbus Adapter ; Type: WLI2-CB-G300N ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 High Channel 11/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.390 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.67 V/m Peak SAR (extrapolated) = 0.969 W/kg SAR(1 g) = 0.417 mW/g; SAR(10 g) = 0.219 mW/g Maximum value of SAR (measured) = 0.442 mW/g A - 5 Date/Time: 2007/2/26 13:04:53 Test Laboratory: Advance Data Technology N800C-11g-Ch1-Mode 2 DUT: AirtStation Wireless-N NFINITI Notebook Cardbus Adapter ; Type: WLI2-CB-G300N ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.355 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.0 V/m Peak SAR (extrapolated) = 0.847 W/kg SAR(1 g) = 0.382 mW/g; SAR(10 g) = 0.208 mW/g Maximum value of SAR (measured) = 0.402 mW/g A - 6 Date/Time: 2007/2/26 13:23:22 Test Laboratory: Advance Data Technology N800C-11g-Ch6-Mode 2 DUT: AirtStation Wireless-N NFINITI Notebook Cardbus Adapter ; Type: WLI2-CB-G300N ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 11 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.4 degrees ; Liquid temp. : 20.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.3…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF951121L11A 1 Report Format Version 2.0.6 Reference No.: 960623L17 FCC TEST REPORT REPORT NO.: RF951121L11A MODEL NO.: WLI2-CB-G300N RECEIVED: Nov. 21, 2006 TESTED: Jan. 23 ~ Feb. 13, 2007 ISSUED: Jul. 12, 2007 APPLICANT: Buffalo Inc. ADDRESS: 15, Shibata Hondori 4-Chome, Minami-ku, Nagoya 457-8520, Japan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 104 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF951121L11A 2 Report Format Version 2.0.6 Reference No.: 960623L17 TABLE OF CONTENTS 1. CERTIFICATION ..................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ......................................................................................... 5 3. GENERAL INFORMATION ..................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT....................................................................................... 6 3.2 DESCRIPTION OF TEST MODES......................................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.................................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................ 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS................................................................................. 10 4. TEST TYPES AND RESULTS .............................................................................................. 11 4.1 CONDUCTED EMISSION MEASUREMENT....................................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................... 11 4.1.2 TEST INSTRUMENTS .........................................................................................................11 4.1.3 TEST PROCEDURES ..........................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................ 12 4.1.5 TEST SETUP........................................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS ......................................................................................... 13 4.1.7 TEST RESULTS ................................................................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT ............................................................................ 32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 32 4.2.2 TEST INSTRUMENTS .........................................................................................................33 4.2.3 TEST PROCEDURES ..........................................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 34 4.2.5 TEST SETUP........................................................................................................................ 35 4.2.6 EUT OPERATING CONDITIONS ......................................................................................... 35 4.2.7 TEST RESULTS ................................................................................................................... 36 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................... 51 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................................. 51 4.3.2 TEST INSTRUMENTS .........................................................................................................51 4.3.3 TEST PROCEDURE............................................................................................................. 51 4.3.4 DEVIATION FROM TEST STANDARD ................................................................................ 51 4.3.5 TEST SETUP........................................................................................................................ 52 4.3.6 EUT OPERATING CONDITIONS ......................................................................................... 52 4.3.7 TEST RESULTS ................................................................................................................... 53 4.4 MAXIMUM PEAK OUTPUT POWER ................................................................................... 65 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 65 4.4.2 INSTRUMENTS.................................................................................................................... 65 4.4.3 TEST PROCEDURES ..........................................................................................................65 Report No.: RF951121L11A 3 Report Format Version 2.0.6 Reference No.: 960623L17 4.4.4 DEVIATION FROM TEST STANDARD ................................................................................ 65 4.4.5 TEST SETUP…

Text truncated - open the document above for the full version.

Report No.: RF951121L11A 81 Report Format Version 2.0.6 Reference No.: 960623L17 FOR CHAIN 1: CH 1 CH 4 Report No.: RF951121L11A 82 Report Format Version 2.0.6 Reference No.: 960623L17 CH 7 Report No.: RF951121L11A 83 Report Format Version 2.0.6 Reference No.: 960623L17 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS For Single TX: DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSP40 100040 Jun. 07, 2007 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. For Dual TX: DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED UNTIL Spectrum Analyzer FSP40 100269 Aug. 07, 2007 HORN Antenna BBHA 9120 D 9120D-563 Jul. 26, 2007 HORN Antenna BBHA 9170 BBHA9170242 Jan. 16, 2008 RF signal cable SUCOFLEX 104 218188/218189 Nov. 14, 2007 RF signal cable 8D-FB Cable-HYCH9-01 Mar. 08, 2007 Software ADT_Radiated_V7.6NA NA Antenna Tower 2070/2080 512.835.4684 NA Turn Table 2087-2.03 NA NA Antenna Tower &Turn Table Controller EMCO 2090 NA NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF951121L11A 84 Report Format Version 2.0.6 Reference No.: 960623L17 4.6.3 TEST PROCEDURE For Single TX: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 10Hz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) are attached on the following pages. For Dual TX: a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10Hz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF951121L11A 85 Report Format Version 2.0.6 Reference No.: 960623L17 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 24 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS MODULATION: NOTE 1: The band edge emission plot of DSSS technique on the next page shows 49.46dBc between carrier maximum power and local maximum emission in restrict band (2.386080000GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 106.15dBuV/m (Peak), so the maximum field strength in restrict band is 106.15 – 49.46 = 56.69dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next page shows 52.05dBc between carrier maximum power and local maximum emission in restrict band (2.386480000GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 101.63dBuV/m (Average), so the maximum field strength in restrict band is 101.63 – 52.05 = 49.58dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot of DSSS technique on the next second page shows 50.36dBc between carrier maximum power and local maximum emission in restrict band (2.488060000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 106.36dBuV/m (Peak), so the maximum field strength in restrict band is 106.36 – 50.36= 56.00dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next third page shows 53.69dBc between carrier maximum power and local maximum emission in restrict band (2.487660000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 102.00dBuV/m (Average), so the maximum field strength in restrict band is 102.00 – 53.69 = 48.31dBuV/m which is under 54dBuV/m limit. Report No.: RF951121L11A 86 Report Format Versi…
