FDI000000001AirStation Wireless AC866 Dual Band USB Adapter

User Manual AirStation WI-U2-866D / WI-U2-400D www.buffalotech.com WI-U2-800D / WI-U2-400D User Manual1 Contents Chapter 1 - Product Overview .........................................4 System Requirements .............................................................4 Package Contents ...................................................................4 Chapter 2 - Installation .....................................................6 Installing Wireless Drivers .......................................................6 Installing Utility ........................................................................10 Chapter 3 - Connect to a Wireless Network ...................13 Automatic Secure Setup (AOSS / WPS) .................................13 Windows 8, 7 or Vista (Client Manager V) .....................................14 Windows XP(Client Manager 3) .....................................................15 Automatic Secure Setup (WPS PIN) .......................................16 Windows 8, 7 or Vista (Client Manager V) .....................................16 Windows XP (Client Manager 3) ....................................................20 Manual Setup (Client Manager) ..............................................22 Windows 8, 7 or Vista (Client Manager V) .....................................22 Windows XP (Client Manager 3) ....................................................25 Manual Setup (Windows Utility) ..............................................26 Windows Vista (WLAN AutoConfig) ...............................................27 Windows XP (Wireless Zero Configuration) ...................................30 WI-U2-800D / WI-U2-400D User Manual2 Chapter 4 - Client Manager ..............................................31 Software Overview ..................................................................31 Using Client Manager V ..........................................................31 Opening and Closing Client Manager ............................................31 Main Screen ...................................................................................32 Automatic Secure Setup and Advanced Setup ..............................33 SSID / WPS-PIN selection .............................................................34 Searching Wireless Access Points .................................................35 Wireless Network Information ........................................................36 WPS-PBC / AOSS selection ..........................................................37 Wireless Status ..............................................................................38 Wireless LAN Diagnostic ...............................................................40 Profile List ......................................................................................41 Wireless Properties ........................................................................42 Network Properties ........................................................................43 Browser Properties ........................................................................44 Printer Properties ...........................................................................45 Using Client Manager 3 ...........................................................46 Status .............................................................................................47 Scan ...............................................................................................49 Connect ..........................................................................................50 Profiles ...........................................................................................51 Profile Information (Basic) ..............................................................52 Profile Information (Network) .........................................................54 Profile Information (Browser) .........................................................55 Profile Information (Printers) ..........................................................56 System Tray Menu .........................................................................57 Option Menu ..................................................................................58 WI-U2-800D / WI-U2-400D User Manual3 Chapter 5 - Trouble Shooting ..........................................60 The Computer does not Recognize the Wireless Adapter. .....60 You Cannot Connect to the Network Wirelessly. .....................60 You Forgot the AP’s SSID, Encryption Key, or Password. ......60 Other Tips ................................................................................61 Appendix .....................................................................63 Specifications ..........................................................................63 WI-U2-866D ...................................................................................63 WI-U2-400D ...................................................................................66 Uninstalling the Software ........................................................68 Uninstalling the Drivers ...........................................................68 TCP/IP Settings in Windows ...................................................69 Windows 8, 7 .................................................................................69 Windows Vista ...............................................................................70 Windows XP ...................................................................................71 Compliance Information ..........................................................72 Environmental Information ......................................................79 WI-U2-800D / WI-U2-400D User Manual4 Chapter 1 - Product Overview System Requirements Computer should be IBM/PC compatible (OADG specification) with a USB 2.0 port and a CD-ROM drive. This product does not support computers equipped with dual processors (computers with two …

Text truncated - open the document above for the full version.

Buffalo Inc. Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Tel: 81(50)5830-8816 / Fax: 81(50)5830-8869 Ad Hoc Mode Function Declaration Date: 2012/10/12 FCC ID：FDI000000001 To whom it may concern: We, Buffalo Inc., declare that the EUT (Model Name: WI-U2-866D) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, FCC Grantee contact person information. Applicant’s company name : Buffalo Inc. Applicant’s company address : Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Signature : _____________________________ Job Title and Dept. : Mr. Yasuo Takami / Assistant General Manager E-Mail : [email protected] Tel. : 81(50)5830-8816

Buffalo Inc. Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Tel: 81(50)5830-8816 / Fax: 81(50)5830-8869 Confidential Letter Date: 2012/10/12 Federal Communications Commission Authorization and Evaluation Division FCC ID：FDI000000001 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Buffalo Inc. Applicant’s company address : Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Signature : _____________________________ Job Title and Dept. : Mr. Yasuo Takami / Assistant General Manager E-Mail : [email protected] Tel. : 81(50)5830-8816

Buffalo Inc. Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Tel: 81(50)5830-8816 / Fax: 81(50)5830-8869 Power of Attorney Date: 2012/10/12 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Buffalo Inc. / WI-U2-866D FCC ID: FDI000000001 Product name: AirStation Wireless AC866 Dual Band USB Adapter FCC Grantee contact person information. Applicant’s company name : Buffalo Inc. Applicant’s company address : Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Signature : _____________________________ Job Title and Dept. : Mr. Yasuo Takami / Assistant General Manager E-Mail : [email protected] Tel. : 81(50)5830-8816

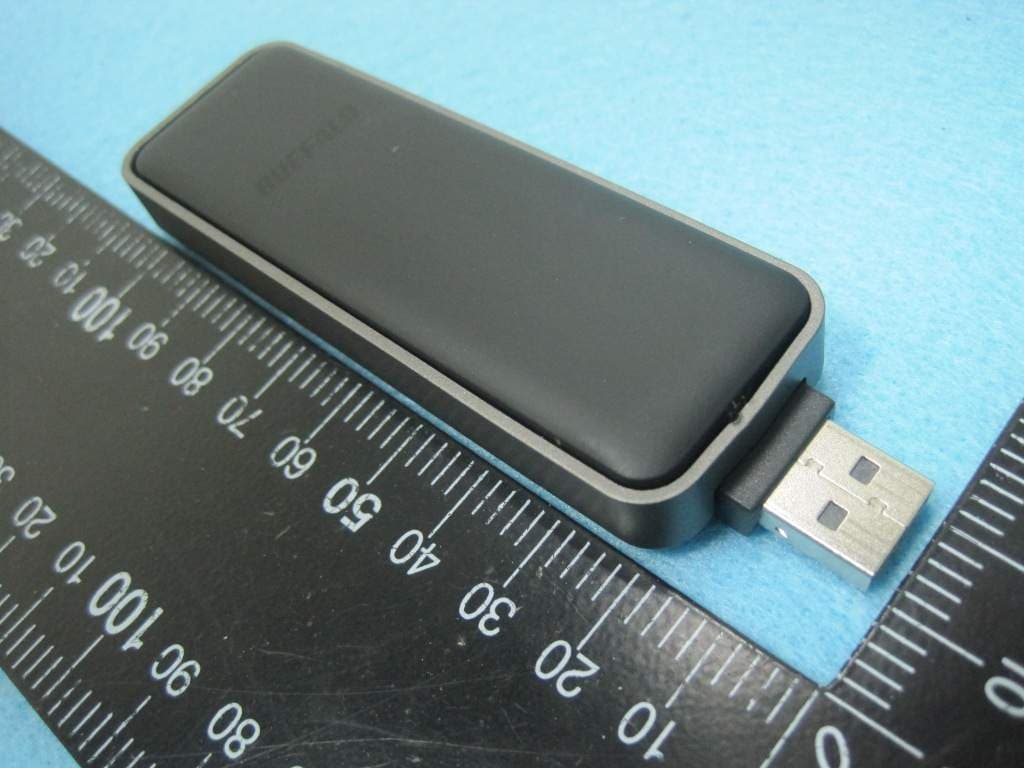

Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT

Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report No.: 2O0417 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 FAX : 886-2-2696-2255

Page No. : 1 Buffalo Inc. Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Tel: 81(50)5830-8821 / Fax: 81(50)5830-8871 Tune Up Procedure Date: 2012/12/4 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oaklamd Mills Road Columbia, MD 21046 U.S.A. To whom it may concern, FCC ID: FDI000000001 The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting. Target output power setting in factory: For DTS Band: 2.4GHz Band: 802.11b : 15dBm ± 1dB 802.11g: 18.5dBm ± 1dB 802.11n (20MHz): 18.5dBm ± 1dB 802.11n (40MHz): 18dBm ± 1dB 5GHz Band: 802.11a: 20.5dBm ± 1dB 802.11n (20MHz): 20dBm ± 1dB 802.11n (40MHz): 20dBm ± 1dB 802.11ac (20MHz): 20dBm ± 1dB 802.11ac (40MHz): 20dBm ± 1dB 802.11ac (80MHz): 20dBm ± 1dB For NII Band: 802.11a: Band 1: 16dBm ± 1dB 802.11n (20MHz): Band 1: 16dBm ± 1dB 802.11n (40MHz): Band 1: 16dBm ± 1dB 802.11ac (20MHz): Band 1: 16dBm ± 1dB 802.11ac (40MHz): Band 1: 16dBm ± 1dB 802.11ac (80MHz): Band 1: 15dBm ± 1dB

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Dec. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : FDI000000001 FCC SAR Test Report Report No. : FA2O0417 FCC SAR Test Report APPLICANT : Buffalo Inc. EQUIPMENT : AirStation Wireless AC866 Dual Band USB Adapter BRAND NAME : Buffalo Inc. MODEL NAME : WI-U2-866D FCC ID : FDI000000001 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Nov. 18, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Dec. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : FDI000000001 FCC SAR Test Report Report No. : FA2O0417 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation ....................................................................................................................................20 7.1 Purpose of System Performance check ................................................................................................................20 7.2 System Setup .................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body SPORTON INTERNATIONAL INC. Page Number : D1 of D2 TEL : 886-3-327-3456 Report Issued Date : Dec. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : FDI000000001 FCC SAR Test Report Report No. : FA2O0417 Appendix D. Product Photos SPORTON INTERNATIONAL INC. Page Number : D2 of D2 TEL : 886-3-327-3456 Report Issued Date : Dec. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : FDI000000001 FCC SAR Test Report Report No. : FA2O0417 Antenna Location : 5.8cm WLAN A Antenna <Tx/Rx> WLAN B Antenna <Tx/Rx> SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Dec. 14, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : FDI000000001 FCC SAR Test Report Report No. : FA2O0417 Appendix E. Test Setup Photos Direct Laptop Plug-in for USB Configuration 1 (Horizontal Up with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 2 (Horizontal Down with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 3 (Vertical Front with Phantom 5 mm Gap) Direct Laptop Plug-in USB Configuration 4 (Vertical Back with Phantom 5 mm Gap) Direct Laptop Plug-in for USB Configuration 5 (Tip Mode with Phantom 5 mm Gap) Direct Laptop Plug-in for USB Configuration 6 (Bottom with Phantom 5 mm Gap)

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Buffalo Inc. Applicant Address Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan FCC ID FDI000000001 Product Name AirStation Wireless AC866 Dual Band USB Adapter Brand Name Buffalo Inc. Model Name WI-U2-866D Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Oct. 04, 2012 Final Test Date Nov. 06, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2O0417AA Report Format Version: 01 Page No. : i of ii FCC ID: FDI000000001 Issued Date : Dec. 04, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................11 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.9. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.3. Power Spectral Density Measurement ..............................................................................................................................................25 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................36 4.5. Radiated Emissions Measurement ....................................................................................................................................................44 4.6. Band Edge Emissions Measurement .................................................................................................................................................76 4.7. Antenna Requirements .....................................................................................................................................................................96 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 97 6. TEST LOCATION.............................................................................................................................................. 99 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 100 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A8 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 Report No.: FR2O0417AA Report Format Version: 01 Page No. : ii of ii FCC ID: FDI000000001 Issued Date :Dec. 04…

Text truncated - open the document above for the full version.

Report No.: FR2O0417 FCC ID: FDI000000001 Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR2O0417 FCC ID: FDI000000001 Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR2O0417 FCC ID: FDI000000001 Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR2O0417 FCC ID: FDI000000001 Page No. : B4 of B5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR2O0417 FCC ID: FDI000000001 Page No. : B5 of B5 Test Mode: Mode 1 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
