www.buffalotech.com User Manual 11n/a & 11n/g/b Concurrent Smart model WAPS-APG600H 11n/a, 11n/g/b Single Smart model WAPS-AG300H - 1 - Contents Chapter 1 - Product Overview .........................................3 Package Contents .....................................................................3 Hardware Overview ..................................................................4 Front Panel LEDs ...........................................................................4 Back Panel .....................................................................................6 Chapter 2 - Placing Your AirStation ................................8 Antenna Placement ...................................................................8 Installation .................................................................................8 Connecting Power Sourcing Equipment (Sold Separately) ...........8 Connecting the AC Adapter (Sold Separately) ...............................10 Initial Setup ...............................................................................11 Installing the AirStation Configuration Tool ....................................11 Setting the AirStation IP Address ...................................................12 Accessing the Web-based Configuration Interface ........................14 Enabling the Wireless LAN Functions and Making the Encryption Settings ........................................................................16 Setting the Password in the Configuration Interface ......................18 Mounting to a Ceiling or Wall ....................................................20 Mounting the Security Case (Sold Separately) .........................22 Removing the AirStation ...........................................................24 Chapter 3 - Connect to a Wireless Network ...................25 Automatic Secure Setup (AOSS/WPS) .....................................25 Windows 7/Vista (Client Manager V) .............................................26 Windows XP (Client Manager 3) ....................................................27 Mac OS X (AOSS Assistant) ..........................................................28 - 2 - Manual Setup ............................................................................29 Windows 7 (WLAN AutoConfig) .....................................................29 Windows Vista (WLAN AutoConfig) ...............................................30 Windows XP (Wireless Zero Configuration) ...................................33 Mac OS X (Wi-Fi) ...........................................................................34 Chapter 4 - Checking Wireless Signal Quality ...............35 Chapter 5 - Default Configuration Settings ....................38 Appendix A - Specifications ............................................43 Appendix B - TCP/IP Settings ..........................................45 Windows 7 ................................................................................45 Windows Vista ...........................................................................46 Windows XP ..............................................................................47 Mac OS X ..................................................................................48 Appendix C - Restoring the Default Configuration .......49 Appendix D - Regulatory Compliance Information .......50 Appendix E - Environmental Information .......................56 Appendix F - GPL Information .........................................57 - 3 - Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. • Wireless LAN access point ........................................................................................................1 • Antennas (Dual band 2.4 GHz / 5 GHz) ...............................................................................2 • Antenna cap (already attached to antenna) .....................................................................2 • Wall-mounting fixture ...............................................................................................................1 • Ceiling-mounting wooden screws (large) ..........................................................................4 • Wall-mounting wooden screws (medium) ........................................................................4 • Wall-mounting anchor (for medium-size wooden screws)..........................................4 • Screws (Small: Length 5 mm *) ...............................................................................................2 • Screws (Small: Length 4 mm *) ...............................................................................................4 • Spacers (Ring-shaped metal part) .........................................................................................2 • Ejector (L-shaped part) ..............................................................................................................1 • AirNavigator CD ...........................................................................................................................1 • Serial number sticker .................................................................................................................2 • Quick Setup Guide ......................................................................................................................1 • Warranty Statement ...................................................................................................................1 * The “length” here refers to the length of the section shown in the figure. An AC adapter is not included with this AirStation unit, and so please order an AC adapter (WLE-OP-AC12, sold separately) or use separate PoE-enabled power sourcing equipment. 1 2 3 4 5 6 - 4 - Chapter 1 Product Overview Hardware Overview Front Panel LEDs 1 Power LED On: Power is on. Off:Power is off. This …

Text truncated - open the document above for the full version.

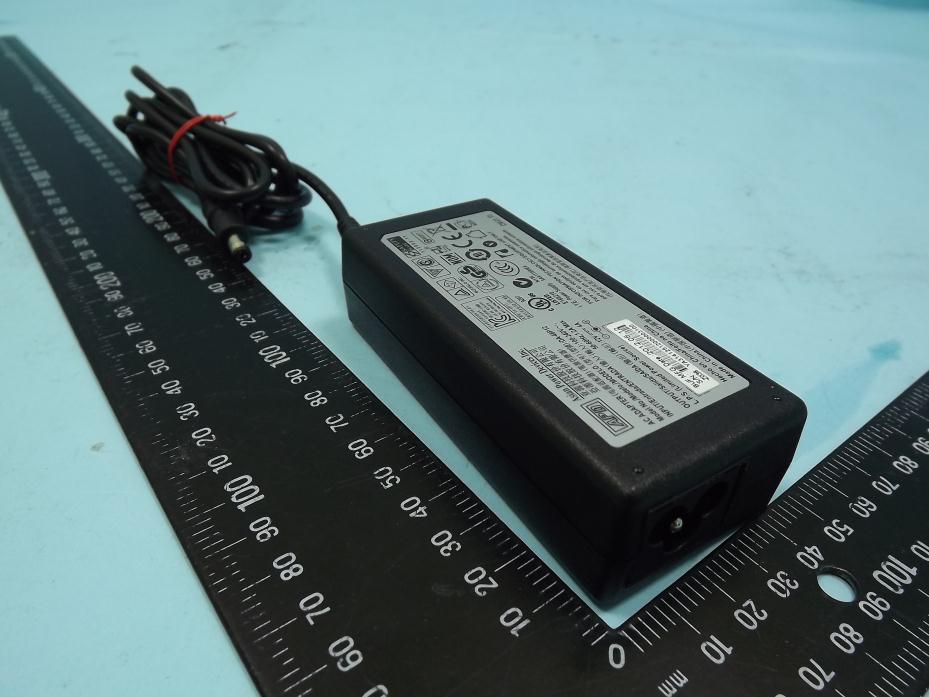

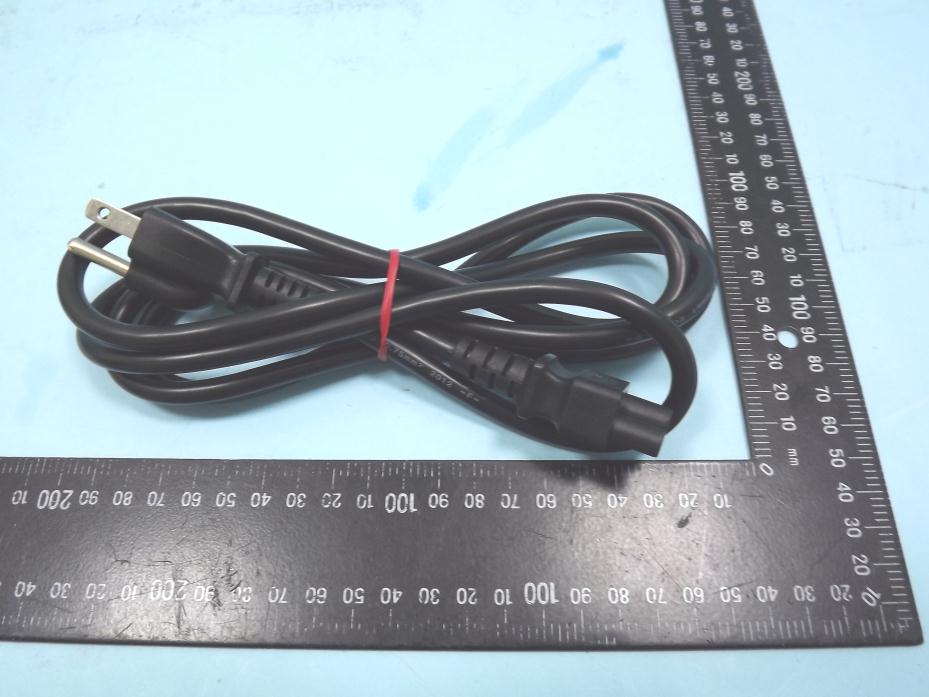

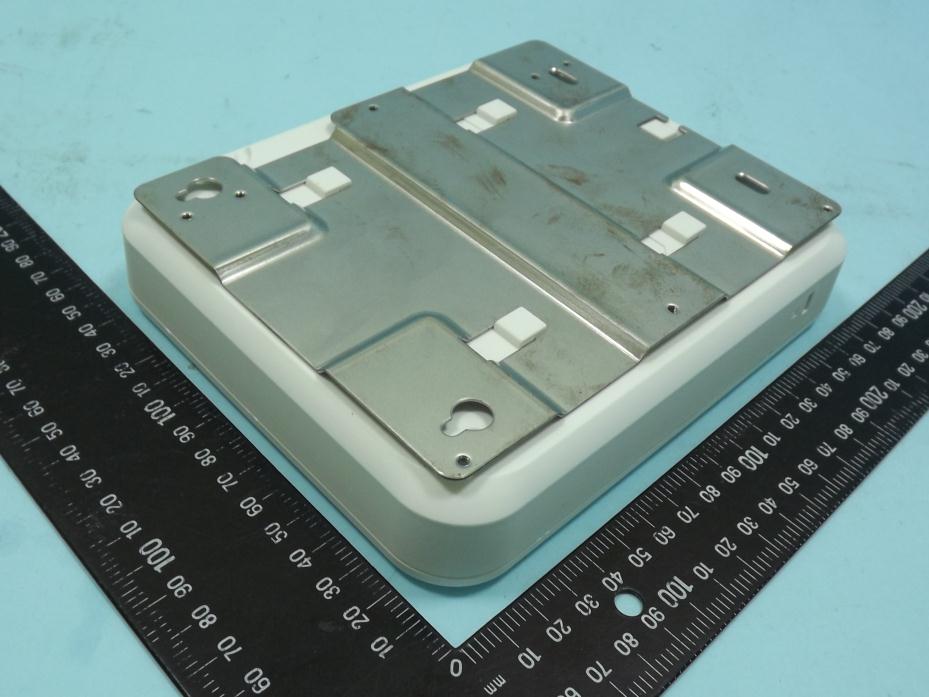

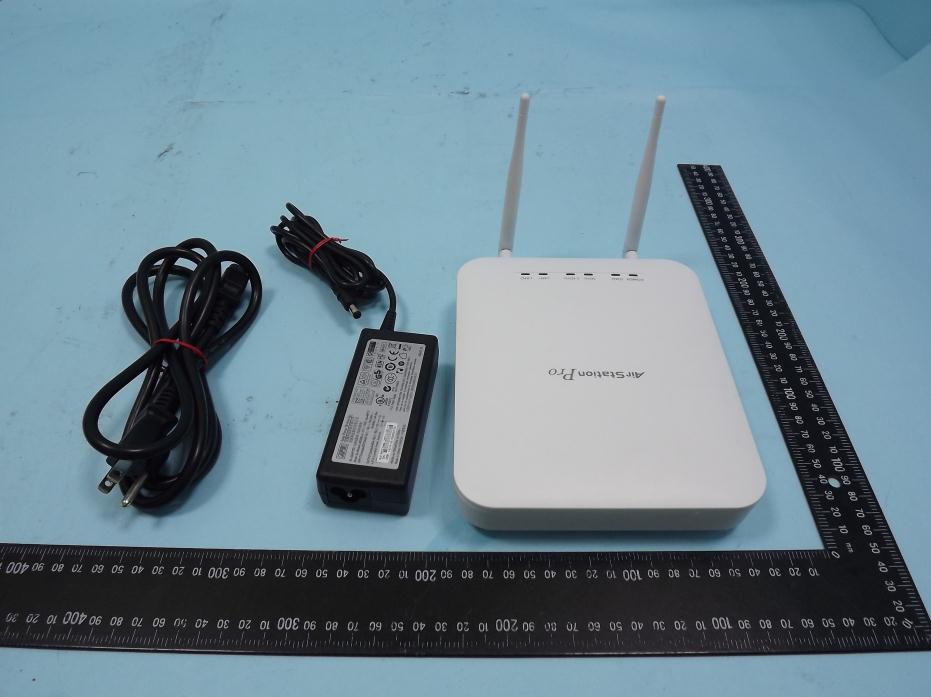

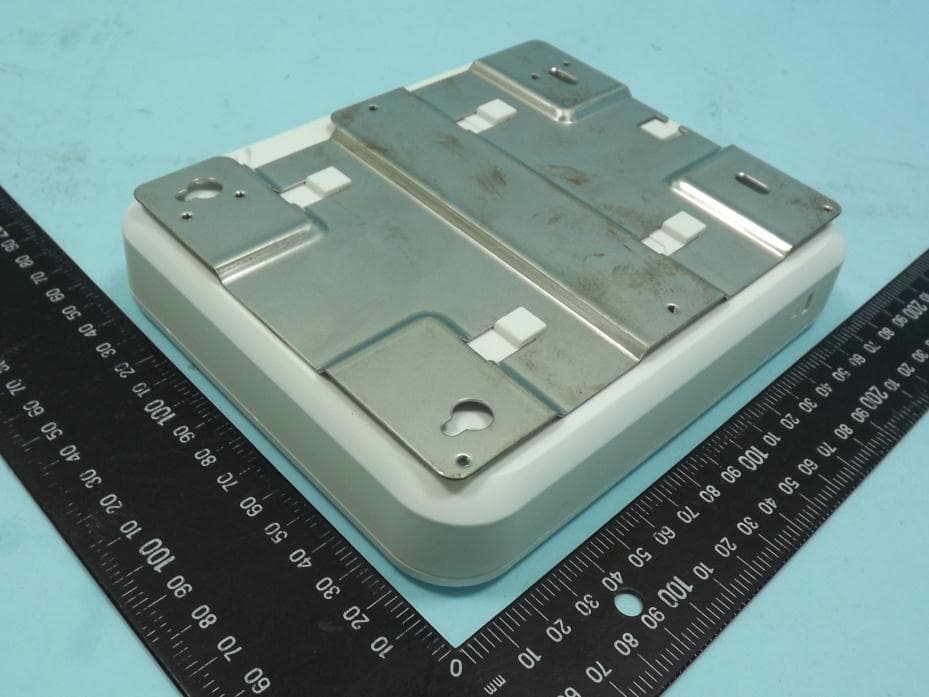

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 23, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP262610-02 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973

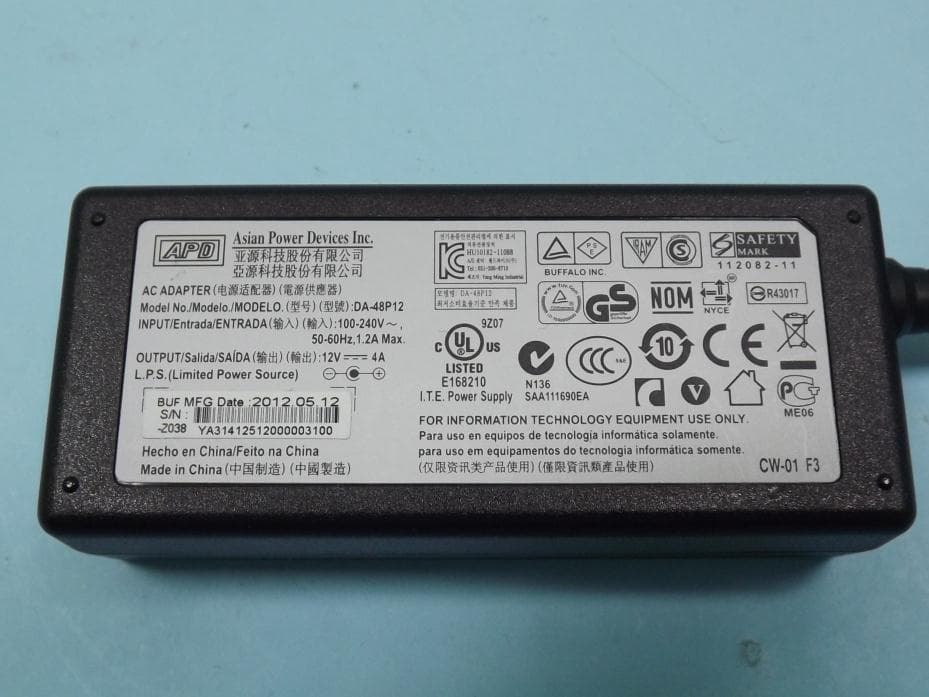

Label Location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Nov. 23, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP262610-02 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B9 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B10 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B11 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B12 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B13 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 10, 2012 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 2 2 Correlated 20.63 N/A g 2 2 Correlated 19.79 N/A n (HT20) 2 2 Uncorrelated 18.10 N/A n (HT40) 2 2 Uncorrelated 18.18 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 2 18.58 16.39 - - 20.63 4.90 25.53 0.0711 11G-20M 2 17.71 15.60 - - 19.79 4.90 24.69 0.0586 11N2.4G-20M 2 16.05 13.86 - - 18.10 1.89 19.99 0.0199 11N2.4G-40M 2 16.13 13.94 - - 18.18 1.89 20.07 0.0202 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 2 2 Correlated 14.55 N/A n (HT20) 2 2 Uncorrelated 14.44 N/A n (HT40) 2 2 Uncorrelated 14.56 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 2 11.50 11.57 - - 14.55 5.9 20.45 0.0220 11N5.8G-20M 2 11.44 11.42 - - 14.44 2.89 17.33 0.0108 11N5.8G-40M 2 11.56 11.54 - - 14.56 2.89 17.45 0.0111 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure (5.2G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 2 2 Correlated 12.53 N/A n (HT20) 2 2 Uncorrelated 12.44 N/A n (HT40) 2 2 Uncorrelated 12.51 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Not…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR262610-02AN SPORTON INTERNATIONAL INC. Page No. : 1 of 69 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : 11n/a&11n/g/b Concurrent Smart model / 11n/a,11n/g/b Single Smart model Brand Name : BUFFALO Model No. : WAPS-APG600H/WAPS-AG300H FCC ID : FDI000000004 Standard : 47 CFR FCC Part 15.407 Applicant Manufacturer : Buffalo Inc. AKAMONDORI Bldg, 30-20, Ohsu 3-chome, Naka-ku, Nagoya,460-8315, Japan The product sample received on Jun. 27, 2012 and completely tested on Aug. 01, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC RADIO TEST REPORT Report No. : FR262610-02AN SPORTON INTERNATIONAL INC. Page No. : 2 of 69 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 8 1.3 Support Equipment ................................................................................................................................. 8 1.4 Testing Applied Standards ..................................................................................................................... 8 1.5 Testing Location Information .................................................................................................................. 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Power Setting Parameter .......................................................................................... 11 2.4 The Worst Case Measurement Configuration ...................................................................................... 12 2.5 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 Emission Bandwidth ............................................................................................................................. 19 3.3 RF Output Power .................................................................................................................................. 23 3.4 Peak Power Spectral Density ............................................................................................................... 28 3.5 Peak Excursion .................................................................................................................................... 33 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 36 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 43 3.8 Frequency Stability ............................................................................................................................... 65 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 67 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 69 APPENDIX A. TEST PHOTOS ....................................................................................................................... A7 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................... B21 FCC RADIO TEST REPORT Report No. : FR262610-02AN SPORTON INTERNATIONAL INC. Page No. : 3 of 69 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions 0.72MHz: 28.24dBuV (17.76dB) - AV 27.89dBuV (28.11dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20MHz: 19.32 40MHz: 39.52 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5180-5240MHz: 12.53 5190-5230MHz: 12.51 Power [dBm] 5180-5240MHz: 17 5190-5230MHz: 17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5180-5240MHz: 1.38 5190-5230MHz: 2.35 PPSD [dBm/MHz] 5180-5240MHz: 4 5190-5230MHz: 4 Complied 3.5 15.407(a) Peak Excursion 9.13 dB 13 dB Complied 3.6 15.407(b) Transmitter Radiated Bandedge Emissions Restricted Bands [dBuV/m at 1m]: 5150.00M…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Co-location Report FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 4 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade from 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 5 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.7 Results of Radiated Emissions (9kHz~30MHz) Final Test Date Aug. 06, 2012 Test Site No. 03CH02-HY Temperature 24.1°C Humidity 64% Test Engineer Hsiao Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 6 of 11 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.8 Results of Radiated Emissions (30MHz~1GHz) Final Test Date Aug. 06, 2012 Test Site No. 03CH02-HY Temperature 24.1°C Humidity 64% Test Engineer Hsiao Configuration 5GHz and 2.4GHz test Horizontal FCC RADIO TEST REPORT Report No. : FR262610-02 SPORTON INTERNATIONAL INC. Page No. : 7 of 11 TEL : 886-3-327-345…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 1 FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Mode 2 FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR262610-02AC SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
