FDI000000008Blue LED wireless mouse

SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 1 of 8 1.0 Edition 2.4GHz Wireless Optical Mouse SRMB08 USER’S MANUAL Important Ergonomic Information Some experts believe that using any mouse may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS:
Take frequent breaks, get up and walk around several times every hour.
Vary your tasks throughout the day.
Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach.
Adjust your chair and keyboard so your upper arms and wrists are straight.
Avoid resting your wrists on sharp edges. System Requirement
Mouse compatible with standard Microsoft OS
If your computer’s operating system is Windows 98/ 98SE, please prepare the Windows98 or 98SE compact disk for system’s request during the installation of mouse. Before you begin
Keep this installation guide for future reference! It contains Important Troubleshooting Information.
Keep your old PS/2 or USB mouse as back-up devices. SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 2 of 8 1.0 Edition Getting Started Congratulations on your purchase of a 1,500dpi Wireless Optical Mouse. The 1,500dpi high resolution will bring users the best operation accuracy and efficiency, especially when the pixel of display over 1024*768 pixel. It operates at twice the speed and only requires 1/3 of the space in comparison to a 400 dpi mouse. Battery and power consumption is always the key issue for a wireless product, The SRMB08 designed a power on/off slide switch in the mouse bottom for saving more battery life, and low power indicator on the top of the mouse will blink to indicate battery low power. For loss prevention, the user can store the mini receiver into the bottom of the mouse. With numerous user-friendly functions and the compact and ergonomic design, the RF mouse may offer users the best experience of utilization and the most convenience in traveling. Package Contains Your SRMB08 Mouse package includes the following: 1. The wireless optical mouse 2. USB receiver 3. User’s manual 4. 2pcs AAA alkaline batteries Note：If any part is missing, please contact your dealer for a replacement immediately. SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 3 of 8 1.0 Edition Precaution For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the high illumination LED. A very dark surface will cause higher power consumption. For optimal performance, mouse should be no more than 5M away from receiver. For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will act as a shield or ground to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the transmission distance. If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook and when the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your desktop computer. SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 4 of 8 1.0 Edition Overview Button Definition Button Button Definition 1 st Left button 2 nd Right button 3 rd Middle button/ scrolling wheel 4 th Internet backwards 5 th Internet forwards 6 th Magnifier button Button #1 – Left mouse click Button #5 – Internet Forwards Button #4 – Internet Backwards Button#2–Right mouse click Button #3 – Middle Button Scrolling Wheel Button #6 – Magnifier Button Battery low indicator/ pairing SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 5 of 8 1.0 Edition Hardware Installation Guide (Mouse) Battery installation: 1. Remove the battery compartment cover. 2. Install batteries with the positive (+) & negative (-) in the correct direction indicated by the battery compartment label. 3. Replace battery compartment cover. (Caution: Do not look directly in to the optical emitter. Keep away from young children) Connect the receiver with computer. Plug in the USB receiver to any available USB port or hub connected to your computer. (Windows will now detect the mouse and install the required drivers automatically). JUST SIMPLY MOVING THE MOUSE, YOUR MOUSE IS NOW READY TO BE USED Note: * During normal use, please make sure that the mouse is no more than 5M away from the receiver in order to have reliable connection. SRMB08 2.4GHz Wireless 5 Buttons Optical Mouse Page 6 of 8 1.0 Edition Operation Guide BATTERY LOW INDICATION When battery becomes low, battery indicator LED on the top side of the mouse will flashing on/ off when moving or clicking the mouse. The mouse will continue to operate for a period of time depending on usage, but batteries should be replaced immediately. OPERATIONS ON POWER SAVING MODE In order to conserve battery power, the mouse is designed to reduce power consumption gradually from standby mode to sleep mode, if it is not being used. Stand by modes: The standby mode is entered immediately upon stopping moving mouse. The optical sensor of the mouse will reduce current consumption gradually. Sleep mode: When the RF link between the mouse and the receiver is stopped (Ex: host computer is turned off, or the mouse is out of range the mouse goes to sleep mode. In sleep mode, pressing any key can boring the mouse back to work. POWER ON/OFF: For the consideration of traveling purpose, this mouse designed a slide switch in the mouse bottom, provides power ON/ OFF function to avoid inadvertently waking up the mouse, saving more ba…

Text truncated - open the document above for the full version.

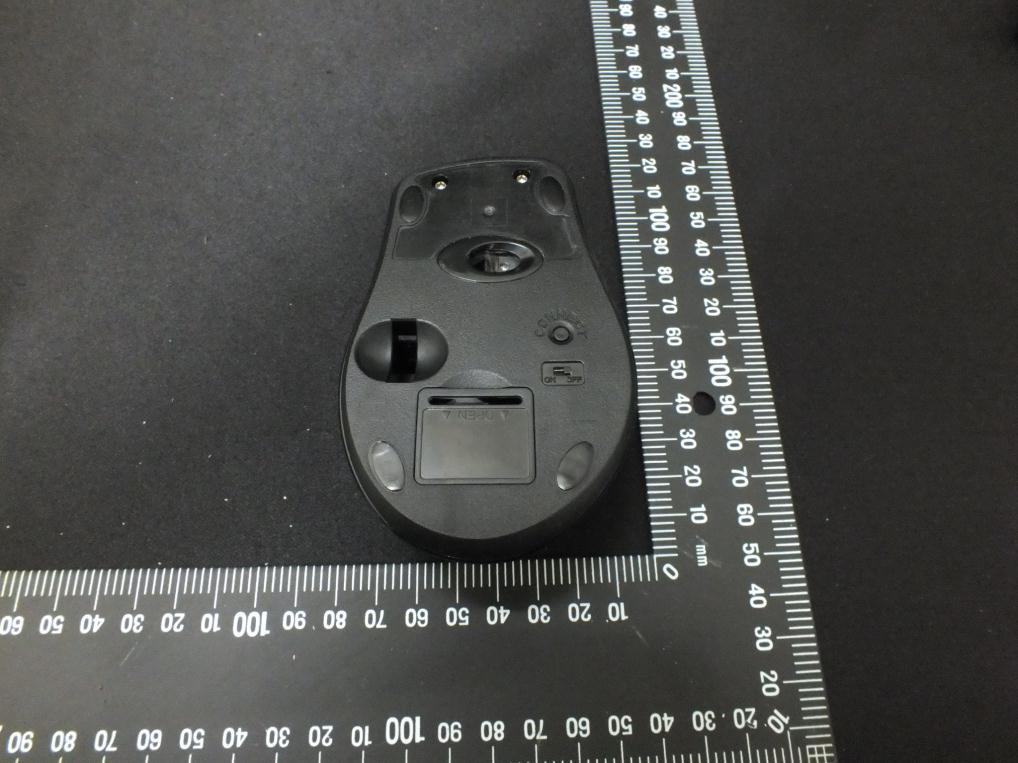

SPORTON International Inc. Page No. : B1 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 APPENDIX B. Photographs of EUT

In

E 6 5 4 A 3 2 1 AE BCDFGH 5 4 3 2 1 BCD - - + + 6 78-300-A26-02W 16.00 背膠區 10.00 11.30 0.10 5.80 5.80 12.00 16.00 ∅3.60 13.00 3.50 8.40 33.00 60.30 FCC ID: FDI000000008 iDA ID:N0664-13 CMIIT ID: 2013-XXX-XXX CCAIXXXXXXXXXX R33093

SPORTON International Inc. Page No. : B2 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 SPORTON International Inc. Page No. : B3 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 SPORTON International Inc. Page No. : B4 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 SPORTON International Inc. Page No. : B5 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 SPORTON International Inc. Page No. : B6 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911 SPORTON International Inc. Page No. : B7 of B7 TEL : 886-3-327-3456 Issued Date : Mar. 14, 2013 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR2N1911

FCC Test Report Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : 2 of 26 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 6 1.3 Testing Applied Standards ..................................................................................................................... 6 1.4 Testing Location Information .................................................................................................................. 6 1.5 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 The Worst Case Modulation Configuration ............................................................................................ 8 2.2 Test Channel Frequencies Configuration ............................................................................................... 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 8 2.4 Test Setup Diagram ............................................................................................................................... 9 3 TRANSMITTER TEST RESULT .......................................................................................................... 10 3.1 AC Power-line Conducted Emissions .................................................................................................. 10 3.2 Emission Bandwidth ............................................................................................................................. 11 3.3 Fundamental Emissions ....................................................................................................................... 13 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 15 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B1 FCC Test Report Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : 3 of 26 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions Not applicable The EUT consumes DC power. FCC 15.207 N/A 3.2 15.215(c) Emission Bandwidth 2.16 MHz; fall in band Information only Complied 3.3 15.249(a) Fundamental Emissions [dBuV/m at 3m]: 69.51 (Margin 24.49dB) average [dBuV/m at 3m]: average: 94 Complied 3.4 15.249(a)/ (d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4880.00MHz 46.71 (Margin 7.29dB) - AV Harmonics: 40 dBuV/m@3m Other band: 50 dB or FCC 15.209, whichever is the lesser attenuation. Complied FCC Test Report Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : 4 of 26 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR2N1911 Rev. 01 Initial issue of report Mar. 14, 2013 902 MHz – 928 MHz FCC Test Report Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : 5 of 26 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Modulation Ch. Frequency (MHz) Channel Number Fundamental Field Strength (dBuV/m) Co-location 2400-2483.5 GFSK 2406-2478 1-5 [5] 69.51 N/A Note 1: Field strength performed average level at 3m. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) External antenna (dedicated antennas) ; Unique antenna connector 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (EUT where the radio part is fully integrated within another device) Combined Equipment - Brand Name / Model No.: ... Plug-in radio (EUT intended for a variety of host systems) Host System - Brand Name / Model No.: ... Other: 1.1.4 Test Signal Duty Cycle Operated Mode for Worst Duty Cycle Operated normally mode for worst duty cycle Operated test mode for worst duty cycle Test Signal Duty Cycle (x) Duty Cycle Correction Factor [dB] – (20 log x) 10.52% 19.56 If worst duty < 100%, average emission = peak emission + 20 log x FCC Test Report Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : 6 of 26 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1.1.5 EUT Operational Condition Supply Voltage AC mains DC Type of DC Source Internal DC supply External DC adapter Battery Note: The equipment tests is performed using a new battery 1.2 Accessories and Support Equipment Accessories No. Equipment Brand Name Model Name Serial No. 1 - - - - Support …

Text truncated - open the document above for the full version.

Test Photos Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : A1 of A2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Radiated Emissions Test Configuration For radiated emission below 1GHz FRONT VIEW REAR VIEW Test Photos Report No. : FR2N1911 SPORTON INTERNATIONAL INC. Page No. : A2 of A2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emission above 1GHz FRONT VIEW REAR VIEW
