FDI000000010AirStation

Regulatory Compliance Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not pos- sible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Important Note - FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware pro- grammed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Industry Canada statement: Industrie Canada déclaration: CAN ICES-3(B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonc- tionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indé- sirable. Caution: Prudence: For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not pos- sible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Important Note - Radiation Exposure Statement: Note Importante - Déclaration d’exposition aux radiations: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

www.buffalotech.com User Manual AirStation WHR-600D AirStation WHR-300HP2 - 1 - Contents Chapter 1 - Product Overview .........................................5 Package Contents ...................................................................5 Hardware Overview .................................................................6 Front Panel LEDs ...........................................................................6 Back Panel .....................................................................................8 Bottom ............................................................................................9 Chapter 2 - Installation .....................................................10 Initial Setup .............................................................................10 Appendix A - Specifications .............................................13 WHR-600D ..............................................................................13 WHR-300HP2 .........................................................................15 Appendix B - Environmental Information .......................17 Appendix C - GPL Information ........................................18 - 2 - - 3 - - 4 - - 5 - Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. • AirStation .......................................................................................................................................1 • AirStation Setup Card ................................................................................................................1 • AC adapter .....................................................................................................................................1 • Ethernet Cable .............................................................................................................................1 • Quick Setup Guide ......................................................................................................................1 • Warranty Statement ...................................................................................................................1 1 2 3 5 4 - 6 - Chapter 1 Product Overview Hardware Overview Front Panel LEDs 1 AOSS buttonTo initiate AOSS, hold down this button until the wireless LED fl ashes (about 1 second). Then, push or click the AOSS button on your wireless client device to complete the connection. Both devices must be powered on for this to work. 2 Power/Diag LED (Green or Red) On (Green): Power is on. Off : Power is off . On (Green) *1 : Booting. 2 blinks (Red) *2 : Flash ROM error. 3 blinks (Red) *2 : Wired Ethernet LAN error. 4 blinks (Red) *2 : Wireless LAN error. 5 blinks (Red) *3 : IP address setting error. 9 blinks (Red) *2 : System error. Chapter 1 Product Overview - 7 - Continuously blinking *1 : Updating firmware, saving settings, or initializing settings. *1 Never unplug the AC adapter while the Buffalo LED is blinking continuously. *2 Turn off AirStation first, wait for a few seconds, then turn it back on. *3 Because the network addresses of both the Internet port (WAN port) and the LAN port are the same, it is not possible to establish communication. Change the LAN-side IP address of the AirStation. 3 Wireless LED (Green or Orange) On: Wireless LAN is enabled. Double blinks: AirStation is waiting for an AOSS or WPS security key. Continuously blinking: AOSS/WPS error; failed to exchange security keys. Off:Wireless LAN is disabled. Note: Wireless LED is Green : Security settings have been made for the wireless LAN. Wireless LED is Orange : Security settings have not been made for the wireless LAN. 4 Internet access LED (Green) On: Internet access is available. Off:Internet access is not available. Router functionality is disabled. 5 Router LED (Green) On: Router functionality is enabled. Off:Router functionality is disabled. 8 10 7 6 9 - 8 - Chapter 1 Product Overview Back Panel 6 Router Switch On: Router functionality is enabled (router mode). Off : Router functionality is disabled (bridge/AP mode). Auto: This switches between modes automatically based on whether or not another router is detected on the Internet port. The default setting for this switch is Auto. 7 LAN PortConnect your computer, hub, or other Ethernet devices to these ports. This switching hub supports 10 Mbps and 100 Mbps connections. 8 Internet Port10 Mbps and 100 Mbps connections are supported. Note: In bridge/AP mode (router off ), the Internet port becomes a regular LAN port, for a total of 5 usable LAN ports. 9 Reset buttonTo reset all settings, hold down this button until the Power LED turns red (about 3 seconds). The power must be on for this to work. 10 DC connectorConnect the included AC adapter here. 11 Chapter 1 Product Overview - 9 - Bottom 11 Setup card slotThis is the slot where the AirStation setup card is stored. The initial settings for the username, password, SSID, and encryption type are provided on the card for logging into Settings. disconnect modemcomputer modem LAN cable 1) connect 2) connect AirStation Internet port - 10 - Chapter 2 - Installation Initial Setup To confi gure your AirStation, follow the procedure below. 1 Verify that you can connect to the internet without the AirStation, then turn off your modem and computer. 2 Unplug the LAN cable which connects your computer and modem. 3 Plug one end of the LAN cable into your modem and the other end to the AirStation’s Internet (WAN) port. Turn on the modem. AirStation 1) connect 2) connect LAN cable computer AirStation Connect the power supply power outlet Chapter 2 Installation - 11 - 4 Once your computer has booted, the AirStation’s LEDs should be lit as described below: Power On. Wireless On. Internet access On. Router On. For LED locations, refer to chapter 1. Note: If the router LED is not lit, hold down the router button to switch to router mode. 5 If …

Text truncated - open the document above for the full version.

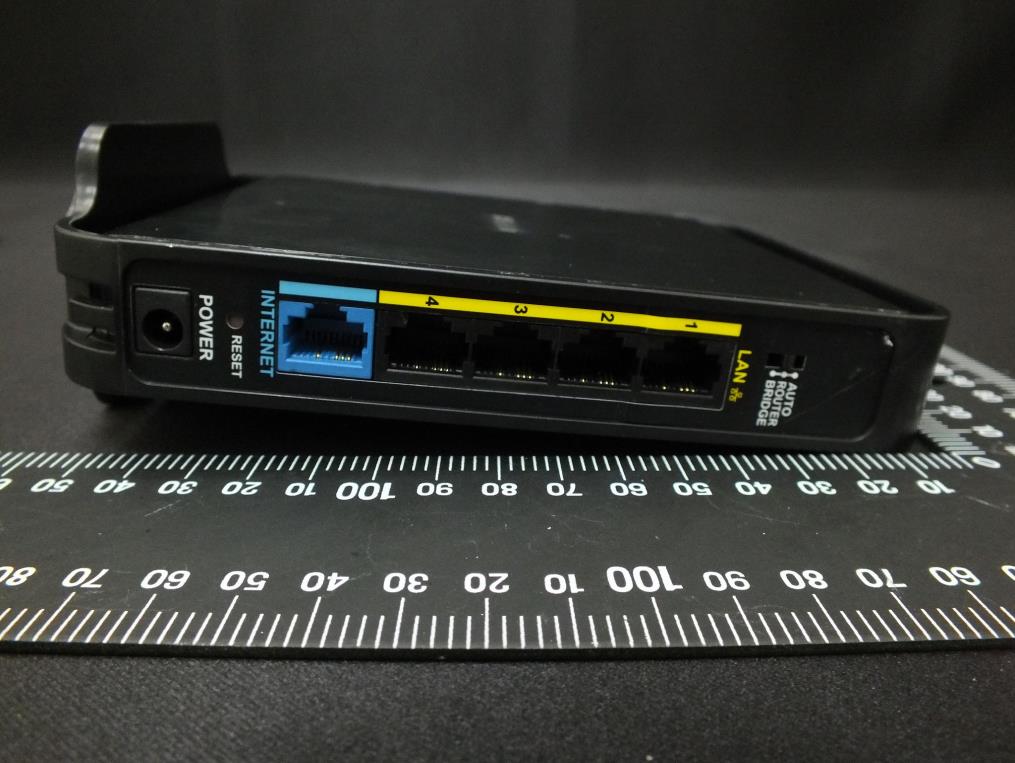

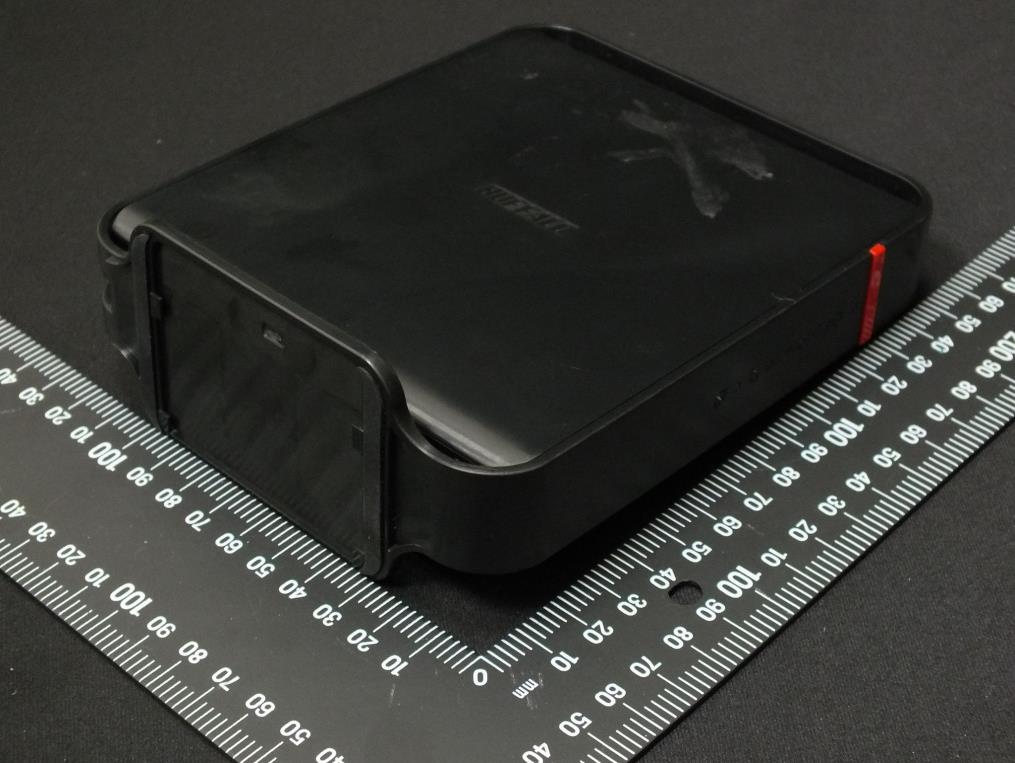

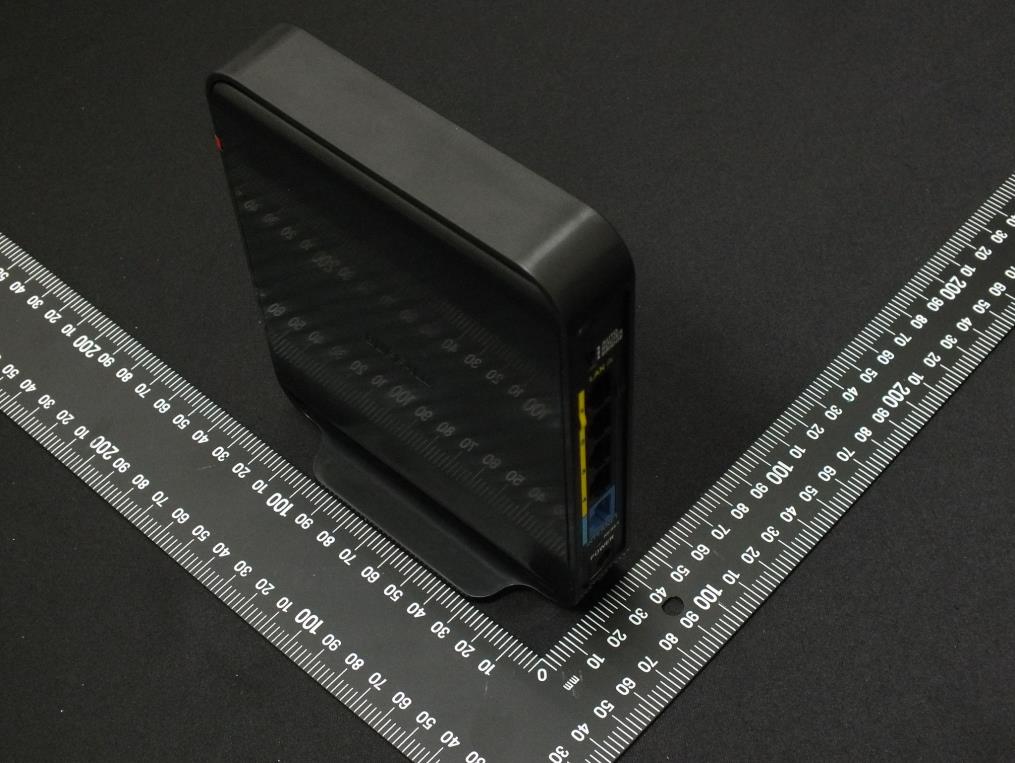

FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B1 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 Appendix B. Photographs of EUT FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B2 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B3 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973

Input:12V 1.0AModel: WHR-300HP2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) IC: 6102A-046 FCC ID: FDI000000010 E218211 I.T.E. Factory ID:cs001 PIN: XXXXXXXX B0A0 Key: XXXXXXXXXXXXX SSID(g): Buffalo-G-XXXX MAC: XXXXXXXXXXXX

Label Location

FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B4 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B5 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B6 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B7 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B8 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B9 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B10 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B11 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP331903 SPORTON International Inc. Page No. : B12 of B12 TEL : 886-3-327-3456 Issued Date : Mar. 26, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 Draft FCC EMF Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Draft FCC EMF Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 2 2 Uncorrelated 28.13 N/A g 2 2 Uncorrelated 27.35 N/A n (HT20) 2 2 Uncorrelated 27.32 N/A n (HT40) 2 2 Uncorrelated 24.11 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 2 25.03 25.21 - - 28.13 3 31.13 0.258 11G-20M 2 24.36 24.32 - - 27.35 3 30.35 0.216 11N2.4G-20M 2 24.21 24.41 - - 27.32 3 30.32 0.214 11N2.4G-40M 2 21.15 21.05 - - 24.11 3 27.11 0.102 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Draft

FCC Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 2 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 26 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 32 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 61 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B1 FCC Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 3 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.2007470MHz 41.73 (Margin 21.85dB) - QP 37.19 (Margin 16.39dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.62 / 40M: 36.87 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm]: 28.13 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: 1.71 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.00MHz: 33.66dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 69.79 (Margin 4.21dB) - PK 53.00 (Margin 1.00dB) - AV Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 58.72MHz 38.46 (Margin 1.54dB) - QP Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 4 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR331903 Rev. 01 Initial issue of report Mar. 26, 2013 2500-2690 FCC Test Report Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : 5 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 2 28.13 N/A 2400-2483.5 g 2412-2462 1-11 [11] 2 27.35 N/A 2400-2483.5 n (HT-20) 2412-2462 1-11 [11] 2 27.32 N/A 2400-2483.5 n (HT-40) 2422-2452 3-9 [7] 2 24.11 N/A Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently a…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW Test Photos Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emission below 1GHz FRONT VIEW REAR VIEW Test Photos Report No. : FR331903 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emission above 1GHz FRONT VIEW REAR VIEW
